SPECIFICATION
| SPECIFICATION | |
|---|---|
| Soten | |
| Document Support | Supports reading all international documents compliant with the ICAO DOC 9303 standard (passports, Hong Kong and Macao travel permits, German ID cards, etc.). Supports reading RFID chips from biometric travel documents according to the ICAO 9303 standard. |
| Automatic Trigger Recognition | Supports auto-sensing to trigger document reading when a document is placed on the device, which also works for documents without RFID chips. Can automatically capture the passport photo. |
| Light Source | Visible light, Infrared light (350nm), UVA ultraviolet light (365nm). |
| Anti-counterfeiting | Supports verification of UV features, infrared features, chip data, and cross-validation between OCR data and electronic chip content. |
| OCR | Supports OCR recognition of the ICAO-compliant MRZ (Machine Readable Zone) code on non-chipped passports. |
| RFID Reading | Supports ISO 14443 Type A/B specifications with a maximum speed of 848 Kbps. Supports ICAO 9303 LDS 1.7.1.8. |
| Automatic Classification | The system automatically distinguishes between document types. |
| Indicator Lights | Includes Power, Ready, Error, and Warning indicator lights. |
| Dimensions | Length × Width × Height: 165 × 142 × 80 mm. |
| Weight | 1 kg. |
| Operating Environment | Humidity: 20% to 95%. Temperature: -10°C to 50°C (Operating); -20°C to 50°C (Storage). |

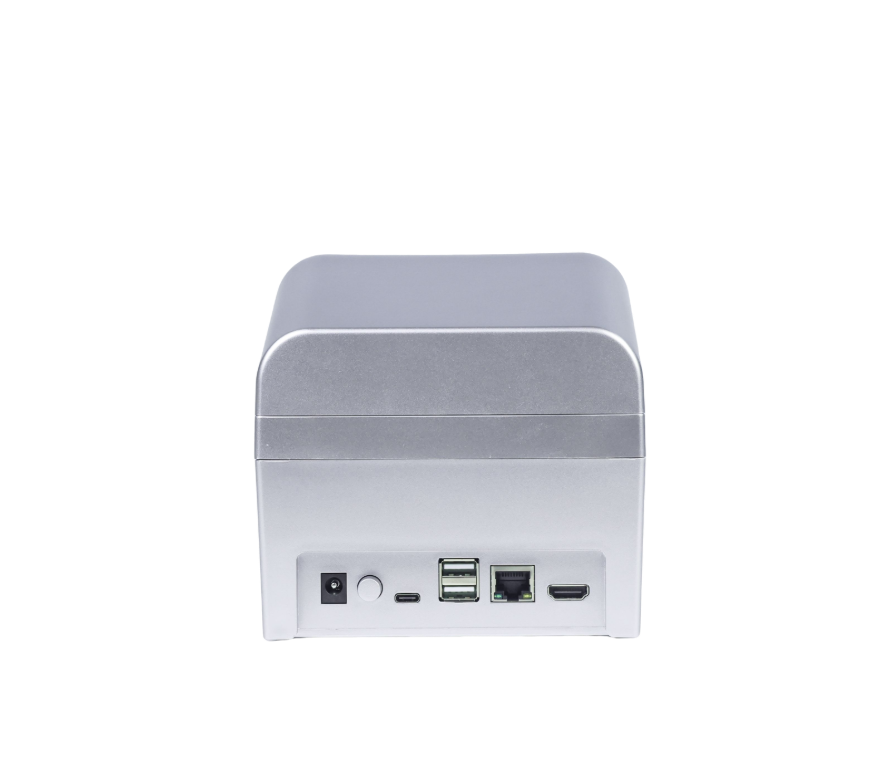

| Communication Interface | Data communication via USB Type-C 2.0, comes standard with a 1.5m USB cable with a magnetic ring. Supports dual USB input. Supports Ethernet communication. |
| Power Supply | Standard power adapter: Input AC 100–240V 50-60Hz; Output DC 12V 5A. |
| Display Interface | Supports HDMI connection to a monitor to display document reading results. |
| System Support | Windows XP, Windows 7, Windows 10, Linux 5.1.X and above, Android 10 and above. |
| Photo Formats | BMP, JPG, PNG. |
| Firmware Update | The device is updated by connecting to a computer via the Type-C cable. |
| Interface Integration | Provides USB-to-serial data interface documentation. Supports retrieval of the following information: Machine Readable Zone (MRZ) code; RFID chip data according to the ICAO 9303 standard; Personal image from the RFID chip; Fingerprint data from RFID chip authentication. |
*Please contact customer service for details on parameters and functions.
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
