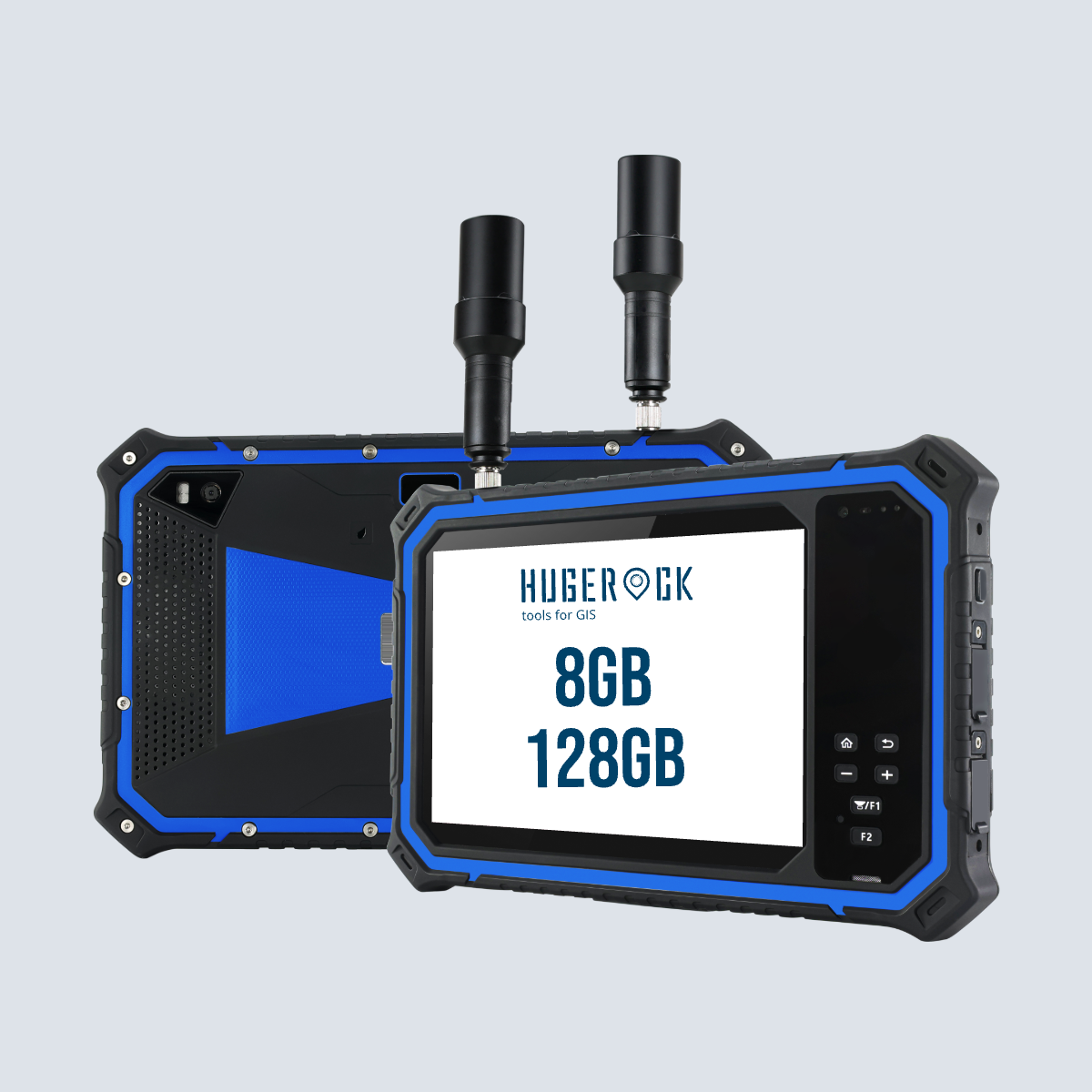

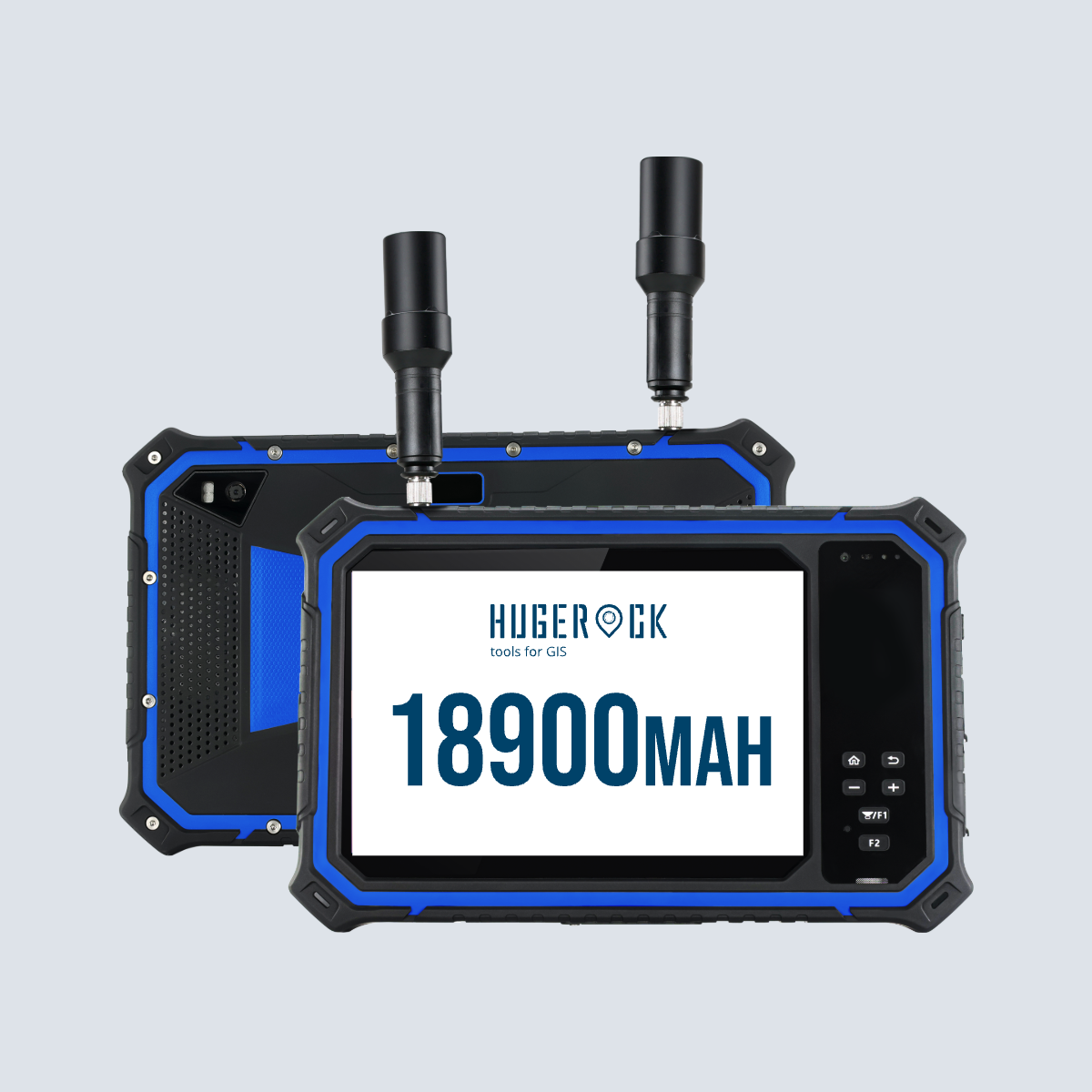

ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 18900mAh High-capacity Battery.

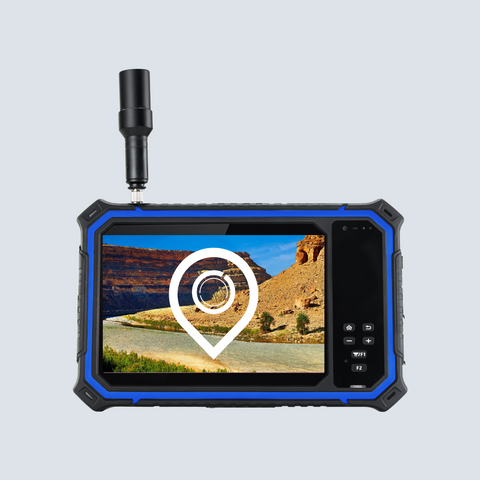

HUGEROCK G80M rugged waterproof industrial ip67 4g lte wifi 8gb ram android tablet pc full system full frequency rtk positioning
Key attributes Industry-specific attributes Screen Size 8" Memory Capacity 8GB Display resolution 1920*1200 Operating System Android 9/10/11/13...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MORE FAST MOREPOWERFUL
ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 18900mAh High-capacity Battery.
ULTRA-BRIGHT AND
HIGH-SATURATION
1000 nits+ FHD ultra-bright,high-saturation and sunlight readable.
ULTRA-BRIGHT AND
HIGH-SATURATION
ULTRA-BRIGHT AND
HIGH-SATURATION
1000 nits+FHD ultra-bright,high-saturation and sunlight readable.
HIGH RELIABILITY
IP67, Waterproof, dustproof shockproof, shock resistant.
HIGH
RELIABILITY
HIGH RELIABILITY
IP67, Waterproof, Dustproof Shockproof, shock resistant.
FAST, ACCURATE AND
HIGH-PRECISION
RTK centering rod, precise point positioning with RTK GNSS.
FAST, ACCURATE AND
HIGH-PRECISION
FAST, ACCURATE AND
HIGH-PRECISION
RTK centering rod, Precise Point Positioning with RTK GNSS.
SUPER STRONG SIGNAL ADAPTABILITY
Improve survey performance in challenging GNSS environments.
SUPER STRONGSIGNAL ADAPTABILITY
SUPER STRONG SIGNAL ADAPTABILITY
Improve survey performance in challenging GNSS environments.
LIGHTWEIGHT
AND EASY TO CARRY
RTK usability greatly improved, and potentialhuman error reduced.
LIGHTWEIGHT
AND EASYTO CARRY
LIGHTWEIGHT AND EASY
TO CARRY
RTK usability greatly improved, and potentialhuman error reduced.
REAL-TIME
COMMUNICATIONS
Integrated 4G, Wi-Fi,Bluetooth and NFC modules provide seamless connection to tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections to base-rover configurations. GNSS RTK corrections can be accessed or broadcasted continuously for accurate positioning in all circumstances.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
Integrated 4G, Wi-Fi,Bluetooth and NFC modules provide seamless connection to tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections to base-rover configurations. GNSS RTK corrections can be accessed or broadcasted continuously for accurate positioning in allcircumstances.
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
APPEARANCE
| 1. Type-A (Sealed Cover) | 2. Front camera |
| 3. Light sensor | 4. Charging light |
| 5. Home button | 6. Back button |
| 7. Volume up | 8. Volume Down |
| 9. Scan button | 10. Custom button |
| 11. Speaker | 12. Power button |
| 13. SIM/TF (Sealed Cover) |
14. Type-c (Sealed Cover) |
| 15. Antenna | 16. MIC |
| 17. 4pin pogo pin (magnetic) |
18. Main camera |
| 19. Nameplate |
| 1: Type-A (Sealed Cover) |
| 2: Front camera |
| 3: Light sensor |
| 4: Charging light |
| 5: Home button |
| 6: Back button |
| 7: Volume up |
| 8: Volume Down |
| 9: Scan button |
| 10: Custom button |
| 11: Speaker |
| 12: Power button |
| 13: SIM/TF (Sealed Cover) |
| 14: Type-c (Sealed Cover) |
| 15: Antenna |
| 16: MIC |
| 17: 4pin pogo pin (magnetic) (Optional) |
| 18: Main camera |
| 19: Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core(2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card ( T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card(T-FLASH card) : max 256GB |
| Charging interface | Type-C, 4pin pogo pin (magnetic) |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation vector sensor | support |
| Acceleration sensor | support |
| Gyro sensor | support |
| Light-sensor | support |
| Proximity sensor | support |
| Temperature pressure sensor | Optional |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 256*159*32mm (L×W×H) |
| Weight | 1015g |
| Color & Material | Blue(PC+ABS)+black(TPU) |
| Communications & Networking | |
| Phone Call | GSM/WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| Wi- Fi | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 70℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m(15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C /FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay. Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc |
| OS | Android 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable / Charger 5V 2A / Introduction manual / Screen protector / Aircraft box / Toolkit / SIM Card Ejector x 1 |
EXTERNAL
| EXTERNAL HELIX ATENNA ITEMS | |
| Antenna | Multi-satellite multi-frequency omnidirectional |
| Antenna frequency band | BDS B1/B2/B3; GPS L1/L2; GLONASS G1/G2; GALILEO E1/E5b |
| Antenna size | Φ27.5*107.5mm |
| Installation method | SMA 90 degree omnidirectional |
| Horizontal coverage | 0°~360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dB |
| Maximum gain | 2.5dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode full- band module (mm-level RTK) |
| Signal (tracking frequency) | BDS B1I/B2I/B3I/B1C/B2a/B2b* GPS L1C/A/L1C*/L2P (Y)/L2C/L5 GLONASS G1/G2/G3* Galileo E1/E5a/E5b/E6* QZSS L1/L2/L5 |
| Channel | 1408 channels, based on Nebula5IV |
| Single-point positioning accuracy | P:1.5m E: 2.5m CEP (with SBAS) |
| RTD Accuracy | P:0.8cm + 1 ppm CEP E:1.5cm + 1 ppm CEP |
| Nav. update rate | 20Hz |
| Cold start | <30s |
| Hot start | < 20s |
| Aided start | < 1s |
| Cors data | RTCM v3.3/3.2/3.1/3.0 |
| Data Format | NMEA-0183, Unicore |
| Inertial navigation | none |
| EXTERNAL HELIX ATENNA ITEMS | |
| Antenna | Multi-satellite multi-frequency omnidirectional |
| Antenna frequency band | BDS B1/B2/B3; GPS L1/L2; GLONASS G1/G2; GALILEO E1/E5b |
| Antenna size | Φ27.5*107.5mm |
| Installation method | SMA 90 degree omnidirectional |
| Horizontal coverage | 0°~360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dB |
| Maximum gain | 2.5dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode full- band module (mm-level RTK) |
| Signal (tracking frequency) | BDS B1I/B2I/B3I/B1C/B2a/B2b* GPS L1C/A/L1C*/L2P (Y)/L2C/L5 GLONASS G1/G2/G3* Galileo E1/E5a/E5b/E6* QZSS L1/L2/L5 |
| Channel | 1408 channels, based on Nebula5IV |
| Single-point positioning accuracy | P:1.5m E: 2.5m CEP (with SBAS) |
| RTD Accuracy | P:0.8cm + 1 ppm CEP E:1.5cm + 1 ppm CEP |
| Nav. update rate | 20Hz |
| Cold start | <30s |
| Hot start | < 20s |
| Aided start | < 1s |
| Cors data | RTCM v3.3/3.2/3.1/3.0 |
| Data Format | NMEA-0183, Unicore |
| Inertial navigation | none |
NTRIP CLIENT
An NTRIP Client is the software element used by the rover (the GNSS devices out in the field) used to connect to an NTRIP Caster such as SNIP to gain access to the data stream with the positional corrections it needs. There can be many hundreds of such clients connected to Caster, each connected to a different data stream provided by it.
An NTRIP Client is the software element used by the rover (the GNSS devices out in the field) used to connect to an NTRIP Caster such as SNIP to gain access to the data stream with the positional corrections it needs. There can be many hundreds of such clients connected to Caster, each connected to a different data stream provided by it.
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
