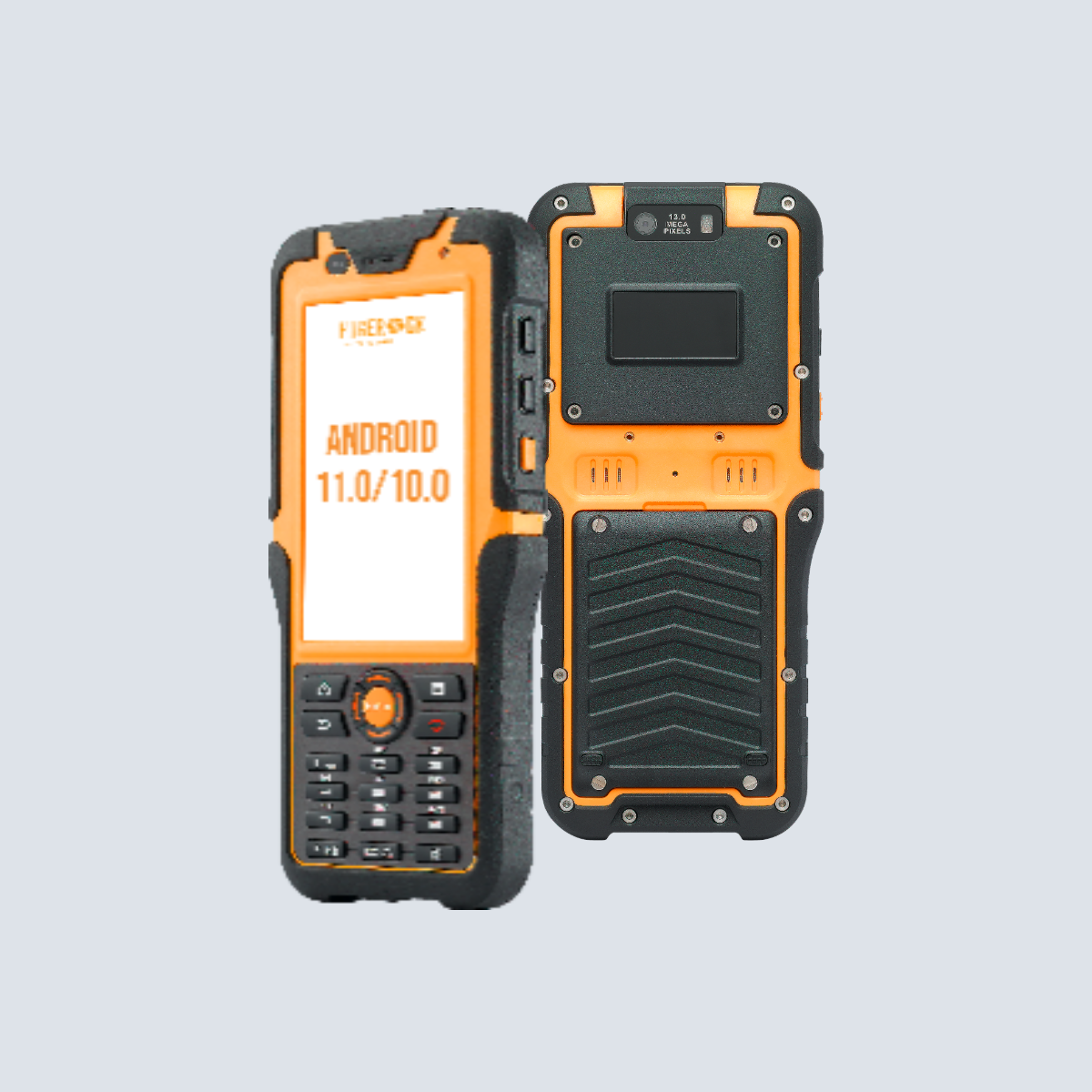

1. Power Button | 2. Scan Button |
3. Mic | 4. Barcode Scanner (Optional) |
5. Earphone (Sealed Cover) | 6. Light sensation |
7. Handset | 8. Charge lamp |
9. Home | 10. Arrow And Confirm Button |
11. Menu Button | 12. Back Button |
13. Number Button | 14. Power On/off |
15. * Button | 16. # Button |
17. 2pin Pogo Pin | 18. Type-c (Sealed Cover) |
19. Volume Up | 20. Volume Down |
21. Main Camera (Optional) | 22. Function Box (Optional) |
23. Nameplate | 24. Speaker |
25. Battery |
1 | Power Button |
2 | Scan Button |
3 | Mic |
4 | Barcode Scanner (optional) |
5 | Earphone (sealed Cover) |
6 | Light sensation |
7 | Handset |
8 | Charge lamp |
9 | Home |
10 | Arrow And Confirm Button |
11 | Menu Button |
12 | Back Button |
13 | Number Button |
14 | Power On/off |
15 | $* Button |
16 | # Button |
17 | 2pin Pogo Pin |
18 | Type-c(sealed Cover) |
19 | Volume Up |
20 | Volume Down |
21 | Main Camera(optional) |
22 | Function Box(optional) |
23 | Nameplate |
24 | Speaker |
25 | Battery |
Hardware | |
---|---|
CPU | ARM Cortex A73 octa-core (2.0GHz) |
GPU | ARM Mali-G72 MP3 |
RAM | 4G |
Internal Memory | 32G |
External Memory | Micro SD card(T-FLASH card), max 256GB |
Main Camera | 13.0MP(AF) with flash led |
Sub Camera | N/A |
Battery | 5000mAh (Replaceable battery) |
Display | 4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable |
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
IO/Sensor/Navigation | |
SIM Card | 1.8/3.3V SIM card |
TF Card | Micro SD card (T-FLASH card); max 256GB |
Headphone | 3.5mm (CTIA) |
Charging Interface | Type-C & 2pin pogo pin |
Data interface | USB Type-C(OTG) *1 |
Gravity sensor | Support |
Motion sensor | Support |
Direction Sensor | Support |
Magnetic Field Sensor | Support |
Gyro sensor | Support |
Rotation Vector | Support |
Light-sensor | Support |
Acceleration sensor | Support |
Charger | 5.0V 2A -10W |
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Appearance | |
Size | 197*92*26.5mm (L×W×H) |
Weight | 420g |
Color & Material | Black&yellow Black&green Black&Gray |
Communications & Networking | |
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
2G Band | GSM (B2/3/5/8) |
3G | WCDMA 3.75G (HSDPA + 42.2 Mbps, HSUPA +11.5Mbps), EVDO |
3G Band | WCDMA (B1/2/5/8) , Evdo: BC0/BC1 CDMA: BC0/BC1 |
4G | FDD: 150Mbps down, 50Mbps UP TDD : 150Mbps downlink, 50Mbps uplink |
4G Band | TD-LTE (B38/39/40/41) ; FDD LTE ( B1/2/3/4/5/7/8/12/17/20/28) |
WI-FI | Dual-band WiFi (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
Bluetooth | 5.0 Low Energy (LE) |
Industrial & Reliability Design | |
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
Waterproof | Class 5 ( IEC 60529 ) |
Dustproof | Class 6 ( IEC 60529 ) |
Reliability | MTBF>50000h; MTTR<0.5h |
Operating temperature | -20℃ to 55℃ |
Storage Temperature | -40℃ to 80℃ |
RH | 5% to 95% |
Operating Altitude | Max: 4,500 m (15,000 feet) |
Certification/OS/Software | |
Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
OS | Android 9/10/11 (Continuous Update) |
Package/Warranty terms/OEM | |
Warranty | 24 months |
OEM/ODM | Support |
Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |
Extension 1 | |
---|---|
UHF module | (M500 ASTM) + Antenna (M500 EN) + Antenna |
LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
1D/2D Barcode module | |
RS232 module | |
NFC module | |
Other customer supply modules | Need to meet the interface conditions : Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
Extension 2 | |
NFC module | (When the RFID and NFC modules are selected at the same time, the NFC card swiping area moves to this position) |
Extension | ||
---|---|---|
1 | UHF module | (M500 ASTM) + Antenna (M500 EN) + Antenna |
LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
|
HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
|
1D/2D Barcode module | ||
RS232 module | ||
NFC module | ||
Other customer supply modules | Need to meet the interface conditions: Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. | |
2 | NFC module | (When the RFID and NFC modules are selected at the same time, the NFC card swiping area moves to this position) |
Boot screen | Lengthways |
Boot screen background color | White, light color |
Boot screen resolution | 540*960 |
Program 1 | |
---|---|
C: | Black |
M: | Acrylic or PET |
F: | Silk screen process |
Nameplate size: | 37.5*20mm |
Example: |
Boot screen:lengthways |
Boot screen background color:white, light color |
Boot screen resolution:540*960 |
Program 1 C:Black | |
M:Acrylic or PET | |
F:silk screen process |
Nameplate size:37.5x20mm | |
Example: |
Data Collection | ||
---|---|---|
E20 | Scanning engine | E20 Barcode Module |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
Barcode reader Optional 2D module | |
2D Barcode Module N1 N12D PDF417, QR Code, Micro QR, Data Matrix 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOM EAN13(13mil)65-350mm, PDF417(6.7mil)50-125mm , Code39(5mil)40-150mm, Data Matrix(10mil)45-120mm , QR Code(15mil)30-170mm |
RFID Reader Optional LF HF UHF |
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
RFID Reader Optional LF HF UHF |
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
Optional base | |
115*83*88(L*W*H) |
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
