HUGEROCK S50EX Nfc Sunlight Readable Dual Sim Card 500 nit 5000mAh 1d 2d Barcode Scanner reader IP67 rugged pda android handheld

Key attributes Industry-specific attributes Operating System Android 9/10/11/13 (Continuous updates) Style Handheld Computer Memory Capacity 8GB Other...
Vendor: SOTEN
Availability: In Stock
HUGEROCK S50EX Nfc Sunlight Readable Dual Sim Card 500 nit 5000mAh 1d 2d Barcode Scanner reader IP67 rugged pda android handheld

HUGEROCK S50EX Nfc Sunlight Readable Dual Sim Card 500 nit 5000mAh 1d 2d Barcode Scanner reader IP67 rugged pda android handheld

$238.00 $238.00

HUGEROCK S50EX Nfc Sunlight Readable Dual Sim Card 500 nit 5000mAh 1d 2d Barcode Scanner reader IP67 rugged pda android handheld

$238.00 $238.00

    PRODUCT DESCRIPTION

    img1_alt

    MORE FAST

    ARM Cortex A73 octa-core (2.0GHz) processor solution and 8G RAM.

    soten
    part1_img_alt__pc

    MORE

    FAST

    MORE FAST

    ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
    soten

    INTRINSIC SAFETY

    5000mAh replaceable intrinsic safety battery, can work continuously for 12 hours. Do not charge and replace batteries in explosive atmospheres

    soten
    soten

    INTRINSIC

    SAFETY

    INTRINSIC SAFETY

    5000mAh replaceable intrinsic safety battery, can work continuously for 12 hours.
    soten
    soten
    xx
    xx

    FULL RUGGED

    Industrial protection grade IP66, MIL-810G Drop-proof 6ft.

    xxx

    FULL

    RUGGED

    FULL RUGGED

    Industrial protection grade IP66, MIL-810G Drop-proof 6 ft.
    xx

    PRACTICAL AND FLEXIBLE

    The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions,T9 keyboard input can be used in more environments.

    soten
    xx

    PRACTICAL AND

    FLEXIBLE

    PRACTICAL AND FLEXIBLE

    The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions,T9 keyboard input can be used in more environments.
    soten
    soten
    img1_alt

    REAL-TIME COMMUNICATIONS

    To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.

    soten
    soten
    soten

    REAL-TIME

    COMMUNICATIONS

    REAL-TIME COMMUNICATIONS

    To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
    soten
    soten
    soten
    xx

    CONVENIENCE

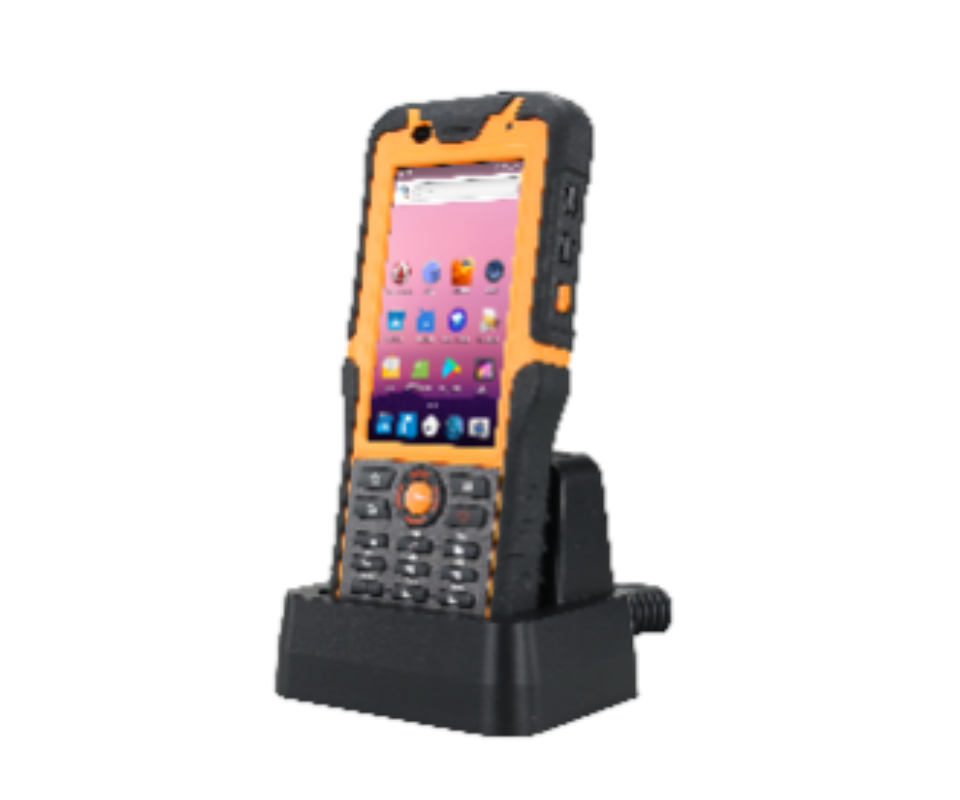

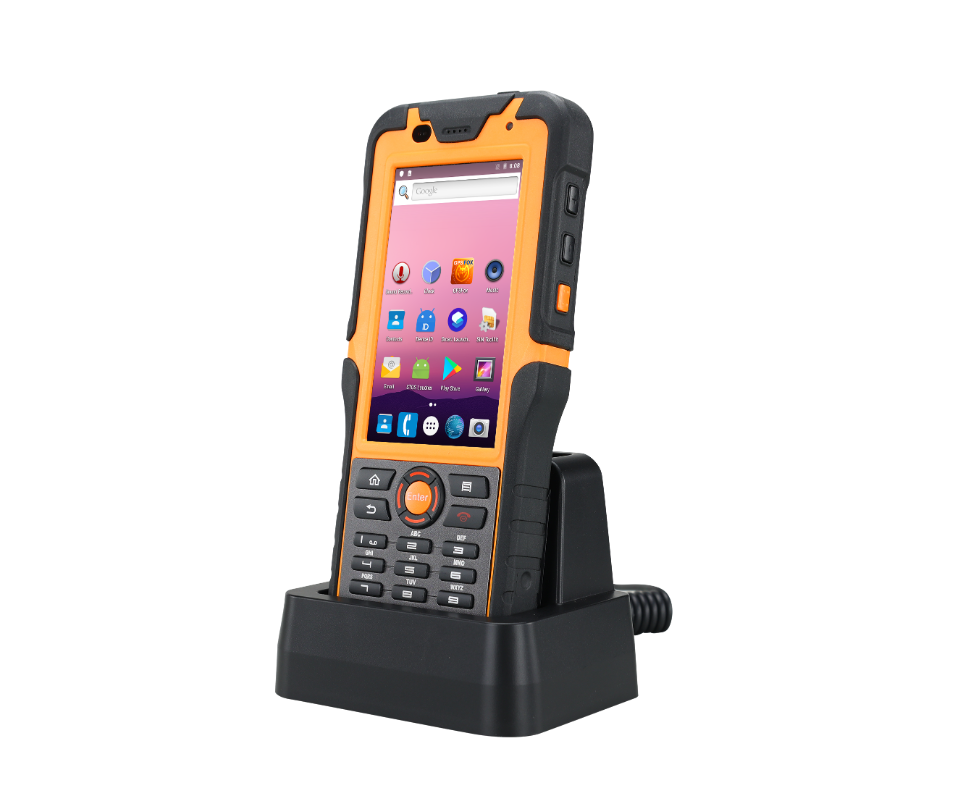

    The fast charging base is more convenient and practical.

    CONVENIENCE

    CONVENIENCE

    The fast charging base is more convenient and practical.
    xx

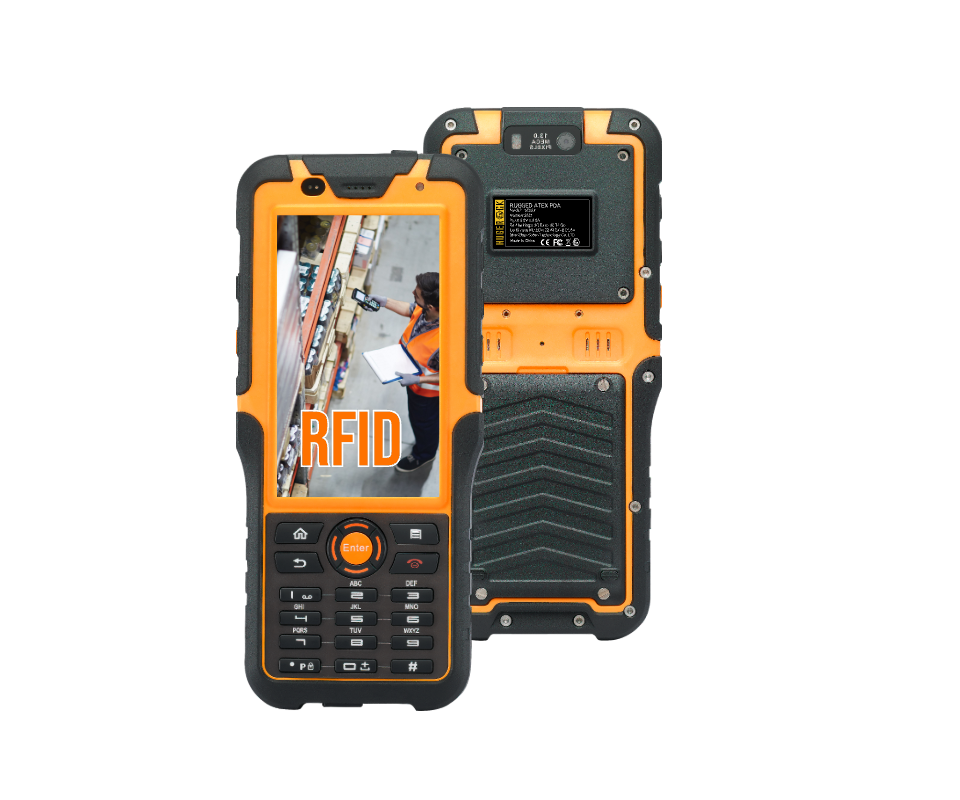

    APPEARANCE

    xx
    xx
    xx
    1. Power button 2. Scan button
    3. MIC 4. Barcode scanner (optional)
    5. Earphone (Sealed Cover) 6. light sensation
    7. Handset 8. Charge lamp
    9. Home 10. Arrow and confirm Button
    11. Menu Button 12. Back Button
    13. Number Button 14. Power ON/OFF
    15. * Button 16. # Button
    17. 2pin pogo pin 18. Type-C (Sealed Cover)
    19. Volume up 20. Volume Down
    21. Main camera (optional) 22. Function box (optional)
    23. Nameplate 24. Speaker
    25. Battery
    xx
    1. Power button
    2. Scan button
    3. MIC
    4. Barcode scanner (optional)
    5. Earphone (Sealed Cover)
    6. light sensation
    7. Handset
    8. Charge lamp
    9. Home
    10. Arrow and confirm Button
    11. Menu Button
    12. Back Button
    13. Number Button
    14. Power ON/OFF
    15. * Button
    16. # Button
    17. 2pin pogo pin
    18. Type-C (Sealed Cover)
    19. Volume up
    20. Volume Down
    21. Main camera (optional)
    22. Function box (optional)
    23. Nameplate
    24. Speaker
    25. Battery

    TECHNICAL SPECIFICATIONS

    Hardware
    CPU ARM Cortex A73 octa-core (2.0GHz )
    GPU ARM Mali-G72 MP3
    RAM 8G
    Internal Memory 128G
    External Memory Micro SD card(T-FLASH card), max 256GB
    Main Camera 13.0MP(AF) with flash led
    Sub Camera N/A
    Battery 5000mAh (Replaceable battery)
    Display 4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable
    Touch Panel apacitive/frosted tempered film supports glove touch/spray/active capacitive pen
    IO/Sensor/Navigation
    SIM Card 1.8/3.3V SIM card
    TF Card Micro SD card (T-FLASH card); max 256GB
    Headphone 3.5mm (CTIA)
    Charging interface Type-C & 2Pin pogo pin
    Data interface USB Type-C(OTG)*1
    Gravity sensor support
    Motion sensor support
    Direction Sensor support
    Magnetic Field Sensor support
    Gyro sensor support
    Rotation Vector support
    Light-sensor support
    Acceleration sensor support
    Charger 5.0V 2A-10W
    Navigation GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
    Appearance
    Size 197*92*26.5mm (LxWxH)
    Weight 420g
    Color & Material Black&yellow Black&green Black&Gray
    Communications & Networking
    Phone Call GSM /WCDMA/CDMA 1X/VoLTE
    2G GSM/CDMA 1X/EDGE/GPRS/WAP
    2G Band GSM (B2/3/5/8)
    3G WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
    3G Band WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1
    4G FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
    4G Band TD-LTE (B38/39/40/41) ; FDD LTE(B 1/2/3/4/5/7/8/12/17/20/28)
    WI- FI Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
    Bluetooth 4.2 Low Energy (LE)
    Industrial & Reliability Design
    Shake-proof 1-19Hz/1.0mm; 19-200Hz/1.0g
    Dropproof /IK MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
    Waterproof Class 5 ( IEC 60529 )
    Dustproof Class 6 ( IEC 60529 )
    Reliability MTBF=5000h; MTTR=0.5h
    Operating temperature -20℃ to 55℃
    Storage Temperature -40℃ to 80℃
    RH 5% to 95%
    Operating Altitude Max: 4,500 m (15,000 feet)
    Certification/OS/Software
    Certification ATEX/3C/FCC/CE/ROHS/IP65 (IEC 60529)
    Language English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc
    OS Android 10 / 11
    Ex-Marking II 2G Ex ib IIB T4 Gb
    Certificate NO. ECM 22 ATEX-B DU54
    Package/Warranty terms/OEM
    Warranty 24 months
    OEM/ODM Support
    Package USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional)

    OPTIONAL MODULES

    xx
    Extension1
    1 UHF module (M500 ASTM) + Antenna
    (M500 EN)+Antenna
    LF RFID module 125K LF ID card (8H-10D)
    125K LF ID card (10D)
    125K LF HID card module
    134K LF animal tag module
    HF RFID module 13.56M HF module (single protocol)
    13.56M HF module (multi-protocol)
    1D/2D Barcode module
    RS232 module
    NFC module
    Other customer supply modules Need to meet the interface conditions: Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V.
    Extension
    1 UHF module (M500 ASTM) + Antenna
    (M500 EN)+Antenna
    LF RFID module 125K LF ID card (8H-10D)
    125K LF ID card (10D)
    125K LF HID card module
    134K LF animal tag module
    HF RFID module 13.56M HF module (single protocol)
    13.56M HF module (multi-protocol)
    1D/2D Barcode module
    RS232 module
    NFC module
    Other customer supply modules Need to meet the interface conditions: Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V.

    OPTIONAL MODULES & ACCESSORIES

    xx
    Barcode reader
    Optional 2D module
    2D Barcode Module N1
    N12D PDF417, QR Code, Micro QR, Data Matrix
    1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,
    ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5,
    AIM128, Plessey, MSI-Plessey 640*480 CMOS
    EAN13 (13mil) 65-350mm, PDF417 (6.7mil) 50-125mm,
    Code39 (5mil) 40-150mm, Data Matrix (10mil) 45-120mm,
    QR Code (15mil) 30-170mm
    xx
    Barcode reader
    Optional 2D module
    2D Barcode Module N1
    N12D PDF417, QR Code, Micro QR, Data Matrix
    1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,
    ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5,
    AIM128, Plessey, MSI-Plessey 640*480 CMOS
    EAN13 (13mil) 65-350mm, PDF417 (6.7mil) 50-125mm,
    Code39 (5mil) 40-150mm, Data Matrix (10mil) 45-120mm,
    QR Code (15mil) 30-170mm
    xx
    RFID Reader
    Optional LF HF UHF
    125K LF RFID Module
    support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305
    Read distance 2-5cm
    (optional HID card support)
    13.56M HF RFID or NFC Module
    13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated
    Read distance 2-5cm
    134K LF RFID Module
    Operation Frequency: 134.2k
    Hzsupport agreement: ISO11784/5Read distance >5cm
    Working mode: FDX-B(full-duplex communication)
    UHF RFID Module/antenna
    Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional)
    Output range: 0-26 dBm
    Output accuracy: +/- 1dB
    Output power level: +/- 0.2dB
    Read distance: 1.5-2m(2db antenna test card E41)
    xx
    RFID Reader
    Optional LF HF UHF
    125K LF RFID Module
    support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305
    Read distance 2-5cm
    (optional HID card support)
    13.56M HF RFID or NFC Module
    13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated
    Read distance 2-5cm
    134K LF RFID Module
    Operation Frequency: 134.2k
    Hzsupport agreement: ISO11784/5Read distance >5cm
    Working mode: FDX-B(full-duplex communication)
    UHF RFID Module/antenna
    Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional)
    Output range: 0-26 dBm
    Output accuracy: +/- 1dB
    Output power level: +/- 0.2dB
    Read distance: 1.5-2m(2db antenna test card E41)
    xx
    Optional base
    115*83*88(L*W*H)

    OEM/ODM

    Product Line
    Research and Design
    Professional Validation
    Software Customization
    High-Qaulity Services
    Professional Certification
    Modular Customization
    Product Quality Testing

    Product Qualification

    WORRY-FREE, Focus on quality for 14 years

    Life cycle is greater than 5 years
    Two-Year Warranty For Device
    Unpacking Failure, Free Replacement Whitin 30 Days
    More Than 100 Units, 1% Space Parts Gurantee
    HARDWARE CUSTOMIZATION
    • 1 ID Custom Design
    • 2 MD Custom Design
    • 3 PCBA Custom Development
    • 4 Module Custom Developmennt
    • 5 Nameplate Logo Customization
    • 6 Packaging Custom Design
    SOFTWARE CUSTOMIZATION
    • 1 Boot Screen Customization
    • 2 System Function Hiding
    • 3 Built-in Customer App
    • 4 Customer App Auto-launch
    • 5 Platform Software Integration
    • 6 Fixed MAC Address
    • 7 Download Prohibition
    • 8 Intercom App
    • 9 USB Disablement
    • 10 System Model Customization
    • 11 APP Installation and Uninstallation Control
    • 12 Pre-installed APK
    • 13 Physical Button Disablement
    • 14 Camera Control
    • 15 Provide System Signing Files

    FAQ

    Q: Are you the manufacturer?

    A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.

    Q: Can other GIS software using serial port data work directly on your device?

    A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.

    Q: Does it come with GIS application software?

    A: Yes we have GIS software, but it requires a fee.

    Q: Can you customize and pre-install our software?

    A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.

    Q: Can it do differential without internet?

    A: No, it requires internet to do differential.

    Q: What is the minimum order quantity?

    A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.

    Q: Can we get free samples?

    A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.

    Q: How to order and pay?

    A: We accept T/T (bank transfer), Alibaba online payment, Western Union.

    Q: What is your product warranty?

    A: We provide 24 months warranty after shipping.

    Q: Can I extend the warranty period?

    A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.

    Q: How long is the delivery time?

    A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.

    Q: How to repair if there are device issues?

    A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
