FAP20
FAP20 MODULE

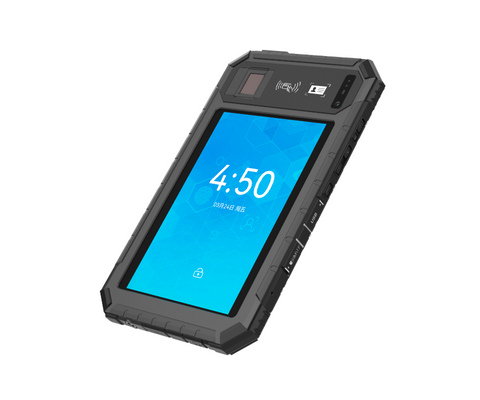

HUGEROCK B81 Rugged Android Tablet Administration Public Security Devices Integrated Writer Tablet PC 7 Inch USB Type C
Key attributes Industry-specific attributes Screen Size 8" Memory Capacity 8G Display resolution 1200*1920 Operating System Andriod 11.0/13.0...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
8 INCH FAP10 FINGERPRINT DATA COLLECTION AND VERIFICATION PLATFROM
HUGEROCK B81
8 Inch FAP20 Fingerprint Data Collection and Verification Platfrom
Can be applied to security, justice, inspection, entry-exit,notarization, banking, securities, hotels, social security, education, transportation, place registration, personnel recruitment, and other application environments that need toverify the biological characteristics of personnel.
FAP20 MODULE
E20 BARCODE MODULE
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
ACCURATELY
IDENTIFY
E20 BARCODE MODULE
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
NFC
Can integrate NFC, barcode and other industrial data collection modules.
NFC
NFC
Can integrate NFC, barcode and other industrial data collection modules.
ISO7816
ISO7816 contact reader module can be integrated.
ISO7816
ISO7816
ISO7816 contact reader module can be integrated.
1000NIT
1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
1000NIT
1000NIT
1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
POWERFUL
10000mAh battery，can work continuously for 12 hours.
POWERFUL
POWERFUL
10000mAh battery，can work continuously for 12 hours.
FULL RUGGED
Industrial protection grade IP67，MIL-810G Drop-proof 5ft.
FULL RUGGED
FULL RUGGED
Industrial protection grade IP67，MIL-810G Drop-proof 5ft.

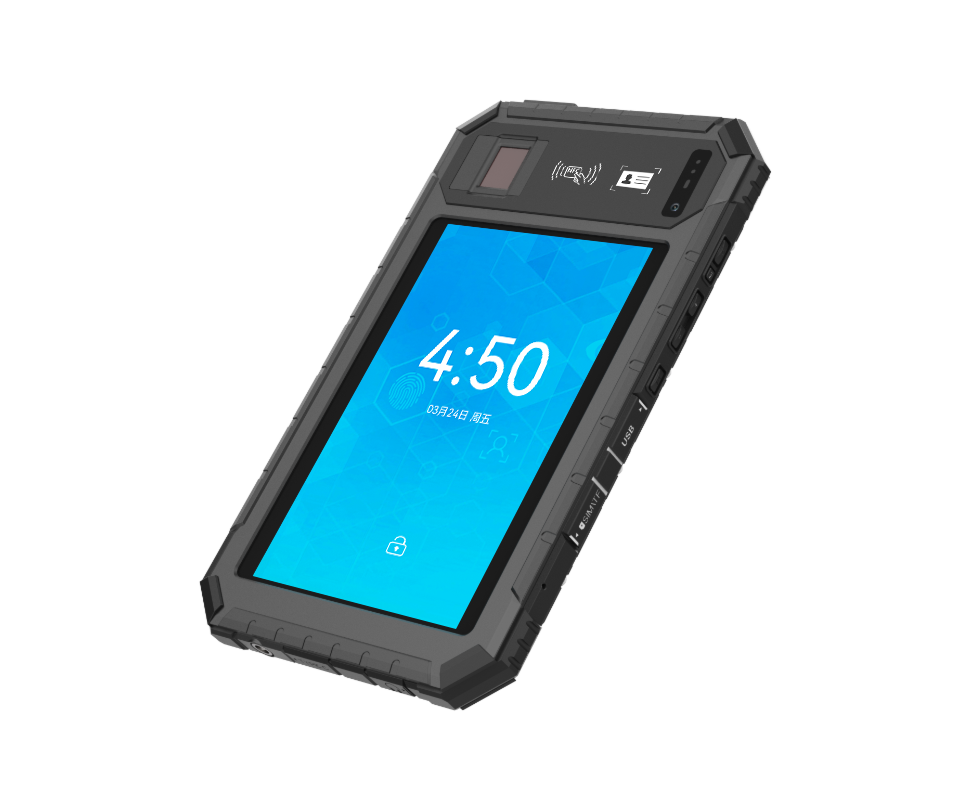

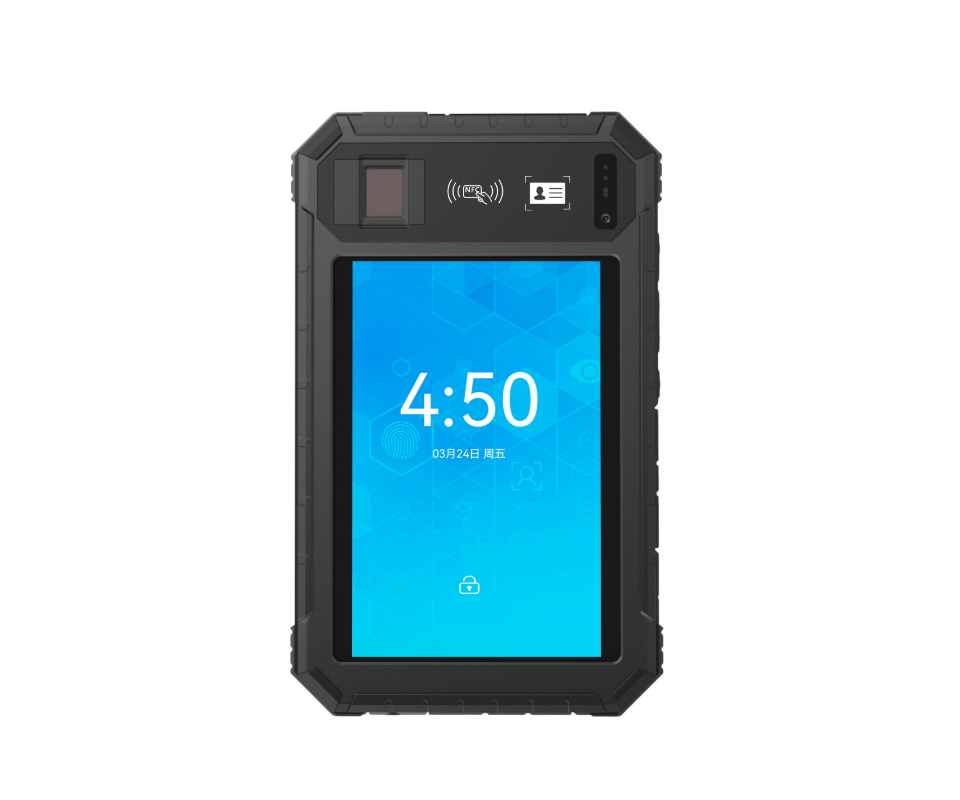

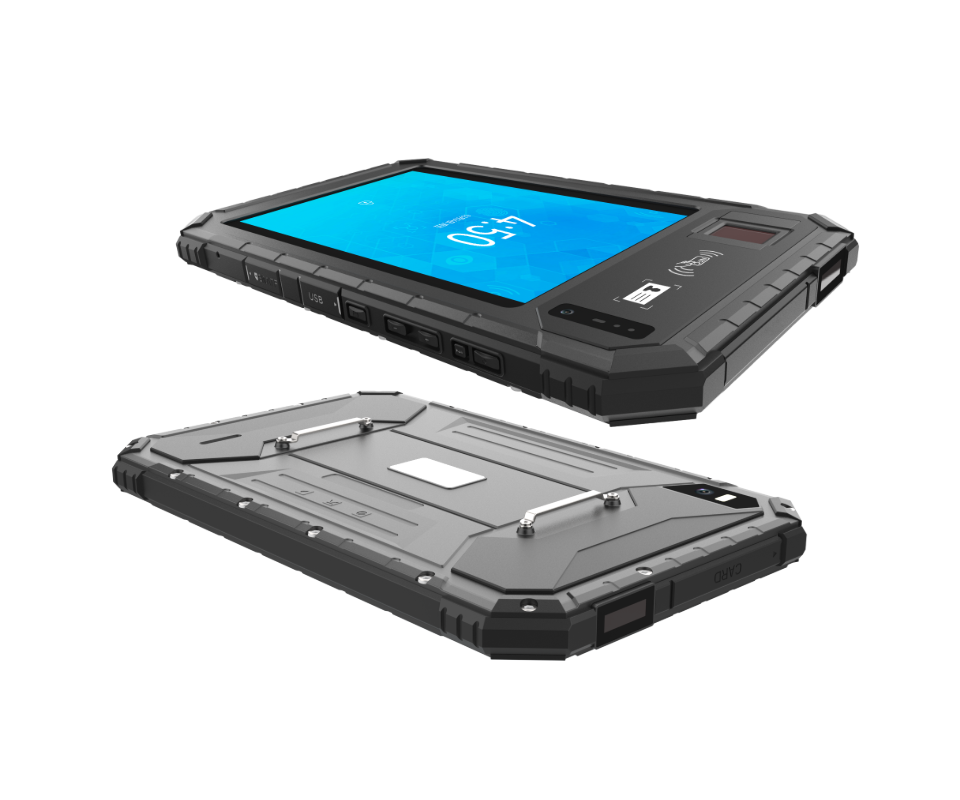

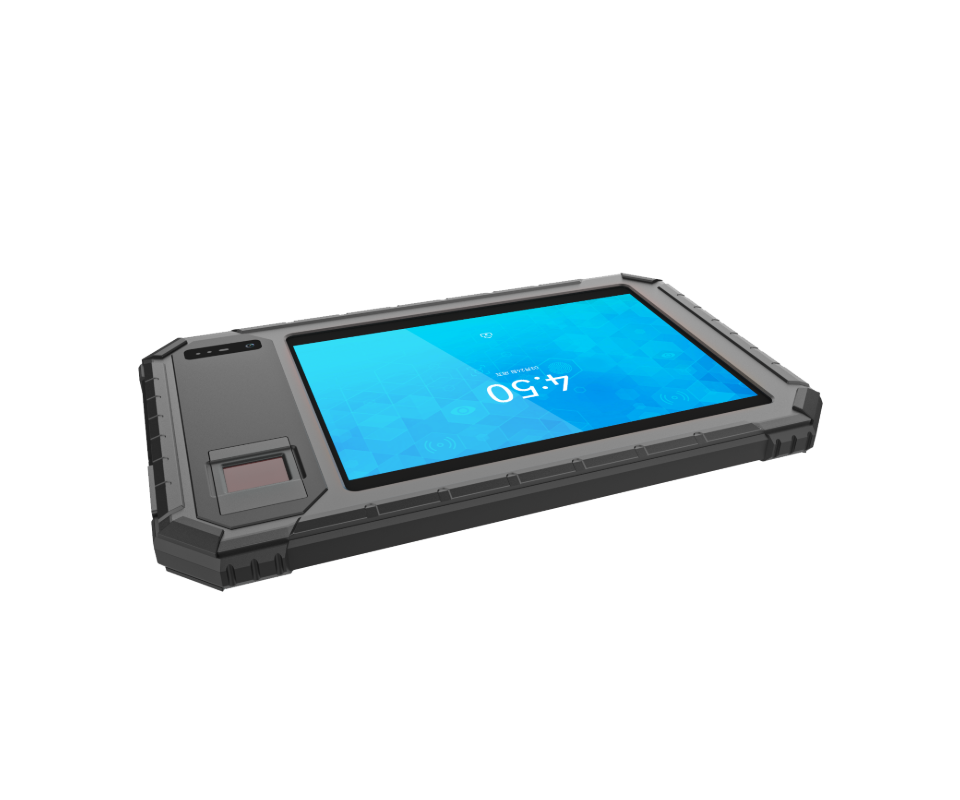

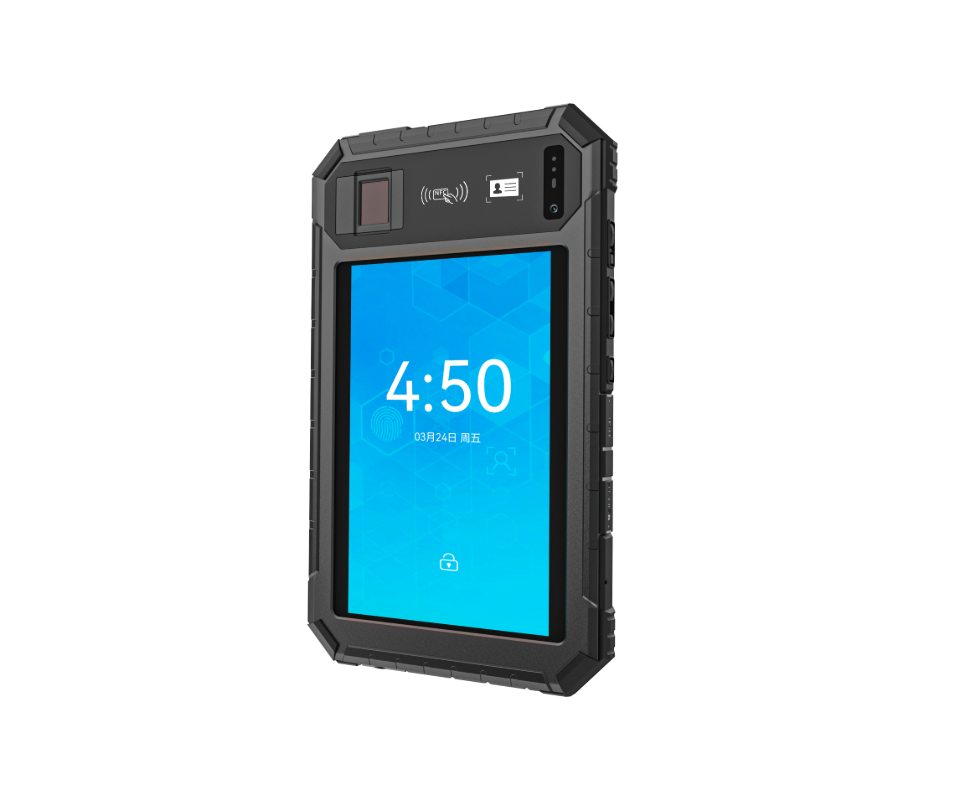

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight - Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| DC charging interface | DC5521 5.0V 2A~10W |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A~10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 267*164.6*20.6mm (L×W×H) |
| Weight | 1015g |
| Color & Material | Black (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps up TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (?B38/39/40/4); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| BT | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Certification/OS/Software | |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit (optional)/SIM Card Ejector |
FUNCTION MODULES
| NFC | ||
 |
Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693,NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2~5cm | |
| Data Collection | ||
| E20 | Scanning engine | E20 Barcode Module |
 |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
| Thin film optical fingerprint sensor | ||
 |
||
| 1D | SM-92M | |
| Sensor Type | Optical CMOS | |
| Live Detection | support | |
| Image Resolution | 500DPI | |
| Image size | 300X400 pixel (W*H) | |
| Image grayscale leve | 256 | |
| Executive standard | Compliant with ISO 19749: 2021 certification standard FBI-PIV&FAP20 standard | |
| ISO7816 contact card reader module | ||
 |
Support card type | Common logic encryption IC card and T=0, 1 protocol CPU card |
| Support Agreement | Support for 1 SAM card according to GSM 11.11 (optional) | |
| NFC | ||
|---|---|---|
| NFC | Frequency | 13.56MHz |
 |
Protocol standard | ISO14443A/B, ISO15693, NFC |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |
| Data Collection | ||
| E20 | Scanning engine | E20 Barcode Module |
 |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. |
| 1D | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
| Verification and collection | ||
 |
Thin film opticalfingerprint sensor | FAP20 SM-92M |
| Sensor Type: Optical CMOS | ||
| Live Detection: support | ||
| Image Resolution: 500DPI | ||
| Image size: 300X400 pixel (W*H) | ||
| Image grayscale leve: 256 | ||
| Compliant with ISO 19749: 2021 certification standard FBI-PIV&FAP20 standard | ||
| C1 contact read/write module | ||
 |
Card reading time | Common logic encryption IC card and T=0, 1 protocol CPU card |
| Reading distance | Support for 1 SAM card according to GSM 11.11 (optional) | |
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
