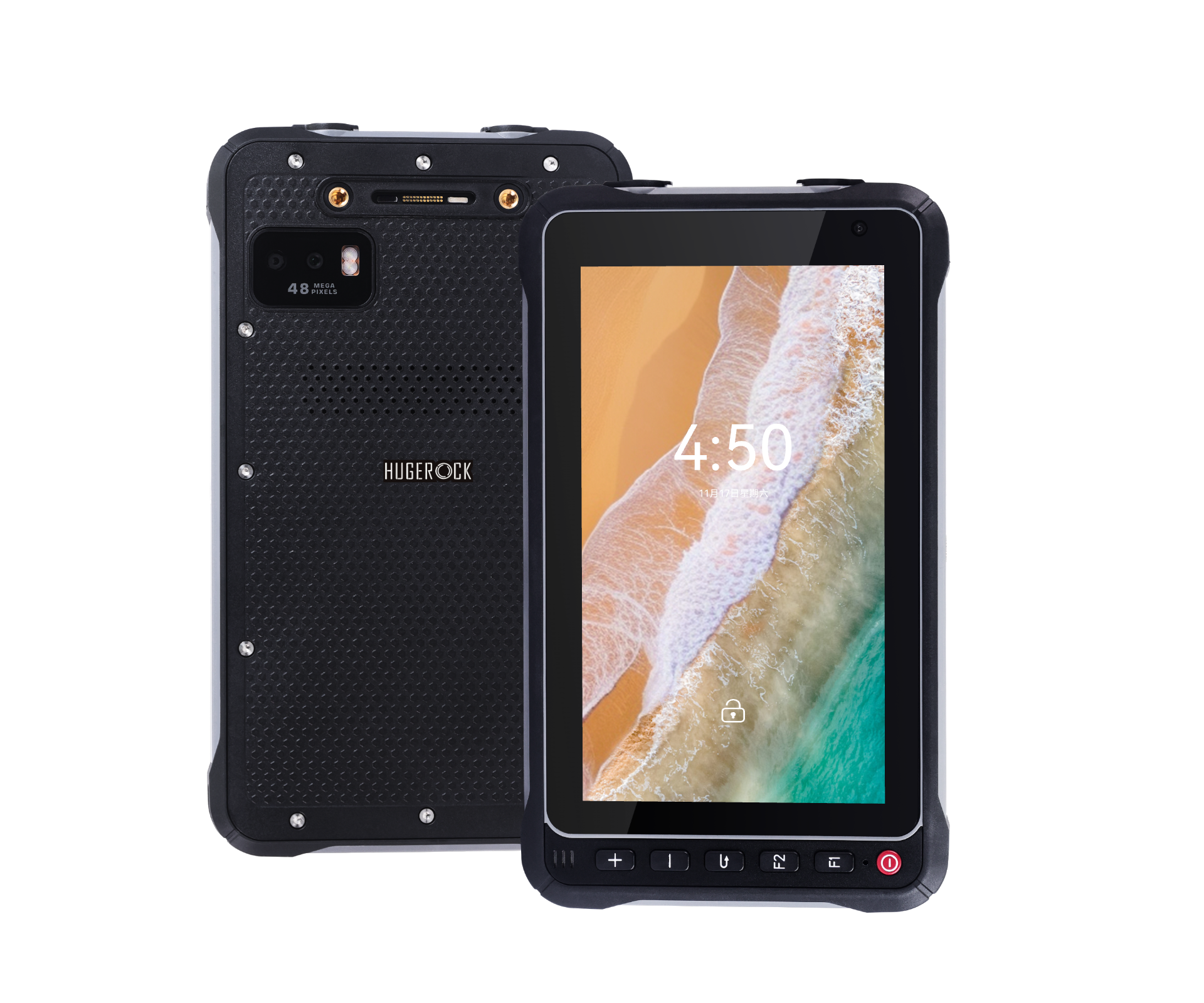

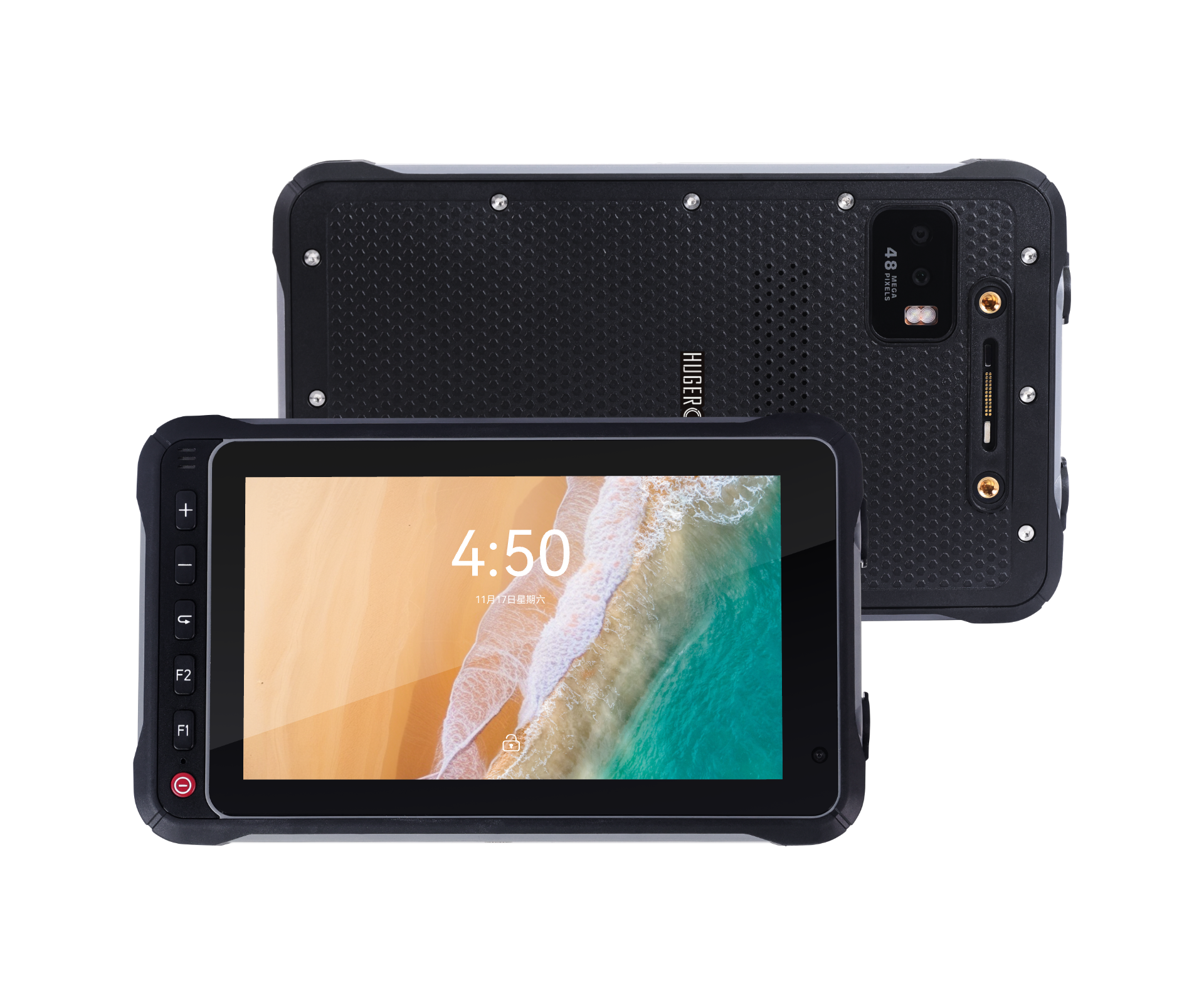

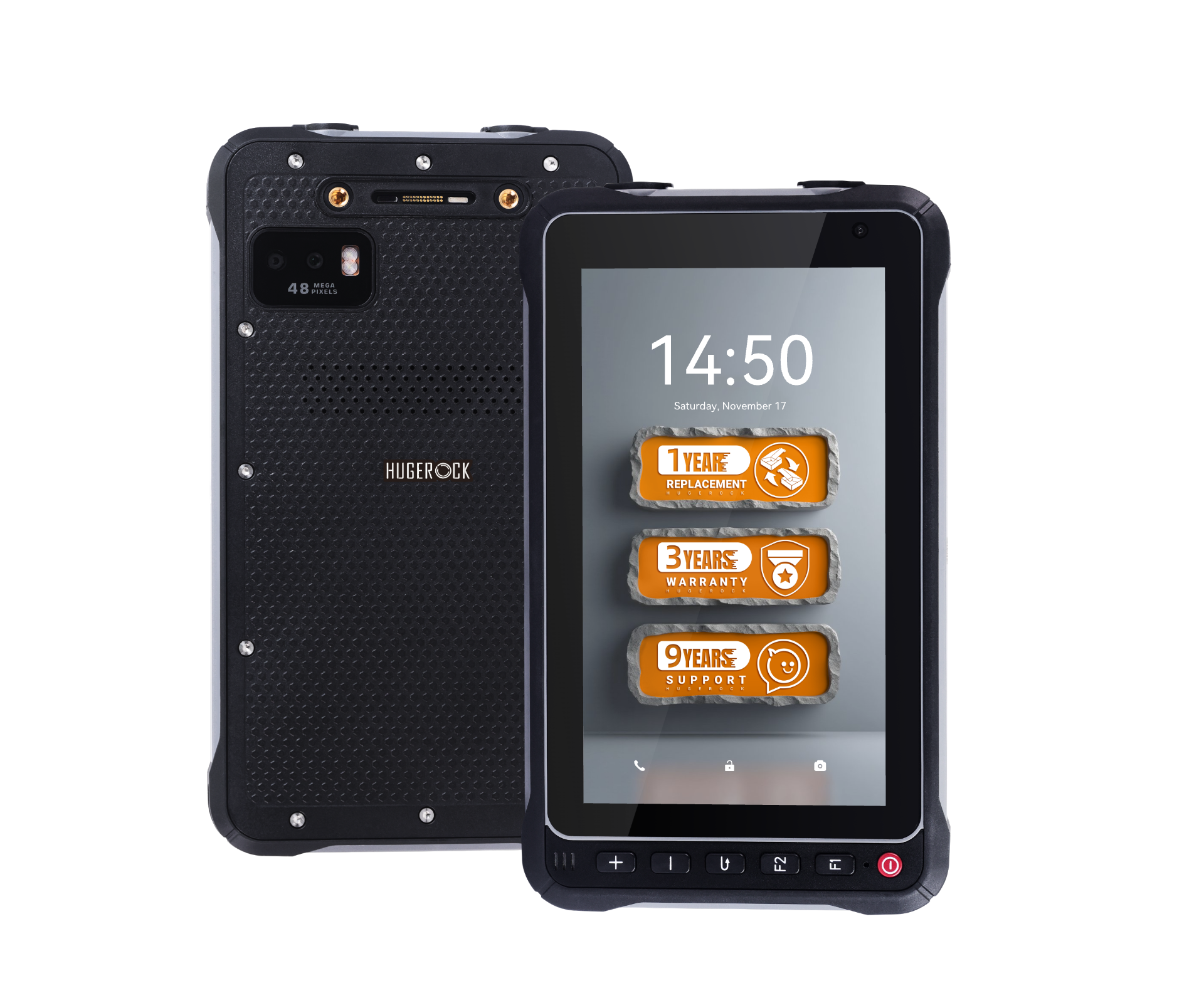

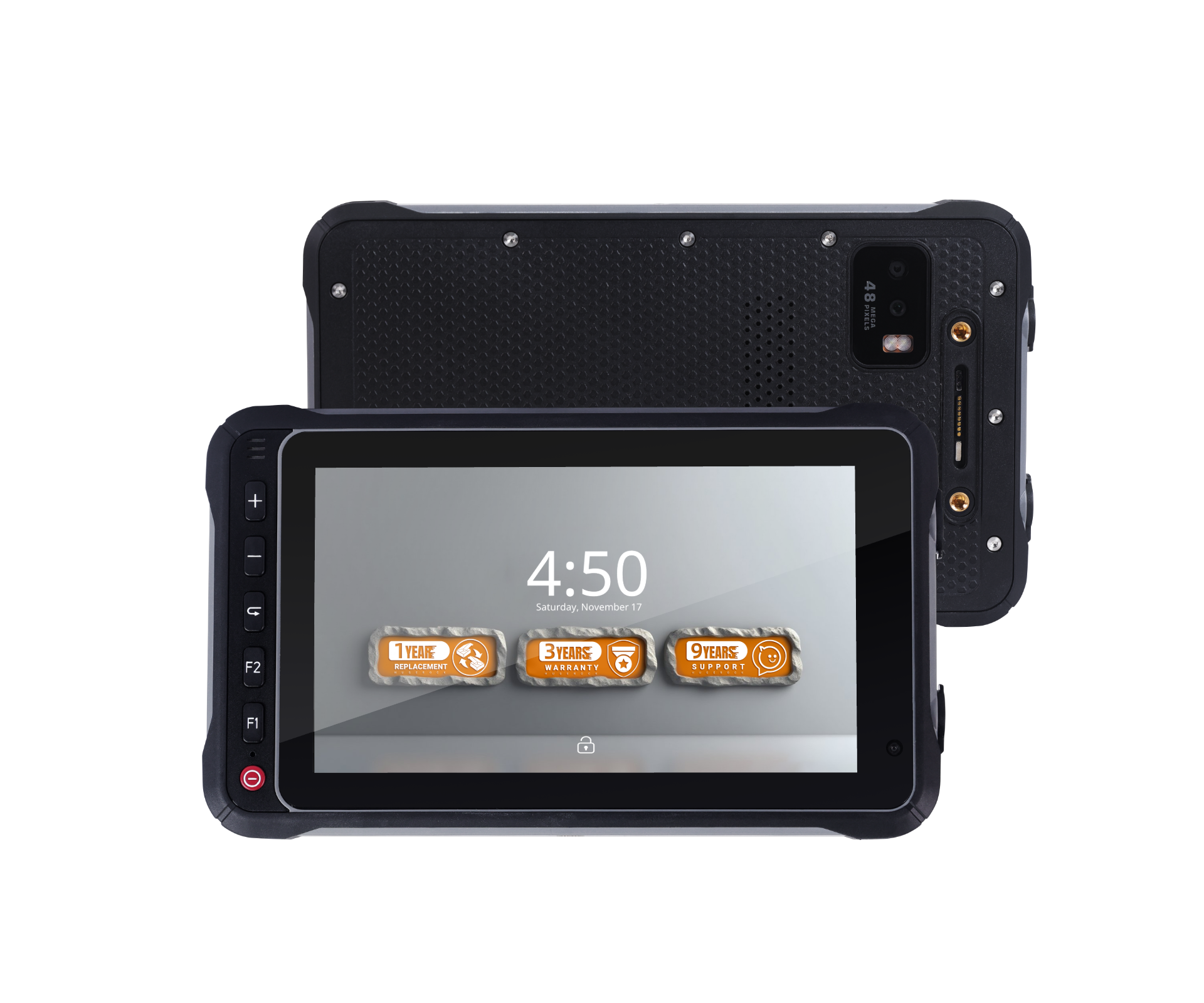

7-inch Rugged Mobile Terminal
7-inch Rugged Mobile Terminal
7-inch 1080×1920 ultra-high-definition display screen

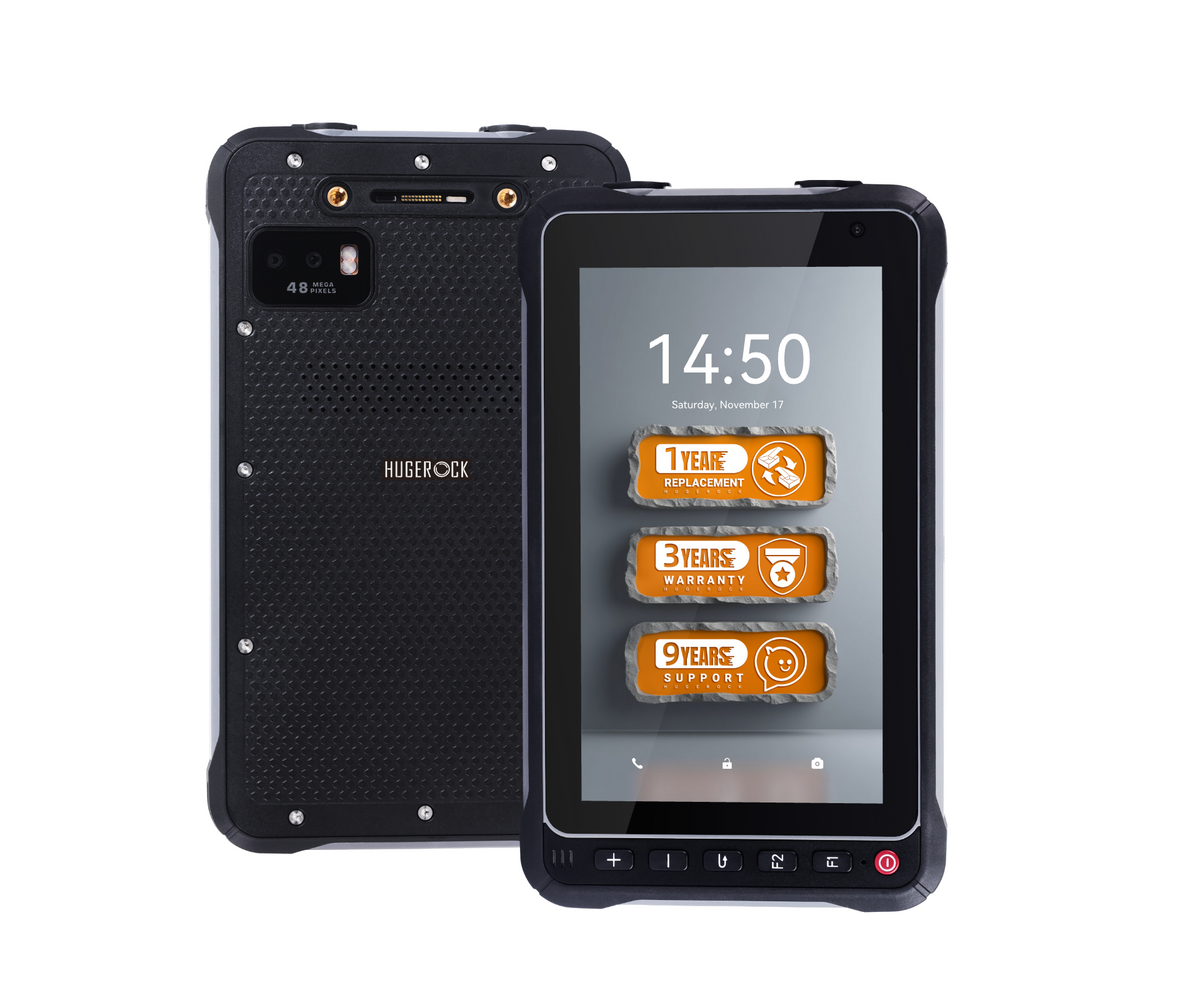

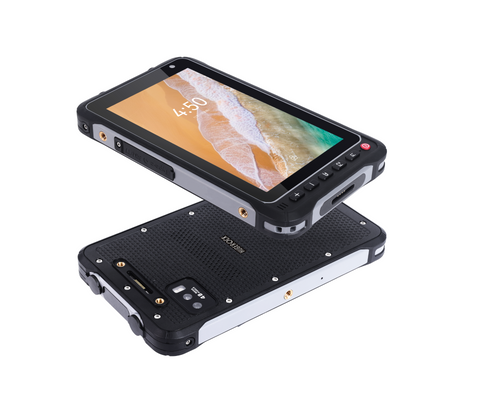

HUGEROCK H72 RUGGED TABLET PC 7-inch Rugged Industrial Multi-functional Mobile Terminal
Vendor:
SOTEN
Availability:
Out Of Stock
PRODUCT DESCRIPTION
7-inch Rugged Industrial Multi-functional Mobile Terminal
Equipped with a 7-inch 1080×1920 ultra-high-definition display screen
WIDELY APPLIED
The H72 combines durability and flexibility, making it the perfect tool for outdoor and industrial use in challenging environments.
WIDELY APPLIED
WIDELY APPLIED
The H72 combines durability and flexibility, making it the perfect tool for outdoor and industrial use in challenging environments.
Flagship Power
MediaTek Kompanio 900T Octa - core 2.4GHz, 6nm Process
Flagship Power
Flagship Power
MediaTek Kompanio 900T Octa - core 2.4GHz, 6nm Process.
8GB+256GB Big Storage
Supports 2TB expansion
8GB+256GB
BigStorage
8GB+256GB BigStorage
CERTIFIED
Supports 2TB expansion
Android OS with GMS
Certification

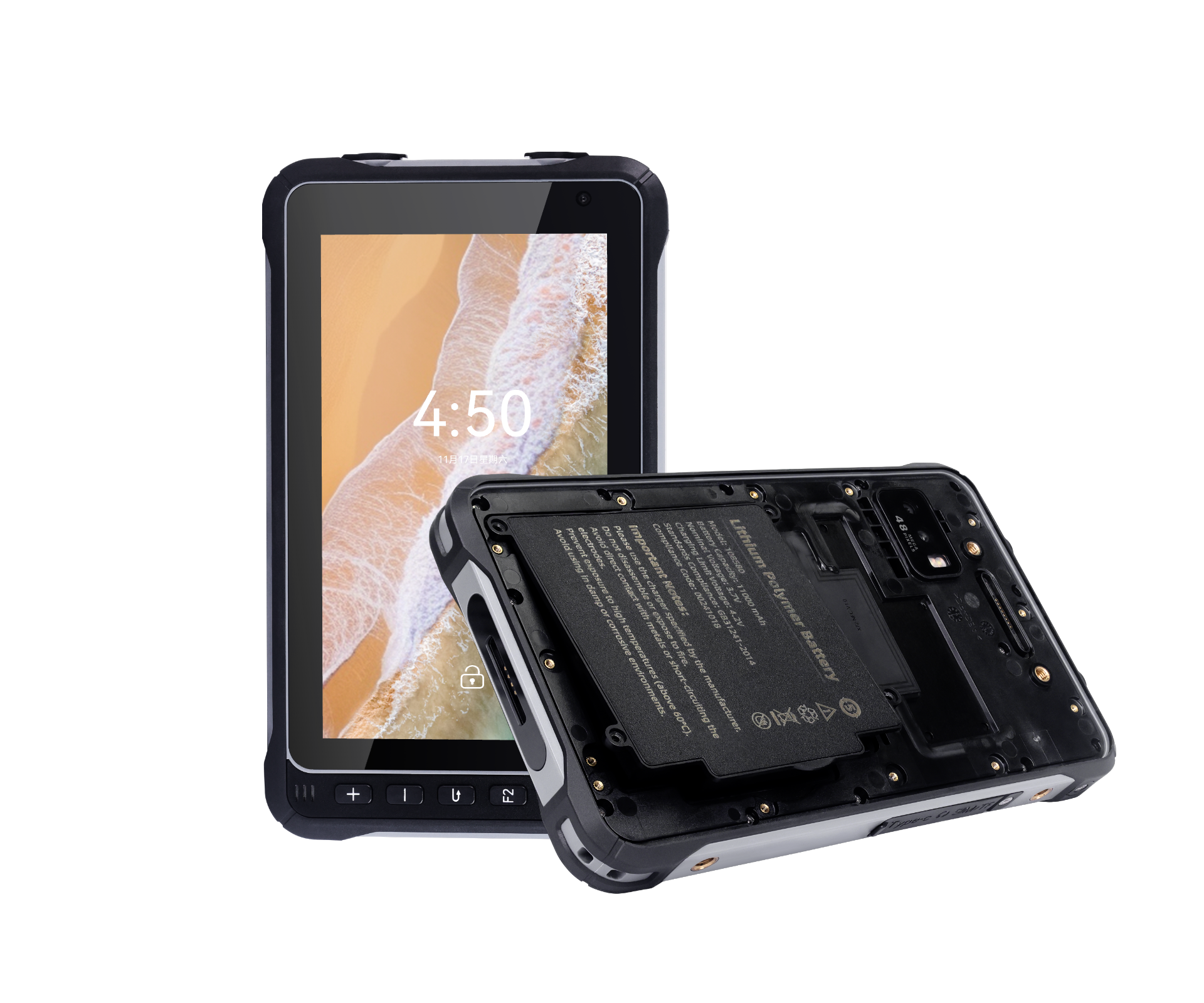

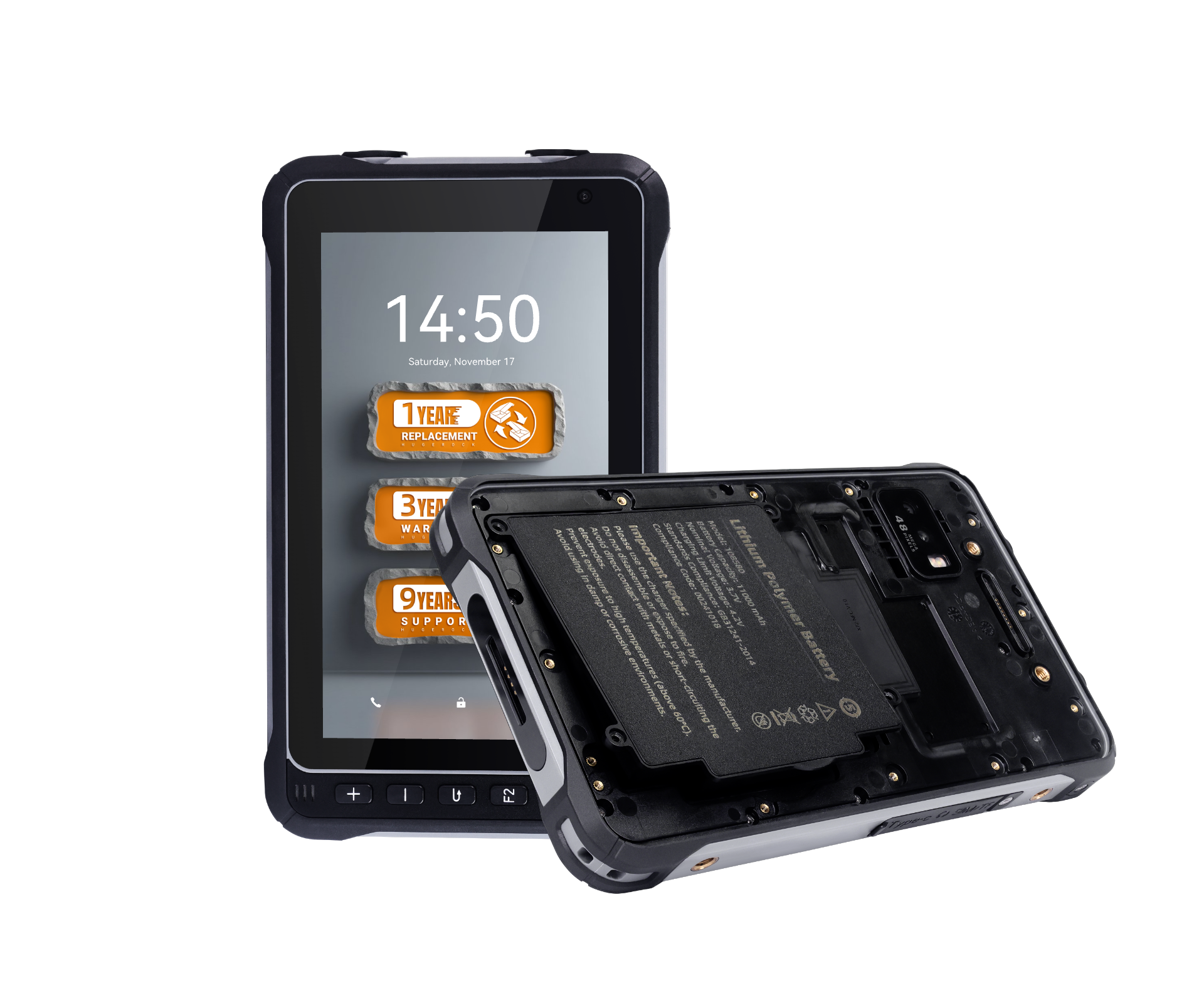

10000mAh Removable Battery | Type-C + Magnetic Dual Fast Charging
Battery &
Charging
Battery & Charging
10000mAh Removable Battery | Type-C + Magnetic Dual Fast Charging
Android OS
Compatible with more than 20 languages
Android OS
Android OS
Compatible with more than 20 languages
5G Full Net
Supports Wi-Fi, greatly boosting speed,latency, and capacity. Performancegets a further boost to meet enterprise trends.
5G Full Net
5G Full Net
Supports Wi-Fi, greatly boosting speed, latency, and capacity. Performance gets a further boost to meet enterprise trends.
Multi-mode Dual-band GNSS
SupportsGPS/BeiDou/GLONASS/Galileo/QZSS (L1+L5 bands)
Multi-mode
Dual-band GNSS
Multi-mode Dual-band GNSS
Supports GPS/BeiDou/GLONASS/Galileo/QZSS (L1+L5 bands)AGPS + SBAS assisted positioning
Rear dual-camera
Rear dual-camera
Rear dual-camera
Extreme Temperature
Environment
Stable operation at -20℃~55℃, storage temperature of -40℃~80℃
Extreme
Temperature
Environment
Extreme Temperature
Environment
Stable operation at -20℃~55℃,storage temperature of -40℃~80℃
NFC
This versatile NFC module supports three modes in one (Read/Write, Card Emulation, and Peer-to-Peer), offering universal compatibility with most major NFC tags and protocols. Its standard API makes integration simple for applications in payment, access control, and data exchange.
NFC
NFC
This versatile NFC module supports three modes in one (Read/Write, Card Emulation, and Peer-to-Peer), offering universal compatibility with most major NFC tags and protocols. Its standard API makes integration simple for applications in payment, access control, and data exchange.
Military protection
MIL-STD-810G military-grade certification
Military
protection
Military protection
MIL-STD-810G military-grade certification
APPlication scenario
8GB+256GB
BigStorage
8GB+256GB Big Storage
Supports 2TB expansion

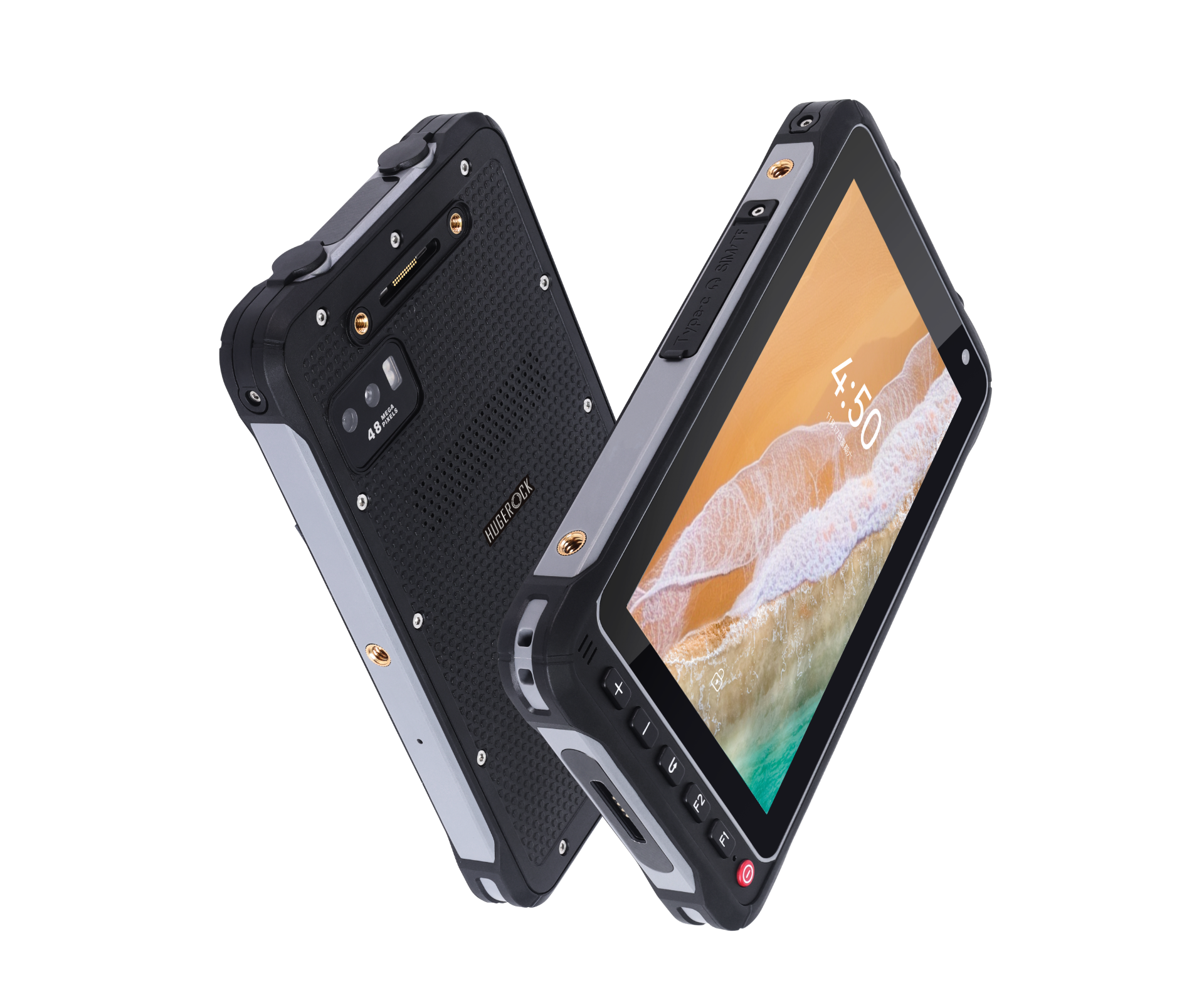

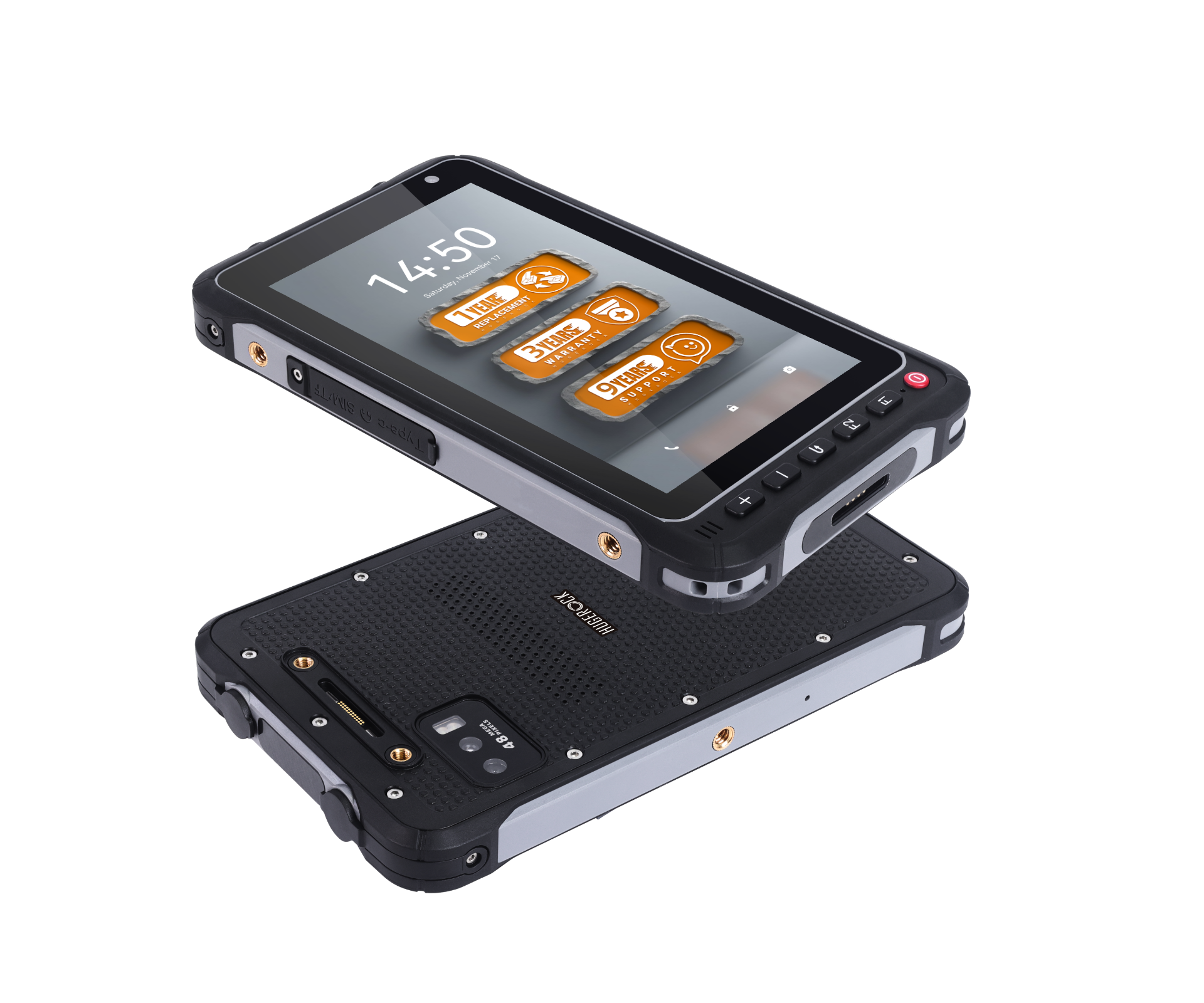

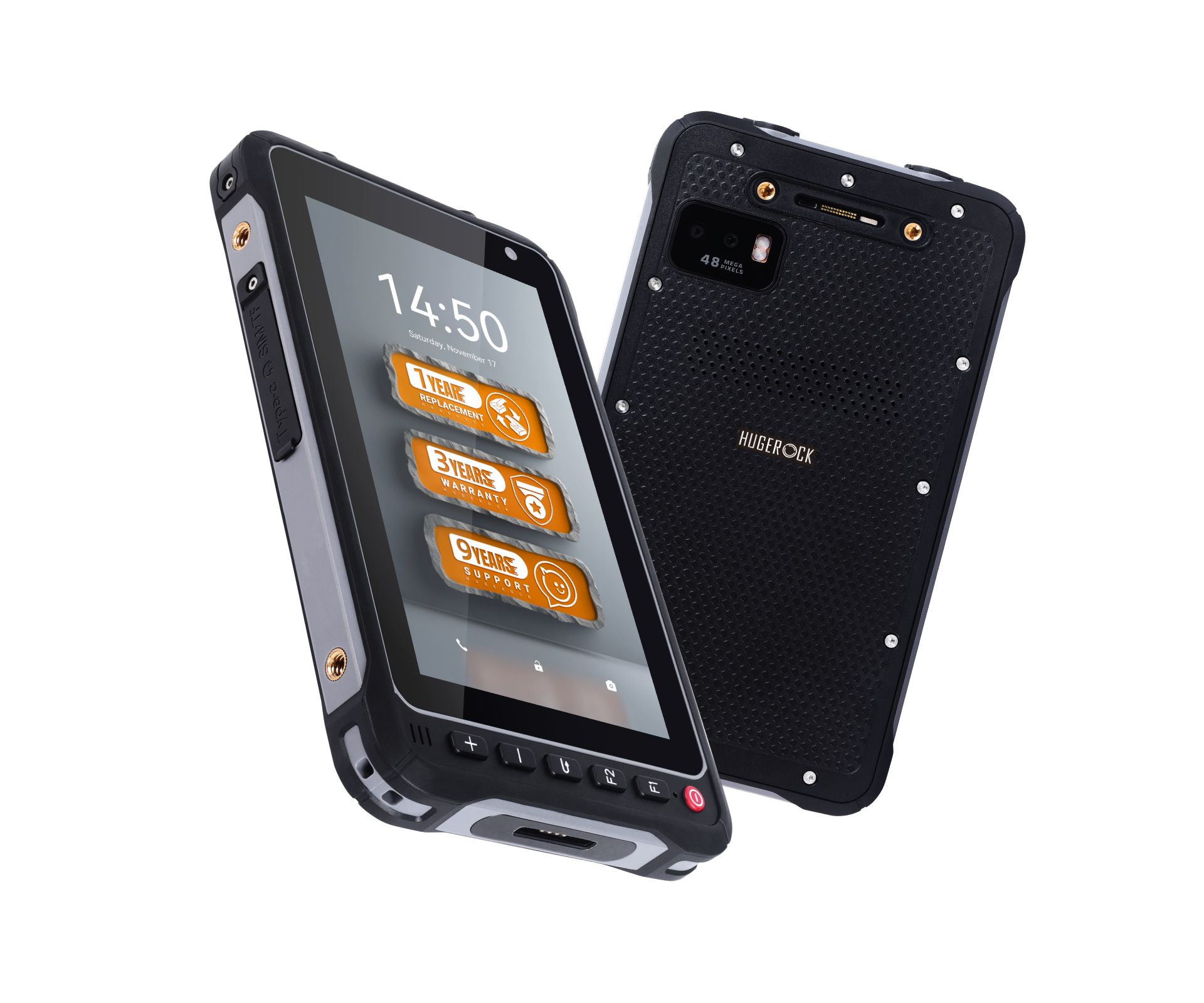

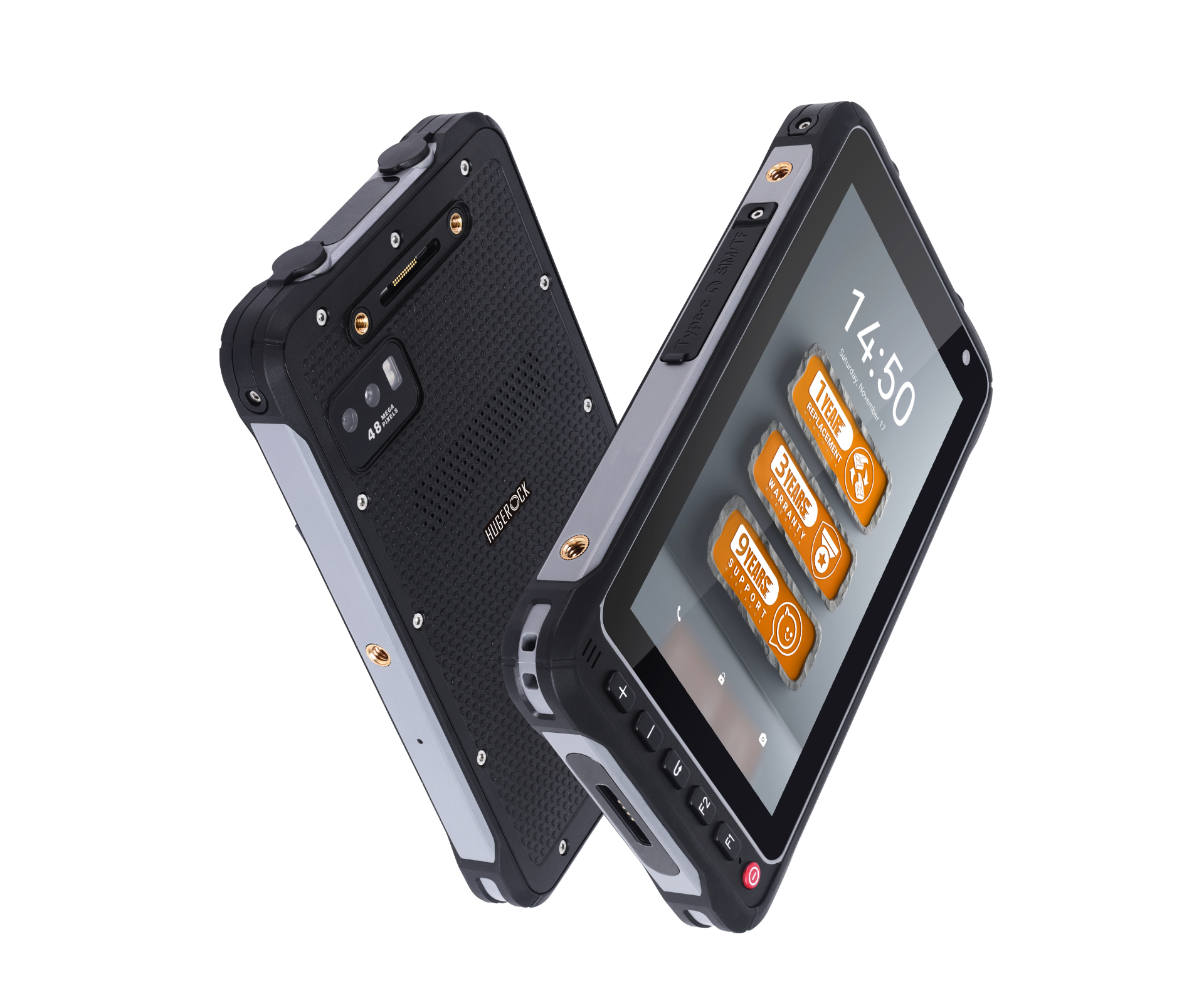

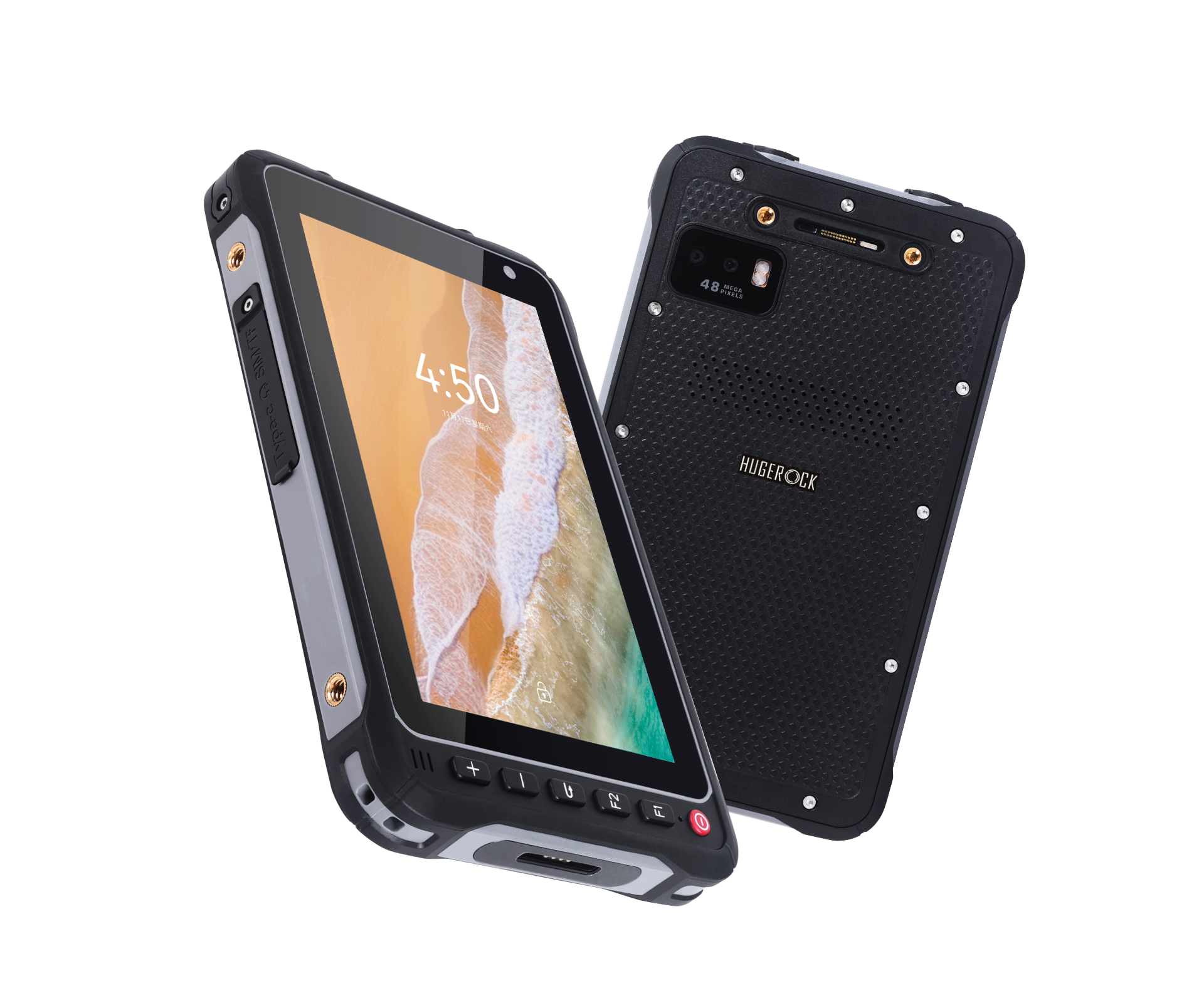

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU* | MediaTek Kompanio 900T (MT8791) Octa-core (8 cores) Up to 2.4GHz|6nm process |
| GPU* | ARM G68 MC4 |
| AI Processing* | APU 3.0 (2.6T) |
| Memory* | 8GB LPDDR4 RAM |
| Storage* | 256GB UFS |
| Expandable Memory | Expandable via microSD (supports up to 2TB) |
| Camera* | Rear Dual Camera:Main: 48MP with autofocus & electronic flash, Secondary: 5MP wide-angle lens Front: 8MP Front Camera |
| Battery | 10,000mAh removable battery |
| Display* | 7-inch AHFS/IPS panel | 1080×1920 FHD resolution | 1000 nits high-luminance (sunlight-readable) |
| Touchscreen | Capacitive touchscreen | Glove-touch support | Anti-fog coating | Active stylus compatible |
| Interfaces & Sensors | |
| Card Slots | Dual Nano SIM + 1×MicroSD (3-in-2 hybrid slot, any 2 cards usable at the same time) |
| Power Interface | Type-C / 4-pin magnetic connector/24-pin magnetic connector |
| Data Ports | Type-C (OTG) x1 / M8 / RS232 |
| Sensors | Gravity, geomagnetic, gyroscope, rotation vector, ambient light, accelerometer |
| Charger | 5V 2A, 12V1.5A, 9V 2A, Support PD fast charge protocol |
| Navigation* | L1+L5 GPS/BeiDou/GLONASS/Galileo/QZSS with AGPS/SBAS support |
| Physical Characteristics | |
| Dimensions | 213*126*22mm (L×W×H) |
| Weight (Including hand strap) | 660g |
| Color & Material | Black & gray PC-ABS-TPU composite |
| Connectivity | |
| Cellular* | WCDMA/LTE-TDD/LTE-FDD/5G NR |
| 2G /3G/4G/5G* | 2G: GSM 850/900/1800/1900MHz 3G: WCDMA B1/B2/B5/B8 (42.2Mbps DL / 11.5Mbps UL) 4G:FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink, Band:TDD-LTE (B34/38/39/40/41) FDD LTE(B1/2/3/4/5/7/8/12/17/20/26/28a&b) Cat-18 5G NR SA n1/n3/n20/n28/n41/n77/ n78/n79 5G NR NSA n1/n3/n41/n7 DL 4×4 n1/ n3/n41 |
| Wireless* | Dual-band Wi-Fi 6 2x2 (2.4/5GHz, 802.11a/b/g/n/ac/ax) | BT 5.2 LE |
| Industrial Design & Reliability | |
| Vibration | 1-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration |
| Dropproof /IK | MIL-STD-810 compliant (1.2m) | IK05 impact protection |
| Water/Dust resistance | IP68 (IEC 60529) |
| Operating Temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | Up to 4,500m (15,000 feet) |
| Certifications & Software | |
| Certifications | 3C/FCC/CE/ROHS/IP68 (IEC 60529) |
| Language | Chinese (Simplified/Traditional), English, Spanish, Portuguese (BR/PT), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew |
| OS* | Android 14 (GMS) Certified |
| Packaging & Warranty | |
| Warranty | 24-month device warranty (12-month battery warranty) |
| Packaging box | Data cable x1, 4Pin magnetic charging cable x1, 24-pin magnetic charging cable x1, screen protector (applied) x1, neutral customizable blister box (standard) x1, user manual x1, precautions card x1, Hand strap x1 |
*Detailed specifications vary by version. Refer to the differences table for details.
MODEL COMPARISON TABLET
| H72 (5G-M60) | H72 (4G-M50) | ||
|---|---|---|---|
| Processor | MediaTek Kompanio 900T (MT8791) Octa-core (8 cores) Up to 2.4GHz 6nm process |
MediaTek Helio G99 (MT6781) Octa-core (8 cores) Up to 2.2GHz 6nm process |
|
| Graphics | ARM G68 MC4 | Arm MaliTM-G57 @ 850 MHz | |
| AI Processing | APU 3.0 (2.6T) | / | |
| Memory | 8GB LPDDR4 | 8GB LPDDR4 | |
| Storage | 256GB UFS | 256GB UFS | |
| Power Interface | Type-C / 4-pin magnetic connector/24-pin magnetic connector | Type-C / 4-pin magnetic connector/24-pin magnetic connector | |
| Data Ports | Type-C (OTG) x1 / M8 / RS232 | Type-C (OTG) x1 / M8 / RS232 | |
| Navigation | L1+L5 GPS/BeiDou/GLONASS/Galileo/QZSS with AGPS/SBAS support | GPS/BeiDou/GLONASS/Galileo/QZSS with AGPS/SBAS support | |
| Cellular | WCDMA/LTE-TDD/LTE-FDD/5G NR | GSM/WCDMA/VoLTE | |
| 2G | GSM 850/900/1800/1900MHz | GSM 850/900/1800/1900MHz | |
| 3G | WCDMA B1/B2/B5/B8 (42.2Mbps DL / 11.5Mbps UL) | WCDMA B1/B2/B5/B8 (42.2Mbps DL / 11.5Mbps UL) | |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink, Band:TDD-LTE (B34/38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/26/28a&b) Cat-18 |
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink, Band:TDD-LTE (B34/38/39/40/41); LTE(B1/2/3/4/5/7/8/12/17/20/26/28a&b) Cat 13 DL |
|
| 5G | 5G NR SA n1/n3/n20/n28/n41/n77/n78/n79 5G NR NSA n1/n3/n41/n7 DL 4×4 n1/n3/n41 |
/ | |
| Wi-Fi | Dual-band Wi-Fi 6 2x2 (2.4/5GHz, 802.11a/b/g/n/ac/ax) |
Dual-band Wi-Fi (2.4/5GHz, 802.11a/b/g/n/ac) |
|
| BT | BT 5.2 LE | BT 5.2 LE | |
| OS | Android 15 (GMS) | Android 15 (GMS) |
SOURCING GUIDE
| Order No. | Model | Function Description |
|---|---|---|
| 05121203 | H72 (5G-M60) | HUGEROCK/H72-M60-R/8GB+256GB/Gray+Black/1080*1920/1000nits/NFC |
| 05121204 | H72 (4G-M50) | HUGEROCK/H72-M50-R/8GB+256GB/Gray+Black/1080*1920/1000nits/NFC |
SUPPORTS MODULE CUSTOMIZATION
| NFC Module | |
|---|---|
| Feature Overview | Integrated NFC module with standardized API interfaces, enabling mobile payment solutions and bank card transactions. |
| Operational Modes | Read/Write: Full read/write capability for NFC tag data storage and retrieval. Card Emulation: Mimics NFC cards for contactless payment systems and secure access control. Peer-to-Peer: Facilitates seamless data exchange between NFC-compatible devices. |
| Performance Metrics | Effective Range: 20-50mm tag interaction distance. Frequency: 13.56MHz high-frequency operation. |
| Supported Standards | RF Protocols: ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, NFC Forum specifications. Tag Compatibility: Comprehensive support for industry-standard cards, Including: MIFARE S50/S70, Ultralight, NTAG 203/213/215/216, FM1204/FM1208, DESFire EV1 (D21/D41/D81),SRI512/SRIX4K, iCODE, HF Tagit, and derivatives. |
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
