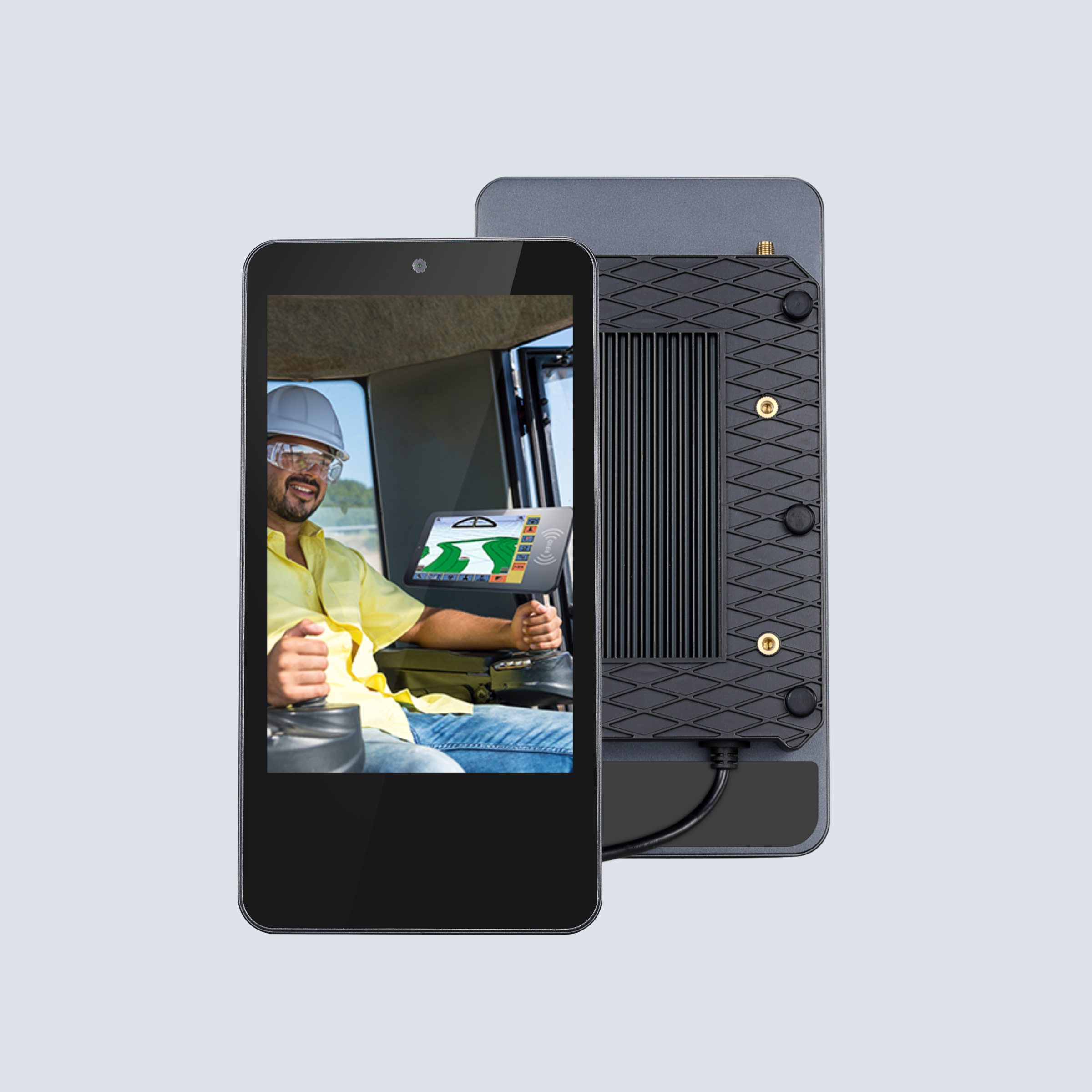

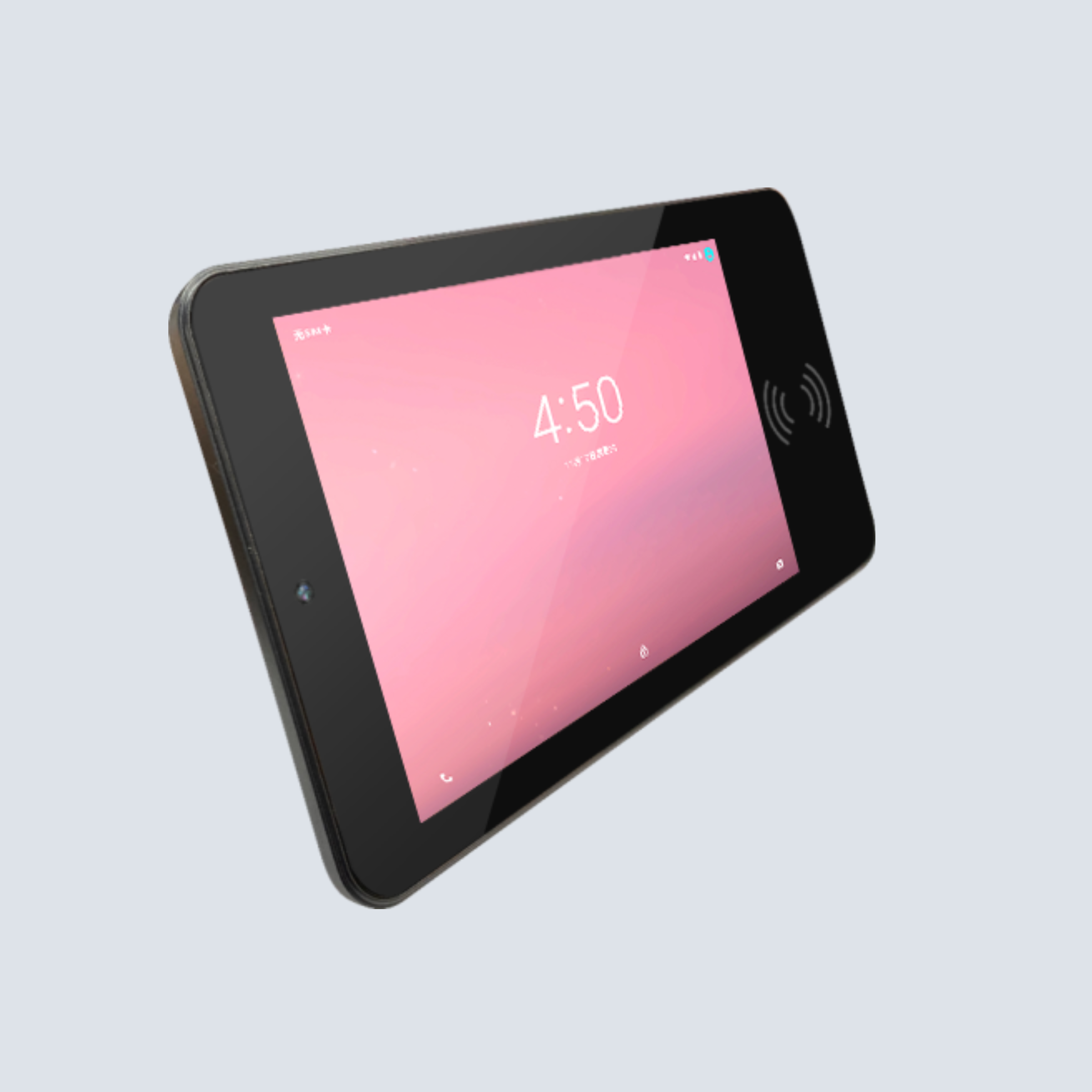

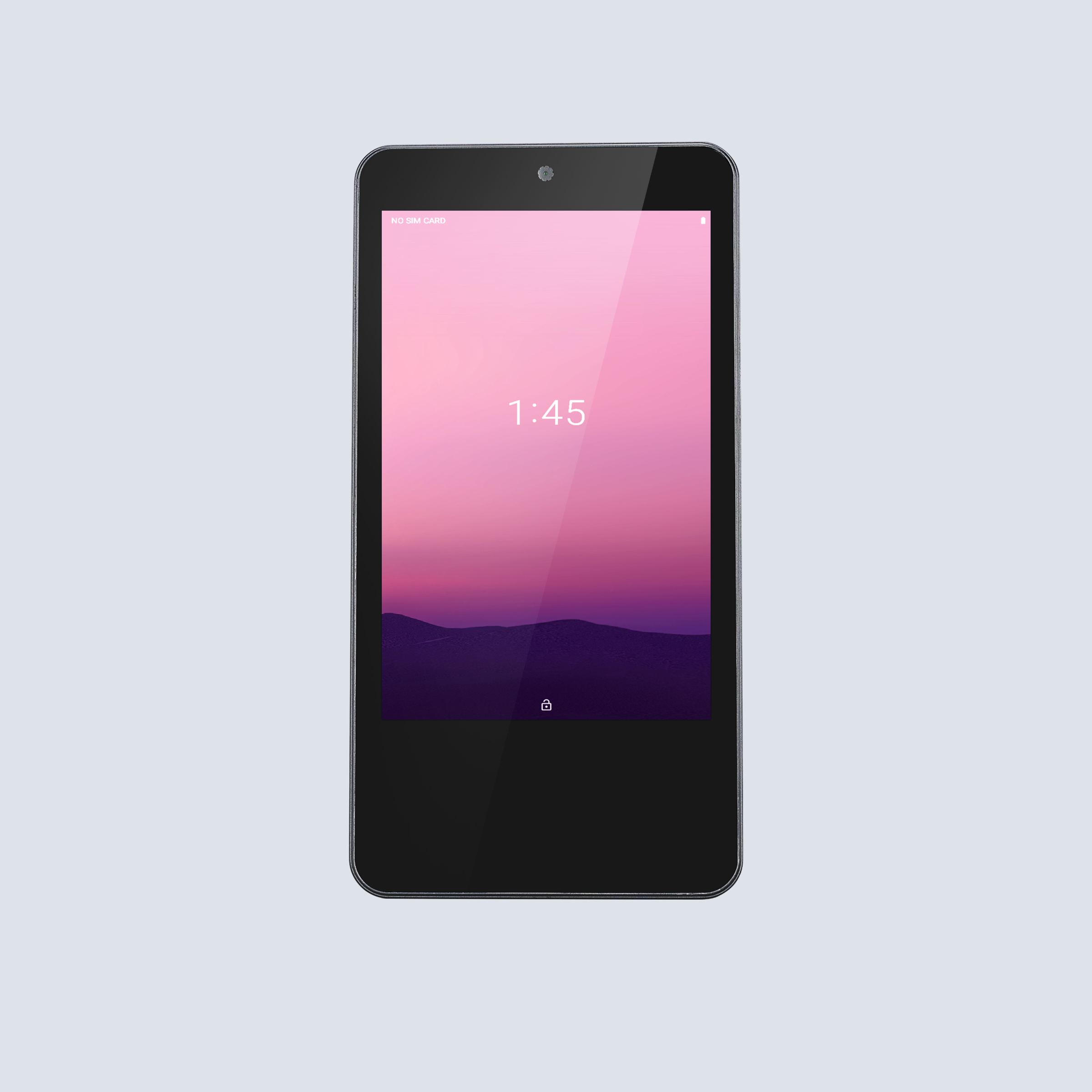

HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

Key attributes Industry-specific attributes Screen Size 7" Memory Capacity 6GB Display resolution 720*1280 Operating System Android 9/10/11/13...
Vendor: SOTEN
Availability: In Stock
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

$238.00 $238.00
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer
HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

HUGEROCK K70 7 inch full screen nfc pos terminal android rugged tablet pc computer

$238.00 $238.00

    PRODUCT DESCRIPTION

    img1_alt

    MULTIPLE FUNCTION
    INTELLIGENT TEMINAL

    7/8/10.1 inch LCD screen.

    part1_img_alt__pc

    MULTIPLE FUNCTION
    INTELLIGENT
    TEMINAL

    MULTIPLE FUNCTION
    INTELLIGENT TEMINAL

    7/8/10.1 inch LCD screen.

    MODE TABLE

    MODE TABLE

    Model Display

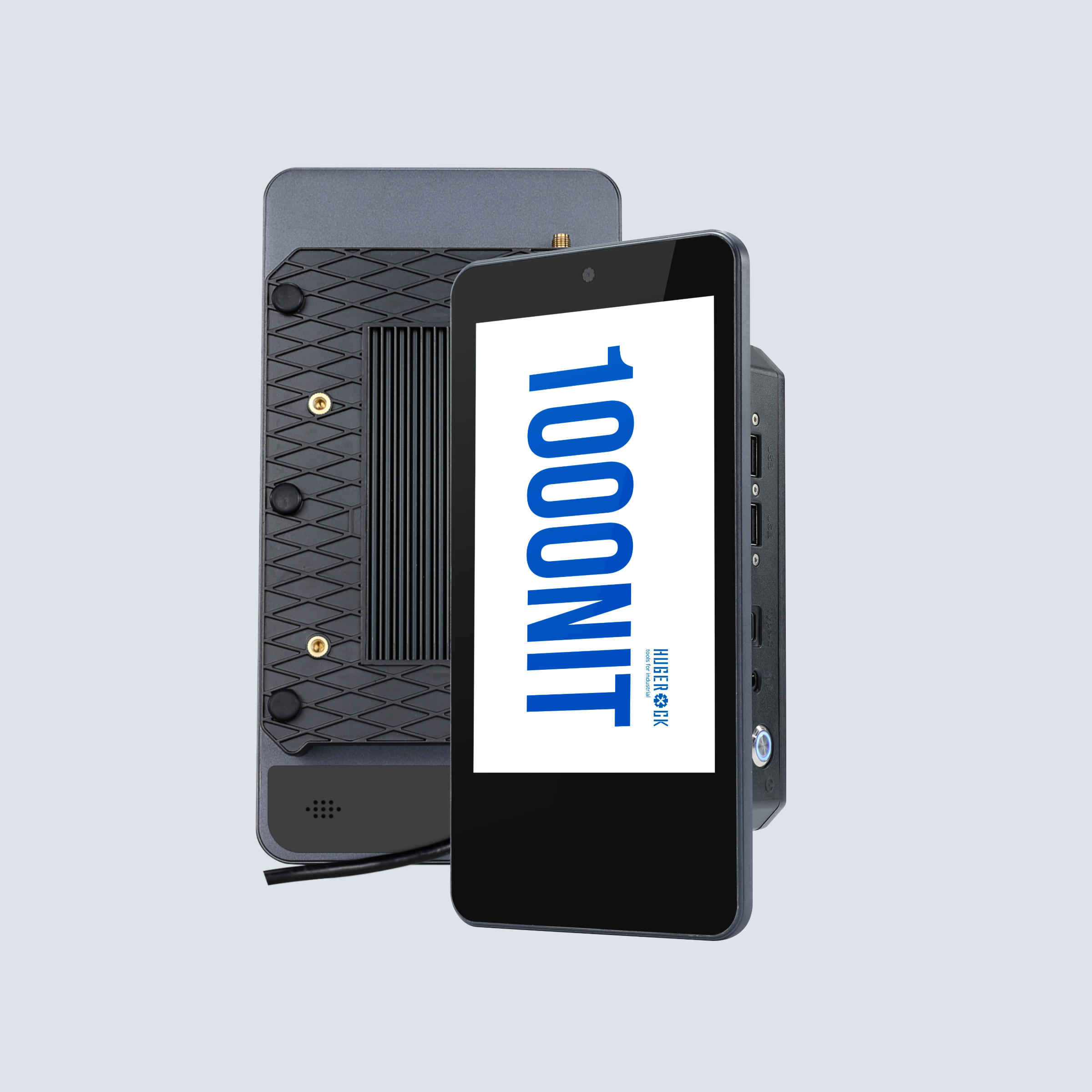

    K70S 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable
    K70 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable
    K80 8 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
    K101 10.1 inch IPS/AFFS 1200*1920 FHD industrial 450nit Sunlight Readable
    K101H 10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
    Weight Size
    640g 195.25*117.45*34.8(LxWxH)
    640g 226.5*117.5*34mm(LxWxH)
    750g 240*141*34mm(LxWxH)
    880g 300*166*34mm(LxWxH)
    880g 300*166*34mm(LxWxH)

    MODE TABLE

    Model Display Weight Size
    K70S 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable 640g 195.25*117.45*34.8mm(LxWxH)
    K70 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable 640g 226.5*117.5*34mm(LxWxH)
    K80 8 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable 750g 240*141*34mm(LxWxH)
    K101 10.1 inch IPS/AFFS 1200*1920 FHD industrial 450nit Sunlight Readable 880g 300*166*34mm(LxWxH)
    K101H 10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable 880g 300*166*34mm(LxWxH)

    MULTIPLE

    MULTIPLE INTERFACE

    Extendable module(option)
    1.OBD module 2.Barometric sensor
    3.Ethernet port Module 4.NFC Chip
    5.USB 2.0 Interface 6.GPS positioning module
    7.Extendable Series 8.RS232 Series Chip

    MULTIPLE INTERFACE

    Extendable module(option)
    1.OBD module
    2.Barometric sensor
    3.Ethernet port Module
    4.NFC Chip
    5.USB 2.0 Interface
    6.GPS positioning module
    7.Extendable Series
    8.RS232 Series Chip
    1.Type-C 2.UHF module interface
    3.RJ45 4.Human sensor module
    5.NFC antenna 6.Two RS232 Series
    7.4 Channel GPIO 8.OBD Bus interface
    9.DC power (9-40V) 10.Extendable Series
    11.Grabiity sensor 12.SIM/SD Slot
    13.Camera
    interface(option)    		 14.GPS Active antenne
    1.Type-C
    2.UHF module interface
    3.RJ45
    4.Human sensor module
    5.NFC antenna
    6.Two RS232 Series
    7.4 Channel GPIO
    8.OBD Bus interface
    9.DC power (9-40V)
    10.Extendable Series
    11.Grabiity sensor
    12.SIM/SD Slot
    13.Camera interface(option)
    14.GPS Active antenne

    CONNECTOR

    CONNECTOR FUNCTION DEFINITION

    J1
    Connector Connector function definition Function module
    1 TXOPA Ethernet port
    2 TXONA
    3 RXIPA
    4 RXINA
    5 BODY SENSER 12V Human sensor module
    6 INT
    7 GND
    8 NC
    9 SYS_RST Reset
    10 GND Power
    11 VBAT
    12 PWEKEY
    J2
    Connector Connector function definition Function module
    1 RS232_TX1/TTL_TX1 RS232/TTL 1
    3 RS232_RX1/TTL_RX1
    5 RS232_TX3/TTL_TX3 RS232/TTL 2
    7 RS232_RX3/TTL_RX3
    2 VCC_5V VCC output
    4 VCC_5V
    6 GND
    8 GND
    9 GPIO1 I/O
    10 GPIO2
    11 GPIO3
    12 GPIO4
    J3
    Connector Connector function definition Function module
    1 GND DC (9-42V)
    3 GND
    5 GND
    7 GND
    2 DC_POWER_IN
    4 DC_POWER_IN
    6 DC_POWER_IN
    8 ACC OBD
    9 ISO_L
    10 CANL
    11 ISO_K
    12 CANH
    J4
    Connector Connector function definition Function module
    1,3 VCC_RTK_5V RTK/GPS
    positioning
    module
    2 TX
    4 RX
    5,7 GND
    6 TX
    8 RX
    10 VRTC
    9,11,12,13,15 VCC_3.3V
    14 SDA Temperature/
    pressure sensor
    16 SCL
    17 GND
    18 GPIO
    20,22 VIO18_PMU
    19,21,23,25,27,29,31 VBAT VBAT output
    24 GPIO IO
    26 GND USB_2.0
    28 DP TTL 1
    30 DM
    32 GND
    34,36 VCC HUB 5V
    40 TX OBD
    42 RX
    44 TX TTL2
    46 RX
    33 UHF_3.3V UHF/RFID module
    35,37,38,39,41 GND
    43,45,47,49,51 RFID_5V
    50 URXD
    52 UTXD
    48 GPIO

    CONNECTOR FUNCTION DEFINITION

    J1
    Connector Connector function definition Function module
    1 TXOPA Ethernet port
    2 TXONA
    3 RXIPA
    4 RXINA
    5 BODY SENSER 12V Human sensor
    module
    6 INT
    7 GND
    8 NC
    9 SYS_RST Reset
    10 GND
    11 VBAT Power
    12 PWEKEY
    J2
    Connector Connector function definition Function module
    1 RS232_TX1/TTL_TX1 RS232/TTL 1
    3 RS232_RX1/TTL_RX1
    5 RS232_TX3/TTL_TX3
    7 RS232_RX3/TTL_RX3
    2 VCC_5V RS232/TTL 2
    4 VCC_5V
    6 GND
    8 GND
    9 GPIO1 I/O
    10 GPIO2
    11 GPIO3
    12 GPIO4
    J3
    Connector Connector function definition Function module
    1 GND DC (9-42V)
    3 GND
    5 GND
    7 GND
    2 DC_POWER_IN
    4 DC_POWER_IN
    6 DC_POWER_IN
    8 ACC OBD
    9 ISO_L
    10 CANL
    11 ISO_K
    12 CANH
    J4
    Connector Connector function definition Function module
    1,3 VCC_RTK_5V RTK/GPS
    positioning
    module
    2 TX
    4 RX
    5,7 GND
    6 TX
    8 RX
    10 VRTC
    9,11,12,13,15 VCC_3.3V
    14 SDA Temperature/
    pressure sensor
    16 SCL
    17 GND
    18 GPIO
    20,22 VIO18_PMU
    19,21,23,25,27,29,31 VBAT VBAT output
    24 GPIO IO
    26 GND USB_2.0
    28 DP TTL 1
    30 DM
    32 GND
    34,36 VCC HUB 5V
    40 TX OBD
    42 RX
    44 TX TTL2
    46 RX
    33 UHF_3.3V UHF/RFID module
    35,37,38,39,41 GND
    43,45,47,49,51 RFID_5V
    50 URXD
    52 UTXD
    48 GPIO

    APPLICATION

    MULTI-APPLICATION BRACKET

    Multiple Adaptive applications
    1. Vehicle bracket/holder (27mm)
    2. Vehicle bracket/holder(15mm)
    3. Desktop adjustable bracket
    4. Pipe bracket
    5. Wall mount bracket
    6. Vehicle head bracket

    MULTI-APPLICATION BRACKET

    MULTIPLE ADAPTIVE APPLICATIONS
    1.Vehicle bracket/holder (27MM) 2.Vehicle bracket/holder (15MM) 3.Desktop adjustable bracket
    4.Pipe bracket 5.Wall mount bracket 6.Vehicle head bracket
    xx

    MULTIPLE FUNCTION

    INTELLIGENT TERMINAL

    5 class water-proof / 6 class drop-proof.

    MULTIPLE

    FUNCTIONINTELLIGENTTERMINAL

    MULTIPLE FUNCTIONINTELLIGENT TERMINAL

    5 CLASS WATER-PROOF / 6 CLASS
    DROP-PROOF.
    xx
    img1_alt

    RUN FAST AND
    LARGE MEMORY

    Android 10 / 11 operating system.

    soten

    RUN FAST ANDLARGE MEMORY

    RUN FAST AND LARGE MEMORY

    Android 10 / 11 operating system.
    soten

    APPEARANCE

    xx
    xx
    xx
    1. SIM card 2. TF card
    3. MIC 4. Indicator light
    5. Light sensor 6. Camera
    7. Type-A (Sealed Cover) 8. Type-C (Sealed Cover)
    9. Headphone jack 10. Power button
    11. GPS antenna
    (optional)    		 12. VESA lock nut
    13. Speaker 14. OBD (optional)
    15. I/O (optional) 16. DC cable+RJ45
    xx
    1. Sim Card
    2. Tf Card
    3. Mic
    4. Indicator Light
    5. Light Sensor
    6. Camera
    7. Type-a (sealed Cover)
    8. Type-c (sealed Cover)
    9. Headphone Jack
    10. Power Key
    11. Gps Antenna (optional)
    12. Vesa Lock Nut
    13. Speaker
    14. Obd (optional)
    15. I/o (optional)
    16. Dc Cable+rj45

    TECHNICAL SPECIFICATIONS

    Hardware
    CPU ARM Cortex-A73 octa-core (2.0GHz )
    GPU ARM Mali-G72 MP3
    RAM 4G
    Internal Memory 32G
    External Memory Micro SD card(T-FLASH card), max 256GB
    Sub Camera 5.0MP
    Battery No bui-lt-in battery/external power supply
    Display 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable
    Touch Panel Capacitive/frosted tempered film supports glove touch/spray/active pen
    IO/Sensor/Navigation
    SIM Card Nano sim card*2
    TF Card Micro SD card(T-FLASH card); max 256GB
    Headphone 3.5mm(CTIA)
    Data interface USB Type-A(Host)*2, Type-C*1
    UART(optinal) The motherboard reserves two serial ports TTL3.3V
    RS232(optinal) Optional RS232 serial port, use M8 5pin aviation plug to transfer 9pin
    Gravity sensor support
    Motion sensor support
    Direction Sensor support
    Magnetic Field Sensor support
    Gyro sensor support
    Rotation Vector support
    Light-sensor support
    Acceleration sensor support
    Charger DC 9 ~ 24V input, 3A 27W
    Navigation GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
    Body sensing 4G microwave radar sensor
    Appearance
    Size 226.55*117.57*34mm (L×W×H)
    Weight 640g
    Color & Material grey
    Communications & Networking
    Phone Call GSM /WCDMA/CDMA 1X/VoLTE
    2G GSM/CDMA 1X/EDGE/GPRS/WAP
    2G Band GSM(B2/3/5/8)
    3G WCDMA 850/1900/2100MHz(HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO
    3G Band WCDMA(B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1
    4G FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
    4G Band TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28)
    Wi-Fi Dual-band WIFI(2.4GHz/5GHz)single stream 802.11 a/b/g/n/ac
    Bluetooth 4.2 Low Energy(LE)
    Industrial & Reliability Design
    Shake-proof 1-19Hz/1.0mm; 19-200Hz/1.0g
    Dropproof /IK MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
    Waterproof Class 5 (IEC 60529)
    Dustproof Class 6 (IEC 60529)
    Reliability MTBF=50000h; MTTR=0.5h
    Operating temperature -20℃ to 70℃
    Storage Temperature -40℃ to 80℃
    RH 5% to 95%
    Operating Altitude Max: 4,500 m(15,000 feet)
    Certification/OS/Software
    Certification 3C/FCC/CE/ROHS/IP65 (IEC 60529)
    Language English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese Traditional, etc
    OS Android 10 / 11
    Package/Warranty terms/OEM
    Warranty 24 months
    OEM/ODM Support
    Package Type-C Cable/Power adapter DC 12V/Quick start guide/Screen protector/Aircraft box /SIM Card Ejector

    OPTIONAL MODULES

    xx
    Extension 1
    UHF module (M500 ASTM)+ Antenna
    (M500 EN)+Antenna
    LF RFID module 125K LF ID card (8H-10D)
    125K LF ID card (10D)
    125K LF HID card module
    134K LF animal tag module
    HF RFID module 13.56M HF module
    (single protocol)
    13.56M HF module
    (multi-protocol)
    NFC NFC module
    NFC antenna
    Extension 2
    RS232 x 2
    TTL x 2
    OBD module
    I/O x 4
    RJ45
    Industrial-gradesh
    ort-distance data
    communication module    		 433 module
    ZigBee
    Extension 3 (cable)
    OBD+RJ45
    OBD+DB9
    DC+RJ45
    RJ45+DB9
    Extension
    1 UHF module (M500 ASTM+) Antenna
    (M500 EN+)Antenna
    LF RFID module 125K LF ID card (8H-10D)
    125K LF ID card (10D)
    125K LF HID card module
    134K LF animal tag module
    HF RFID module 13.56M HF module (single protocol)
    13.56M HF module (multi-protocol)
    NFC NFC module
    NFC antenna
    Body sensing 4G microwave radar sensor
    2 RS232 x 2
    TTL x 2
    OBD module
    I/O x 4
    RJ45
    Industrial-gradeshort-distance data communication module 433 module
    ZigBee
    3 (cable) OBD+RJ45
    OBD+DB9
    DC+RJ45
    RJ45+DB9

    CUSTOMIZED

    OEM/ODM

    Product Line
    Research and Design
    Professional Validation
    Software Customization
    High-Qaulity Services
    Professional Certification
    Modular Customization
    Product Quality Testing

    Product Qualification

    WORRY-FREE, Focus on quality for 14 years

    Life cycle is greater than 5 years
    Two-Year Warranty For Device
    Unpacking Failure, Free Replacement Whitin 30 Days
    More Than 100 Units, 1% Space Parts Gurantee
    HARDWARE CUSTOMIZATION
    • 1 ID Custom Design
    • 2 MD Custom Design
    • 3 PCBA Custom Development
    • 4 Module Custom Developmennt
    • 5 Nameplate Logo Customization
    • 6 Packaging Custom Design
    SOFTWARE CUSTOMIZATION
    • 1 Boot Screen Customization
    • 2 System Function Hiding
    • 3 Built-in Customer App
    • 4 Customer App Auto-launch
    • 5 Platform Software Integration
    • 6 Fixed MAC Address
    • 7 Download Prohibition
    • 8 Intercom App
    • 9 USB Disablement
    • 10 System Model Customization
    • 11 APP Installation and Uninstallation Control
    • 12 Pre-installed APK
    • 13 Physical Button Disablement
    • 14 Camera Control
    • 15 Provide System Signing Files

    FAQ

    Q: Are you the manufacturer?

    A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.

    Q: Can other GIS software using serial port data work directly on your device?

    A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.

    Q: Does it come with GIS application software?

    A: Yes we have GIS software, but it requires a fee.

    Q: Can you customize and pre-install our software?

    A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.

    Q: Can it do differential without internet?

    A: No, it requires internet to do differential.

    Q: What is the minimum order quantity?

    A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.

    Q: Can we get free samples?

    A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.

    Q: How to order and pay?

    A: We accept T/T (bank transfer), Alibaba online payment, Western Union.

    Q: What is your product warranty?

    A: We provide 24 months warranty after shipping.

    Q: Can I extend the warranty period?

    A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.

    Q: How long is the delivery time?

    A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.

    Q: How to repair if there are device issues?

    A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
