The hazardous-area branch of T71 for oil, gas and petrochemical inspection software providers, system integrators and equipment service partners. Match Ex marking, NFC and industry applications to the site.
T71EX application branch example

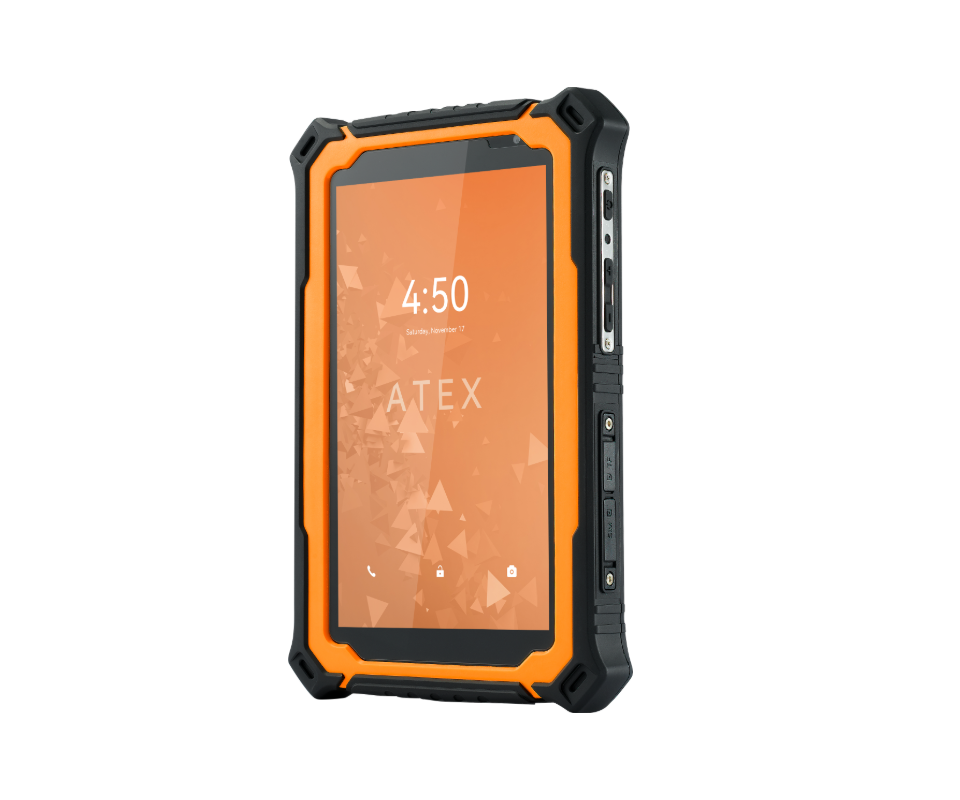

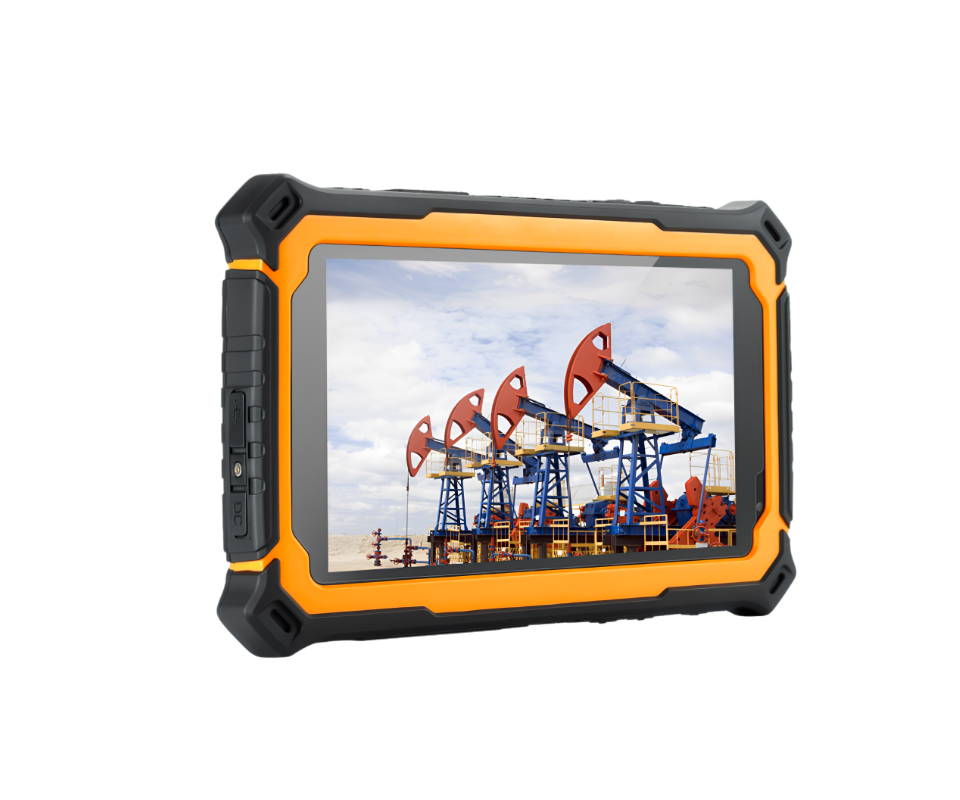

Platform hardware · Orange three-quarter view
Platform hardware · Grey front view
Platform hardware · Green body & side ports

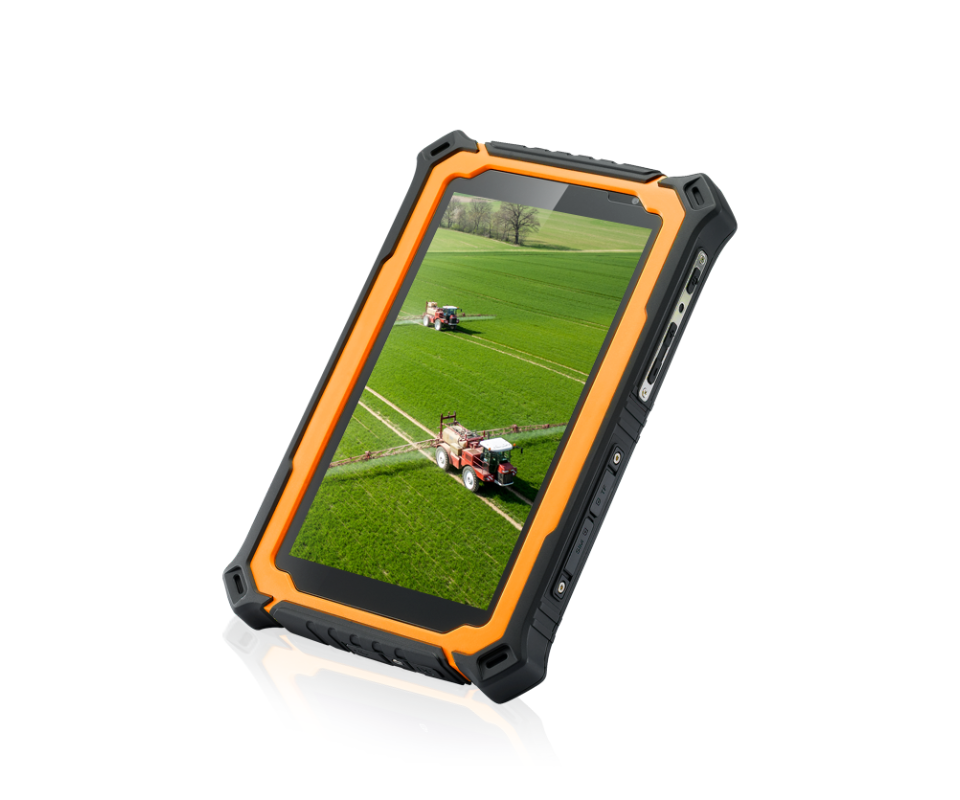

Platform hardware · Orange body & side ports

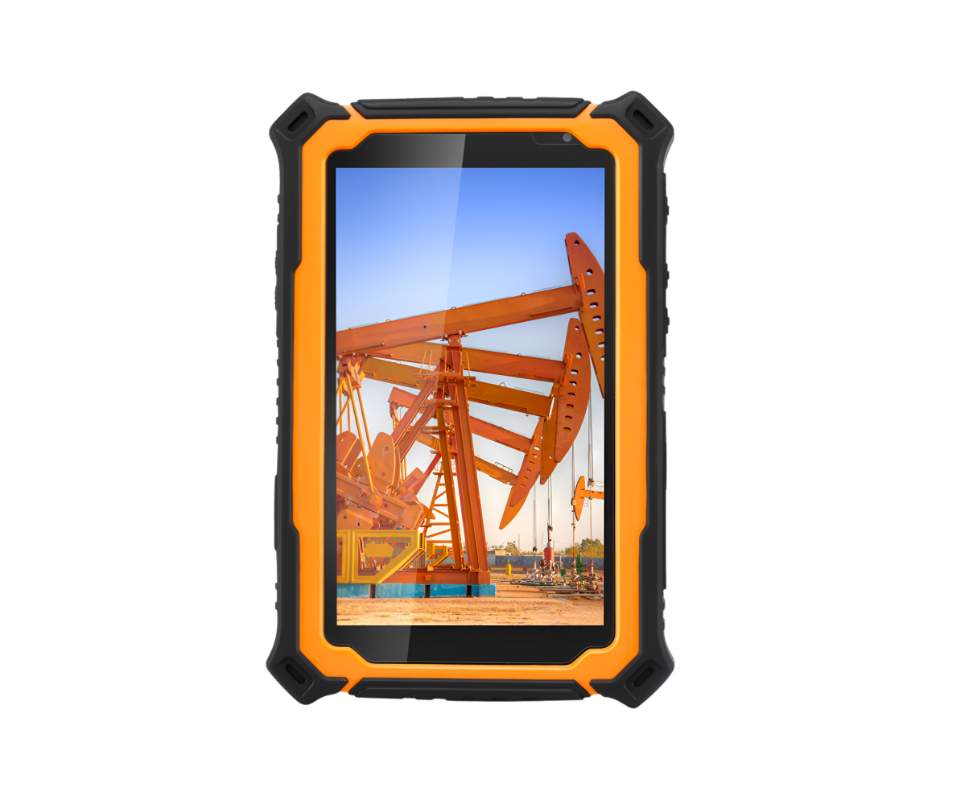

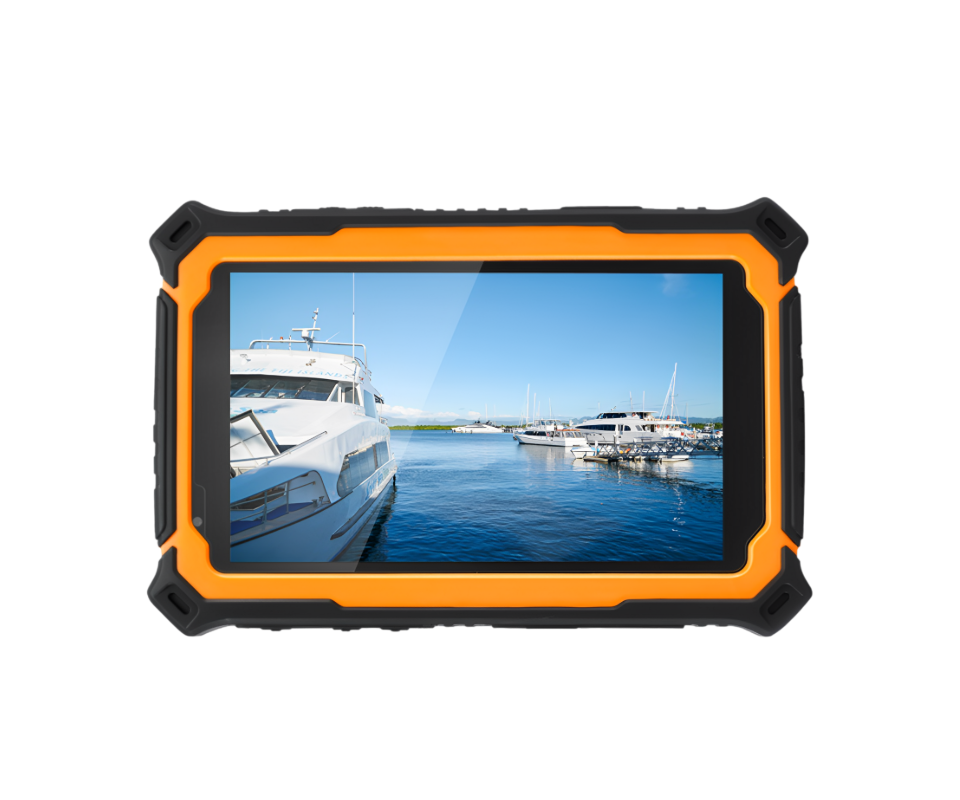

Platform hardware · Orange front view
Product images · configuration varies by model · select an image to enlarge
Provide area classification, media, temperature group, software and accessories. Verify suitability against the certificate and device nameplate before project validation.
Provide area classification, media, temperature group, software and accessories. Verify suitability against the certificate and device nameplate before project validation.
Share deployment countries, business software, site environment, peripherals, mounting, sample plans and expected volume to review software, hardware and delivery configuration.
Compare display, storage, capture and positioning requirements. Ex certification and specialist modules are specific to the branch and ordered configuration.
7-inch rugged field platformA 7-inch rugged platform for industry software providers, system integrators and device brands. Select industrial, outdoor, hazardous-area, precision positioning or data capture configurations around your deployment.
Explore configuration & specifications ↗6GB / 64GB industrial configurationFor work orders, equipment inspection and industry applications, with 6GB / 64GB and a choice of 1000-nit or 2200-nit displays for site lighting.
Explore configuration & specifications ↗Outdoor navigation & sunlight visibilityAn outdoor market product based on T71, with a 7-inch 2200-nit display, 10000mAh battery and 4G for navigation, equipment integration and mobile visibility.
Explore configuration & specifications ↗Hazardous-area inspection & field mobilityThe hazardous-area branch of T71 for oil, gas and petrochemical inspection software providers, system integrators and equipment service partners. Match Ex marking, NFC and industry applications to the site.
Explore configuration & specifications ↗
Professional GNSS / RTK & GIS captureFor surveying and GIS software providers, location-service integrators and inspection partners. Select G71N, G71F or G71M receiver configurations around accuracy, correction sources and output protocols.
Explore configuration & specifications ↗
NFC capture & asset managementThe T71 data-capture branch for asset-management software providers, inspection integrators and industrial IoT partners. Link equipment, assets and work orders through NFC tag reading.
Explore configuration & specifications ↗Select the required functions and protocols, then validate reading distance, corrections, interfaces, power and software on samples.
| Ex marking | II 2G Ex ib IIB T4 Gb |
|---|---|
| ATEX documentation reference | ECM 21 ATEX-B TQ87 |
| Certificate number | 0B191120.SSTSQ39 |
| NFC protocols | ISO14443A/B / ISO15693 / NFC |
| NFC tags | M1 (S50, S70) / CPU / NFC |
| NFC read/write distance | 2–5cm |
| Order number | 05121029 |
Confirm selection against the work area, gas group and temperature group. Ex suitability must match the delivered model, device nameplate, certificate and accessories.
Review this branch against the selected modules, OS version and accessories.
| Processor | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| Graphics | ARM Mali-G72 MP3 |
| RAM / storage | 8GB / 128GB |
| Display | 7″ FHD / 1080×1920 / 2200 nits |
| Battery | 10000mAh |
| Rear / front cameras | 13MP AF + flash / 5MP |
| Touch | Capacitive / glove touch / spray / active capacitive pen |
| Expandable storage | microSD, up to 1TB |
| SIM card | 1.8/3.3V standard SIM |
| Data interface | USB Type-C (OTG) ×1 |
| Charging | Type-C ×1 / 5.0V 2A, 10W |
| Headset | 3.5mm (CTIA) |
| Positioning | GPS + GLONASS + BeiDou + AGPS + SBAS (EPO 2.5m) |
| 2G bands | GSM B2/3/5/8 |
| 3G bands | WCDMA B1/2/5/8 |
| 4G bands | TD-LTE B38/39/40/41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz; 802.11a/b/g/n/ac |
| Bluetooth | 5.0 LE |
| Sensors | Gravity / magnetic field / gyroscope / rotation vector / light / acceleration |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 |
| Dimensions | 202 × 131 × 21mm |
| Weight | 700g |
| Water / dust resistance | IP67 (IEC 60529) |
| Drop / impact | MIL-STD-810G / touch panel IK05 |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Relative humidity | 5% to 95% |
| Altitude | 4,500m |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Certification | 3C / FCC / CE / ROHS / IP67 |
| Warranty | Device 24 months / battery 12 months |
Work with product and engineering teams to validate business software, modules and operating conditions together.
Choose the model and application to review OS, modules, accessories and delivery configuration.
Deployment countries, application, visibility, site conditions and compliance scope.
OS versions, applications, tag samples or correction services, peripheral protocols, mounting and power.
Sample results, exact device model, accessories, volume and rollout schedule.
Check T71EX certificate scope, validity and approved modules/accessories against country, zone, gas/dust and temperature requirements. Then validate inspection software, interfaces, mounting and power.
