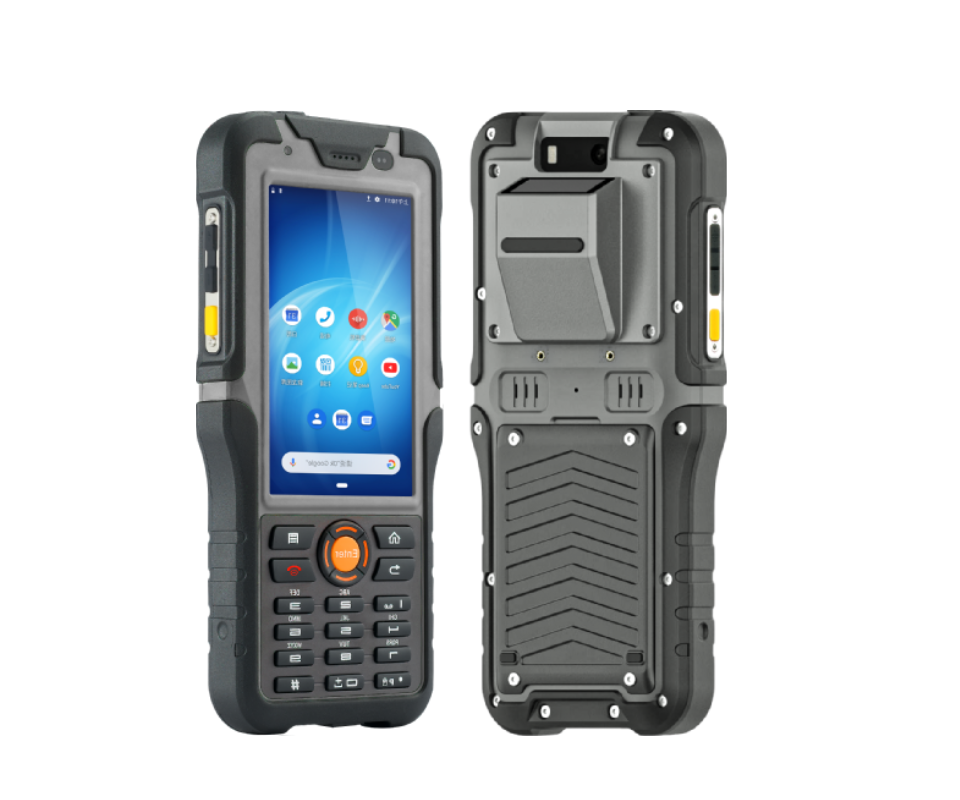

| 1. Power button | 2. Scan button |
| 3. MIC | 4. Scanner |
| 5. Decorative pieces | 6. Earphone (Sealed Cover) |
| 7. light sensation | 8. Handset |
| 9. Charge lamp | 10. Home |
| 11. Arrow and confirm Button | 12. Menu Button |
| 13. Back Button | 14. Number Button |
| 15. Power ON/OFF | 16. * Button |
| 17. # Button | 18. 2pin pogo pin |
| 19. Type-C (Sealed Cover) | 20. Volume up |
| 21. Volume Down | 22. main camera (optional) |
| 23. LED | 24. Speaker |
| 25. Battery |
| 1. Power button |
| 2. Scan button |
| 3. MIC |
| 4. Scanner |
| 5. Decorative pieces |
| 6. Earphone (Sealed Cover) |
| 7. light sensation |
| 8. Handset |
| 9. Charge lamp |
| 10. Home |
| 11. Arrow and confirm Button |
| 12. Menu Button |
| 13. Back Button |
| 14. Number Button |
| 15. Power ON/OFF |
| 16. * Button |
| 17. # Button |
| 18. 2pin pogo pin |
| 19. Type-C (Sealed Cover) |
| 20. Volume up |
| 21. Volume Down |
| 22. main camera(optional) |
| 23. LED |
| 24. Speaker |
| 25. Battery |
| Hardware | |
| CPU | ARM Cortex-A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | N/A |
| Battery | 5000mAh (Replaceable battery) |
| Display | 4.5 inch IPS/AFFS 540*960 QHD industrial 500nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| Data capture | Honeywell EX30 long-distance 1D/2D scan engin |
| Scanning Engine | Honeywell N6603 |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |

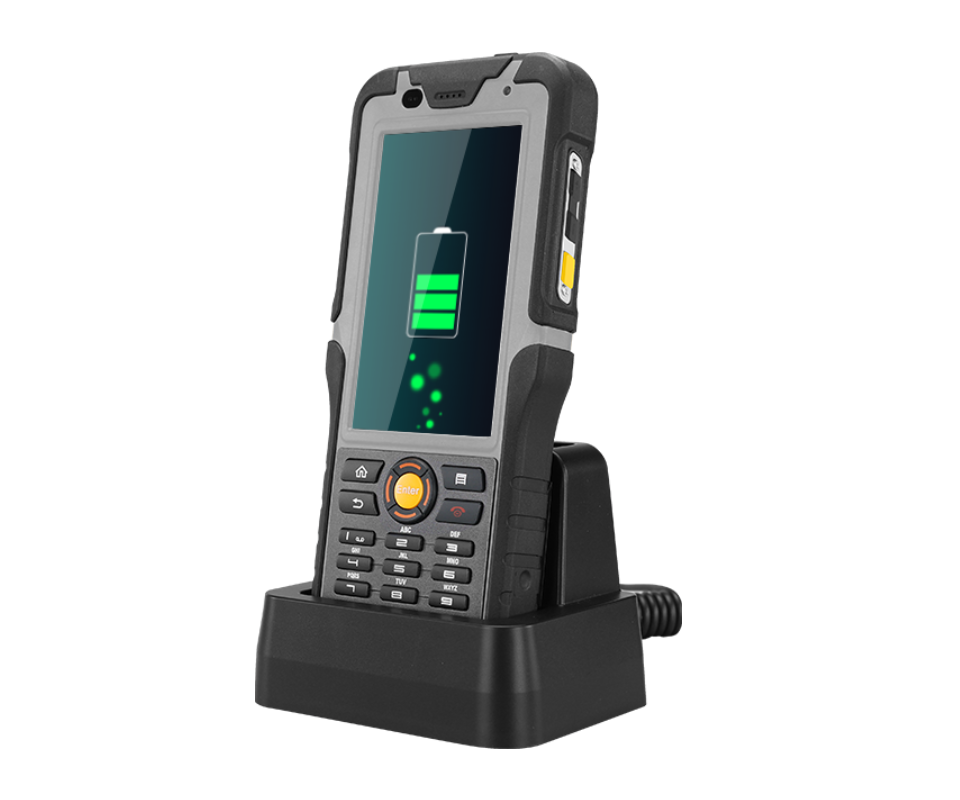

| Charging interface | Type-C & 2pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 197*92*45mm (LxWxH) |
| Weight | 420g |
| Color & Material | Gray (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 6 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C /FCC/CE/ROHS/IP66 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |
 |
1D/2D Barcode Scan Engine |
 |
Sensor Tecchnology: global shutter Resoluyion: 1280*800 pixels Frames per second: white LED Aimer: laser pointer(dot) Motion Tolerance: near(up to 6 m/s [19.7 ft/s] ) Far(up to 0,9 m/s [3.0 ft/s]) Field of view: Near(horizontal: 42.5° ±2°, vertical: 27.4° ±2°) FAR(horizontal: 11.4° ±1°, vertical: 7.2° ±1°) Symbol Contrast: 20% |
|
1D/2D Barcode Scan Engine |
|
10CM-30M Extended FlexRange Sensor Technology: global shutter Resoluyion: 1280*800 pixels Frames per second: white LED Aimer: laser pointer(dot) Motion Tolerance: near(up to 6 m/s [19.7 ft/s]) Far(up to 0,9 m/s [3.0 ft/s]) Field of view: Near(horizontal: 42.5° ±2°, vertical: 27.4° ±2°) FAR(horizontal: 11.4° ±1°, vertical: 7.2° ±1°) Symbol Contrast: 20% |
| SYMBOLOGIES TYPE LINEAR Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar 2D STACKED Codablock A, Codablock F, PDF417, MicroPDF417 二维码堆叠二维码2D MATRIX Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code POSTAL Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet. |
| READ RANGES (TYPICAL, WHITE ILLUMINATION) | ||
|---|---|---|
| SYMBOLOGY | NEAR DISTANCE (CM [IN])** | FAR DISTANCE (CM [IN])** |
| 13 MIL UPC | 5 [1.97] | 280 [100.24] |
| 5 MIL C39 | 9,5 [3.74] | 136 [53.54] |
| 10 MIL C39 | 6 [2.36] | 236 [103.54] |
| 20 MIL C39 | 8 [3.15] | 589 [231.89] |
| 55 MIL C39 | 20 [7.07] | 1500 [590.55] |
| 10 MIL QR | 9 [3.54] | 138 [54.33] |
| 55 MIL QR | 12 [4.72] | 704 [277.16] |
| 100 MILS C39 RFL | 36 [14.17] | 2900 [1141.73] |
| 100 MILS C128 RFL | 26 [10.24] | 2250 [885.83] |
| * Depends on the width of the bar code (shorter bar codes can be read even at closer distances, while wider bar codes need to be further away). ** In darker ambient light conditions, the distance is reduced. | ||
| SYMBOLOGIES TYPE | |
|---|---|
| LINEAR | Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar |
| 2D STACKED | Codablock A, Codablock F, PDF417, MicroPDF417 |
| 2D MATRIX | Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code |
| POSTAL | Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet. |
| READ RANGES (TYPICAL, WHITE ILLUMINATION) | ||
|---|---|---|
| SYMBOLOGY | NEAR DISTANCE (CM [IN])** | FAR DISTANCE (CM [IN])** |
| 13 MIL UPC | 5 [1.97] | 280 [100.24] |
| 5 MIL C39 | 9,5 [3.74] | 136 [53.54] |
| 10 MIL C39 | 6 [2.36] | 236 [103.54] |
| 20 MIL C39 | 8 [3.15] | 589 [231.89] |
| 55 MIL C39 | 20 [7.07] | 1500 [590.55] |
| 10 MIL QR | 9 [3.54] | 138 [54.33] |
| 55 MIL QR | 12 [4.72] | 704 [277.16] |
| 100 MILS C39 RFL | 36 [14.17] | 2900 [1141.73] |
| 100 MILS C128 RFL | 26 [10.24] | 2250 [885.83] |
| * Depends on the width of the bar code (shorter bar codes can be read even at closer distances, while wider bar codes need to be further away). ** In darker ambient light conditions, the distance is reduced. | ||
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
