ARM Cortex A73，8G RAM and 128G ROM,1000NIT FHD Display, 10000mAh Battery.
HUGEROCK G71L Mtk Quad Core Android 2200 nit 10000mAh Conjunto Gnss Tracker drones gps long range rugged oem Education Tablet Pc
Key attributes Industry-specific attributes Screen Size 7" Memory Capacity 8GB Display resolution 1080*1920 Operating System Android 9/10/11/13...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MORE FAST MORE POWERFUL
ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 10000mAh High-capacity Battery.
ULTRA-BRIGHT AND
HIGH-SATURATION
1000nits + FHD ultra-bright, high-saturation and sunlight readable.
ULTRA-BRIGHT
HIGH-SATURATION
ULTRA-BRIGHT AND
HIGH-SATURATION
1000 nits+ FHD ultra-bright, high-saturation and sunlight readable
HIGH RELIABILITY
IP67, Waterproof, Dustproof Shockproof, shock resistant.
HIGH
RELIABILITY
HIGH RELIABILITY
IP 67,Waterproof, Dustproof , Shockproof，shock resistant.
FAST, ACCURATE AND
HIGH-PRECISION
RTK centering rod, Precise Point Positioning with RTK GNSS.
FAST, ACCURATE
AND HIGH-PRECISION
FAST, ACCURATE AND
AND HIGH-PRECISION
RTK centering rod, Precise PointPositioning with RTK GNSS.
SUPER STRONG SIGNALADAPTABILITY
Improve survey performance in challenging GNSS environments.
SUPER STRONG
SIGNALADAPTABILITY
SUPER STRONG SIGNAL
ADAPTABILITY
Improve survey performance in challengingGNSS environments.
LIGHTWEIGHT AND
EASY TO CARRY
RTK usability greatly improved, and potential humanerror reduced.
EASY TO
CARRY
LIGHTWEIGHT AND EASY TO CARRY
RTK usability greatly improved, and potential humanerror reduced.
REAL-TIME COMMUNICATIONS
Integrated 4G,Wi-Fi, Bluetooth and NFC modules provide seamless connection to tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections tobase-rover configurations. GNSS RTK corrections can be accessed orbroadcasted continuously for accuratepositioning in all circumstances.
REAL-TIME
COMMU NICATIONS
REAL-TIME COMMU NICATIONS
Integrated 4G,Wi-Fi, Bluetooth and NFCmodules provide seamless connectionto tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections tobase-rover configurations. GNSS RTKcorrections can be accessed orbroadcasted continuously for accuratepositioning in all circumstances.
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to providea variety of customized solutions, includingpersonalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

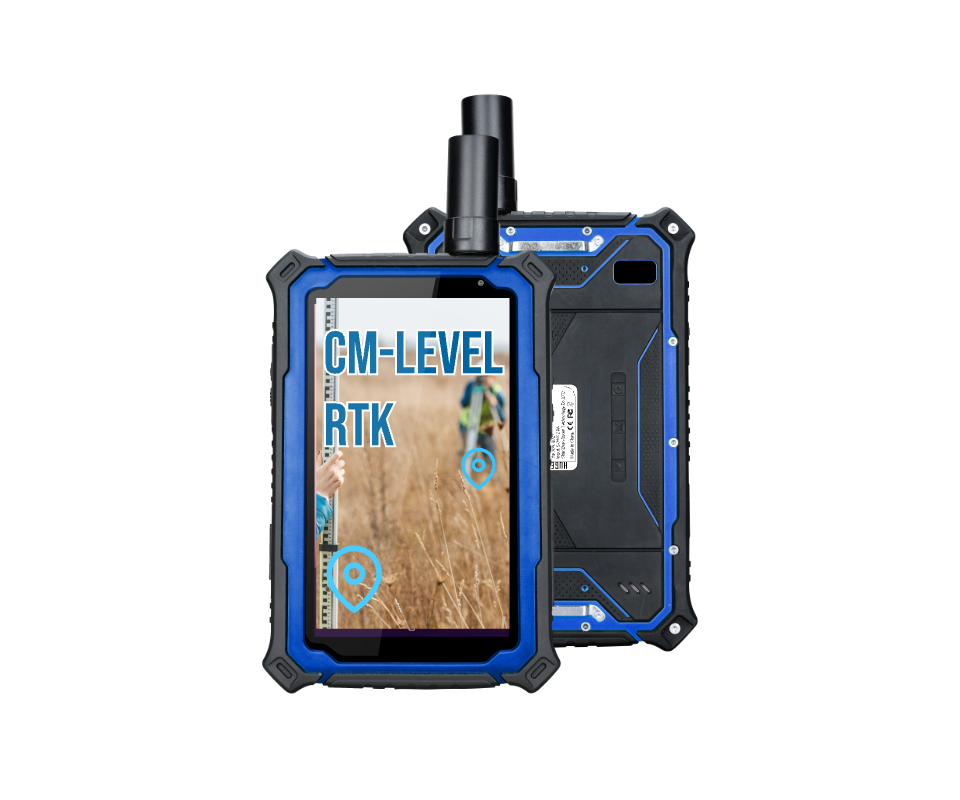

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM A73 2.0GHz Octa-core |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm CTIA |
| Charging interface | Type-C |
| Data interface | USB Type-C(OTG)*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) |
| Appearance | |
| Size | 202*138*22mm(L×W×H) |
| Weight | 700g |
| Color & Material | Blue(PC+ABS)+black(TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41) ; FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| WI-FI | Dual-band WIFI(2.4GHz/5GHz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h ; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67(IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional) |
EXTERNAL
| XTERNAL HELIX ATENNA ITEMS | |
|---|---|
| Antenna | Multi-satellite dual frequency |
| Antenna frequency band | BDS B1+B2; GPS L1+L5; GLONASS G1; GALILEO E1+E5a |
| Antenna size | Φ27.5mm*55.5mm |
| Installation method | SMA |
| Horizontal coverage | 360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dB |
| Maximum gain | 2.5dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode dual- frequency module (mm-level RTK) |
| Signal (tracking frequency) | GPS/QZSS: L1/L5; BeiDou : B1I/B2a; GALILEO: E1/E5a; GLONASS: G1; SBAS: WAAS, EGNOS, GAGAN, MSAS |
| Channel | 135-channel |
| Single-point positioning accuracy | 1.5 m CEP |
| RTK Accuracy | ≤ 8mm + 1ppm CEP |
| Nav. update rate | 1-10Hz |
| Cold start | 27 s |
| Hot start | 2 s |
| Aided start | ≤ 10s |
| Cors data | RTCM 3.x |
| Data Format | NMEA 0183 |
| Inertial navigation | none |
| EXTERNAL HELIX ATENNA ITEMS | |
| Antenna | Multi-satellite dual frequency |
| Antenna frequency band | BDS B1+B2; GPS L1+L5; GLONASS G1; GALILEO E1+E5a |
| Antenna size | Φ27.5mm*55.5mm |
| Installation method | SMA |
| Horizontal coverage | 360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dBi |
| Maximum gain | 2.5dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode dual-frequency module (mm-level RTK) |
| Signal (tracking frequency) | GPS/QZSS: L1/L5; BeiDou : B1I/B2a; GALILEO: E1/E5a; GLONASS: G1; SBAS: WAAS, EGNOS, GAGAN, MSAS |
| Channel | 135-channel |
| Single-point positioning accuracy | 1.5 m CEP |
| RTK accuracy | ≤ 8mm + 1ppm CEP |
| Nav. update rate | 1~10Hz |
| Cold start | 27 s |
| Hot start | 2 s |
| Aided start | ≤ 10s |
| Cors data | RTCM 3.x |
| Data Format | NMEA 0183 |
| Inertial navigation | none |
NTRIP CLIENT
An NTRIP Client is the software element used by the rover (the GNSS devices out in the field) used to connect to an NTRIP Caster such as SNIP to gain access to the data stream with the positional corrections it needs. There can be many hundreds of such clients connected to Caster, each connected to a different data stream provided by it.
An NTRIP Client is the software element used by the rover (the GNSS devices out in the field) used to connect to an NTRIP Caster such as SNIP to gain access to the data stream with the positional corrections it needs. There can be many hundreds of such clients connected to Caster, each connected to a different data stream provided by it.
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
