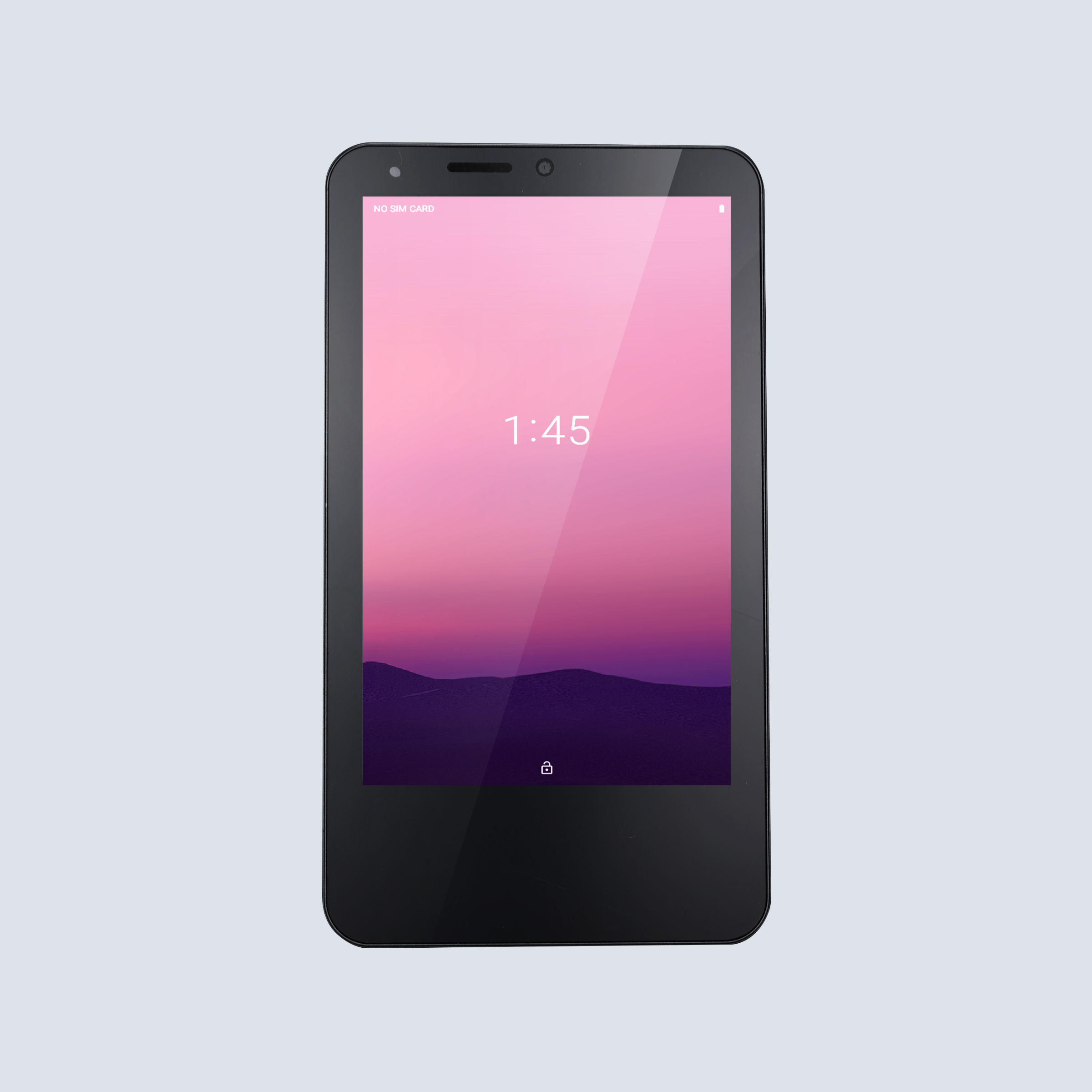

HUGEROCK K101(2021) 10.1 Inch Ips Rugged Handheld Terminal Workstation Industrial Android Kiosk Tablet Nfc Card Reader Tablet PC
Key attributes Industry-specific attributes Screen Size 10.1" Memory Capacity 4G Display resolution 1200*1920 Operating System Android 10.0/...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MULTIPLE FUNCTION
INTELLIGENT TEMINAL
7/8/10.1 inch LCD screen.
MULTIPLE FUNCTION
MULTIPLE FUNCTION
MODE TABLE
MODE TABLE
| Model | Display |
|---|---|
| K70S | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| K70 | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| K80 | 8 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| K101 | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 450nit Sunlight Readable |
| K101H | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| Weight | Size |
| 640g | 195.25*117.45*34.8(LxWxH) |
| 640g | 226.5*117.5*34mm(LxWxH) |
| 750g | 240*141*34mm(LxWxH) |
| 880g | 300*166*34mm(LxWxH) |
| 880g | 300*166*34mm(LxWxH) |
MODE TABLE
| Model | Display | Weight | Size |
|---|---|---|---|
| K70S | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable | 640g | 195.25*117.45*34.8mm(LxWxH) |
| K70 | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable | 640g | 226.5*117.5*34mm(LxWxH) |
| K80 | 8 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable | 750g | 240*141*34mm(LxWxH) |
| K101 | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 450nit Sunlight Readable | 880g | 300*166*34mm(LxWxH) |
| K101H | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable | 880g | 300*166*34mm(LxWxH) |
MULTIPLE
MULTIPLE INTERFACE
Extendable module(option)
| 1.OBD module | 2.Barometric sensor |
| 3.Ethernet port Module | 4.NFC Chip |
| 5.USB 2.0 Interface | 6.GPS positioning module |
| 7.Extendable Series | 8.RS232 Series Chip |
MULTIPLE INTERFACE
Extendable module(option)
| 1.OBD module |
| 2.Barometric sensor |
| 3.Ethernet port Module |
| 4.NFC Chip |
| 5.USB 2.0 Interface |
| 6.GPS positioning module |
| 7.Extendable Series |
| 8.RS232 Series Chip |
| 1.Type-C | 2.UHF module interface |
| 3.RJ45 | 4.Human sensor module |
| 5.NFC antenna | 6.Two RS232 Series |
| 7.4 Channel GPIO | 8.OBD Bus interface |
| 9.DC power (9-40V) | 10.Extendable Series |
| 11.Grabiity sensor | 12.SIM/SD Slot |
| 13.Camera interface(option) |
14.GPS Active antenne |
| 1.Type-C |
| 2.UHF module interface |
| 3.RJ45 |
| 4.Human sensor module |
| 5.NFC antenna |
| 6.Two RS232 Series |
| 7.4 Channel GPIO |
| 8.OBD Bus interface |
| 9.DC power (9-40V) |
| 10.Extendable Series |
| 11.Grabiity sensor |
| 12.SIM/SD Slot |
| 13.Camera interface(option) |
| 14.GPS Active antenne |
CONNECTOR
CONNECTOR FUNCTION DEFINITION
| J1 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | TXOPA | Ethernet port |
| 2 | TXONA | |
| 3 | RXIPA | |
| 4 | RXINA | |
| 5 | BODY SENSER 12V | Human sensor module |
| 6 | INT | |
| 7 | GND | |
| 8 | NC | |
| 9 | SYS_RST | Reset |
| 10 | GND | Power |
| 11 | VBAT | |
| 12 | PWEKEY | |
| J2 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | RS232_TX1/TTL_TX1 | RS232/TTL 1 |
| 3 | RS232_RX1/TTL_RX1 | |
| 5 | RS232_TX3/TTL_TX3 | RS232/TTL 2 |
| 7 | RS232_RX3/TTL_RX3 | |
| 2 | VCC_5V | VCC output |
| 4 | VCC_5V | |
| 6 | GND | |
| 8 | GND | |
| 9 | GPIO1 | I/O |
| 10 | GPIO2 | |
| 11 | GPIO3 | |
| 12 | GPIO4 | |
| J3 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | GND | DC (9-42V) |
| 3 | GND | |
| 5 | GND | |
| 7 | GND | |
| 2 | DC_POWER_IN | |
| 4 | DC_POWER_IN | |
| 6 | DC_POWER_IN | |
| 8 | ACC | OBD |
| 9 | ISO_L | |
| 10 | CANL | |
| 11 | ISO_K | |
| 12 | CANH | |
| J4 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1,3 | VCC_RTK_5V | RTK/GPS positioning module |
| 2 | TX | |
| 4 | RX | |
| 5,7 | GND | |
| 6 | TX | |
| 8 | RX | |
| 10 | VRTC | |
| 9,11,12,13,15 | VCC_3.3V | |
| 14 | SDA | Temperature/ pressure sensor |
| 16 | SCL | |
| 17 | GND | |
| 18 | GPIO | |
| 20,22 | VIO18_PMU | |
| 19,21,23,25,27,29,31 | VBAT | VBAT output |
| 24 | GPIO | IO |
| 26 | GND | USB_2.0 |
| 28 | DP | TTL 1 |
| 30 | DM | |
| 32 | GND | |
| 34,36 | VCC HUB 5V | |
| 40 | TX | OBD |
| 42 | RX | |
| 44 | TX | TTL2 |
| 46 | RX | |
| 33 | UHF_3.3V | UHF/RFID module |
| 35,37,38,39,41 | GND | |
| 43,45,47,49,51 | RFID_5V | |
| 50 | URXD | |
| 52 | UTXD | |
| 48 | GPIO | |
CONNECTOR FUNCTION DEFINITION
| J1 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | TXOPA | Ethernet port |
| 2 | TXONA | |
| 3 | RXIPA | |
| 4 | RXINA | |
| 5 | BODY SENSER 12V | Human sensor module |
| 6 | INT | |
| 7 | GND | |
| 8 | NC | |
| 9 | SYS_RST | Reset |
| 10 | GND | |
| 11 | VBAT | Power |
| 12 | PWEKEY | |
| J2 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | RS232_TX1/TTL_TX1 | RS232/TTL 1 |
| 3 | RS232_RX1/TTL_RX1 | |
| 5 | RS232_TX3/TTL_TX3 | |
| 7 | RS232_RX3/TTL_RX3 | |
| 2 | VCC_5V | RS232/TTL 2 |
| 4 | VCC_5V | |
| 6 | GND | |
| 8 | GND | |
| 9 | GPIO1 | I/O |
| 10 | GPIO2 | |
| 11 | GPIO3 | |
| 12 | GPIO4 | |
| J3 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1 | GND | DC (9-42V) |
| 3 | GND | |
| 5 | GND | |
| 7 | GND | |
| 2 | DC_POWER_IN | |
| 4 | DC_POWER_IN | |
| 6 | DC_POWER_IN | |
| 8 | ACC | OBD |
| 9 | ISO_L | |
| 10 | CANL | |
| 11 | ISO_K | |
| 12 | CANH | |
| J4 | ||
|---|---|---|
| Connector | Connector function definition | Function module |
| 1,3 | VCC_RTK_5V | RTK/GPS positioning module |
| 2 | TX | |
| 4 | RX | |
| 5,7 | GND | |
| 6 | TX | |
| 8 | RX | |
| 10 | VRTC | |
| 9,11,12,13,15 | VCC_3.3V | |
| 14 | SDA | Temperature/ pressure sensor |
| 16 | SCL | |
| 17 | GND | |
| 18 | GPIO | |
| 20,22 | VIO18_PMU | |
| 19,21,23,25,27,29,31 | VBAT | VBAT output |
| 24 | GPIO | IO |
| 26 | GND | USB_2.0 |
| 28 | DP | TTL 1 |
| 30 | DM | |
| 32 | GND | |
| 34,36 | VCC HUB 5V | |
| 40 | TX | OBD |
| 42 | RX | |
| 44 | TX | TTL2 |
| 46 | RX | |
| 33 | UHF_3.3V | UHF/RFID module |
| 35,37,38,39,41 | GND | |
| 43,45,47,49,51 | RFID_5V | |
| 50 | URXD | |
| 52 | UTXD | |
| 48 | GPIO | |
APPLICATION

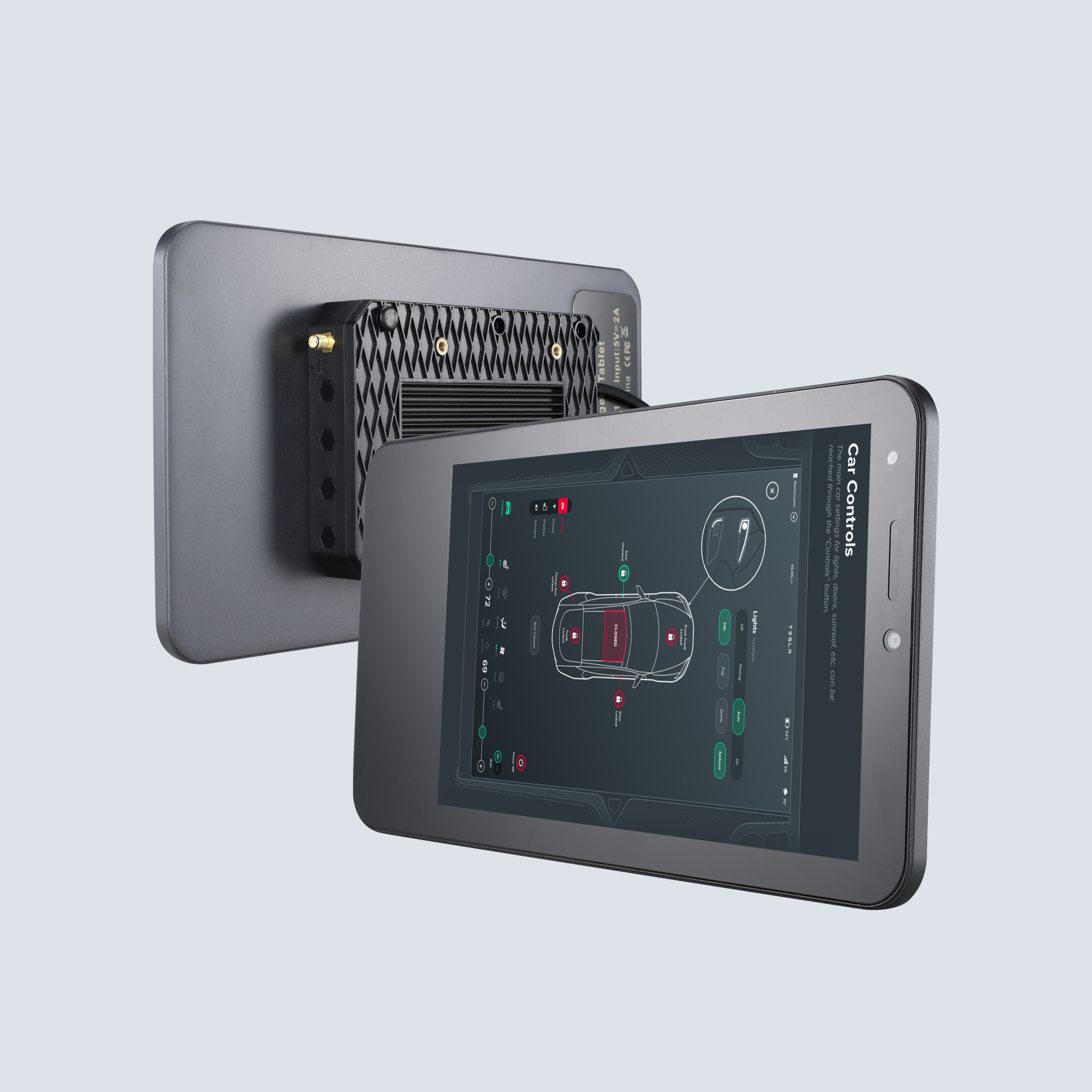

MULTI-APPLICATION BRACKET
Multiple Adaptive applications
| 1. Vehicle bracket/holder (27mm) |
| 2. Vehicle bracket/holder(15mm) |
| 3. Desktop adjustable bracket |
| 4. Pipe bracket |
| 5. Wall mount bracket |
| 6. Vehicle head bracket |
MULTI-APPLICATION BRACKET
MULTIPLE ADAPTIVE APPLICATIONS
| 1.Vehicle bracket/holder (27MM) | 2.Vehicle bracket/holder (15MM) | 3.Desktop adjustable bracket |
| 4.Pipe bracket | 5.Wall mount bracket | 6.Vehicle head bracket |
INDUSTRIAL GRADE
WATER PROOF/DUST PROOF
5 CLASS WATER-PROOF / 6 CLASS DROP-PROOF.
INDUSTRIAL
GRADE WATER
PROOF /
DUST PROOF
INDUSTRIAL GRADE WATER
PROOF/DUST PROOF
5 CLASS WATER-PROOF / 6 CLASS DROP-PROOF.
RUN FAST AND
LARGE MEMORY
Android 10 / 11 operating system.
RUN FAST AND
LARGE MEMORY
RUN FAST AND LARGE
MEMORY
Android 10 / 11 operating system.
APPEARANCE
| 1. SIM card | 2. TF card |
| 3. MIC | 4. Indicator light |
| 5. Light sensor | 6. Camera |
| 7. Type-A (Sealed Cover) | 8. Type-C (Sealed Cover) |
| 9. Headphone jack | 10. Power button |
| 11. GPS antenna (optional) |
12. VESA lock nut |
| 13. Speaker | 14. OBD (optional) |
| 15. I/O (optional) | 16. DC cable+RJ45 |
| 1. Sim Card |
| 2. Tf Card |
| 3. Mic |
| 4. Indicator Light |
| 5. Light Sensor |
| 6. Camera |
| 7. Type-a (sealed Cover) |
| 8. Type-c (sealed Cover) |
| 9. Headphone Jack |
| 10. Power Key |
| 11. Gps Antenna (optional) |
| 12. Vesa Lock Nut |
| 13. Speaker |
| 14. Obd (optional) |
| 15. I/o (optional) |
| 16. Dc Cable+rj45 |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0 GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 4G |
| Internal Memory | 32G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Sub Camera | 5.0MP |
| Battery | No built-in battery/external power supply |

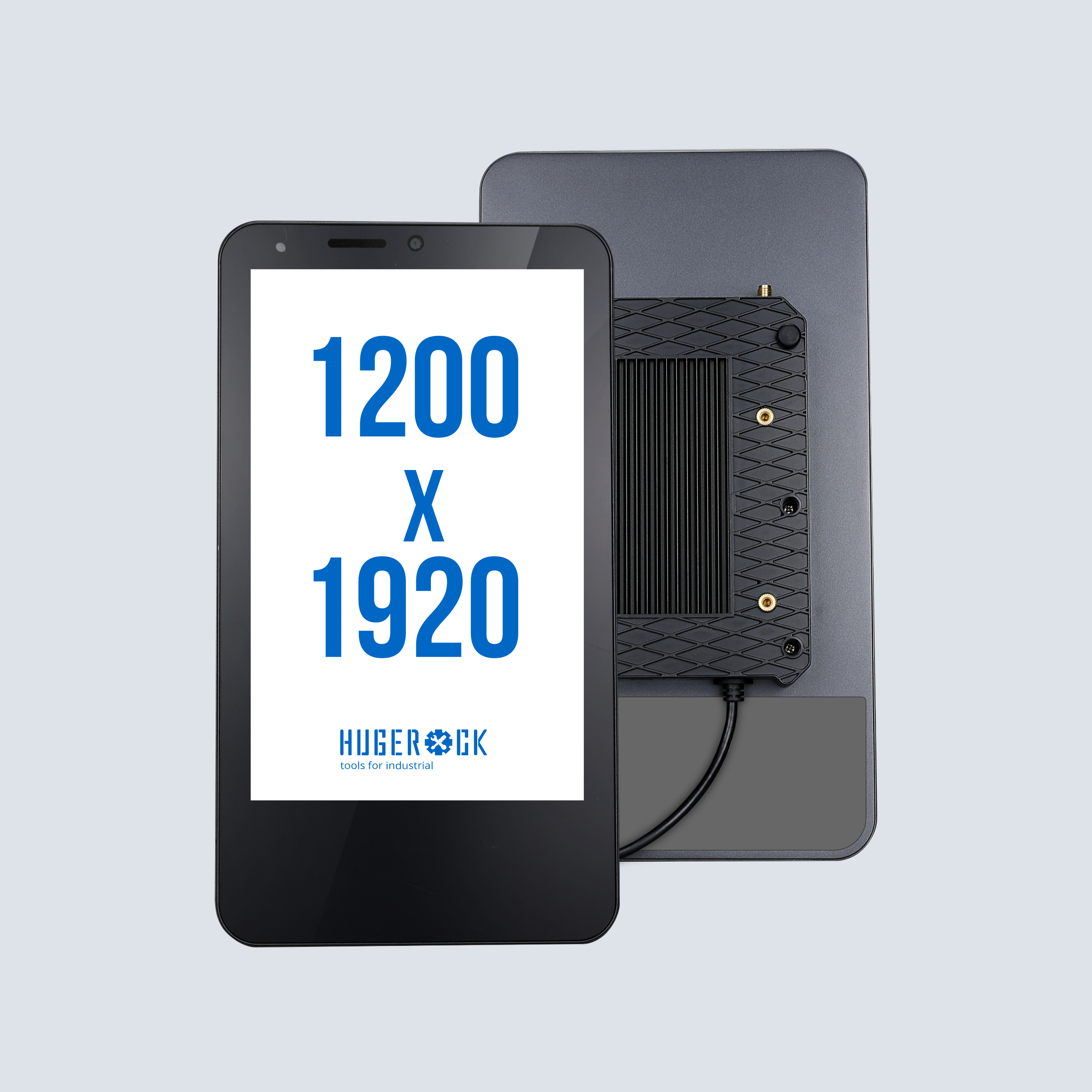

| Display | 10.1 inch IPS/AFFS 1200*1920 FHD industrial 450nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Headphone | 3.5mm(CTIA) |
| Data interface | USB Type-A(Host)*2 , Type-C(OTG)*1 |
| UART(optinal) | The motherboard reserves two serial ports TTL3.3V |
| RS232(optinal) | Optional RS232 serial port, use M8 5pin aviation plug to transfer 9pin |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Body sensing | 4G microwave radar sensor |
| Charger | DC 9 ~ 24V input, 3A 27W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 300*166*34mm (L×W×H) |
| Weight | 880g |
| Color & Material | grey |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO |
| 3G Band | WCDMA(B1/2/5/8),Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI-FI | Dual-band WIFI(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy(LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Operating temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m(15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | Type-C Cable/Power adapter DC 12V/Quick start guide/Screen protector/Aircraft box/SIM Card Ejector |
OPTIONAL MODULES
| Extension 1 | ||
| UHF module | (M500 ASTM)+ Antenna (M500 EN)+Antenna |
|
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
|
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
|

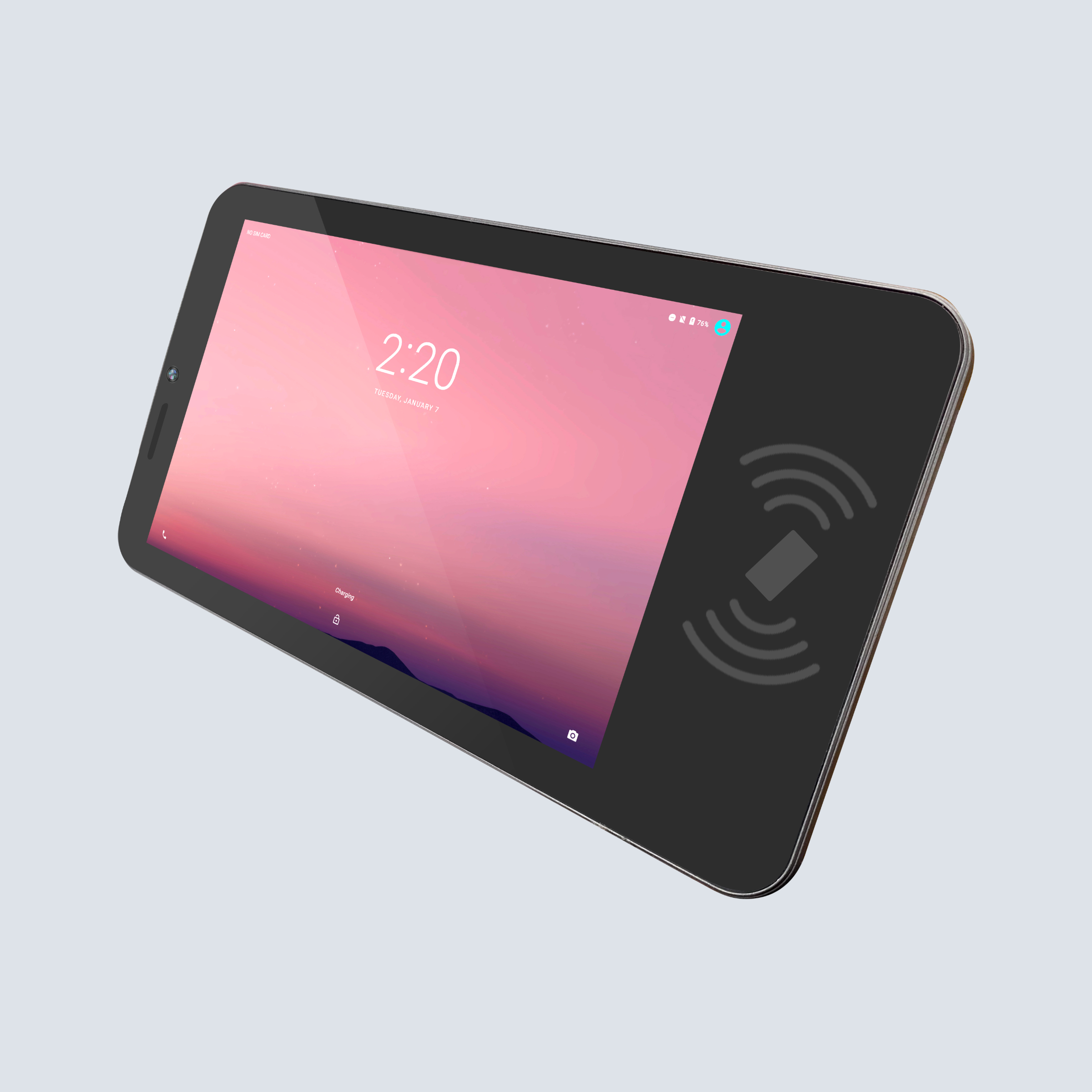

| NFC | NFC module NFC antenna |
|
| Extension 2 | ||
| RS232 x 2 | ||
| TTL x 2 | ||
| OBD module | ||
| I/O x 4 | ||
| RJ45 | ||
| Industrial-gradesh ort-distance data communication module |
433 module ZigBee |
|
| Extension 3 (cable) | ||
| OBD+RJ45 | ||
| OBD+DB9 | ||
| DC+RJ45 | ||
| RJ45+DB9 | ||
| Extension | ||
|---|---|---|
| 1 | UHF module | (M500 ASTM+) Antenna (M500 EN+)Antenna |
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
|
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
|
| NFC | NFC module NFC antenna |
|
| Body sensing | 4G microwave radar sensor | |
| 2 | RS232 x 2 | |
| TTL x 2 | ||
| OBD module | ||
| I/O x 4 | ||
| RJ45 | ||
| Industrial-gradeshort-distance data communication module | 433 module ZigBee |
|
| 3 (cable) | OBD+RJ45 | |
| OBD+DB9 | ||
| DC+RJ45 | ||
| RJ45+DB9 | ||
CUSTOMIZED
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
- Choosing a selection results in a full page refresh.
