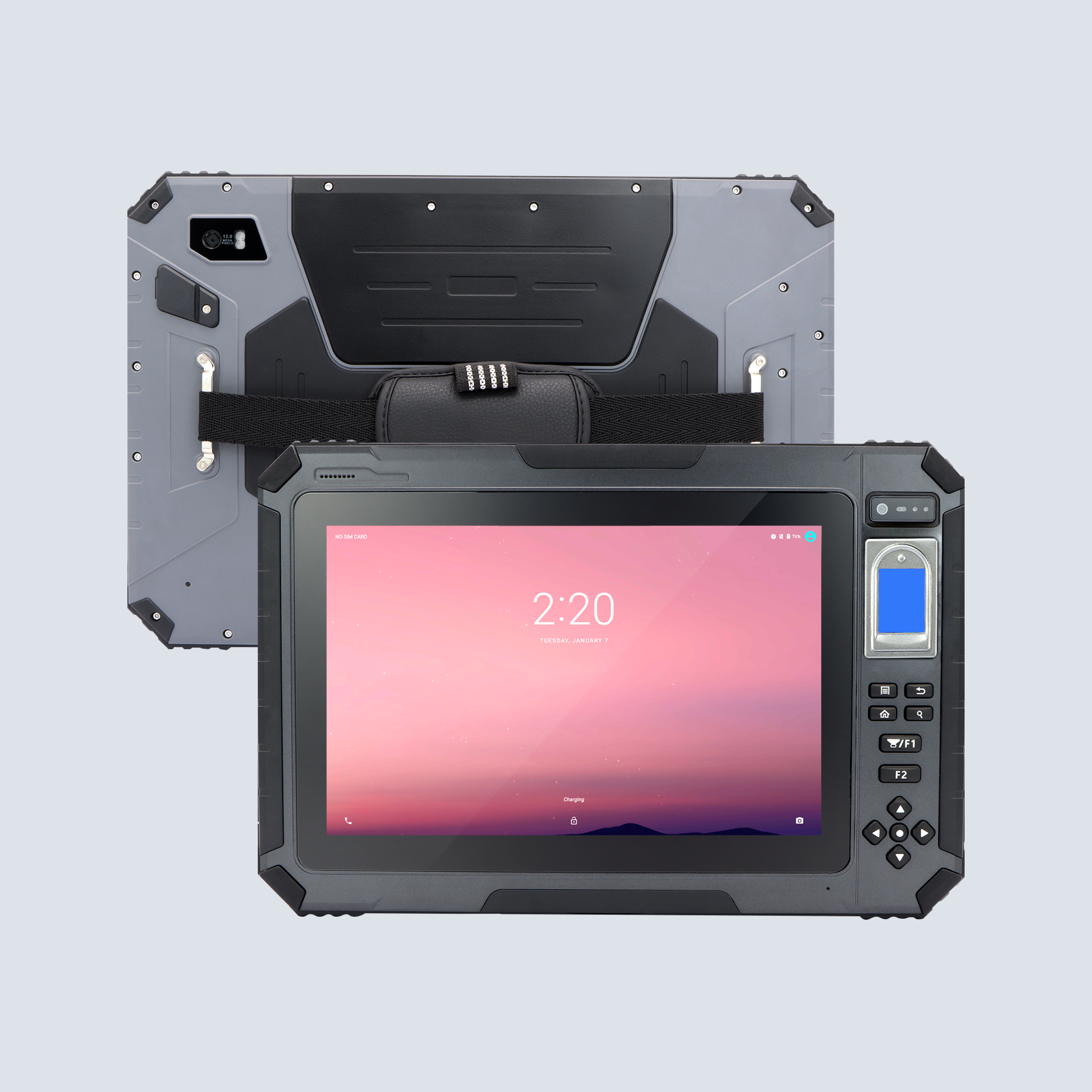

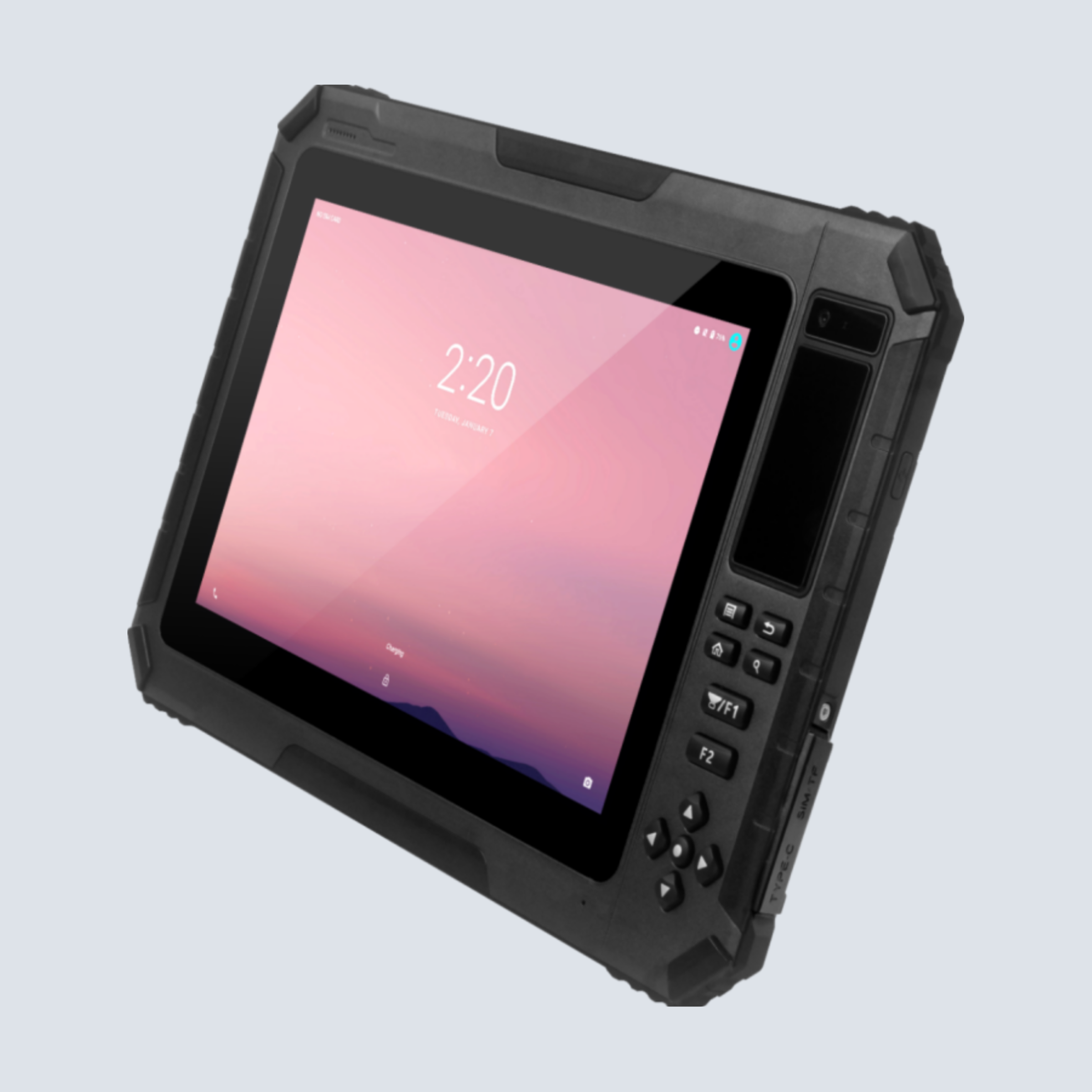

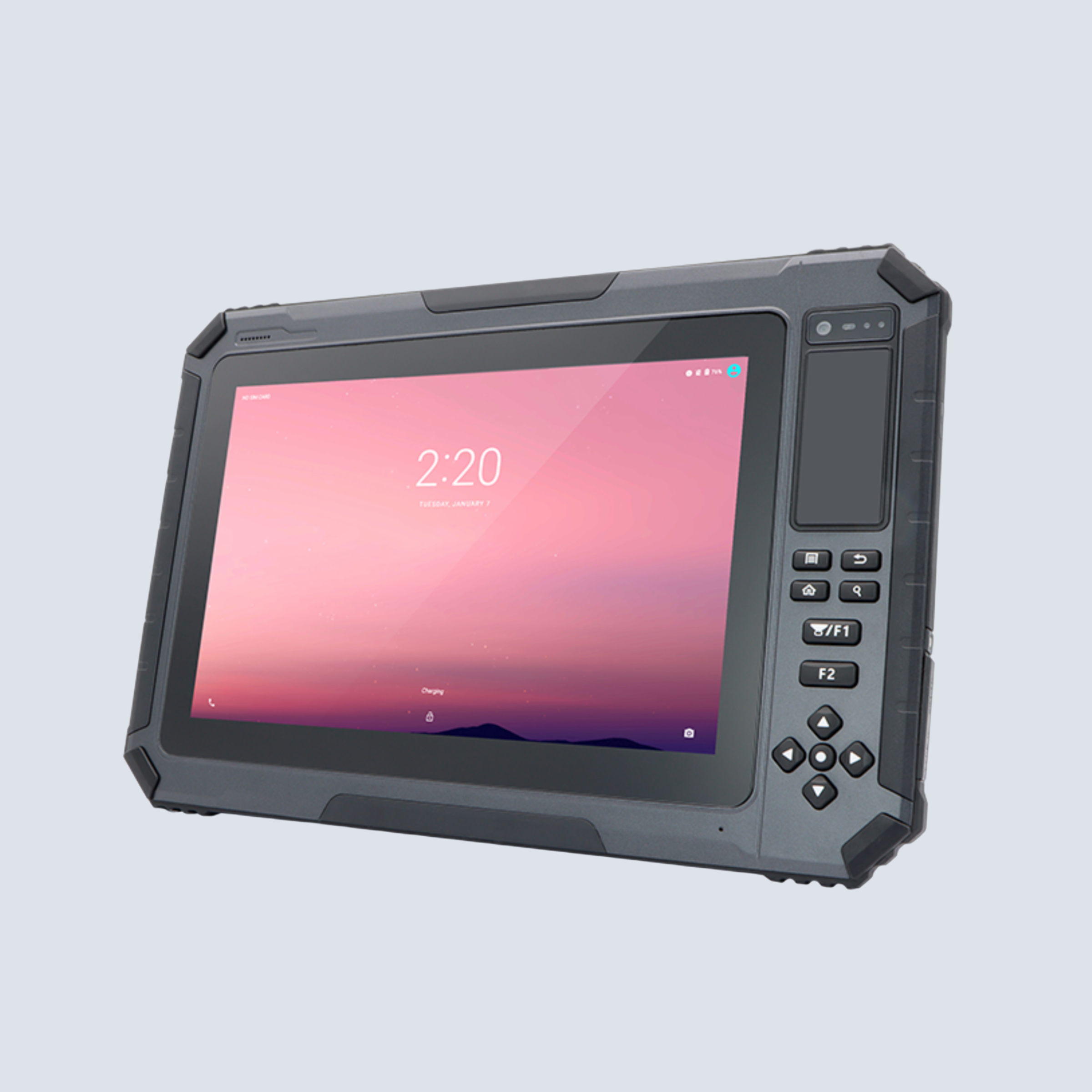

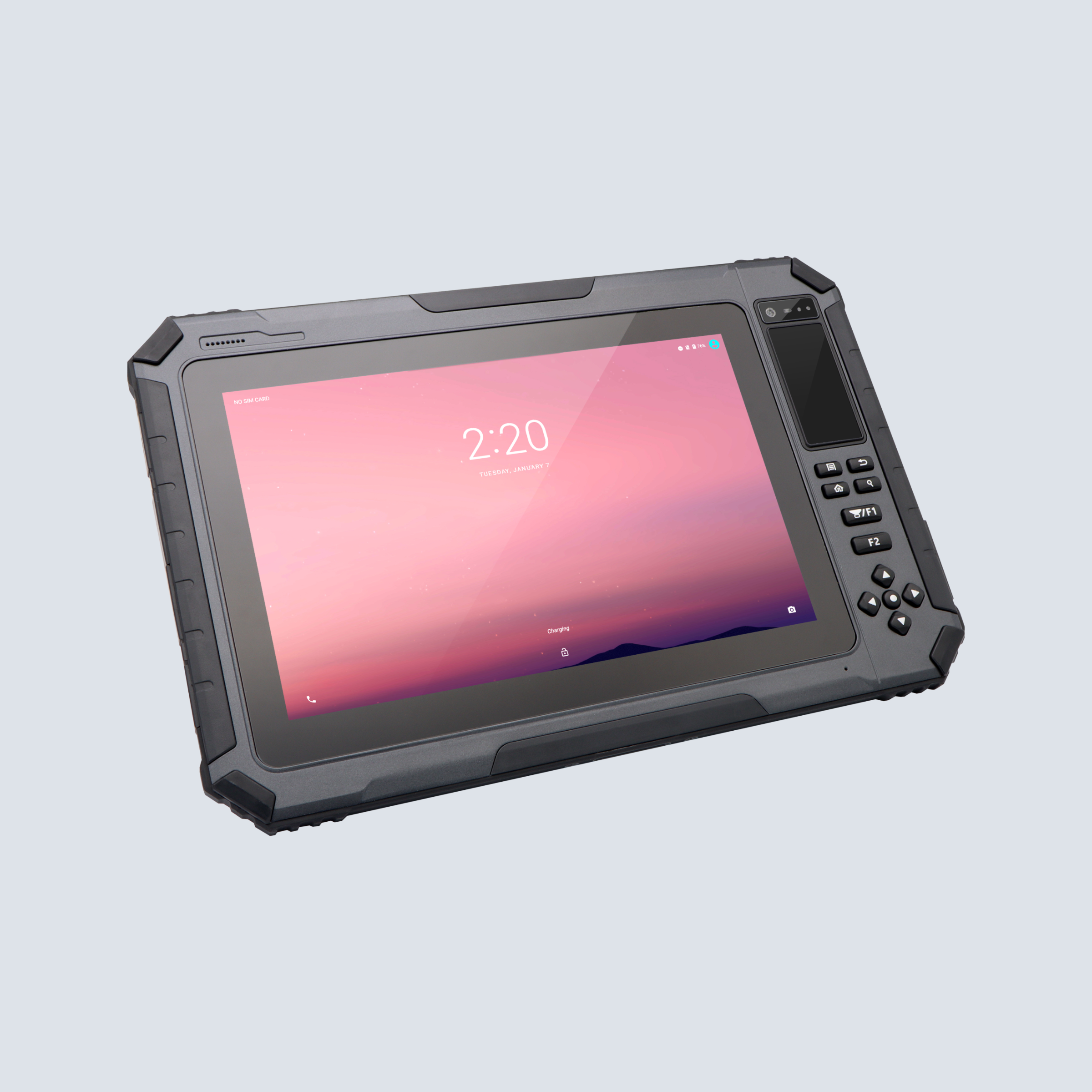

1. Type-A (Sealed Cover) | 2. RS232 (Sealed Cover) |
3. Speaker | 4. Sub camera |
5. Ambient light sensor | 6. Charge lamp |
7. Fingerprint (optional) | 8. Menu button |
9. Back button | 10. Home button |
11. Search button | 12. Scan button |
13. Defined button | 14. Direction button |
15. Confirm button | 16. MIC |
17. 8 pin Pogo pin | 18. Power button |
19. TF/SIM (Sealed Cover) | 20. Type C (Sealed Cover) |
21. Main camera | 22. Temperature pressure sensor (Optional) |
23. TF(Sealed Cover) |
1. Type-A (Sealed Cover) |
2. RS232 (Sealed Cover) |
3. Speaker |
4. Sub camera |
5. Ambient light sensor |
6. Charge lamp |
7. Fingerprint (optional) |
8. Menu button |
9. Back button |
10. Home button |
11. Search button |
12. Scan button |
13. Defined button |
14. Direction button |
15. Confirm button |
16. MIC |
17. 8pin Pogo pin |
18. Power button |
19. TF/SIM (Sealed Cover) |
20. Type C (Sealed Cover) |
21. Main camera |
22. Temperature pressure sensor (Optional) |
23. Nameplate |
Hardware | |
---|---|
CPU | ARM Cortex A73 octa-core (2.0GHz ) |
GPU | ARM Mali-G72 MP3 |
RAM | 8G |
Internal Memory | 128G |
External Memory | Micro SD card (T-FLASH card), max 256GB |
Main Camera | 13.0MP(AF)with flash led |
Sub Camera | 5.0MP |
Battery | 14600mAh |
Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active pen |
IO/Sensor/Navigation | |
SIM Card | Nano sim card*2 |
TF Card | Micro SD card (T-FLASH card); max 256GB |
Charging interface | Type-C & 8pin pogo pin |
Data interface | USB Type-A(Host)*2, Type-C(OTG)*1 |
RS232 (optinal ) | RS232 serial port, using 5pin micro one GPIO port |
Gravity sensor | support |
Motion sensor | support |
Direction Sensor | support |
Magnetic Field Sensor | support |
Gyro sensor | support |
Rotation Vector | support |
Light-sensor | support |
Acceleration sensor | support |
Charger | 5.0V 2A-10W |
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Appearance | |
Size | 320*228*12mm (L×W×H) |
Weight | 1360g |
Color & Material | Gray (Titanium alloy+ABS+PC+TPU) |
Communications & Networking | |
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
2G Band | GSM (B2/3/5/8) |
3G | WCDMA |
3G Band | WCDMA (B1/2/5/8), (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
4G | FDD: 150Mbps down; 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
4G Band | TD-LTE (B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
WI- FI | Dual-band WiFi(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
Bluetooth | 4.2 Low Energy(LE) |
Industrial & Reliability Design | |
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
Drop-proof /IK | MIL-STD 810G/Method516.6/Procedure IV & Touch Panel IK05 |
Waterproof | Class 5 (IEC 60529) |
Dustproof | Class 6 (IEC 60529) |
Reliability | MTBF>50000h; MTTR<0.5h |
Operating temperature | -20°C to 55°C |
Storage Temperature | -40°C to 80°C |
RH | 5% to 95% |
Operating Altitude | Max: 4,500m(15,000 feet) |
Certification/OS/Software | |
Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional,etc |
OS | Android 10 / 11 |
Package/Warranty terms/OEM | |
Warranty | 24 months |
OEM/ODM | Support |
Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit (optional)/SIM Card Ejector x 1 |
Extension 1 | |
---|---|
USB Type-A(Host)*2 | |
Extension 2 | |
RS232 I/O | |
Extension 3 | |
Fingerprint Module | |
Extension 4 | |
LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module HID card reader module |
HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
UHF RFID module | UHF UHF(M500 American Standard) UHF air antenna, (long distance 8-10 meters) UHF ultra high frequency (M500 European standard) UHF module R2000 UHF module (M550 integrated with module antenna) |
NFC | NFC Module NFC antenna |
1D/2D Barcode Module | Newland N1 scanner U3020 scanner N3680 scanner |
ID card module | ID card module Antenna board |
Temperature pressure sensor | |
laser light | |
38K infrared module | |
Industrial-grade shortdistance data communication module | Lora ZigBee |
Other customer supply modules | Nezed to meet the interface conditions : Powered by3.3V1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
Extension | ||
---|---|---|
1 | USB Type-A(Host)*2 | |
2 | RS232 I/O | |
3 | Fingerprint Module | |
4 | Temperature pressure sensor |
125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module HID card reader module |
HF RFID module |
13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
|
UHF RFID module |
UHF UHF(M500 American Standard) UHF air antenna, (long distance 8-10 meters) UHF ultra high frequency (M500 European standard) UHF module R2000 UHF module (M550 integrated with module antenna |
|
NFC |
NFC Module NFC antenna |
|
1D/2D Barcode Module |
Newland N1 scanner U3020 scanner N3680 scanner |
|
ID card module |
ID card module Antenna board |
|
Temperature pressure sensor | ||
laser light | ||
38K infrared module | ||
Industrial-grade shortdistance data communication module |
Lora ZigBee |
|
Other customer supply modules |
Nezed to meet the interface conditions : Powered by3.3V1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
Boot screen | widthwise |
Boot screen background color | white, light color |
Boot screen resolution | 1920*1200 |
Program 1 | |
---|---|
C: | High-gloss metallic silver |
M: | Stainless iron (select stainless iron with charging base) |
F: | Laser carving craft |
Nameplate | |
Nameplate size: | 78*24mm |
Example: |
LOGO
Can be silk screen position +NFC's LOGO is at the bottom LOG0 without NFC can becentered |
Boot screen: widthwise
Boot screen backgroundcolor: white, light color Boot screen resolution:1920*1200 |
LOGO
Optional G2010 fingerprint LOGO can be laser engraved position |
Program 1: | C: High-gloss metallic silver |
M: Stainless iron (select stainless iron with charging base) | |
F: Laser carving craft |
Nameplate size: 78x24mm | |
Example: |
Barcode Reader Optional 1D/2D | |
2D Barcode Module N1 N12D PDF417, QR Code, Micro QR, Data Matrix 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOS EAN13 (13mil) 65-350mm, PDF417 (6.7mil) 50-125mm, Code39 (5mil) 40-150mm, Data Matrix (10mil) 45-120mm, QR Code (15mil) 30-170mm | |
2D Barcode Module Honywell N3680 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. 1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc. 640 pixels (H) x 480 pixels (V) High Resolution; 6.88 mil (PDF417): 0mm-50mm;) | |
2D Barcode Module U3020 2D: QR Code, Data Matrix, PDF417, Aztec 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,ISBN, ISSN, MSI-PlesCXy GS1 Databar, Code 11, Industrial 25, Standard 25, PlesCXy, Matrix 2 of 5 EAN-13: 30mm-130mm(13 mil) Code39: 30mm-50mm(5 mil 10 bit) QR Code:25mm-120mm(20 mil 16 bit) Data Marix: 30mm-70mm(10 mil 20 bit) PDF 417: 30mm-80mm(6.67 mil 7 bit) |
Barcode Reader Optional 1D/2D | |
2D Barcode Module N1 N12D PDF417, QR Code, Micro QR, Data Matrix, ID Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOS EAN13/13mil(40-350mm, PDF417(6.7mil)50-125mm, Code39(5mil)40-150mm, Data Matrix(10mil)45-120mm, QR Code(15mil)30-170mm |
|
2D Barcode Module Honeywell N3680 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. 1D: UPC, EAN Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessy, GS1 Databar, China Postal, Korean Postal, etc. 640 pixels(H) x 480 pixels(V)High Resolution,6.88 mil(PDF417)-0mm-50mm;) |
|
2D Barcode Module U3020 2D: QR Code, Data Matrix, PDF417, Aztec 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PlesCxy GS1 Databar, Code 11, Industrial 25, Standard 25, PlesCxy, Matrix 2 of 5 EAN-13: 30mm-130mm (13 mil) Code 39: 30mm-50mm (5 mil 10 bit) QR Code: 25mm-120mm (20 mil 16 bit) Data Marix: 30mm-70mm (10 mil 20 bit) PDF 417: 30mm-80mm (6.67 mil 7 bit) |
RFID Reader Optional LF HF UHF |
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
RFID Reader Optional LF HF UHF |
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
Fingerprint
Optional G2010 |
|
G2010 Module G2010 Capacitive fingerprint sensor, FAP10, 500 dpi, 8 bit, 256X360 size, FBI MINEX III (NIST Certification) |
Fingerprint
Optional G2010 |
|
G2010 Module G2010 Capacitive fingerprint sensor, FAP10, 500 dpi, 8 bit, 256X360 size, FBI MINEX III (NIST Certification) |
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
