10.1 INCH FHD SUNLIGHT READABLE
10.1 INCH FHD SUNLIGHT READABLE
IPS/AFFS Display 1920*1200 FHD.

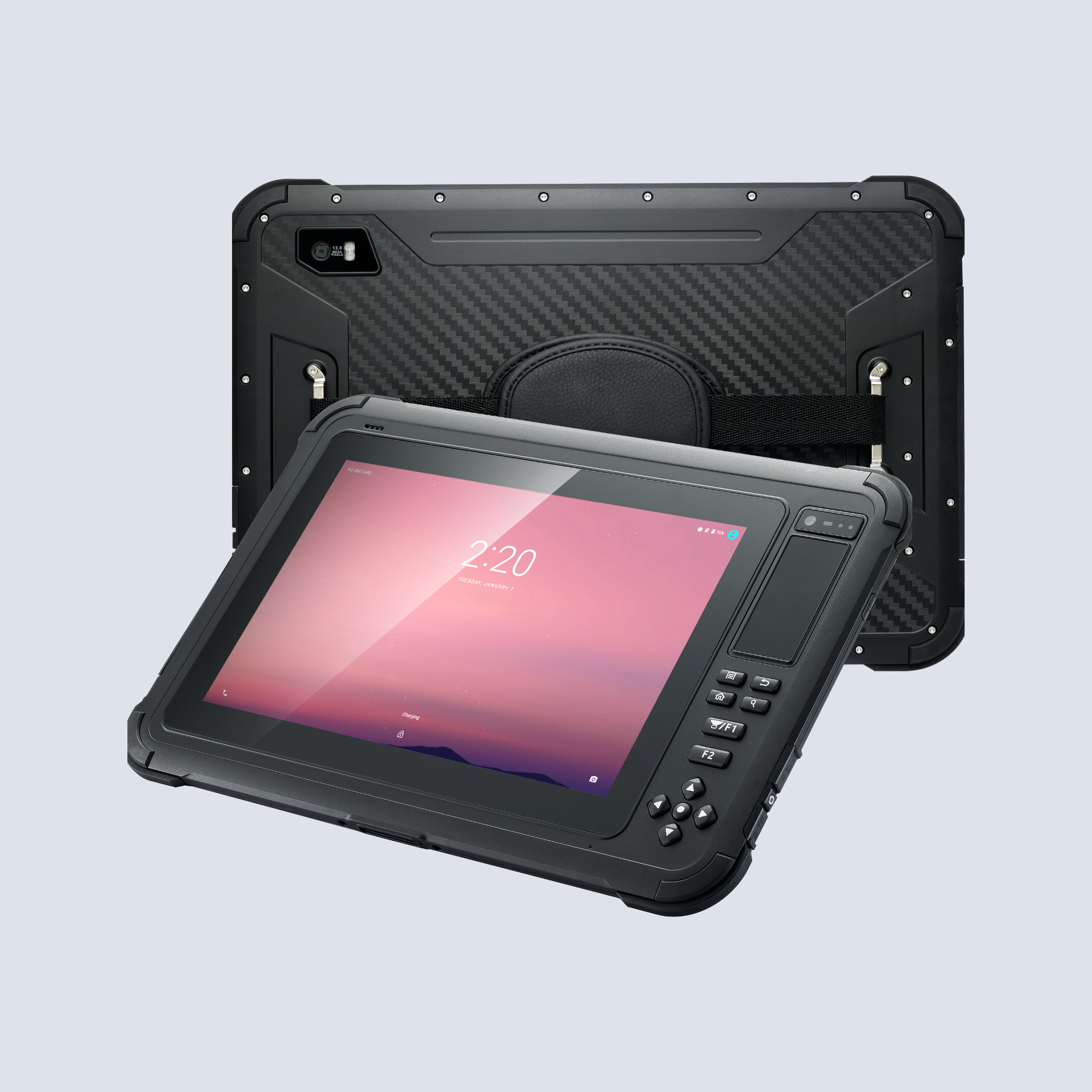

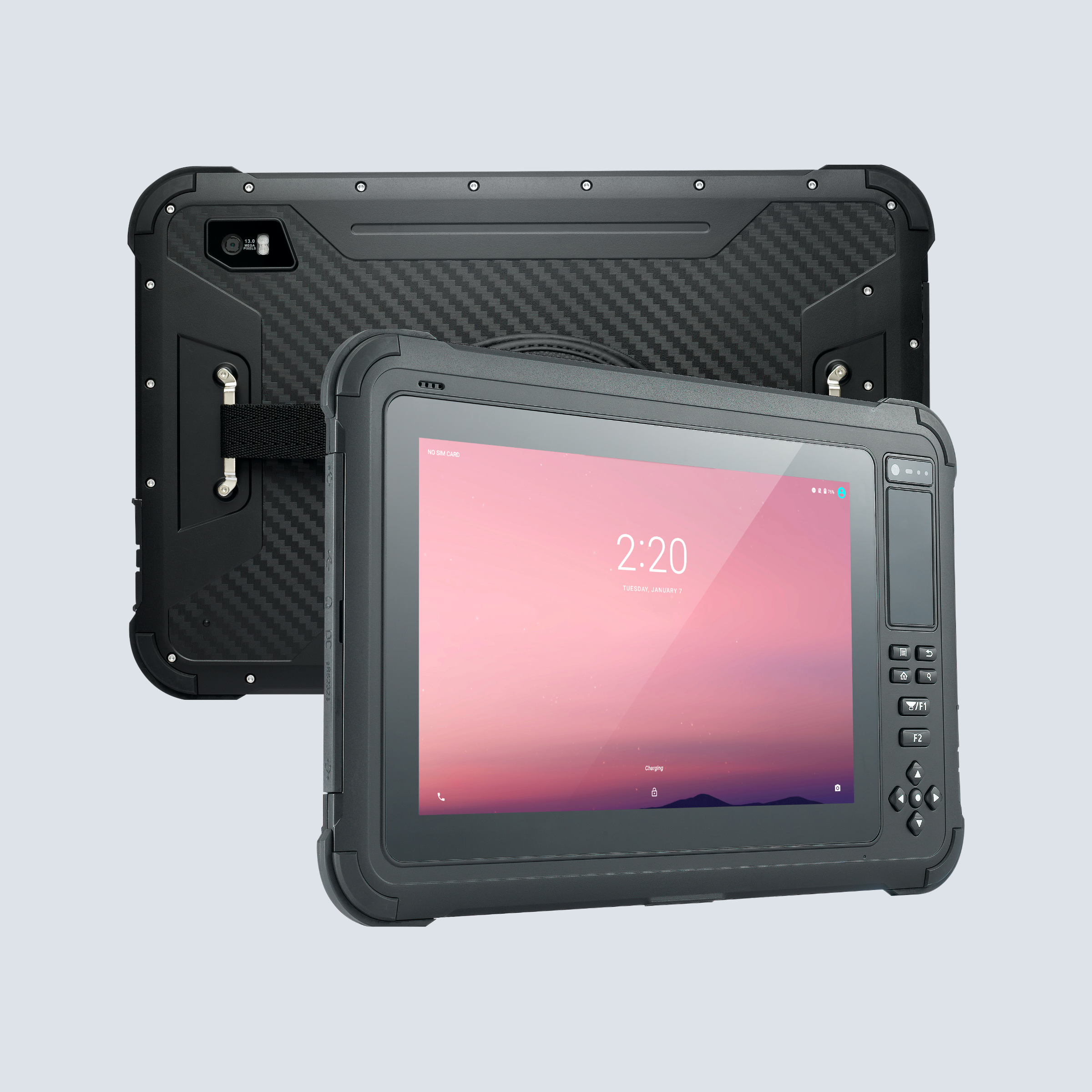

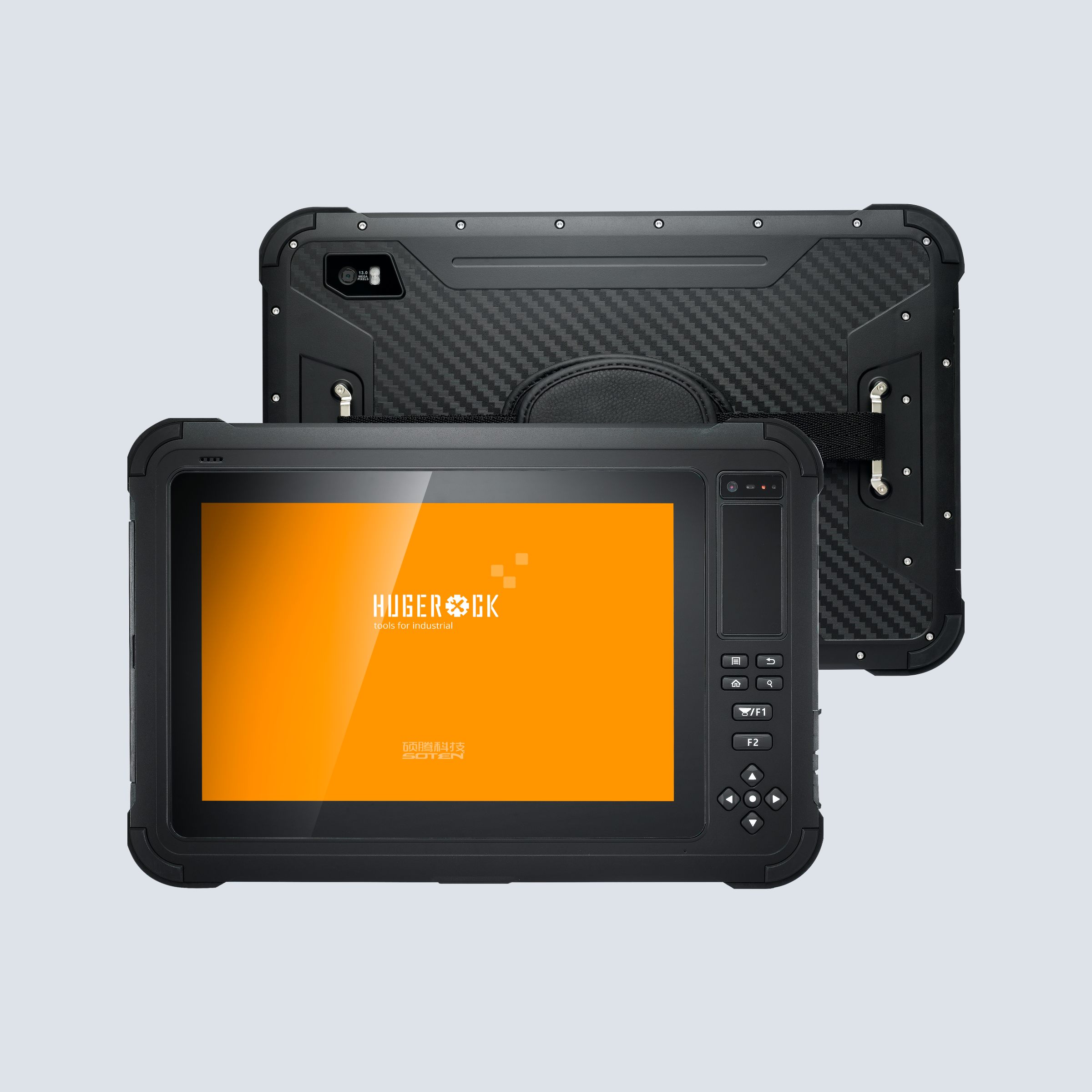

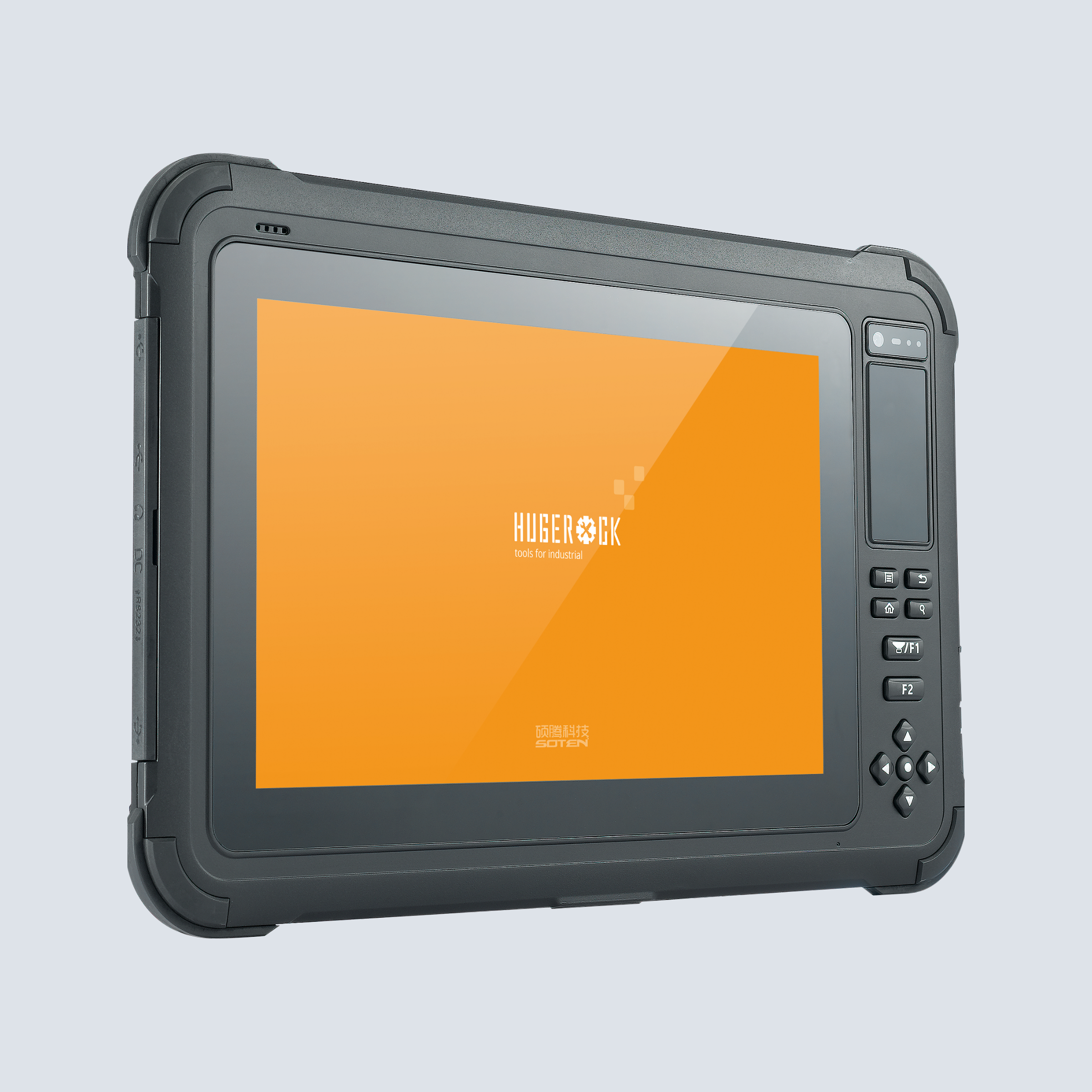

HUGEROCK S101 IP65 450nit Tablets With nfc module Capacitive screen 10.1" Industrial computer 4g ruggedized Android13 Tablet Pc
Key attributes Industry-specific attributes Screen Size 10.1" Memory Capacity 6G Display resolution 1920*1200 Operating System Android 9/10/11/13...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
10.1 INCH FHD SUNLIGHT READABLE
IPS/AFFS Display 1920*1200 FHD.
HIGH CAPACITY
FAST RUNNING
Large running memory makes it more stable and smooth to use and can save more data.
HIGH CAPACITY
FAST RUNNING
HIGH CAPACITY
FAST RUNNING
Large running memory makes it more stable and smooth to use and can save more data.
FINGERPRINT
G2010 Module.
FINGERPRINT
FINGERPRINT
G2010 Module.
NFC FUNCTION
NFC provides a very safe and fast communication method for various electronic products that are becoming more and more popular in our daily lives.
NFC
FUNCTION
NFC FUNCTION
NFC provides a very safe and fast communication method for various electronic products that are becoming more and more popular in our daily lives.
DUST-PROOF
CLASS 6 ( IEC 60529 ).
DUST-PROOF
DUST-PROOF
CLASS 6 ( IEC 60529 ).
APPEARANCE
| 1. Type-A (Sealed Cover) |
2. Type-C (Sealed Cover) |
| 3. Handset Jack (Sealed Cover) |
4. DC-type (Sealed Cover) |
| 5. RS232 (Sealed Cover) |
6. Speaker |
| 7. Sub Camera | 8. Ambient light sensor |
| 9. Status indicator and charging indicator |
10. Fingerprint (Optional) |
| 11. Menu button | 12. Back button |
| 13. Home button | 14. Search button |
| 15. Defined button (Optional) |
16. Defined button |
| 17. Direction button | 18. Confirm button |
| 19. MIC | 20. 8 pin pogo pin (magnetic) |
| 21. Power button | 22. SIM (Sealed Cover) |
| 23. TF(Sealed Cover) | 24. Main camera |
| 25. Temperature pressure sensor (Optional) | |
| 1. Type-A(Sealed Cover) |
| 2. Type-C(Sealed Cover) |
| 3. Handset Jack(Sealed Cover) |
| 4. DC-type(Sealed Cover) |
| 5. RS232(Sealed Cover) |
| 6. Speaker |
| 7. Sub Camera |
| 8. Ambient light sensor |
| 9. Status indicator and charging indicator |
| 10. Fingerprint(Optional) |
| 11. Menu button |
| 12. Back button |
| 13. HOME button |
| 14. Search button |
| 15. defined button(Optional) |
| 16. Defined button |
| 17. Direction button |
| 18. Confirm button |
| 19. MIC |
| 20. 8pin pogo pin(magnetic) |
| 21. Power button |
| 22. SIM (Sealed Cover) |
| 23. TF(Sealed Cover) |
| 24. Main camera |
| 25. Temperature pressure sensor(Optional) |
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 4G |
| Internal Memory | 32G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray /active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging Interface | Type-C & 8pin pogo pin (magnetic) & DC 5V (direct battery charging) |
| Data interface | USB Type-A(Host)*2 , Type-C(OTG)*1 |
| RS232 (optinal) | Optional Rs232 Serial Port; Using 5pin Micro One Gpio Port |
| Gravity sensor | Support |
| Motion sensor | Support |
| Direction Sensor | Support |
| Magnetic Field Sensor | Support |
| Gyro sensor | Support |
| Rotation Vector | Support |
| Light-sensor | Support |
| Acceleration sensor | Support |
| Charger | 5.0V 2A -10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 320*228*12mm (L×W×H) |
| Weight | 975g |
| Color & Material | Black (ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2 Mbps, HSUPA +11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8) , Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD : 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE ( B1/2/3/4/5/7/8/12/17/20/28) |
| WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional) |
OPTIONAL MODULES
| Extension 1 | |
|---|---|
| USB Type-A(Host)*2 | |
| Extension 2 | |
| RS232 I/O | |
| Extension 3 | |
| Fingerprint Module | G2010 Module |
| NFC | NFC Module NFC antenna |
| Extension 4 | |
| Temperature pressure sensor | |
| Other customer supply modules | Need to meet the interface conditions : Powered by 3.3V/1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO I/electrical level 3.3V/5V. |
| Extension | ||
|---|---|---|
| 1 | USB Type-A(Host)*2 | |
| 2 | RS232 I/O |
|
| 3 | Fingerprint Module | G2010 Module |
| NFC | NFC Module NFC antenna |
|
| 4 | Temperature pressure sensor | Need to meet the interface conditions : Powered by 3.3V/1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
| Other customer supply modules |
||
CUSTOMIZED
| Boot screen | widthwise |
| Boot screen background color | white, light color |
| Boot screen resolution | 1920*1200 |
| Program 1 | |
|---|---|
| C: | High-gloss metallic silver |
| M: | Stainless iron (select stainless iron with charging base) |
| F: | Laser carving craft |
| Nameplate | |
| Nameplate size: | 79.8*39.8mm |
| Example: |
|
LOGO
| Can be the silkscreen position |
| + the LOGo of the |
| NFC/ fingerprint module at the top |
| Boot screen: widthwise |
| Boot screen background color.white, light color |
| Boot screen resolution:1920*1200 |
LOGO
| Without logo/ fingerprint module |
| the logo can be centered |
| Program 1: | C: High-gloss metallic silver |
| M: Stainless iron | |
| (select stainless iron with charging base) | |
| F: Laser carving craft |
| Program 1: | C: High-gloss metallic silver |
| Example. |
|
OPTIONAL MODULES & ACCESSORIES
|
Fingerprint
Optional G2010 |
|
G2010 Module G2010 Capacitive fingerprintsensor, FAP10, 500 dpi, 8 bit,256X360 size, FBI MINEX II (NISTCertification) |
|
|
Fingerprint
Optional G2010 |
|
|
G2010 Module G2010 Capacitive fingerprintsensor, FAP10, 500 dpi, 8 bit,256X360 size, FBI MINEX II (NISTCertification) |
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
