TECHNICAL SPECIFICATIONS

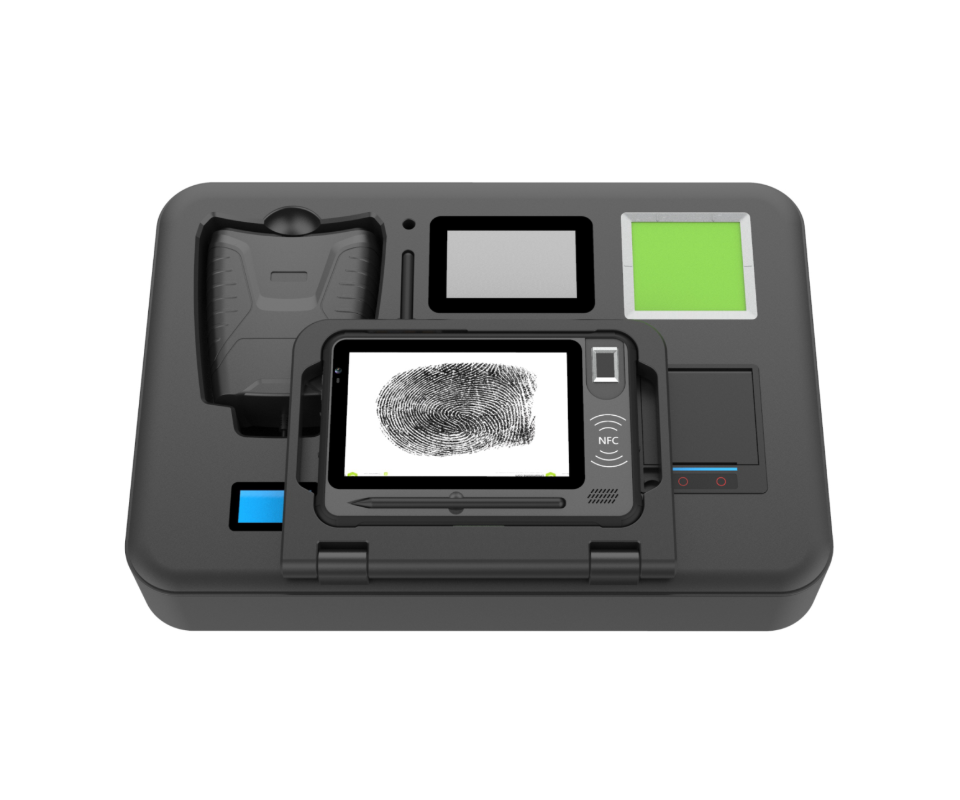

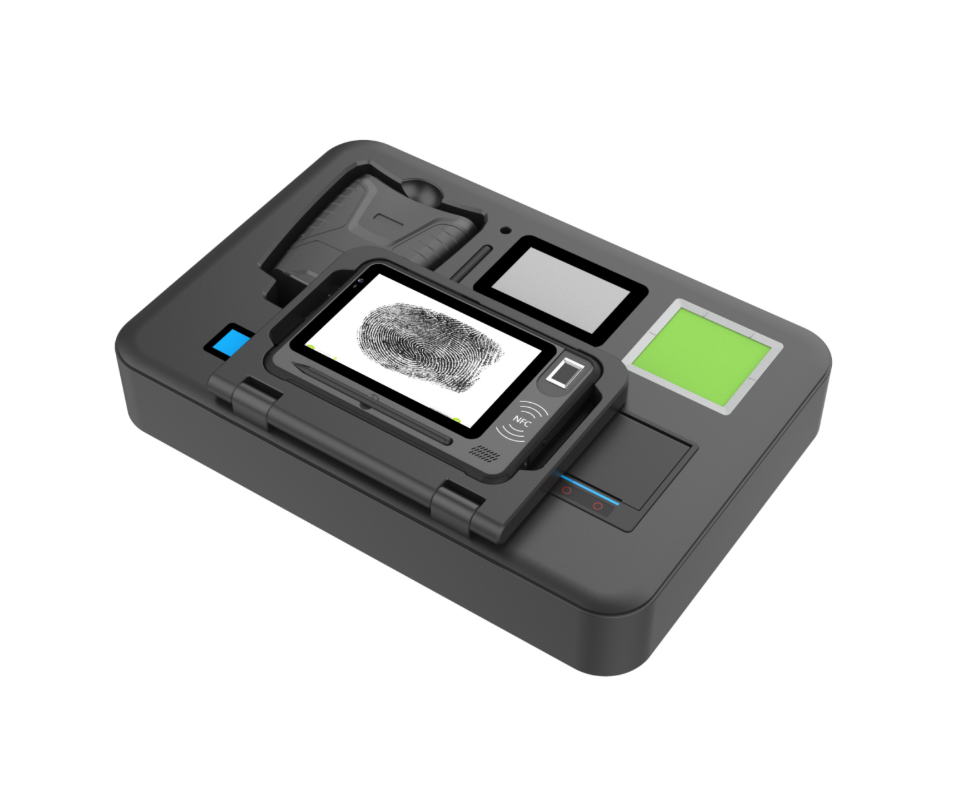

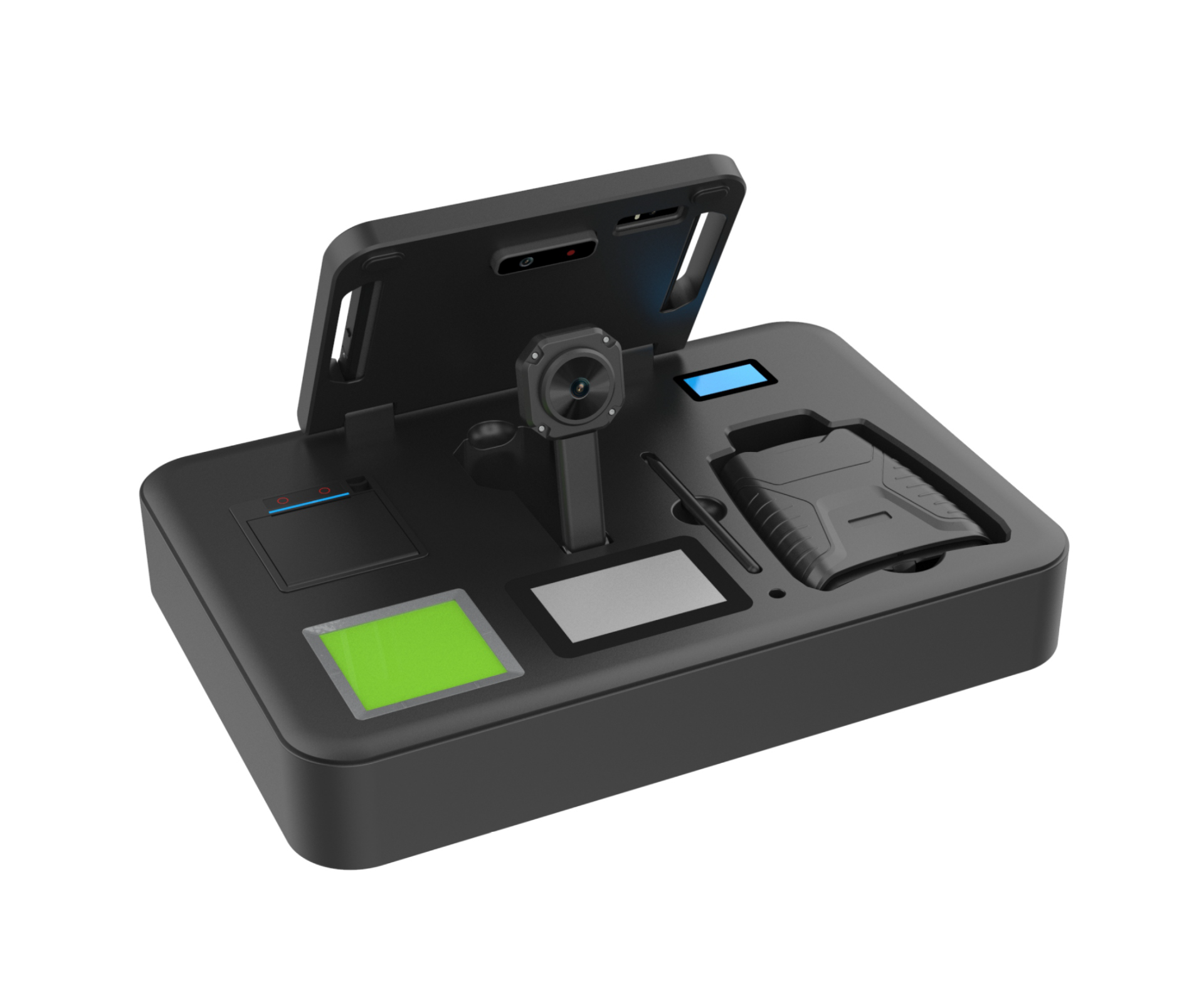

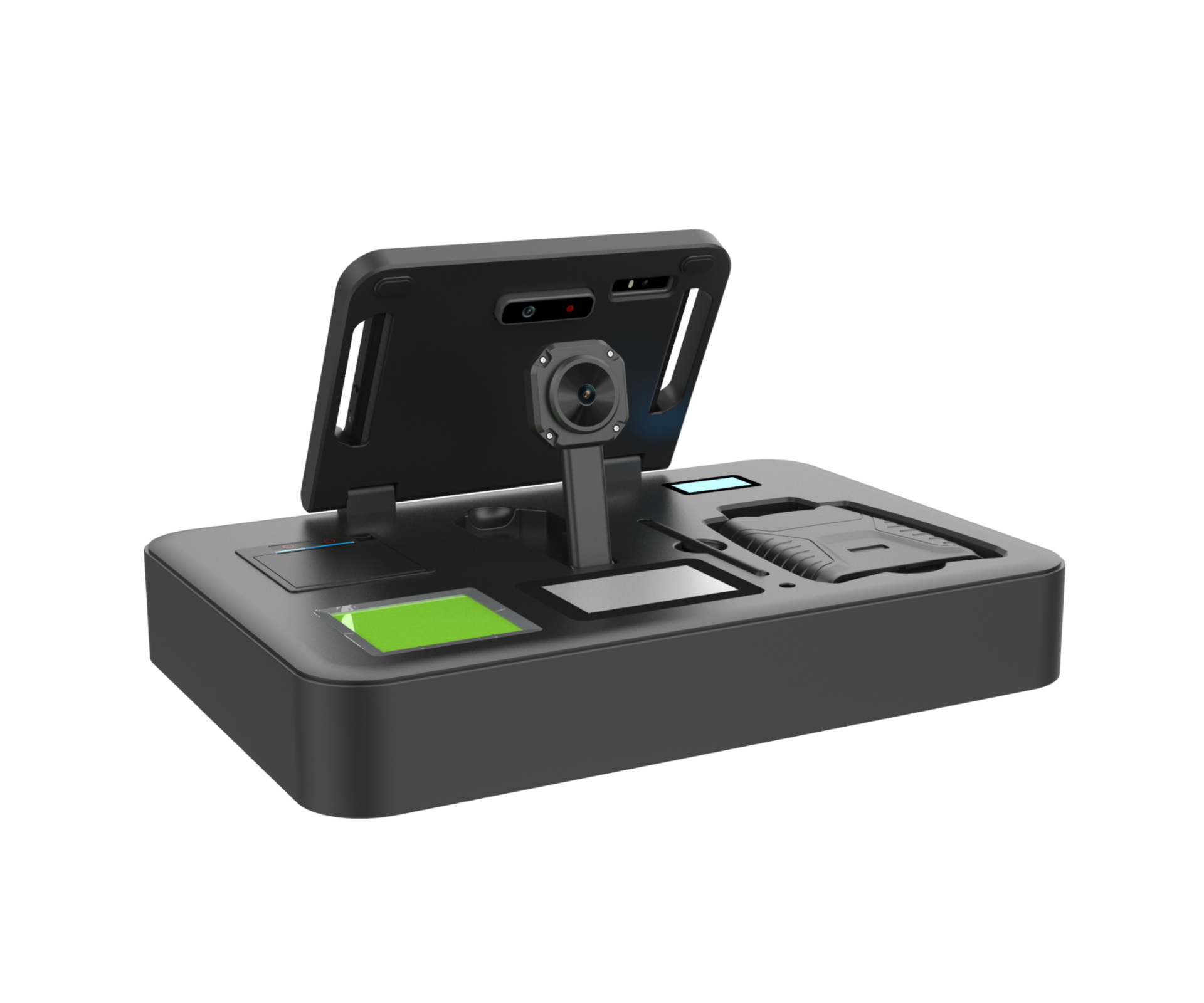

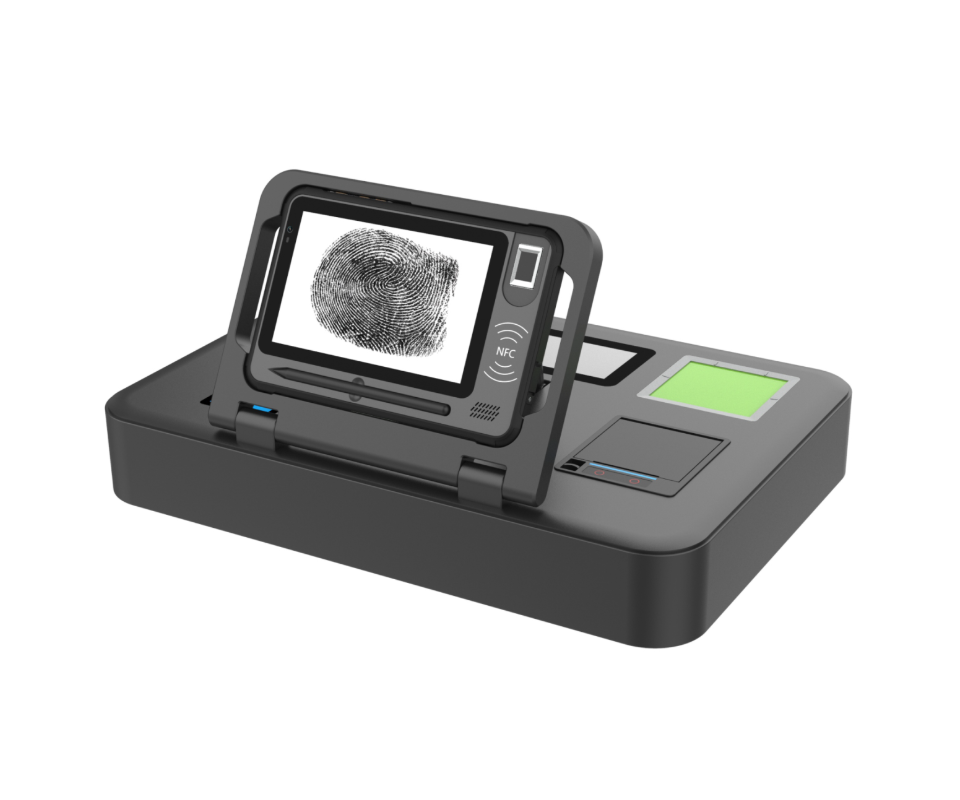

| Detail Specifications for Portable Biometric Registration Kit | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Soten | |||||||||||
| Size | Tablet:223 × 146 × 23mm (L×W×H) | ||||||||||
| Base: L530*W400*H92mm, and provide parameters with ID together | |||||||||||
| Material | Tablet & Base: ABS+PC | ||||||||||
| Outer Rugged box: PP | |||||||||||
| Finger | Tablet:Grayscale: 32768,FAP10, 508 dpi, 8 bit, 256X360 , FBI MINEX III (NIST Certificati) | ||||||||||
| Base: 4-4-2 fingerprint scanner FAP60. PI V, Standard: ISO19794-4 | |||||||||||
| Iris | Tablet: Binocular iris acquisition, resolution: 640x480x2, acquisition distance: 18~22 cm, acquisition time: less than 2 seconds, frame rate: >15 frames/s, ranging range: 10~40 cm, infrared lighting, no interference from external light, compliance with standards of ISO/IEC19794-6:2005, and provide parameters with ID together | ||||||||||
| Base: Binocular iris acquisition/acquisition distance: 10~12 cm, acquisition mode: automatic, registration time: less than 1 second, recognition time: less than 0.5 seconds, accuracy: FAR<0.0001%, FRR<1%, iris image: with standards of ISO/IEC19794-6:2005, lighting method: infrared lighting with standards of IEC/EN 62471, and provide parameters with ID together | |||||||||||
| Face | Rear Dual Camera:Main: 48MP with autofocus & electronic flash, Secondary: 5MP wide-angle lens | ||||||||||
| Base: 2MP HD camera, auto focus, 4x digital zoom, 90° field of view, stereo microphone, maximum resolution 1080P/30fps, compliant with ANSI INCITS 385-2004; ISO/IEC 19794-5 image standards and ICAO9303, and provide parameters with ID together | |||||||||||
| Signature | Tablet: stylus pen in gray color,dimension:145*9.5mm,with 1.5 V AAAA battery, can be used for 6 months, and provide parameters with ID together | ||||||||||
| Base: signature pad + electromagnetic signature pen/display board color TFT LCD, screen resolution: 800*480 pixels, writing area 108×64.8mm, sensing method passive electromagnetic induction (EMR), read and write speed: 230 points/second, read resolution: 2540 LPI, pressure sensitivity level: 2048 levels, and provide parameters with ID together | |||||||||||
| LCM | 8-inch AFFS/IPS panel | 1920x1200 FHD resolution | 1000 nits high-luminance (sunlight-readable) | ||||||||||
| Base: 2.15 inch , 128*64 Dot matrix black and white display , display power capacity, charging image and temperature, and provide parameters with ID together | |||||||||||
| TP | Capacitive touchscreen | Glove-touch support | Anti-fogcoating | Active stylus compatible | ||||||||||
| OS | Android 14.0 GMS certified | ||||||||||
| CPU | MediaTek Kompanio 900T (MTK8791T) Octa-core (8 cores)Up to 2.6Ghz|6nm process | ||||||||||
| ARM G68 MC4 | |||||||||||
| APU 3.0 (2.6T) | |||||||||||
| RAM | 12GB | ||||||||||
| Flash | 256B | ||||||||||
| CAM | Rear Dual Camera:Main: 48MP with autofocus & electronic flash, Secondary: 5MP wide-angle lens | ||||||||||
| Front 8MP front-facing camera | |||||||||||
| Battery | 12,000mAh removable battery | ||||||||||
| Base: 11.1V/20000mah | |||||||||||
| 2G | GSM: B2/3/5/8 | ||||||||||
| CDMA: B0/1 | |||||||||||
| 3G | WCDMA: B1/2/4/5/6/8/19 | ||||||||||
| 4G | TDD-LTE (B34/38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/ 26/28a&b) Cat-18 | ||||||||||
| 5G | 5G NR SA n1/n3/n20/n28/n41/n77/n78/n79 5G NR NSA n1/n3/n41/n7 DL 4x4 n1/n3/n41/ | ||||||||||
| NFC | 13.56MHz ISO/IEC 1443 A/B, ISO/IEC 15693, ISO/IEC 18092 (optional) | ||||||||||
| Smart Card reader | Support Contact & Contactless smart card reader (ISO/IEC 7816 standard) (optional) | ||||||||||
| Mounted on the base | |||||||||||
| Keyboard | Supports virtual and external physical keyboard (optional) | ||||||||||
| Mounted on the base | |||||||||||
| Label printer | 3 inch label printer built-in on the base (optional) | ||||||||||
| Barcode scanner | 1D & 2D barcode scanner, including QR code (optional) | ||||||||||
| Mounted on the base | |||||||||||
| Camera | Inbuilt adjustable camera stand, and provide parameters with ID together | ||||||||||
| 24MP + LED Flash | |||||||||||
| Real time ICAO check, and provide parameters with ID together | |||||||||||
| Automatic face capture, and provide parameters with ID together | |||||||||||
| OTG | Support | ||||||||||
| Wi-Fi | Dual-band Wi-Fi 6 2x2 (2.4/5GHz, 802.11a/b/g/n/ac/ax) | ||||||||||
| BT | 5.2 LE | ||||||||||
| GPS | GPS、BDS、GLONASS、GALILEO | ||||||||||
| Sensor | G-Sensor , Light Sensor , Gyroscope | ||||||||||
| MIC | 1*MIC | ||||||||||
| Speaker | 1 BOX Speaker ( 8Ω1W ) | ||||||||||
|
|||||||||||
| USB 2.0x1, Base: USB 2.0x2 | |||||||||||
| Type-C x1 (Data and Charging, 5V3A) | |||||||||||
| TF Card x1 (UP TO 2T) | |||||||||||
| USB Type-A | |||||||||||
| NO | |||||||||||
| 2x Standard PSAM(optional) | |||||||||||
| Tablet:Type-C 8-pin magnetic connector Base: 24V/6A 1xDC ø5.5mm | |||||||||||
| Micro SIM x2 | |||||||||||
| Tablet: Power, VOL+/VOL-, RESET Base: BAT switch | |||||||||||
| SDK | Vendor must provide SDK for each device/peripheral with licenses | ||||||||||
| Accessories | Adapter(optional) | ||||||||||
| Type-C recharge cable(standard) | |||||||||||
| Tablet hand strap(standard) | |||||||||||
| Tablet support rod | |||||||||||
| Stylus pen(optional) | |||||||||||
| Signature pen(optional) | |||||||||||
| IRIS bracket(optional) | |||||||||||
| Bluetooth keyboard(optional) | |||||||||||
| Packing | Hand strap for Tablet/Trolley Rugged suitcase for the whole kit | ||||||||||
| OS | Android 14 | ||||||||||
| sample | Provide samples that meet the requirements, not free,samples will be provided within 3 months after confirmation | ||||||||||
| warranty | 2 year,The tablet computer has a two-year warranty, and other accessories have a one-year warranty | ||||||||||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
