Hugerock X7 Ip68 2600 Nit Ultra Bright Display 8+128G Handheld Android Drone Ruggedized Tablet Pc Industrial USB Type C Pc 7"
Key attributes Industry-specific attributes Screen Size 7" Memory Capacity 8G Display resolution 1920*1080 Operating System Android 13.0...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
ULTRA-BRIGHT AND HIGH
SATURATION SMART MONITOR
HIGH SATURATION

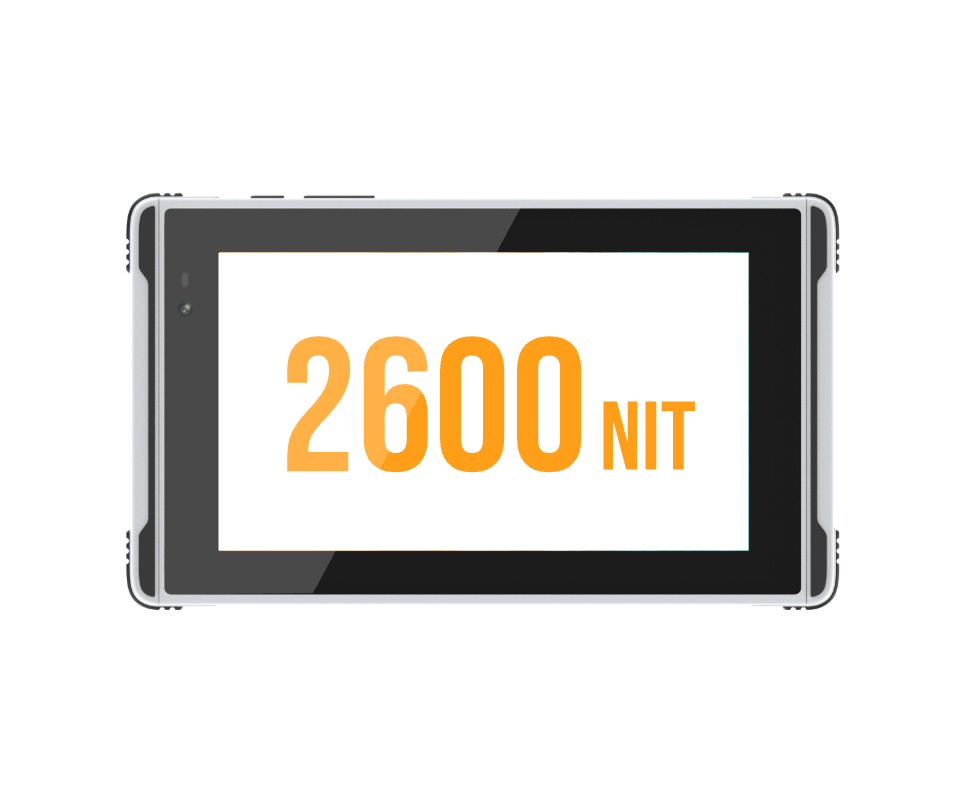

2600NIT HIGH BRIGHTNESS
OUTDOOR SMART MONITOR
2600NIT HIGH
BRIGHTNESS OUTDOOR
SMART MONITOR
2600NIT HIGH BRIGHTNESS
OUTDOOR SMART MONITOR
7000MAH LARGE CAPACITY
SAFE BATTERY
7000MAH LARGE
CAPACITY SAFE BATTERY
7000MAH LARGE CAPACITY
SAFE BATTERY
IP68 LEVEL
WATERPROOF AND DUSTPROOF
IP68 LEVEL
WATERPROOF AND
DUSTPROOF
IP68 LEVELWATERPROOF
ANDDUSTPROOF

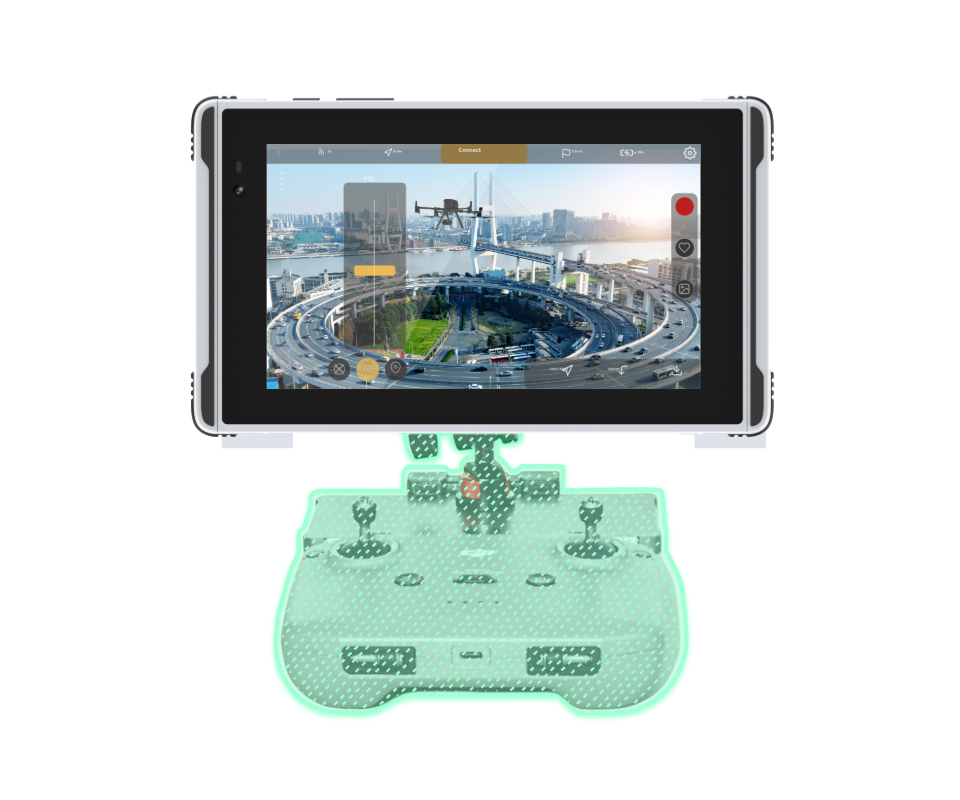

CONVENIENT CONTROL
HANDLE
CONVENIENT
CONTROL HANDLE
CONVENIENT CONTROL HANDLE

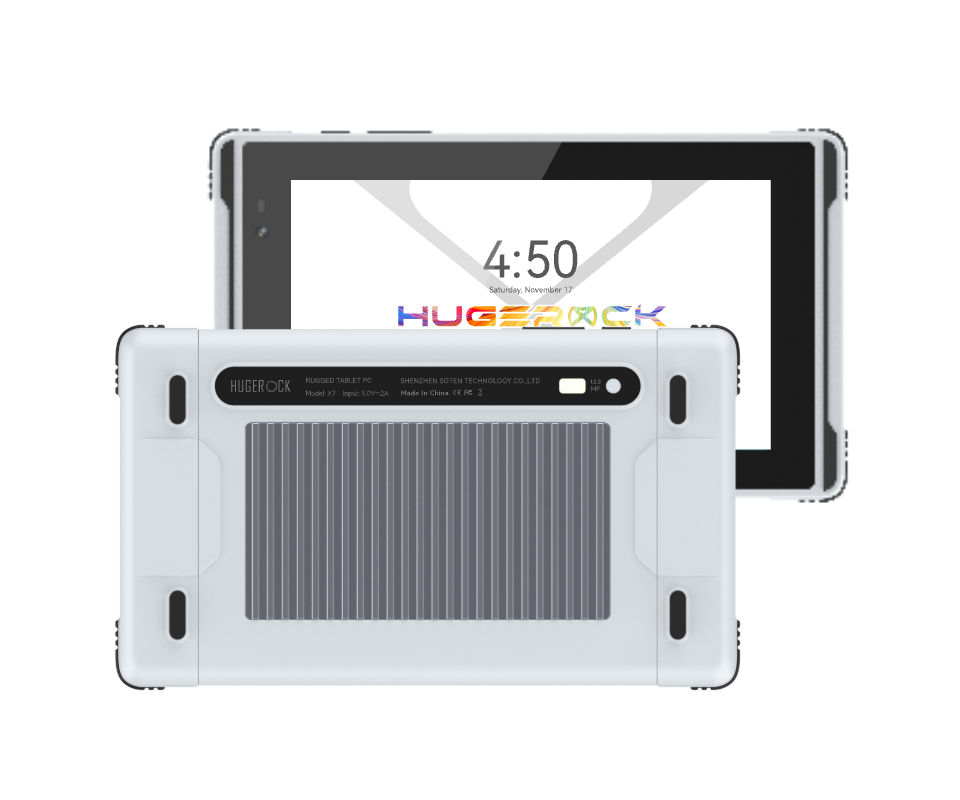

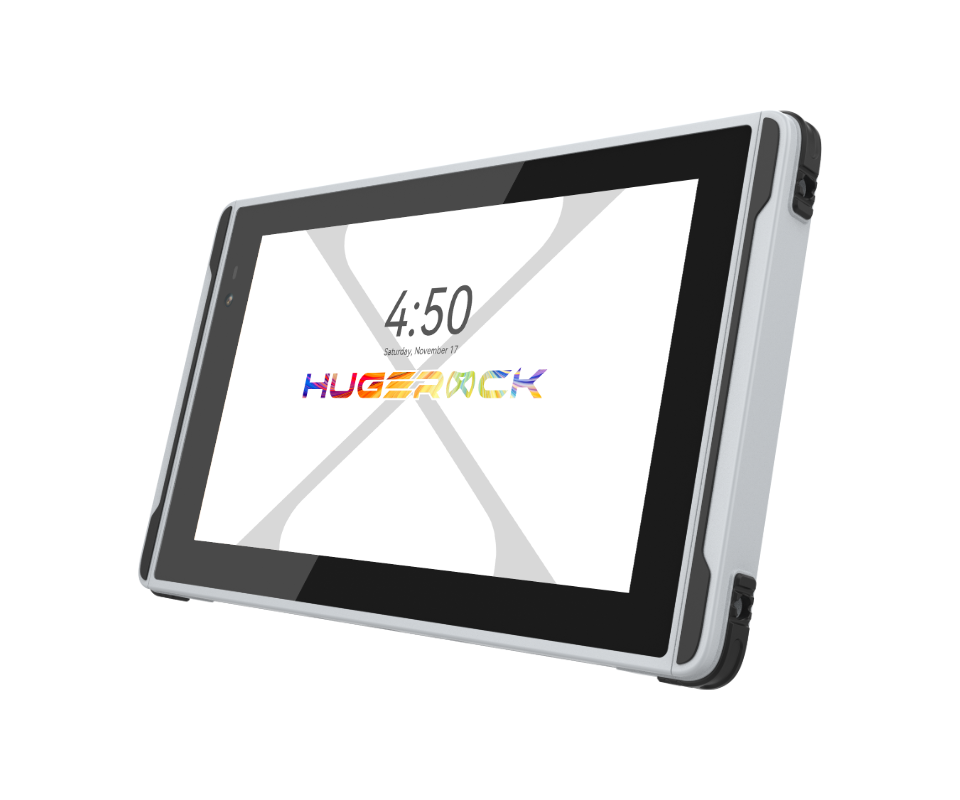

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 Octa-core ( 2.0GHz ) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card ( T-FLASH card ), max256GB |
| Sub Camera | 5.0MP |
| Rear Camera | 13.0MP |
| Battery | 7000mAh |
| Display | 7 inch 1920*1080 FHD resolution super bright 2600nit |
| IO/Sensor/Navigation | |
| SIM Card | Double Nano SIM or Nano SIM+MICRO SD ( Choose two out of three ) |
| Charging interface | USB Type-c 24pin ( Support OTG and RJ45 ) |
| Data interface | USB Type-C |
| Light-sensor | Support |
| Gyro sensor | Support |
| Magnetic Field Sensor | Support |
| Acceleration sensor | Support |
| Gravity sensor | Support |
| Rotation Vector | Support |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 208*121*16mm (L×W×H) |
| Weight | 465g |
| Color & Material | (Grey) material PC+ABS |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G(HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4GHz/5Ghz); single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19HZ/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 8 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| OS/Software | |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 13 (actualización continua) |
| Package/Warranty terms | |
| Warranty | 12 months |
| Package | Host, Type-C Data Cable/Flight Controller Data Cable/Hex Wrench/Introduction manual/Screen protector/Packing box |
APPLICATION SCENARIO
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
