HIGH
EFFICIENCY
HIGH EFFICIENCY
High-quality 134K RFID module and antenna, RFID Tags within a 30cm range can be read，Support HDX/FDX.

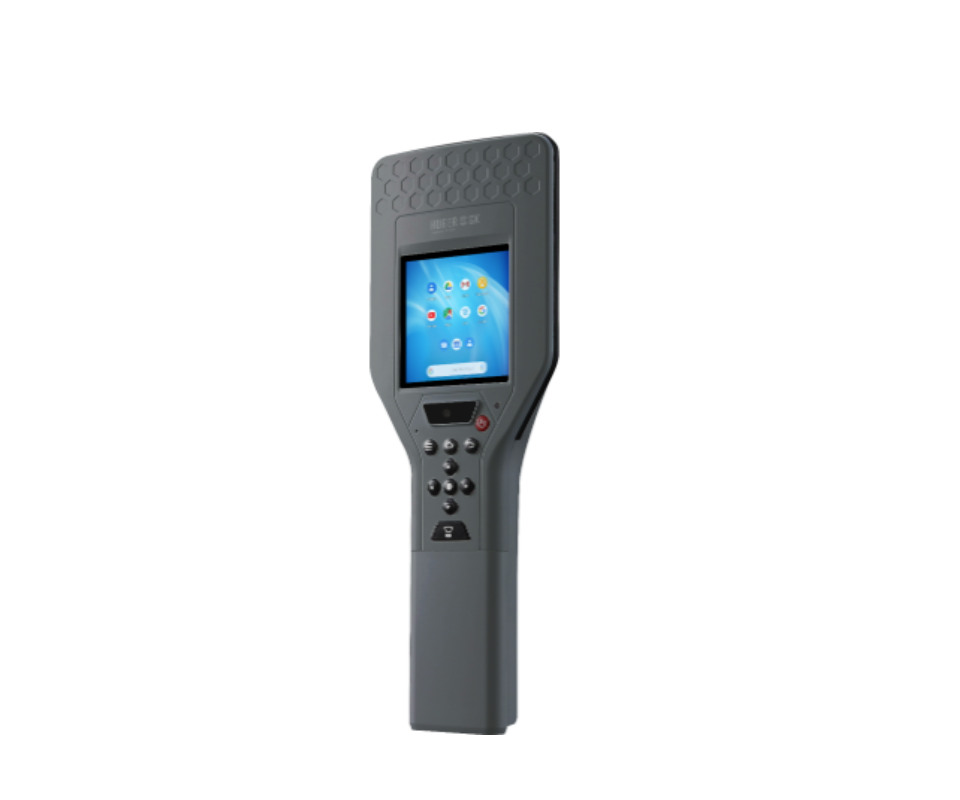

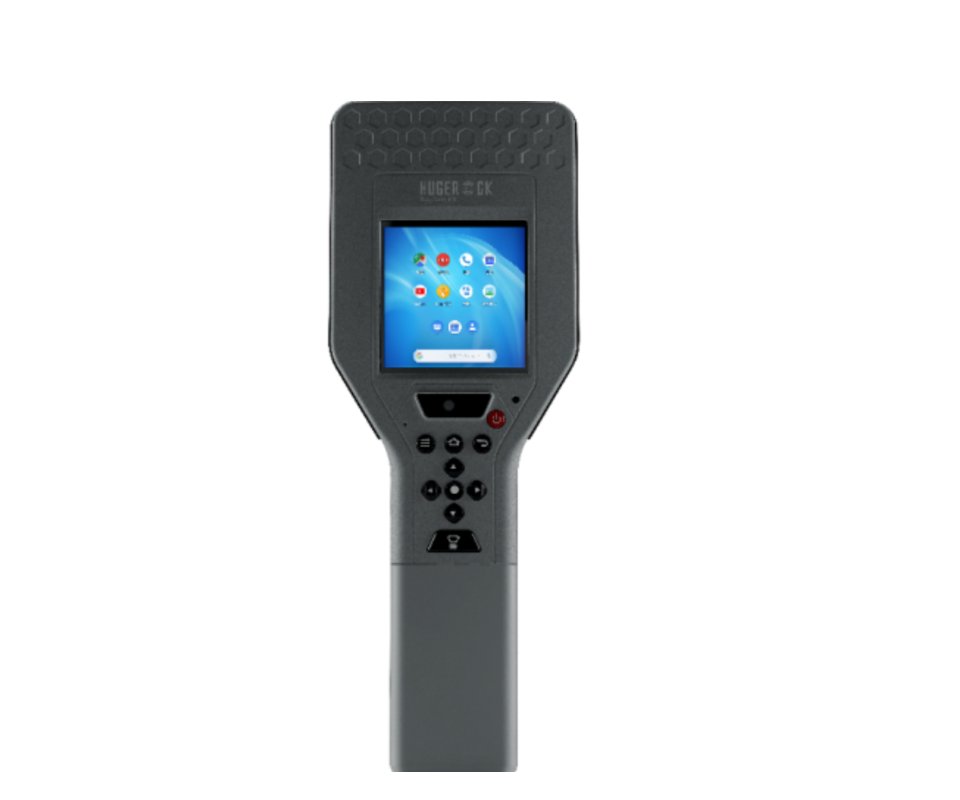

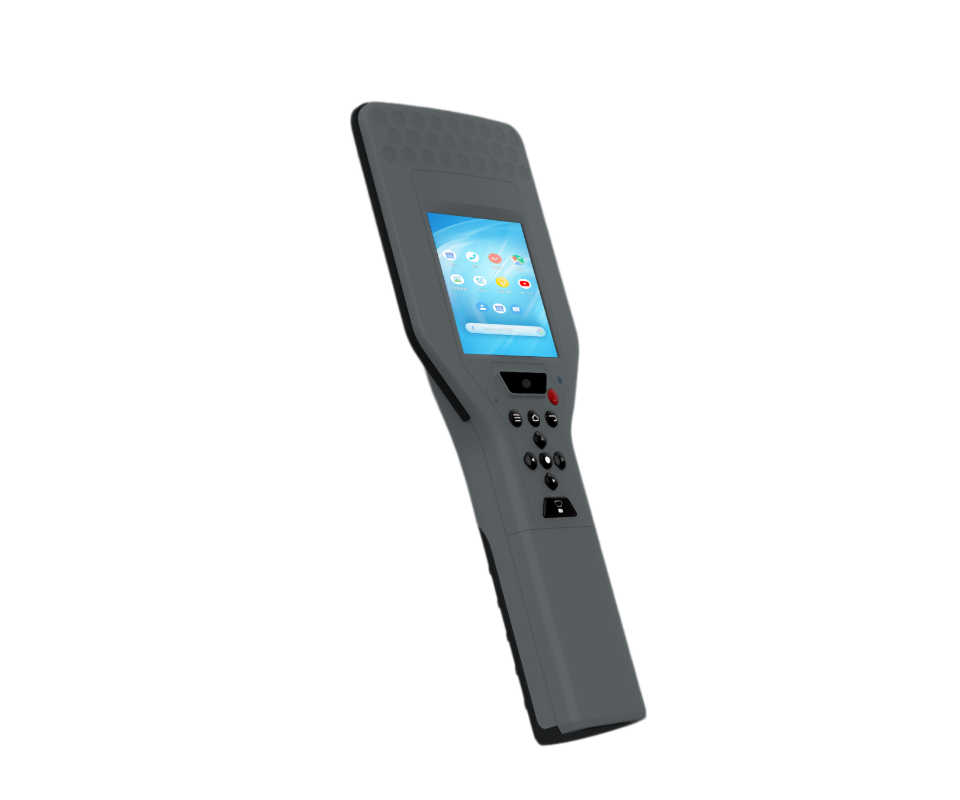

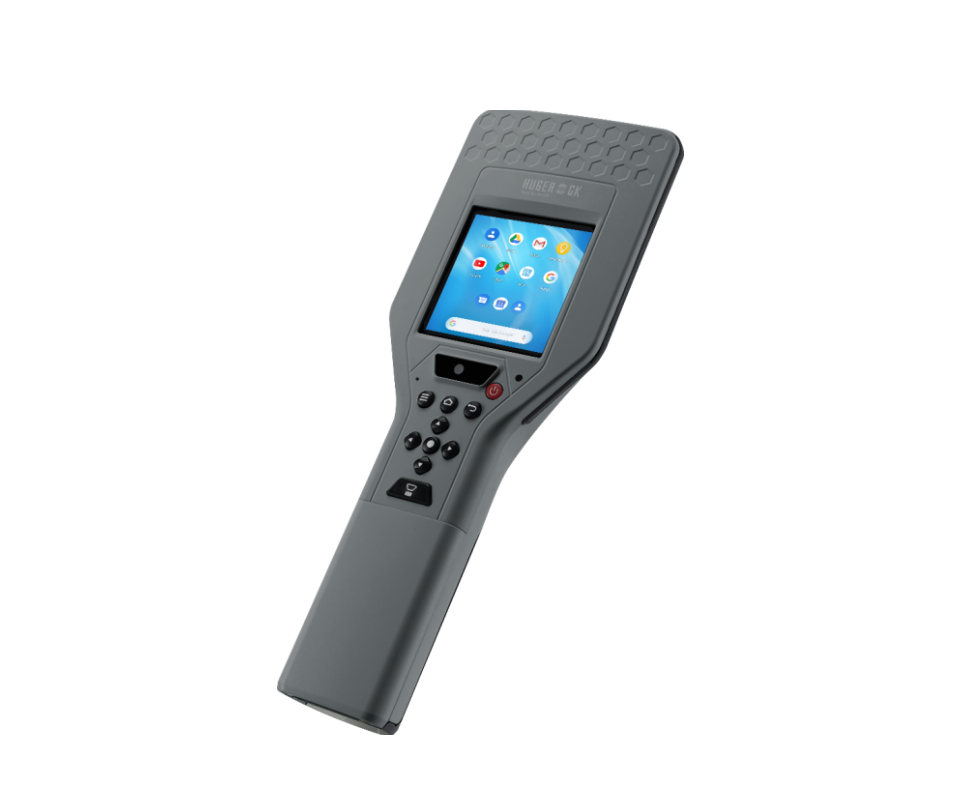

HUGEROCK R30B Mtk Quad Core Android 720*720 RFID 132K LF Animal Tag Barcode Scanner Industrial Rugged Handheld PDAs
Key attributes Industry-specific attributes Operating System Android 10 Style Handheld Computer Memory Capacity 8GB Other attributes Place...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
HIGH EFFICIENCY
High-quality 134K RFID module and antenna, RFID Tags within a 30cm range can be read，Support HDX/FDX.
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 4G RAM.
MORE
FAST
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 4G RAM.
FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.5m.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.5m.
POWERFUL
7200mAh battery, the battery can be replaced continuously， can work continuously for 24 hours.
POWERFUL
POWERFUL
7200 mAh battery, the battery can be replaced continuously， can work continuously for 24 hours.
APPEARANCE
| 1. Barcode scanner (optional) | 2. Front camera (optional) |
| 3. MIC | 4. Menu button |
| 5. Arrow button and confirm button | 6. Charge lamp |
| 7. Power button | 8. Back button |
| 9. Home button | 10. Scan button |
| 11. Magnetic interface (Pogo pin) | 12. 134k RFID scanner |
| 13. Main camera (optional) | 14. Flash lamp |
| 15. Speaker | 16. Battery |
| 1. Barcode scanner (optional) |
| 2. Front camera (optional) |
| 3. Mic |
| 4. Menu button |
| 5. Arrow button and confirm button |
| 6. Charge lamp |
| 7. Power button |
| 8. Back button |
| 9. Home button |
| 10. Scan button |
| 11. Magnetic interface (Pogo pin) |
| 12. 134k RFID scanner |
| 13. Main camera (optional) |
| 14. Flash lamp |
| 15. Speaker |
| 16. Battery |
SPECIFICATION
| Hardware | |
| CPU | MTK P60 (ARM A73 2.0GHz Octa-core) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 4GB |
| Internal Memory | 32GB |
| External Memory | Micro SD card (T-FLASH card), max 128GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 1.0MP |
| Battery | 7200mAh (Replaceable battery) |
| Display | 3.1inch HD display 720*720 |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active pen |
| IO/Sensor/Navigation | |
| SIM Card | Micro SIM |
| TF Card | Micro SD card (T-FLASH card); max 128GB |
| Data interface | Magnetic interface (Pogo pin) USB&data |
| RFID module | 134K animal tags |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) |
| Appearance | |
| Size | 267*100*38 (LxWxH) |
| Weight | 447g |
| Color & Material | Black + grey(Metal &ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE (B1, B2, B3, B4, B5, B7, B8, B12, B17, B20, B28) |
| WI- FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified,Chinese,Chinese Traditional, etc. |
| OS | Android 10 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box |
FUNCTION MODULES
| Barcode module | |||
| N1 | Scanning engine | Newland N1 | |
 |
1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC | |
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS, TLC-39, QR code, Micro QR code, Aztec, MaxiCode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | ||
| 134k LF RFID (support Animal tags) module | |||
| 134k LF Animal tags | Operation Frequency | 134 kHz | |
 |
support agreement | ISO11784/5 | |
| Read distance | >30cm | ||
| Working mode | FDX-B/HDX | ||
| HF RFID/NFC module | |||
| NFC module | Frequency | 13.56MHz | |
 |
Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| Barcode module | |||
|---|---|---|---|
| N1 | Scanning engine | Newland N1 | |
 |
1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC | |
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS, TLC-39, QR code, Micro QR code, Aztec, MaxiCode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | ||
| 134k LF RFID (support Animal tags) module | |||
| 134k LF Animal tags | Operation Frequency | 134 kHz | |
 |
support agreement | ISO11784/5 | |
| Read distance | >30cm | ||
| Working mode | FDX-B/HDX | ||
| HF RFID/NFC module | |||
| NFC | Frequency | 13.56MHz | |
 |
Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
