ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.

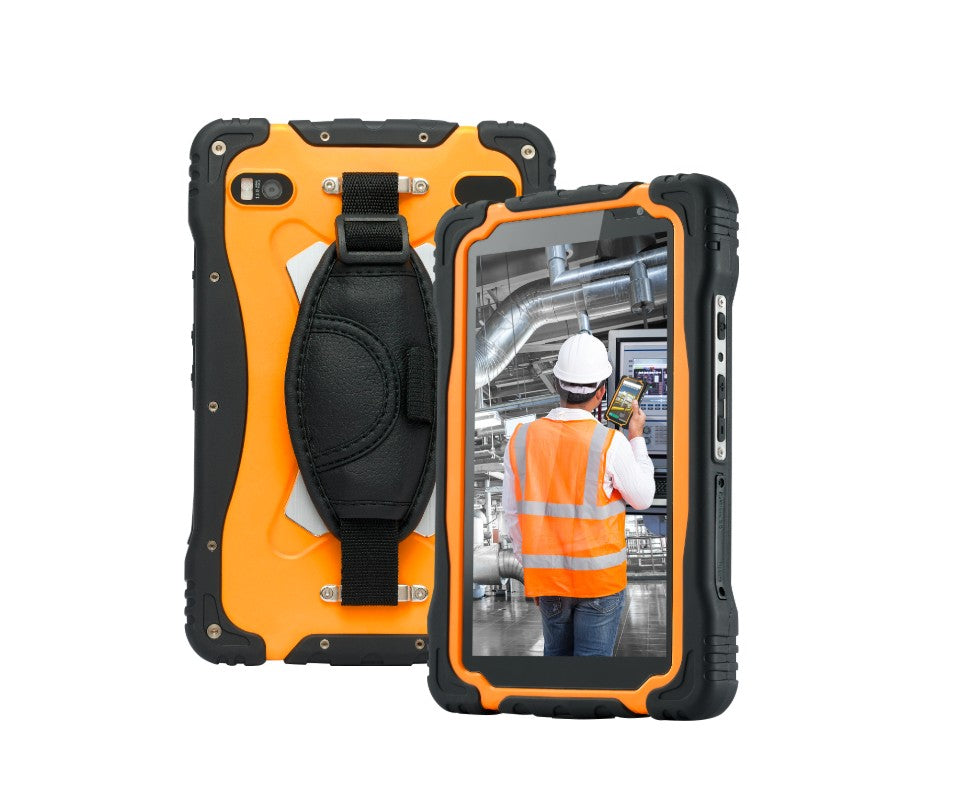

HUGEROCK T70EX Wholesale 3g4g Quad Core Industrial Waterproof IP67 1000nit 10000mAh Nfc Card Reader Wifi Scanner Rugged Tablet
Key attributes Industry-specific attributes Screen Size 7" Memory Capacity 8G Display resolution 720x1280 Operating System Andriod 11/13...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
1000 NIT FHD
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
1000 NIT
FHD
1000 NIT FHD
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
LIGHTWEIGHT AND STURDY
Thanks to the excellent structural design,the sturdy 5.5ft anti-drop bodyis only 0.64kg in weight.
LIGHTWEIGHT
AND STURDY
LIGHTWEIGHT AND STURDY
Thanks to the excellent structural design, the sturdy 5.5ft anti-drop body is only 0.64kg in weight.
INTRINSIC SAFETY
It equipped with10000mAh intrinsically safe battery, can work continuously for 12 hours.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with10000mAh intrinsically safe battery, can work continuously for 12 hours.
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
IN-DEPTH CUSTOMIZATION
We work closely with our partners to providea variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
IN-DEPTH
CUSTOMIZATION
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
APPEARANCE
| 1. Type-C(Sealed Cover) | 2. MIC |
| 3. Light sensor | 4. Font Camera |
| 5. SIM (Sealed Cover) | 6. TF (Sealed Cover) |
| 7. Volume Down | 8. Volume Up |
| 9. Rest | 10. Power Button |
| 11. Headphone Jack (Sealed Cover) | 12. Rear Camera |
| 13. Speaker | 14. Nameplate |
| 1. Type-C (Sealed Cover) |
| 2. MIC |
| 3. Light sensor |
| 4. Font Camera |
| 5. SIM (Sealed Cover) |
| 6. TF (Sealed Cover) |
| 7. Volume Down |
| 8. Volume Up |
| 9. Rest |
| 10. Power Button |
| 11. Headphone Jack (Sealed Cover) |
| 12. Rear Camera |
| 13. Speaker |
| 14. Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C*1 |
| Data interface | USB Type-C(OTG)*1 |
| Direction Sensor | Support |
| Gravity sensor | Support |
| Magnetic Field Sensor | Support |
| Motion sensor | Support |
| Rotation Vector | Support |
| Light-sensor | Support |
| Acceleration sensor | Support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 200*132*21mm (LxWxH) |
| Weight | 640g |
| Color & Material | Black&yellow, Black&green, Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: Bco/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/ATEX/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Ex-Marking | II2G Ex ib IIB T4 GB |
| Certificate NO. | ECM 21 ATEX-B TQ87ECM 21 ATEX-B TQ87 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |
OPTIONAL MODULES
| Extension 1 | |
| NFC module | |
| Extension 2 | |
| HD 1612(Beidou)+Ceramic Antenna HD 1612(GLONASS)+Ceramic Antenna |
|
| Extension 3 | |
| UHF module | (M500 ASTM)+Antenna (M500 EN)+Antenna |
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
| Industrial-grade short-distance data communication module |
Lora ZigBee |
| Other customer supply modules |
Need to meet the interface conditions : Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1 /electrical level 3.3V/5V. |
| Extension | ||
| 1 | NFC module | |
| 2 | HD 1612 (Beidou) + Ceramic Antenna HD1612 (GLONASS) + Ceramic Antenna |
|
| 3 | UHF module |
(M500 ASTM) + Antenna (M500 EN) + Antenna |
| LF RFID module |
125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
|
| HF RFID module |
13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
|
| Industrial-grade short-distance data communication module |
Lora ZigBee |
|
| Other customer supply modules |
Need to meet the interface conditions : Powered by3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1 /electrical level 3.3V/5V. |
|
OPTIONAL MODULES & ACCESSORIES
 |
RFID Reader Optional LF HF UHF |
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
|
RFID Reader Optional LF HF UHF |
|
|
125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) |
|
|
13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm |
|
|
134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) |
|
UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
