1000 NIT
1000 NIT
1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.

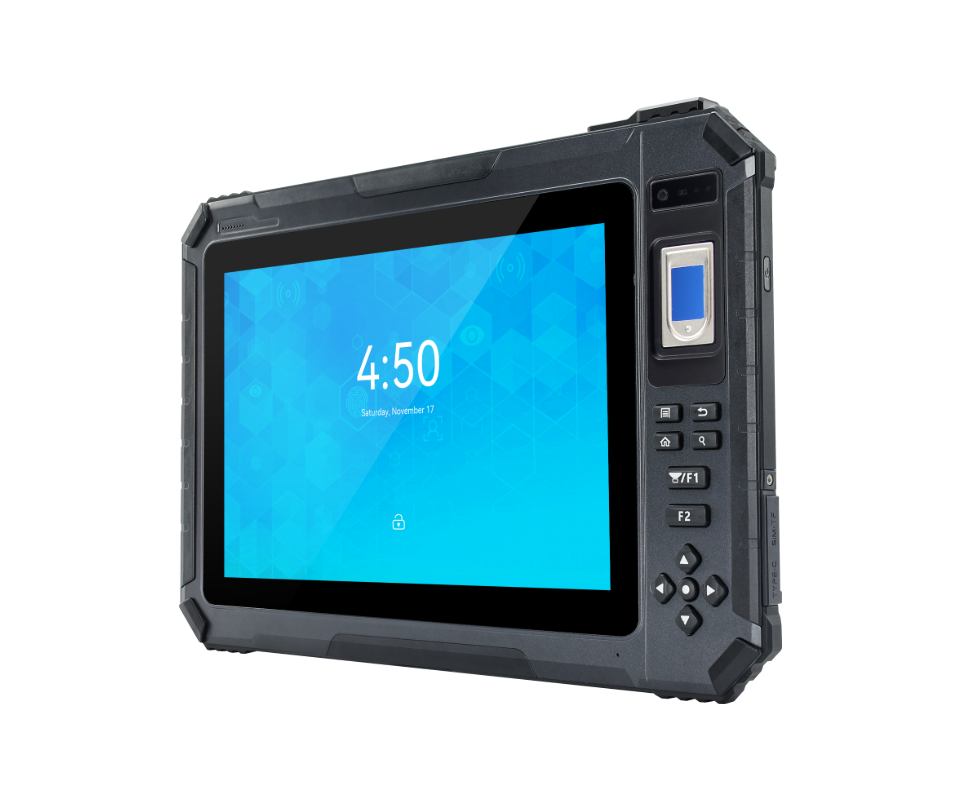

HUGEROCK B101 Android Customize Nfc Cards Rugged Tablet Biometric Fingerprint 10.1 Inch 1000 Nits Industrial Tablet PC
Key attributes Industry-specific attributes Screen Size 10.1" Memory Capacity 8GB Display resolution 1920x1200 Operating System Android 10.0...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
1000 NIT
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
FULL RUGGED
Industrial protection grade IP65，MIL-810G Drop-proof 4ft.
FULL RUGGED
FULL RUGGED
Industrial protection grade IP65，MIL-810G Drop-proof 4ft.
MORE FAST
Adopt Helio P60 A73 12nm FinFET 8-core proccessor solution and 8G RAM.
MORE FAST
MORE FAST
Adopt Helio P60 A73 12nm FinFET 8-core proccessor solution and 8G RAM.
EFFICIENT
Can integrate NFC, RS232, Data link with professional equipment.
EFFICIENT
EFFICIENT
Can integrate NFC，RS232，Data link with professional equipment.
PROFESSIONAL
Certified by FBI and ROHS.
PROFESSIONAL
PROFESSIONAL
Certified by FBI and ROHS.
DURABLE
Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.
DURABLE
DURABLE
Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.
CONVENIENT
It can acquire a full fingerprint image at one touch.
CONVENIENT
CONVENIENT
It can acquire a full fingerprint image at one touch.
ACCURATELY IDENTIFY
It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.
ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.
POWERFUL
14600mAh battery, can work continuously for 12 hours.
POWERFUL
POWERFUL
14600mAh battery，can work continuously for 12 hours.

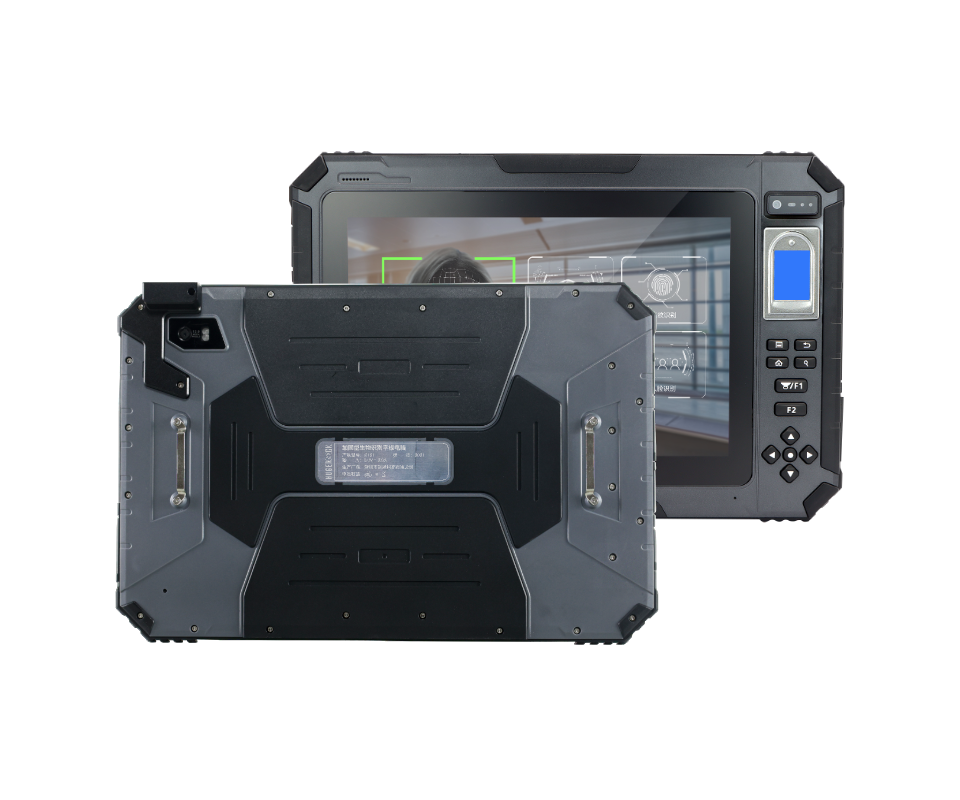

APPEARANCE
| 1. Type-A(Sealed Cover) | 2. RS232(Sealed Cover) |
| 3. Speaker | 4. Sub camera |
| 5. Ambient light sensor | 6. Charge lamp |
| 7. The fingerprint module | 8. Menu button |
| 9. Back button | 10. Home button |
| 11. Search button | 12. Scan button |
| 13. Defined button | 14. Direction button |
| 15. Confirm button | 16. MIC |
| 17. Magnetic charging interface | 18. Power button |
| 19. TF/SIM card port (Sealed Cover) | 20. Type-C (Sealed Cover) |
| 21. N1 barcode module (Optional) | 22. Main camera |
| 23. Temperature pressure sensorc | 24. Nameplate |
| 1: | Type-A(Sealed Cover) |
| 2: | RS232(Sealed Cover) |
| 3: | Speaker |
| 4: | Sub camera |
| 5: | Ambient light sensor |
| 6: | Charge lamp |
| 7: | The fingerprint module |
| 8: | Menu button |
| 9: | Back button |
| 10: | Home button |
| 11: | Search button |
| 12: | Scan button |
| 13: | Defined button |
| 14: | Direction button |
| 15: | Confirm button |
| 16: | MIC |
| 17: | Magnetic charging interface |
| 18: | Power button |
| 19: | TF/SIM card port(Sealed Cover) |
| 20: | Type-C(Sealed Cover) |
| 21: | N1 barcode module(Optional) |
| 22: | Main camera |
| 23: | Temperature pressure sensorc |
| 24: | Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Charging Port | Type-C & 8PIN magnetic charging |
| Data interface | USB Type-A(Host)*2, Type-C(OTG)*1 |
| RS232 | RS232 (5pin micro GPIO) *1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 320*228*12mm (LxWxH) |
| Weight | 1360g |
| Color & Material | Gray (Titanium alloy+ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF=50000h: MTTR=0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box /Toolkit (optional)/SIM Card Ejector |
FUNCTION MODULES
| HF RFID/NFC | |||
| NFC module |
 |
Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| Data Collection | |||
| E20 | Scanning engine | E20 Barcode Module | |
 |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| The fingerprint module | |||
 |
Thin film optical fingerprint module | Grayscale: 32768 | |
| FAP10, 500 dpi, 8 bit, 256X360 | |||
| FBI MINEX III (NIST Certification) | |||
| RoHS Certification | |||
| NFC | ||
|---|---|---|
| NFC Module | Frequency | 13.56MHz |
 |
Protocol standard | ISO14443A/B, ISO15693, NFC |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |
| Data Collection | ||
| N1 | Scanning engine | Newland N1 |
 |
1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC. |
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS,TLC-39, QR code, Micro QR code, Aztec, Maxicode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | |
| Verification and collection | ||
| Thin film optical fingerprint module | Thin film optical fingerprint sensor | Grayscale 32768 |
 |
FAP10, 500 dpi, 8 bit, 256X360. | |
| FBI MINEX III (NIST Certification) | ||
| RoHS Certification | ||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
