INTERNAL HIGH
ANTI-VIBRATION STRUCTURAL DESIGN
INTERNAL HIGH ANTI-VIBRATION
STRUCTURAL DESIGN
high seismic resistance, high heat dissipation.

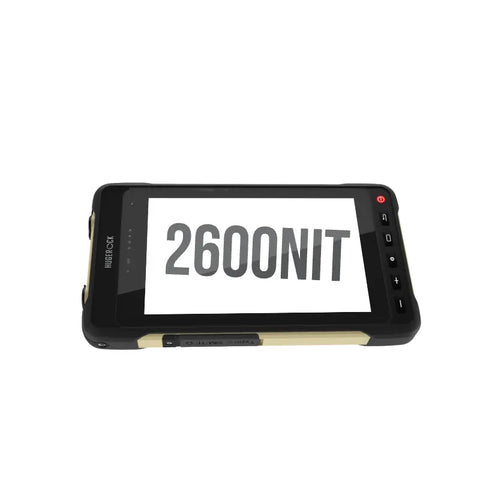

HUGEROCK X70 7 Inch Android Tablet Octa Core 10000mAh Sunlight Readable 2600 Nits Sustained Brightness IP67 Sports Case for Road
Key attributes Industry-specific attributes screen size 7" memory capacity 8G display resolution 1920*1080 operating system Android 11.0/13.0...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
INTERNAL HIGH
ANTI-VIBRATION
STRUCTURAL DESIGN
high seismic resistance, high heat dissipation.
VESA STANDARD
QUICK-MOUNTING BRACKET
Capable of withstanding strong vibrationsfrom off-road motorcycles, off-road vehicles.
VESA STANDARD
QUICK-MOUNTING
BRACKET
VESA STANDARD
QUICK-MOUNTING BRACKET
Capable of withstanding strong vibrations fromoff-road motorcycles, off-road vehicles.
PROFESSIONAL-GRADE
NAVIGATION
MODULE
Ublox-M9N with SMA interface external antenna,high-gain satellite navigation signal.
PROFESSIONAL-GRADE NAVIGATION
POSITIONINGMODULE
PROFESSIONAL- GRADE NAVIGATION
POSITIONING MODULE
Ublox-M9N with SMA interface external antenna,high-gain satellite navigation signal
DUAL M8 AVIATION PLUG INTERFACE DESIGN
Standard aviation plug can connect to vehiclepower supply and information transmission.
DUAL M8 AVIATION
PLUG INTERFACEDESIGN
DUAL M8 AVIATION PLUG
INTERFACE DESIGN
Standard aviation plug can connect to vehiclepower supply and information transmission
2600 NITS ULTRA-BRIGHT
DISPLAY SCREEN
high sunlight visibility.
2600 NITS
ULTRA-BRIGHT
DISPLAY SCREEN
2600 NITS ULTRA-BRIGHT
DISPLAY SCREEN
high sunlight visibility.
7-INCH
9H high hardness protection.
7-INCH
7-INCH
9H high hardness protection.
IP67
High protection,
waterproof and dustproof.
IP67
IP67
High protection, waterproof and dustproof.
10000MAH
Outdoor use for long periods of time.
10000MAH
10000MAH
Outdoor use for long periods of time.
APPEARANCE
TECHNICAL SPECIFICATIONS
| Main hardware | |
|---|---|
| CPU | ARM Cortex-A7 Gztz-GPH2 (2GHz) |
| GPU | ARM Mali-G71 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card(TF) FLASH cards, max 2TB |
| Physical Keys | On/Off key, Volume +/-, key, Setup Button, return key, HOME |
| Indicator light | Location indicator, network port indicator, charging indicator, and DC charging indicator |
| Rear camera | 13.0MP(AF)/with Flash led |
| Front camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/FFS 1920*1080 FHD industrial-Flight colour genius 2000*1 Strong light Headwale |
| Touch Panel | 10-point capacitive touch screen |
| IO Sensor/Navigation | |
| SIM Card | Double Nano SIM+MICRO SD (Choose two out of three) |
| Headphone | 3.5mm(CTlA) |
| Charging interface | 40PIN magnetic charging interface |
| Data interface | USB Type-C*1 |
| M12 zero head | DC powered/RS232 serial port |
| Gravity sensor | Support |
| Gyroscope sensor | Support |
| Light sensor | Support |
| Charger | 5.0V 2A-10W |
| Navigation | The professional-grade positioning module (u-blox M9N) supports GPS, GLONASS, BeiDou, and Galileo (multi-position) technology reporting at 1-10Hz) |
| Antenna | It features a built-in ceramic positioning antenna and an external SMA active antenna with automatic switching |
| Appearance | |
| Size | 230*131*25mm (L*W*H) |
| Weight | 880g |
| Color & Material | Yellow, ABS+PC |
| Communications & Networking | |
| Phone Call | GSM/WCDMA/CDMA-1X/VoLTE |
| 2G | GSM/CDMA-1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G(HSDPA+ 42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA(B1/2/5/8) |
| 4G | FDD-150Mbps down, 50Mbps Up/TDD-150Mbps (download), 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD-LTE (B1/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4G(b/g/n)/5G(a/n/ac))(single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy |
| Industrial & Reliability design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | |
| Waterproof | Class 7 / IEC 60529 |
| Dustproof | Class 6 / IEC 60529 |
| Reliability | MTBF>50000h, MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| RH | 5% to 95% |
| Operating Altitude | Max. 4,500 m |
| Certification/OS/Software | |
| Certification | 3C/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified Chinese, Chinese Traditional, etc |
| OS | Android 11/13 (continuously updated) |
| Shipping/Warranty/Items | |
| Warranty | 12 months |
| Package | M12 to DC+M12+cable, TYPE-C data cable, External GPS antenna, magnetic charging cable, Land holder, user manual, Screen protector, Packing box |
APPLICATION SCENARIO
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
