| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C*1 |
| Data interface | USB Type-C(OTG)*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 202*138*22mm (LxWxH) |
| Weight | 700g |
| Color & Material | Black&yellow Black&Black Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: BCo/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ 至 55℃ |
| Storage Temperature | -40℃ 至 80℃ |
| RH | 5% 至 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C /FCC/CE/ROHS/ATEX/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10/11 / 13 (continuous updating) |
| Package/Warranty terms | |
| Warranty | 12 months |
| Package | Type-C cable, Type C to Type C cable, Introduction manua, Screen protector, SIM Card Ejector, Packing box |
| Multi-function quickly-assembled | |
| ① Quickly-assembledholder |
|
| ② Peasecod magic arm |
|
| ③ Remote-control tablet bracket |
|
| ④ Round-head bracket |
|
| ⑤ Handheld mobile handle |
|
| ① Quickly-assembled holder | |
| Size | 50*78*20.5mm |
| Color | Black |
| Material | Metal |
| Weight | 90g |
| Bracket hole site | 1/4 screw hole |
| Order number | 02630250 |
| ② Peasecod magic arm | |
| Size | 150*85*35mm |
| Color | Black & Red |
| Material | Metal |
| Weight | 120g |
| Bracket hole site | 1/4 screw hole |
| Order number | 02630253 |

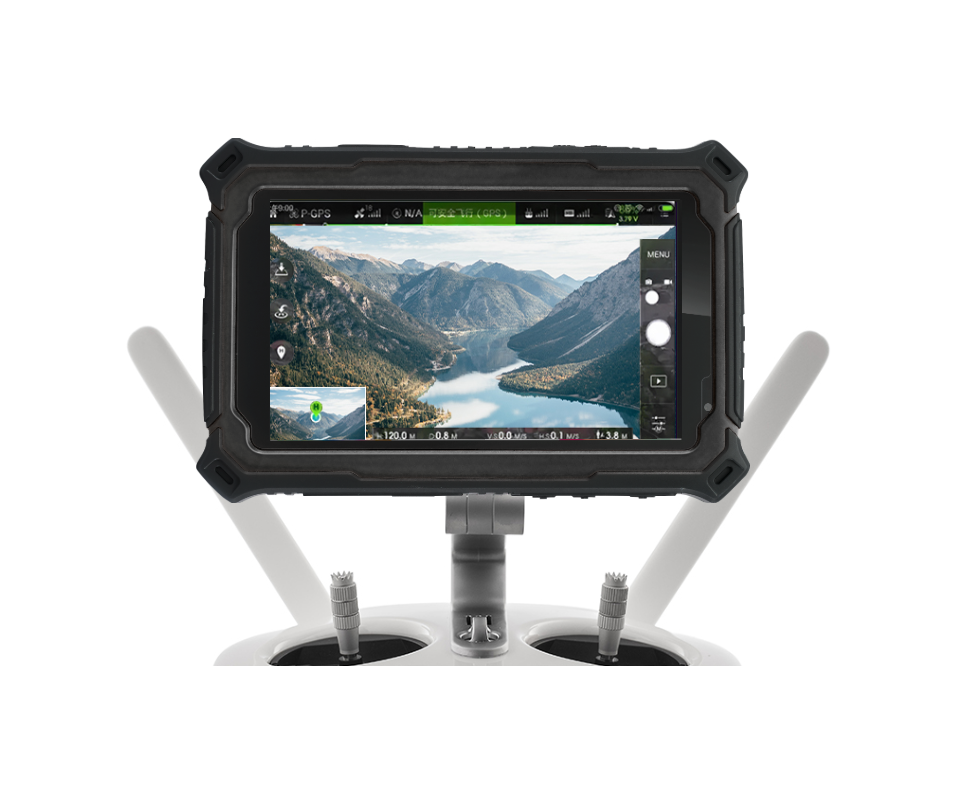

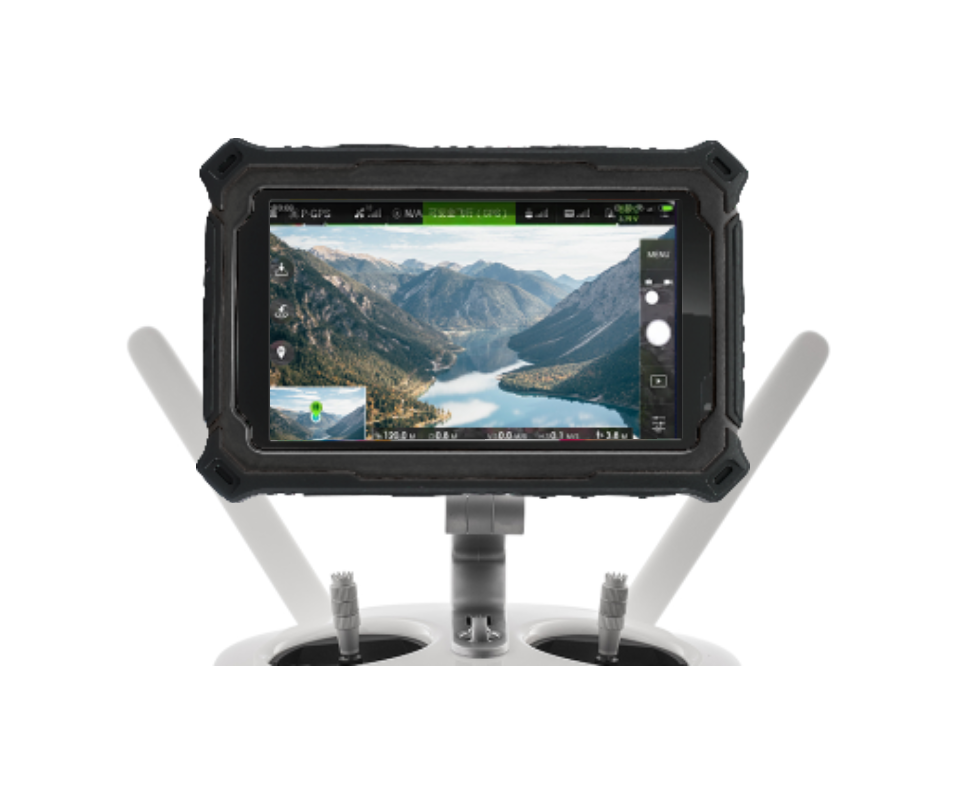

| ③ Remote-control tablet bracket | |
| Size | 150*70*9mm |
| Color | Black |
| Material | Metal |
| Weight | 100g |
| Order number | 02630252 |
| ④ Round-head bracket | |
| Size | 135*61*33mm |
| Color | Black |
| Material | Metal |
| Weight | 215g |
| Bracket hole site | 1/4 screw hole |
| Order number | 04122002 |
| ⑤ Handheld mobile handle | |
| Size | 120*40*50mm |
| Color | Black |
| Material | Plastic & Metal |
| Weight | 75g |
| Bracket hole site | 1/4 screw hole |
| Order number | 02630254 |
| ① Quickly-assembled holder | ② Peasecod magic arm | ③ Remote-control tablet bracket | ④ Round-head bracket | ⑤ Handheld mobile handle | |
|---|---|---|---|---|---|
| Size | 50*78*20.5mm | 150*85*35mm | 150*70*9mm | 135*61*33mm | 120*40*50mm |
| Color | Black | Black & Red | Grey | Black | Black |
| Material | Metal | Metal | Metal | Metal | Plastic & Metal |
| Weight | 90g | 120g | 100g | 215g | 75g |
| Bracket hole site | 1/4 screw hole | 1/4 screw hole | / | 1/4 screw hole | 1/4 screw hole |
| Order number | 02630250 | 02630253 | 02630252 | 04122002 | 02630254 |
| Appearance | |
| Package Size | 155*60*80mm (L×W×H) |
| Weight | 240g |
| Color & Material | Black ( Plastic+Alloy ) |
| Package/Warranty terms/OEM | |
| Warranty | 12 months |
| OEM/ODM | Support |
| Package | Aluminum alloy fixing plate*1; plastic clip*1; blue lanyard*1 |
| Appearance | |
| Package Size | 184*88*40mm (L×W×H) |
| Weight | 200g |
| Color & Material | Black |
| Warranty terms/OEM | |
| Warranty | 12 months |
| OEM/ODM | Support |
| Appearance | |
| Package Size | 180*80*50mm (L×W×H) |
| Weight | 270g |
| Color & Material | Black |
| Package/Warranty terms/OEM | |
| Warranty | 12 months |
| OEM/ODM | Support |
| Package | Tablet Holder Bracket*1; storage bag*1 |
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
