An 8-inch rugged platform for industry software providers, system integrators and device brands. Build field workflows around a 1000-nit display, 18900mAh battery and USB host interface, selecting identity, capture, hazardous-area or precision-positioning configurations for the application.
Industry application interface illustration

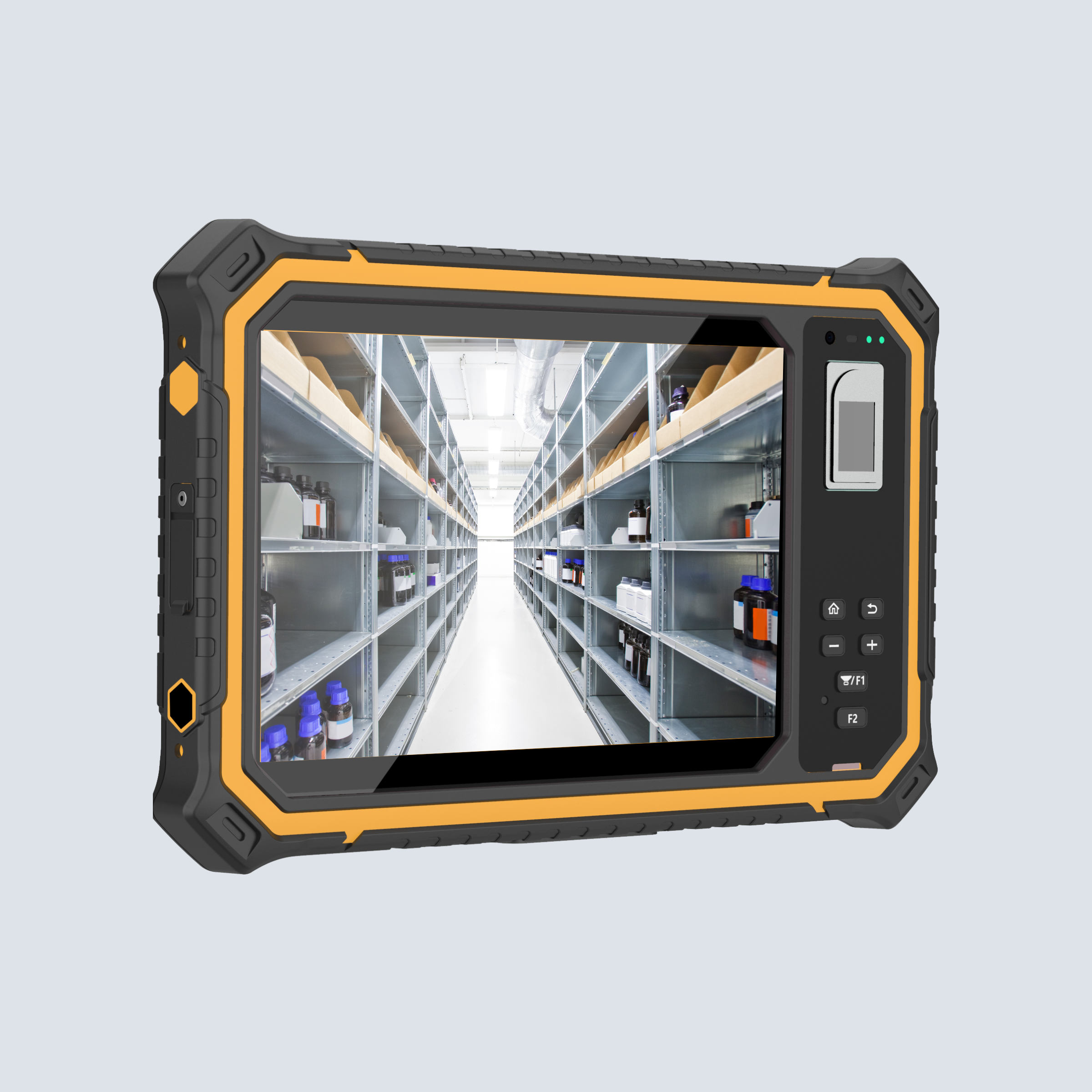

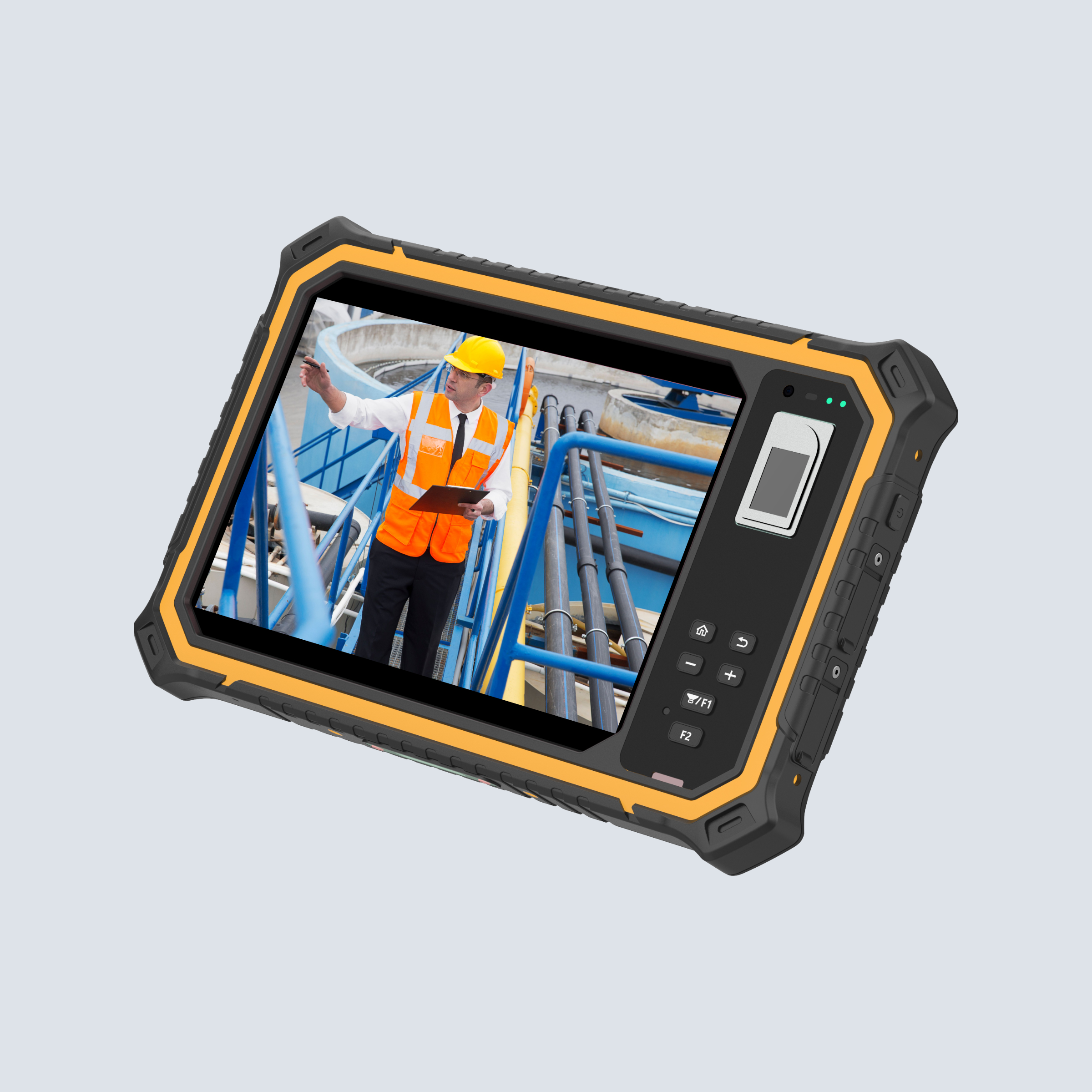

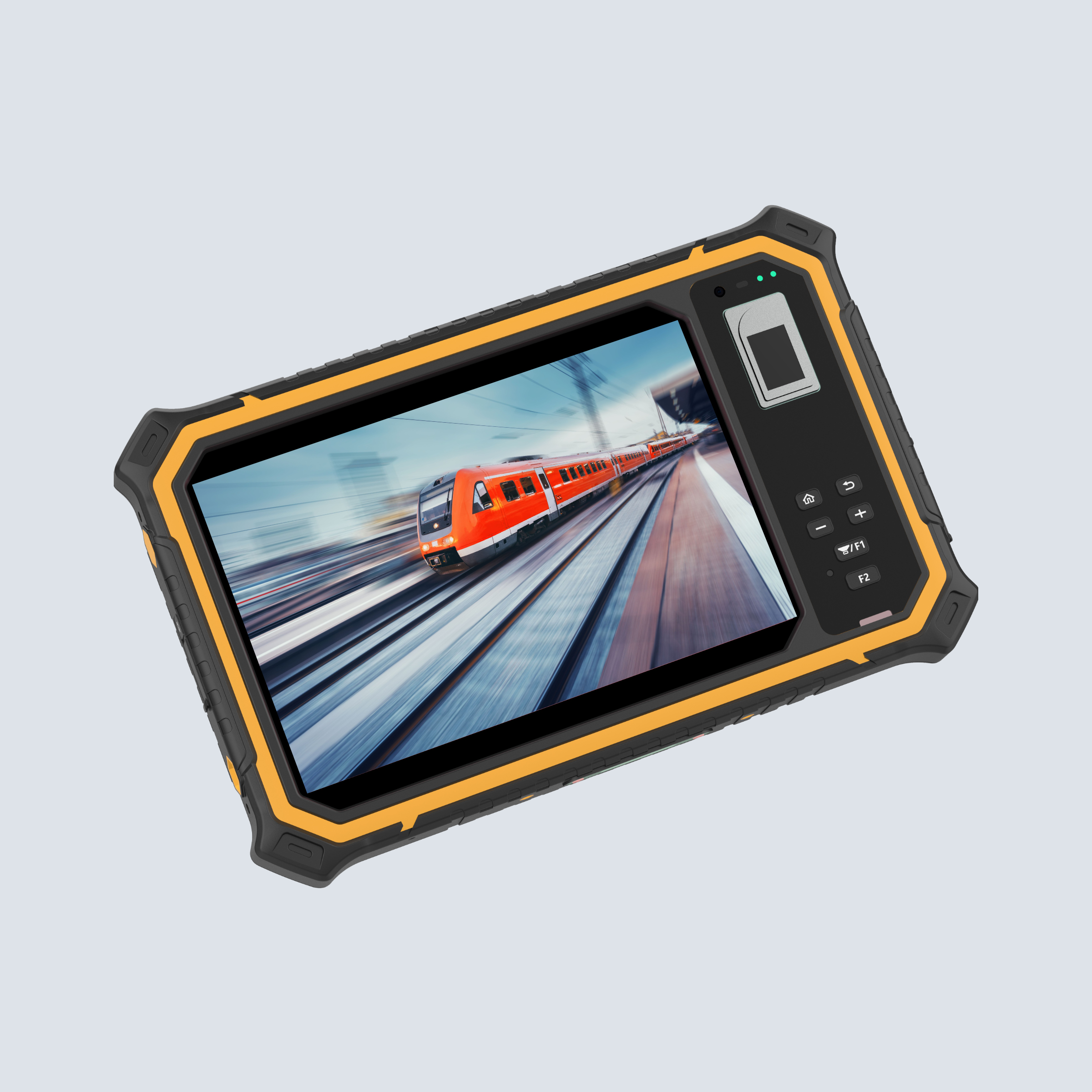

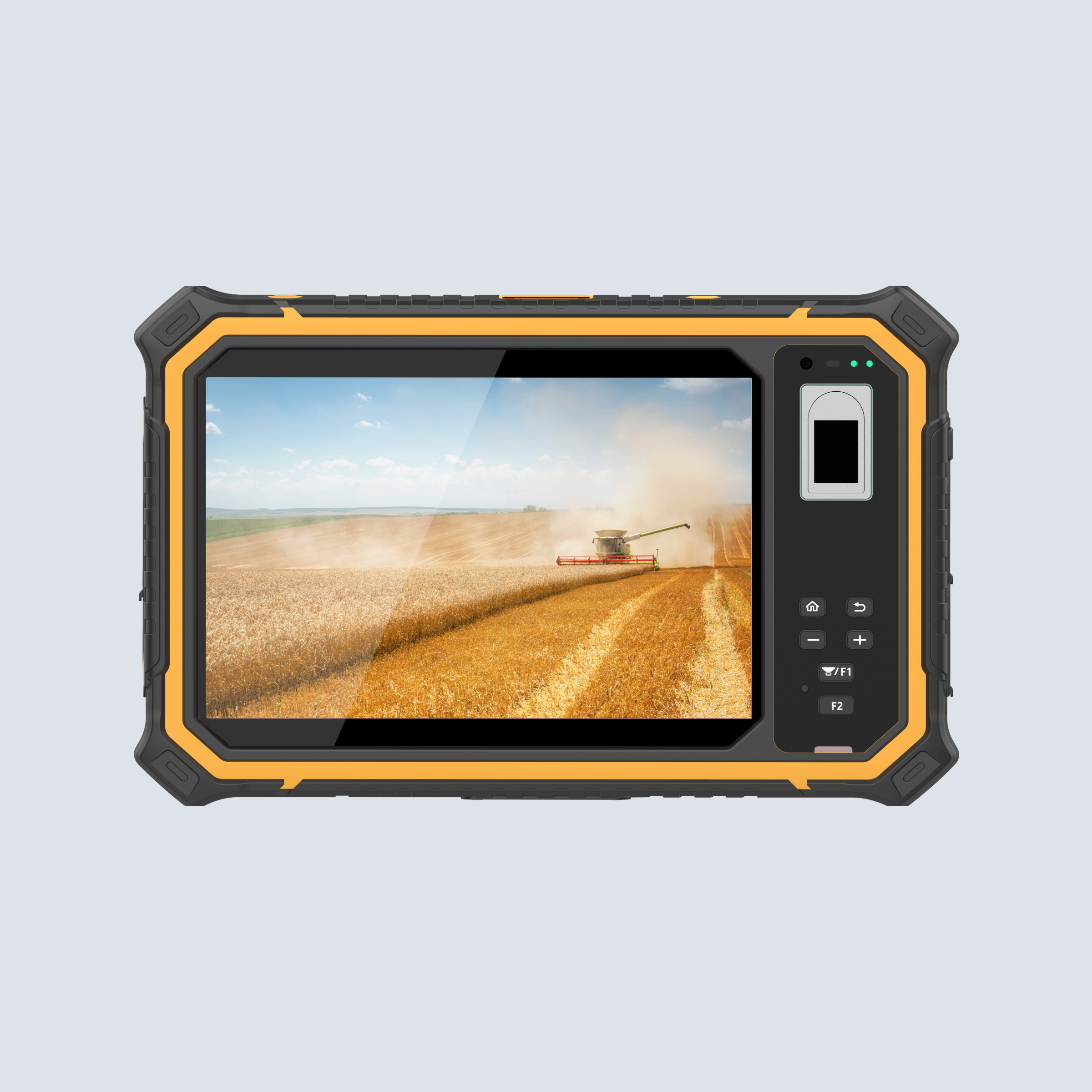

Platform hardware · Front & controls
Platform hardware · Rear structure & mounting
Platform hardware · Top & capture interface
Platform hardware · Side ports & covers
Platform hardware · Magnetic charging interface
Industry interface illustration · software and device configuration depend on the project · select an image to enlarge
Start with the workflow and software environment. Choose the application branch, OS, capture modules, mounting and power, then validate the terminal and accessories on samples.
Software providers can select for application environments, peripheral protocols and data exchange. Integrators can match hardware and software to identification, assets, hazardous areas and positioning. Device brands can discuss appearance, applications, modules and accessories through OEM / ODM engineering.
T80EX, B80, R80 and G80 are application branches of T80; T80L offers a different memory configuration. Capture modules, OS versions, Ex certification and positioning capabilities are model-specific.
Compare display, storage, capture and positioning requirements. Ex certification and specialist modules are specific to the branch and ordered configuration.
8-inch rugged terminal platformAn 8-inch rugged platform for industry software providers, system integrators and device brands. Build field workflows around a 1000-nit display, 18900mAh battery and USB host interface, selecting identity, capture, hazardous-area or precision-positioning configurations for the application.
6GB / 64GB industrial configurationA 6GB / 64GB configuration for inspection, work orders and industry applications, with an 8-inch FHD 1000-nit display, 18900mAh battery and USB Type-A host. Select around application workloads and data storage.
Hazardous-area inspection & mobilityThe hazardous-area branch for oil and petrochemical inspection software providers, integrators and equipment service partners. Connect work orders through NFC, an 8-inch sunlight-readable interface and a 18900mAh battery, verifying site suitability against Ex marking and certification.
Fingerprint enrolment & identity verificationFor identity-management software providers, government-project integrators and service partners. Combine the G2010 FAP10 fingerprint module and NFC with enrolment, credential reading and field verification. The 8-inch display supports data entry, results and forms.
Barcode & NFC industrial data captureFor logistics, asset-management and manufacturing software providers and industrial IoT integrators. Link materials, equipment and work orders to business systems through the E20 1D/2D barcode module and NFC.
GNSS / RTK positioning & GIS captureFor surveying and GIS software providers, location-service integrators and inspection partners. Combine an 8-inch sunlight-readable display, professional receivers and external antennas for field geospatial capture. Select G80N, G80F or G80M for accuracy, correction sources and output protocols.
| Configuration | T80 | T80L |
|---|---|---|
| Display | 8″ / 1920×1200 / 1000 nits | 8″ / 1920×1200 / 1000 nits |
| RAM / storage | 8GB / 128GB | 6GB / 64GB |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 | Android 9 / 10 / 11 / 13 |
Select the required functions and protocols, then validate reading distance, corrections, interfaces, power and software on samples.
| 125kHz LF (optional) | EM4100 / 4001 / TK4100 / EM4305; 2–5cm; optional HID-card support |
|---|---|
| 134.2kHz LF (optional) | ISO11784/5 / FDX-B / 2–5cm |
| HF / NFC (optional) | 13.56MHz / ISO14443A/B / ISO15693 / 2–5cm |
| UHF protocols (optional) | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| UHF bands (optional) | 902–928MHz / 865–868MHz (option) |
| UHF output power | 0–26dBm / accuracy ±1dB / level ±0.2dB |
| UHF test reading distance | 2–3m (2dB antenna, E41 test card) |
| RFID module selection | Select one RFID module option |
| Fingerprint module (optional) | G2010 / FAP10 / 508dpi / 8bit / 256×360 / Grayscale 32768 |
| Barcode modules (optional) | E20 / Honeywell N3680 (1D / 2D) |
| Industrial serial interfaces (optional) | UART TTL 3.3V ×2 / RS232 ×1 / RS485 ×1 |
| Module integration requirements | 3.3V–1.5A / 5V–1.5A; UART 3.3V / 5V; GPIO ×1, 3.3V / 5V |
Device specifications below describe the T80 base configuration. Review T80L memory and the application-specific modules of T80EX, B80, R80 and G80 against the selected branch.
| Processor | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| Graphics | ARM Mali-G72 MP3 |
| RAM / storage | 8GB / 128GB |
| Display | 8″ FHD / 1920×1200 / 1000 nits |
| Battery | 18900mAh |
| Rear / front cameras | 13MP AF + flash / 5MP |
| Touch | Capacitive / glove touch / spray / active capacitive pen |
| Expandable storage | microSD, up to 1TB |
| SIM card | Dual Nano SIM or Nano SIM + microSD (choose two of three) |
| Data interface | USB Type-A (Host) ×1 / Type-C ×1 |
| Charging | Type-C / 4PIN magnetic; 5.0V 2A, 10W |
| Positioning | GPS + GLONASS + BeiDou + AGPS + SBAS (EPO 2.5m) |
| 2G bands | GSM B2/3/5/8 |
| 3G bands | WCDMA B1/2/5/8 |
| 4G bands | TD-LTE B38/39/40/41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz; 802.11a/b/g/n/ac |
| Bluetooth | 5.0 LE |
| Sensors | Gravity / magnetic field / gyroscope / rotation vector / light / acceleration |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 |
| Dimensions | 256 × 159 × 23mm |
| Weight | 1015g |
| Water / dust resistance | IP67 (IEC 60529) |
| Drop / impact | MIL-STD-810G / touch panel IK05 |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Relative humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Certification | 3C / CE / ROHS / IP67 |
| Warranty | Device 24 months / battery 12 months |
Work with product and engineering teams to validate business software, modules and operating conditions together.
Choose the model and application to review OS, modules, accessories and delivery configuration.
Deployment countries, application, visibility, site conditions and compliance scope.
OS versions, applications, tag samples or correction services, peripheral protocols, mounting and power.
Sample results, exact device model, accessories, volume and rollout schedule.
Assess T80 by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
