ARM Cortex A73 octa-core (2.0GHz ) processor solution with 8G RAM and 128g ROM.
HUGEROCK T60EX 5.5 Inch IP67 Waterproof Droproof Industrial Atex Certified 9000mAh 500nit NFC Android 13 Rugged Handheld Pda
Key attributes Industry-specific attributes Operating System Andriod 11.0/13.0 Style Handheld Computer Memory Capacity 8GB Other attributes Place...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution with 8G RAM and 128g ROM.
INTRINSIC SAFETY
It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.
FULL RUGGED
Compliant with MIL-STD-810G and IP67 standards, it is durable enough to effectively protect equipment from dust, water, motion, vibration, temperature.
FULL
RUGGED
FULL RUGGED
Compliant with MIL-STD-810G and IP67 standards, it is durable enough to effectively protect equipment from dust, water, motion, vibration, temperature.
FULLY SOLUTIONS
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions.
FULLY
SOLUTIONS
FULLY SOLUTIONS
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions.
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

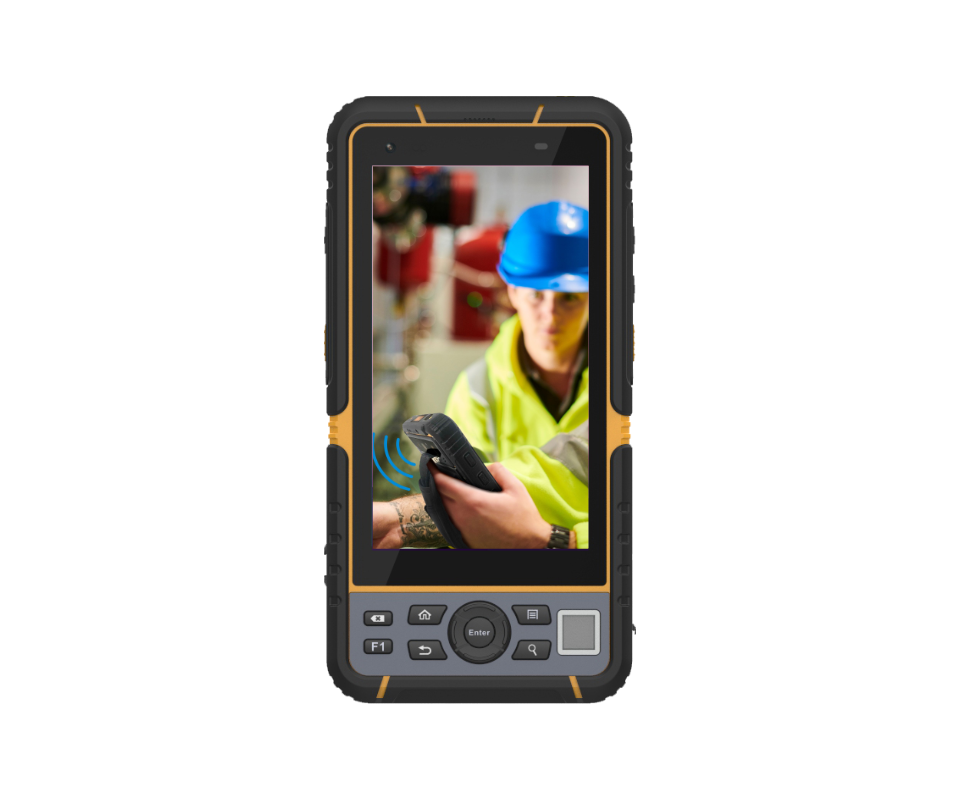

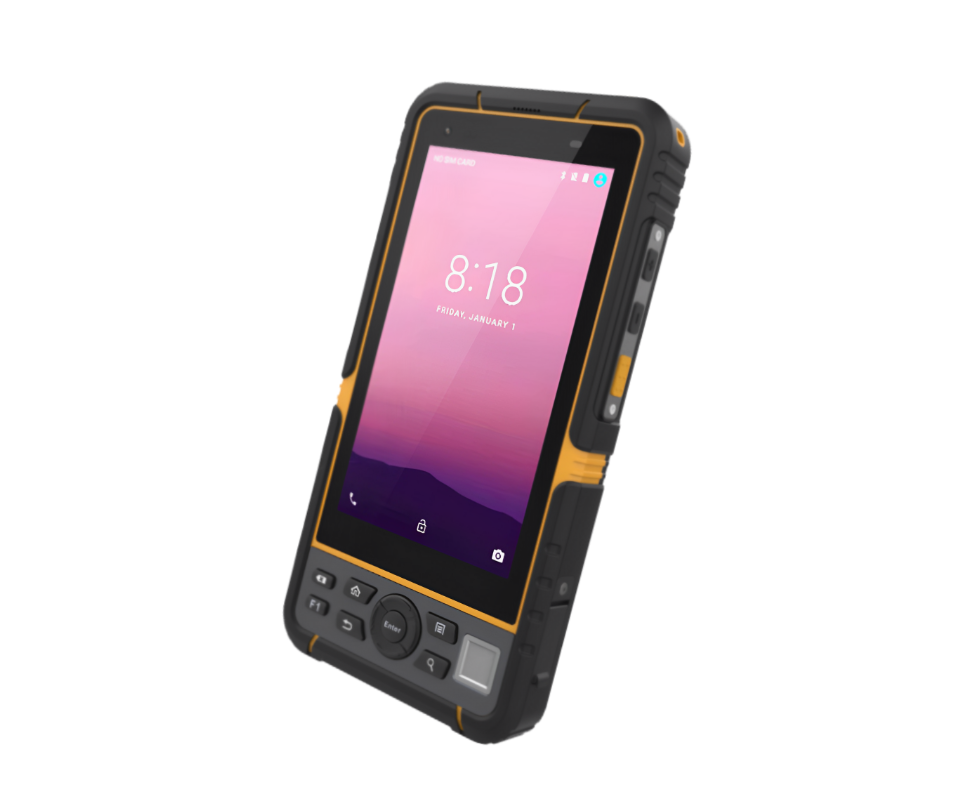

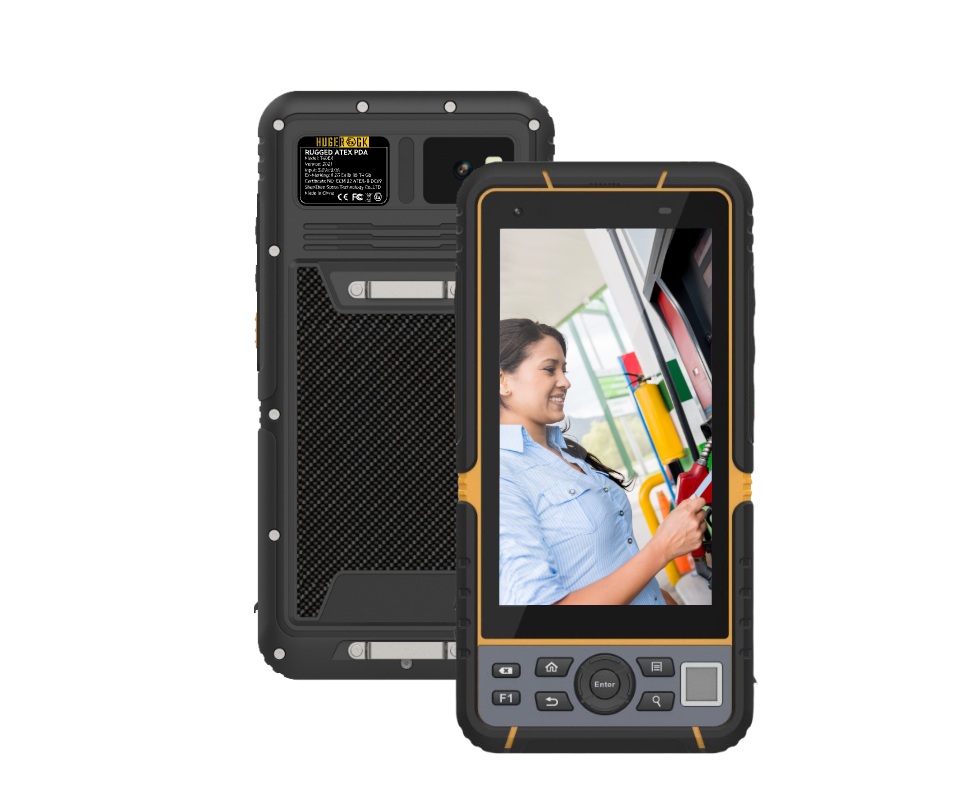

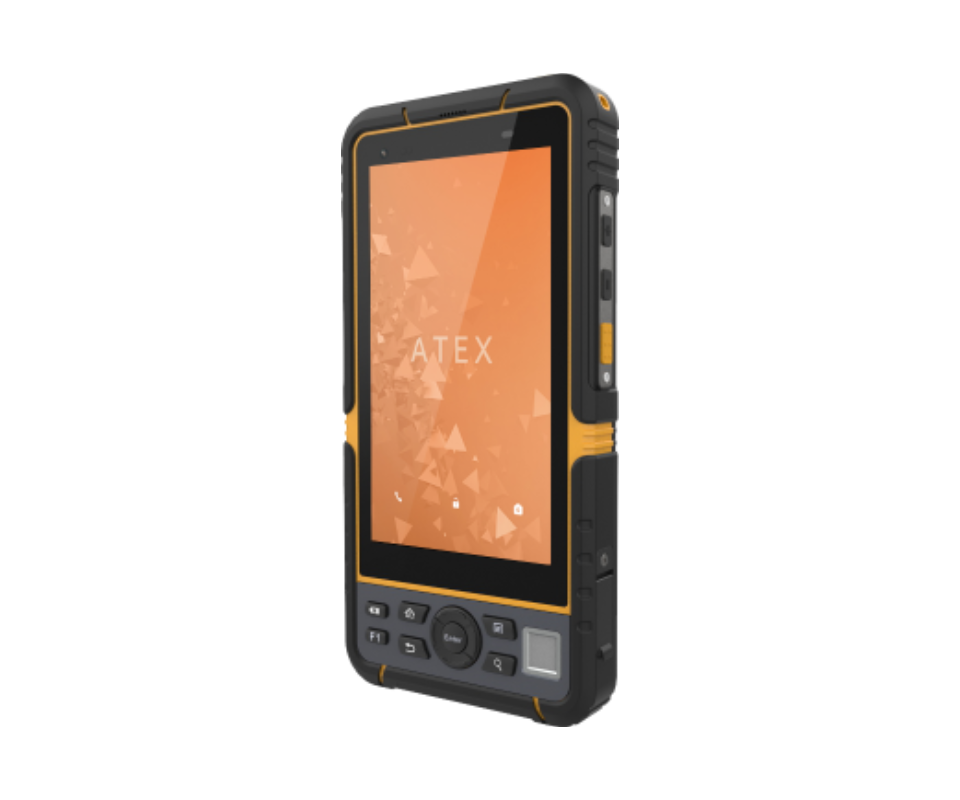

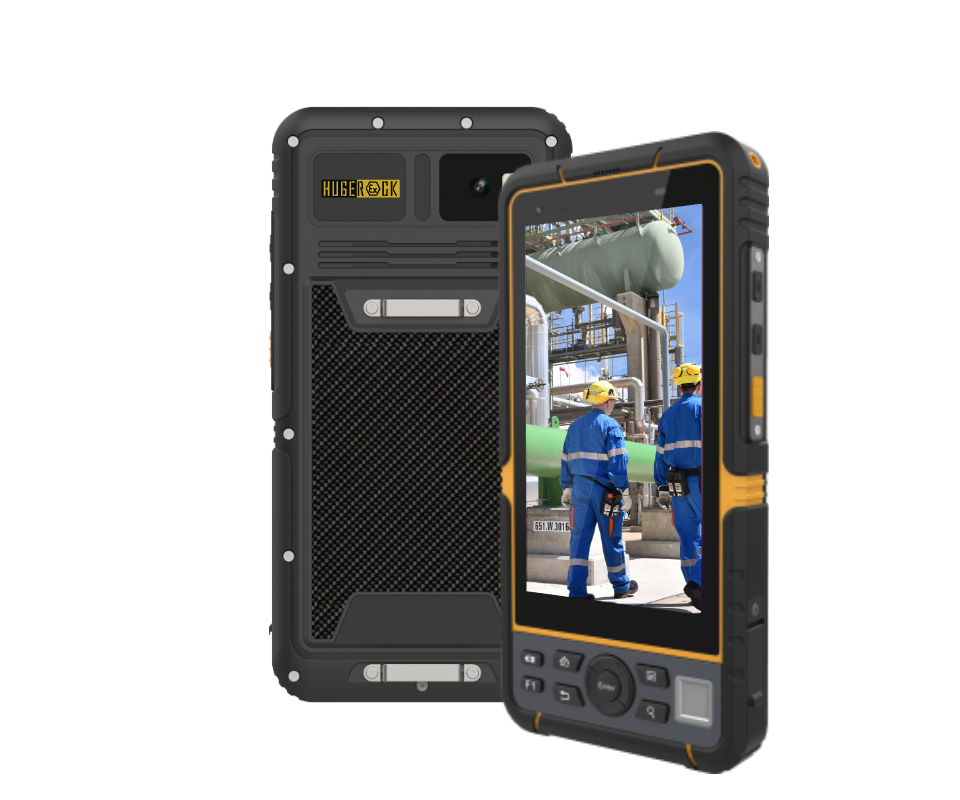

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 7800mAh |
| Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m² Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C+2pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 195*98*22mm (LxWxH) |
| Weight | 460g |
| Color & Material | Black&yellow (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm ; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF=5000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 11 / 13 (Continuous updates) |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 22 ATEX-B DC69 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/ Toolkit (optional)/OTG x 1/SIM Card Ejector x 1 |
OPTIONAL MODULES
| Barcode module | |||
| N1 | Scanning engine | E20 Barcode Module | |
|
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| NFC module | |||
| NFC module |
 |
Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| UHF module | |||
| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
 |
Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | |
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
| Barcode module | |||
|---|---|---|---|
| N1 | Scanning engine | E20 Barcode Module | |
|
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| NFC module | |||
| NFC module | Protocol standard | ISO14443A/B, ISO15693, NFC | |
 |
|||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| UHF module | |||
| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
 |
Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | |
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
