INTRINSIC SAFETY
INTRINSIC SAFETY
It equipped with18900mAh intrinsically safe battery, Can work continuously for 12 hours.
PRODUCT DESCRIPTION
MORE FAST
ARM Cortex A73 octa-core (2.0GHz) processor solution and 8GB RAM
MORE FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz) processor solution and 8GB RAM
1000NITS FHD
1000nits FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
1000NITS
FHD
1000NITS FHD
1000nits FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
NFC
Accurately read information within 2-5cm
NFC
NFC
Accurately read information within 2-5cm
INTRINSIC SAFETY
It equipped with18900mAh intrinsically safe battery, Can work continuously for 12 hours.
MAGNETIC CHARGING FAST AND SAFE
4PIN magnetic charging port, gently put, automatic adsorption, can meet the rapid charging.
MAGNETIC CHARGING
FAST AND SAFE
MAGNETIC CHARGING FAST
AND SAFE
4PIN magnetic charging port, gently put, automatic adsorption, can meet the rapid charging.
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11 a/b/g/n/ac Wi-Fi.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11 a/b/g/n/ac Wi-Fi.
FULL RUGGED
Industrial protection grade IP67, MIL-810G Drop-proof 5ft.
FULL RUGGED
FULL RUGGED
Industrial protection grade IP67, MIL-810G Drop-proof 5 ft.
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
IN-DEPTH
CUSTOMIZATION
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

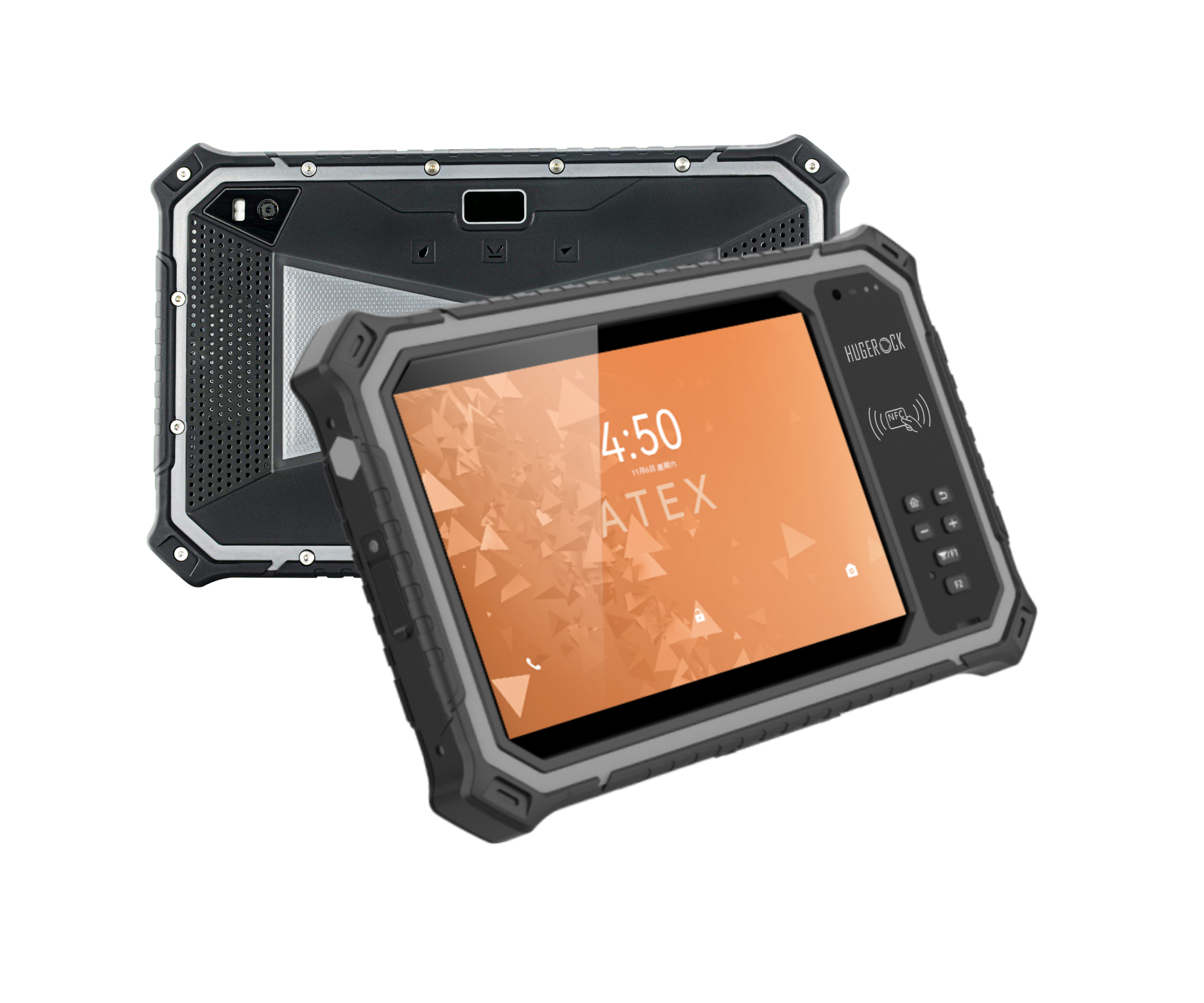

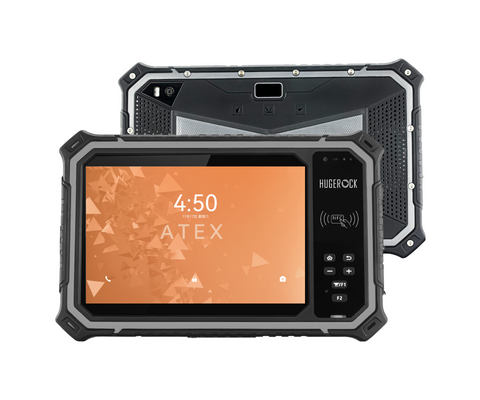

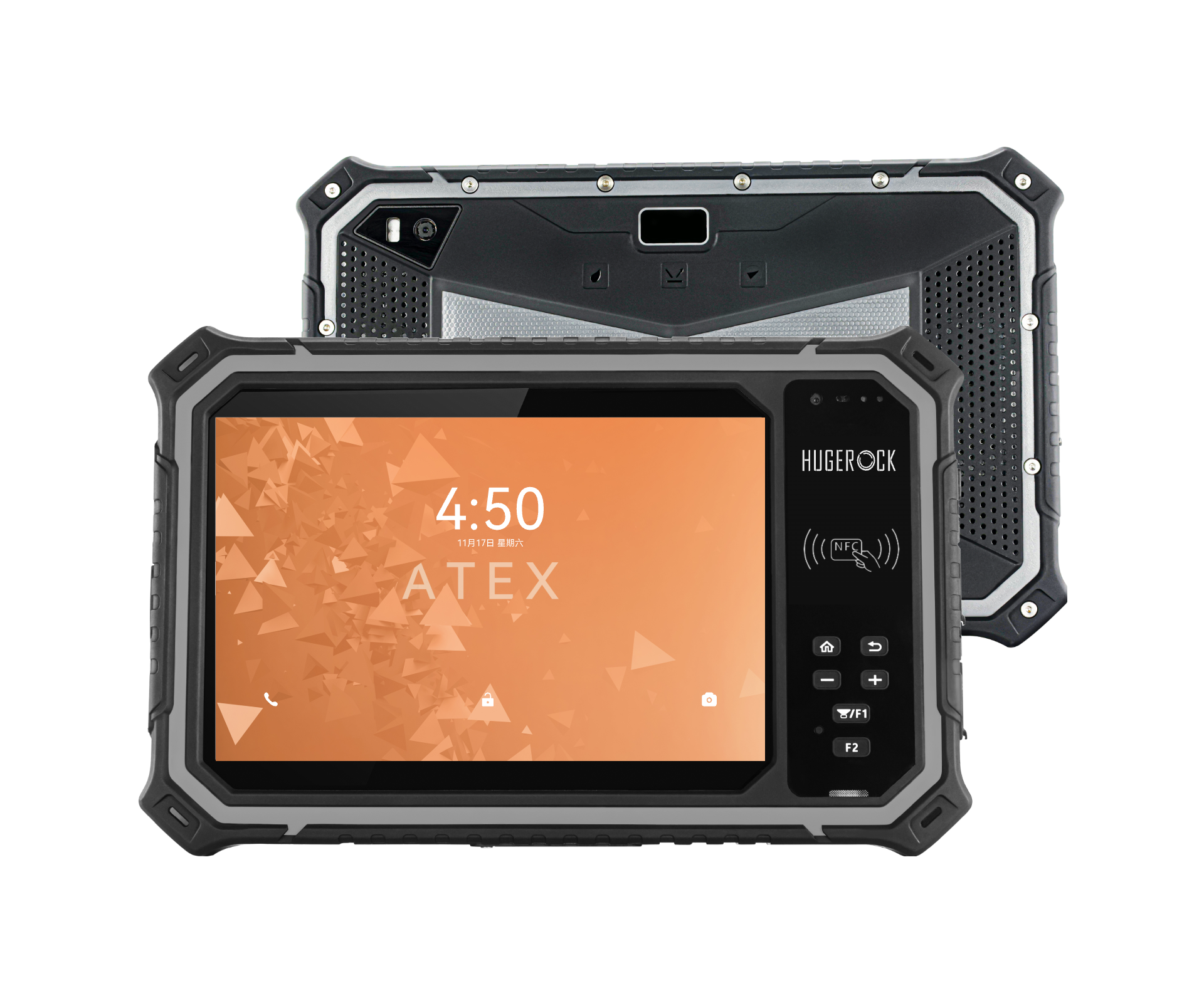

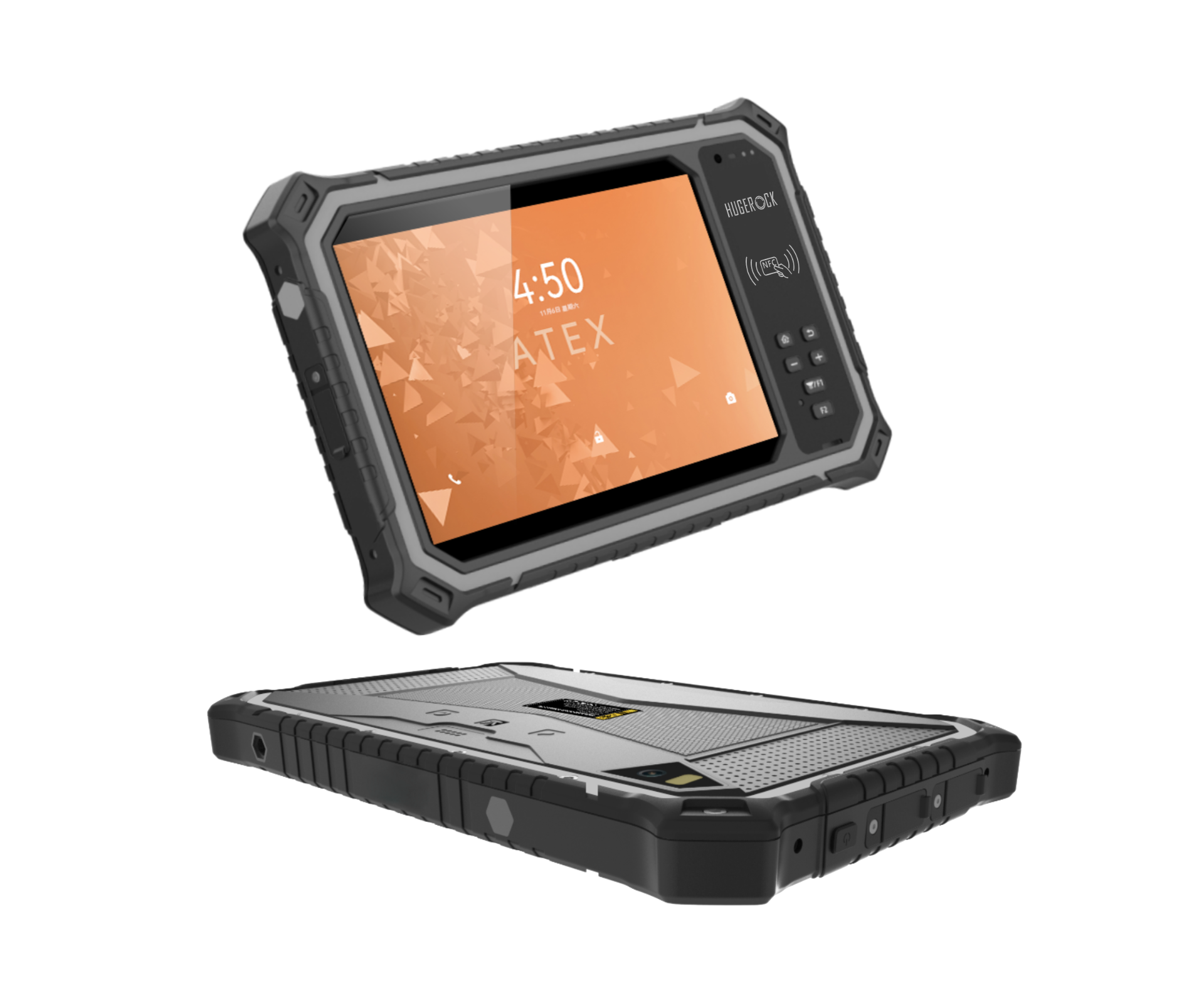

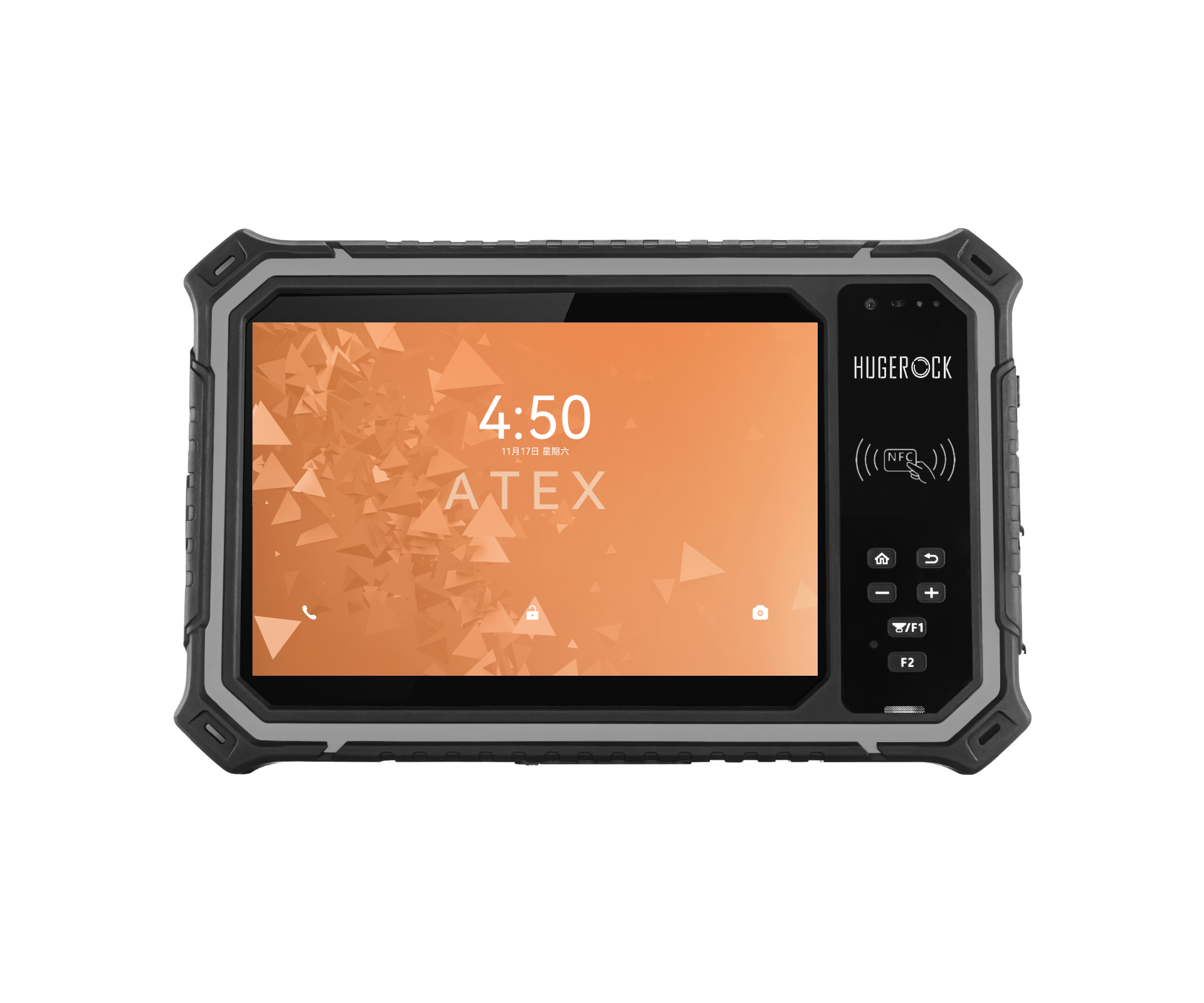

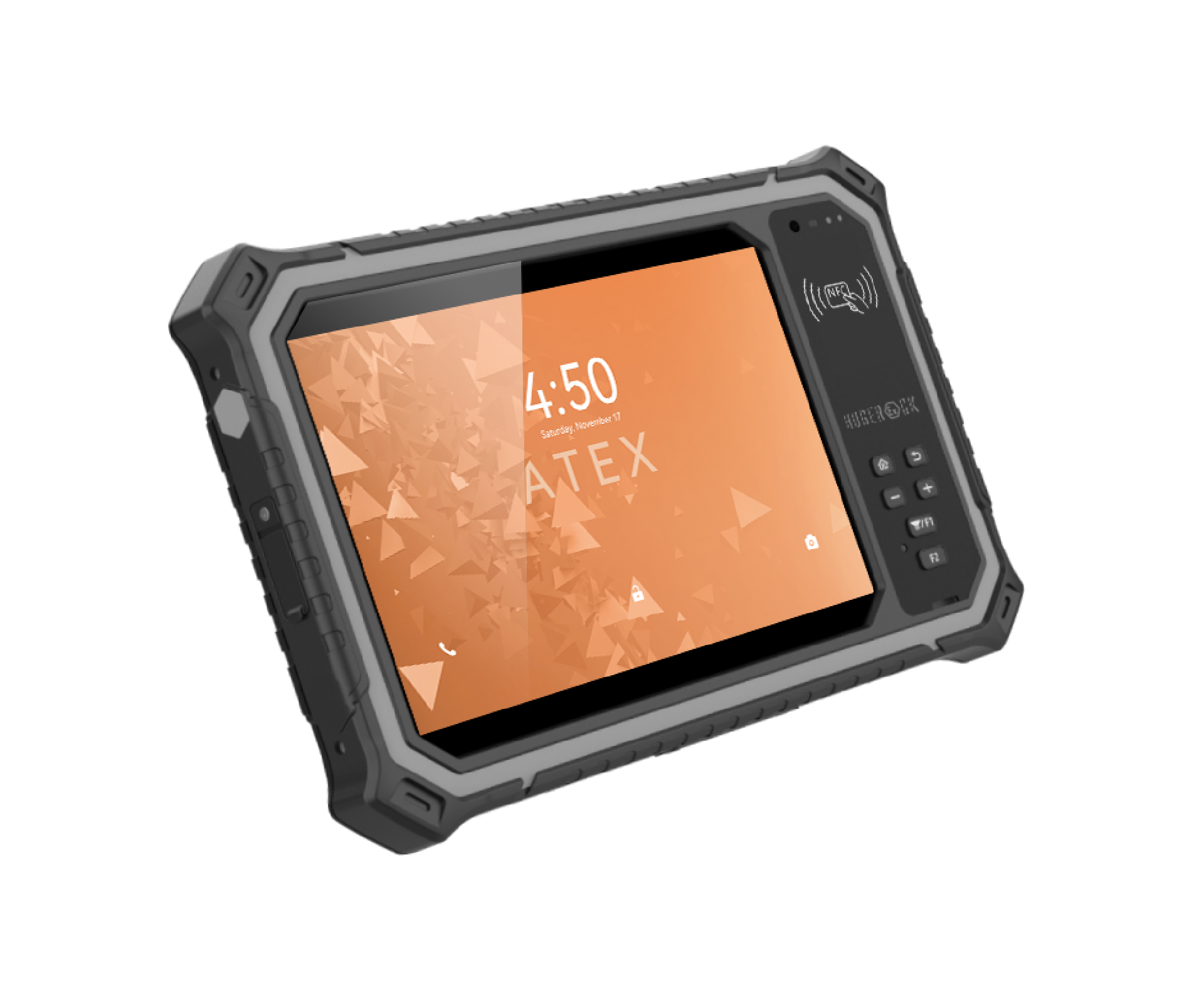

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 octa-core(2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8GB |
| Internal Memory | 128GB |
| External Memory | Micro SD card (T-FLASH card), Max 2TB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card/ TF Card | Nano SIM card * 2, Micro SD card * 1 (Choose any two out of three) |
| Charging interface | Type-C & 4pin pogo pin (magnetic) |
| Data Interface | USB Type-A(Host)*1, Type-C*1 |
| Gravity Sensor | support |
| Magnetic Field Sensor | support |
| Motion Sensor | support |
| Gyroscope sensor | support |
| Light-sensor | support |
| Acceleration Sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 256*159*23mm (LxWxH) |
| Weight | 1015g |
| Color & Material | Black&Gray(PC+ABS+TPU) |
| Communications & Networking | |
| Phone Call | GSM/WCDMA/VOLTE |
| 2G | GSM/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA(B1/2/5/8) |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps, 50Mbps up |
| 4G Band | TDD-LTE (B38/39/40/41); FDD LTE (B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI | Dual-band WIFI(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% (95%RH, non-condensing) |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 9/10/11/13 (Continuous Updates) with GMS |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 23 ATEX-B D039 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB Cable/Charger/Introduction Manual/Screen protector/Packing box/Magnetic Charging Cable/Precautions Card/ Hand strap |
OPTIONAL MODULES
| NFC | |||||||
|---|---|---|---|---|---|---|---|
| NFC Module | |||||||
|
|
||||||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
