ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
HUGEROCK T101EX Wholesale High-capacity Battery 14600mAh For Professional NFC Barcode Scanner Qr Code Industrial Rugged Tablet
Key attributes Industry-specific attributes Screen Size 10" Memory Capacity 8GB Display resolution 1920*1200 Operating System Android 11/13...
Vendor:
SOTEN
Availability:
In Stock
PRODUCT DESCRIPTION
MORE FAST
ARM Cortex A73 octa-core (2.0GHz) processor solution and 8G RAM.
INTRINSIC SAFETY
It equipped with14600mAh intrinsically safe battery, can work continuously for 12 hours.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with14600mAh intrinsically safe battery, can work continuously for 12 hours.
1000 NIT FHD
FHD 1000nit+ display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
1000 NIT
FHD
1000 NIT FHD
FHD 1000nit+ display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
EFFICIENT AND
ACCURATELY IDENTIFY
It can integrate NFC and high-quality barcode modules at the same time, can accurately compatible and recognize more than 200 kinds of 1D or 2D barcodes, and can expand a variety of industrial modules and bus interfaces to quickly and efficiently solve any field application needs.
EFFICIENT AND
ACCURATELY IDENTIFY
EFFICIENT AND
ACCURATELY IDENTIFY
It can integrate NFC and high-quality barcode modules at the same time, can accurately compatible and recognize more than 200 kinds of 1D or 2D barcodes, and can expand a variety of industrial modules and bus interfaces to quickly and efficiently solve any field application needs.
THIN AND
LIGHTWEIGHT RUGGED
The thickness of the titanium aluminum alloy body is only 9 mm, MIL-810G Drop-proof 4ft.
THIN AND
LIGHTWEIGHT RUGGED
THIN AND LIGHTWEIGHT
RUGGED
The thickness of the titanium aluminum alloy body is only 9 mm, MIL-810G Drop-proof 4 ft.
IN-DEPTH
CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
IN-DEPTH
CUSTOMIZATION
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

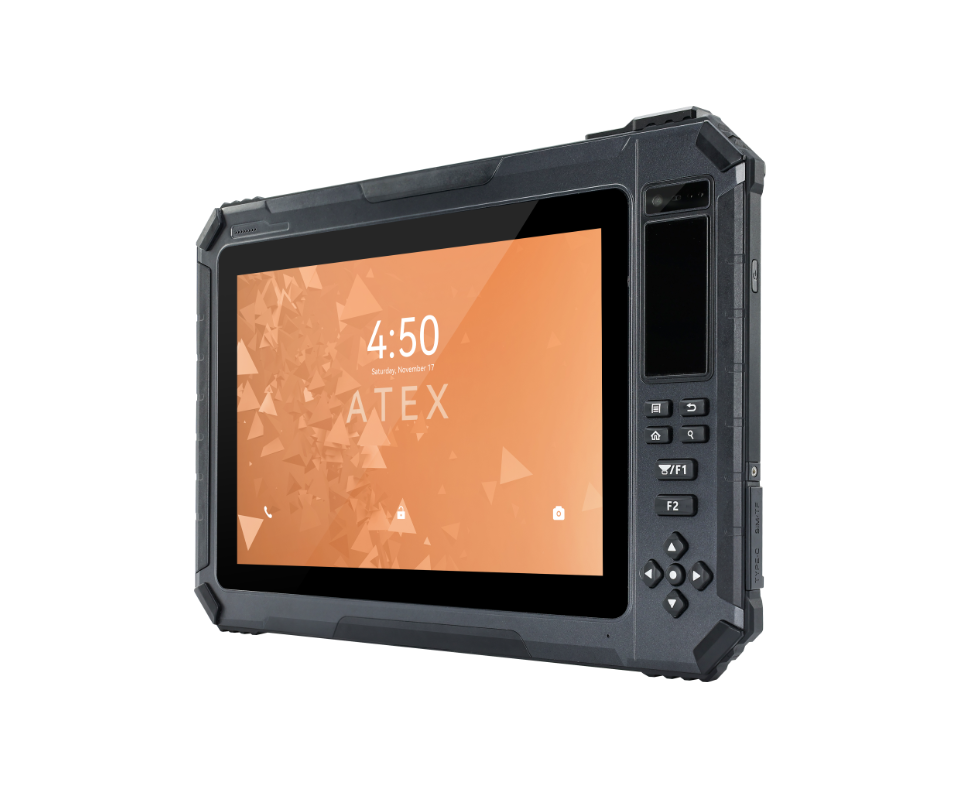

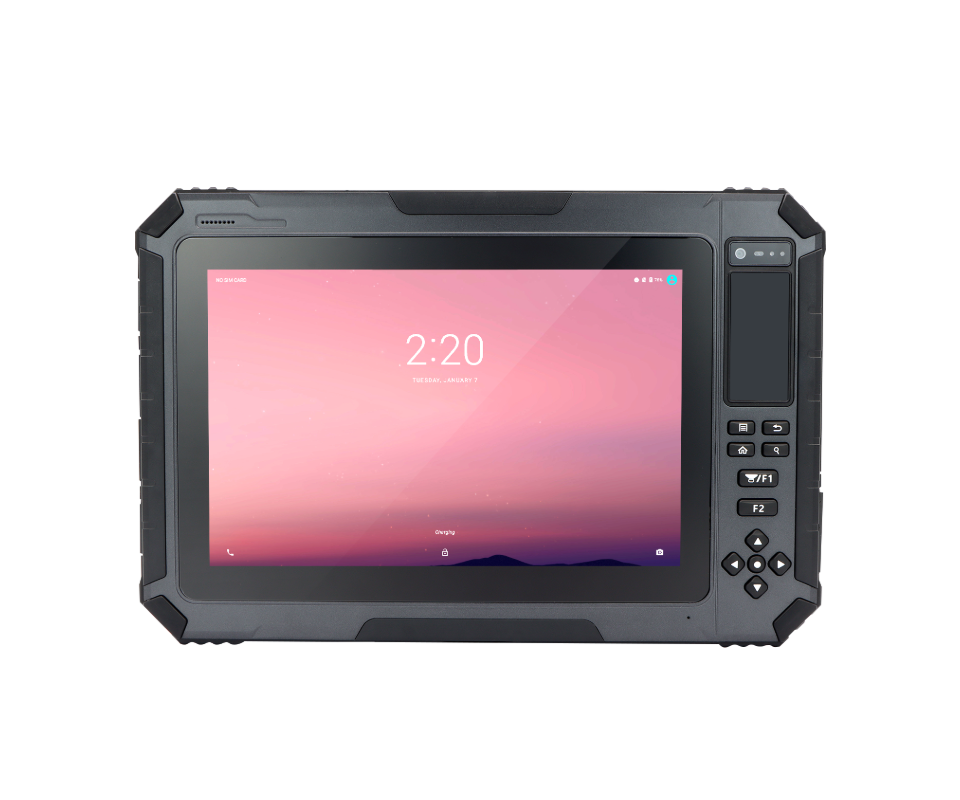

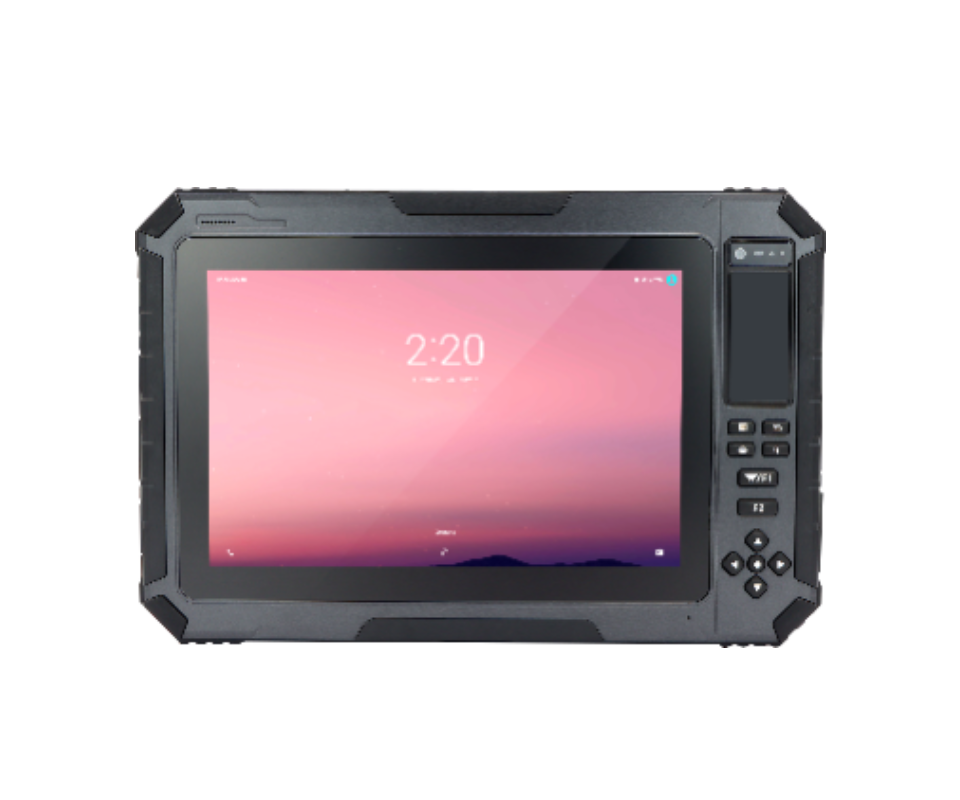

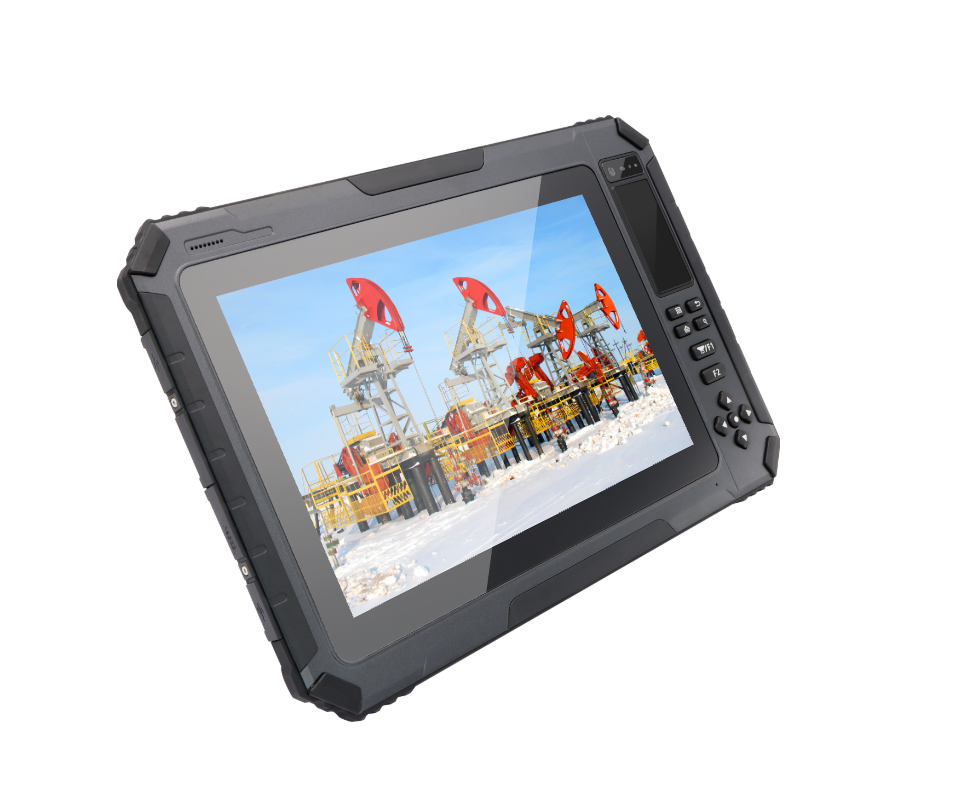

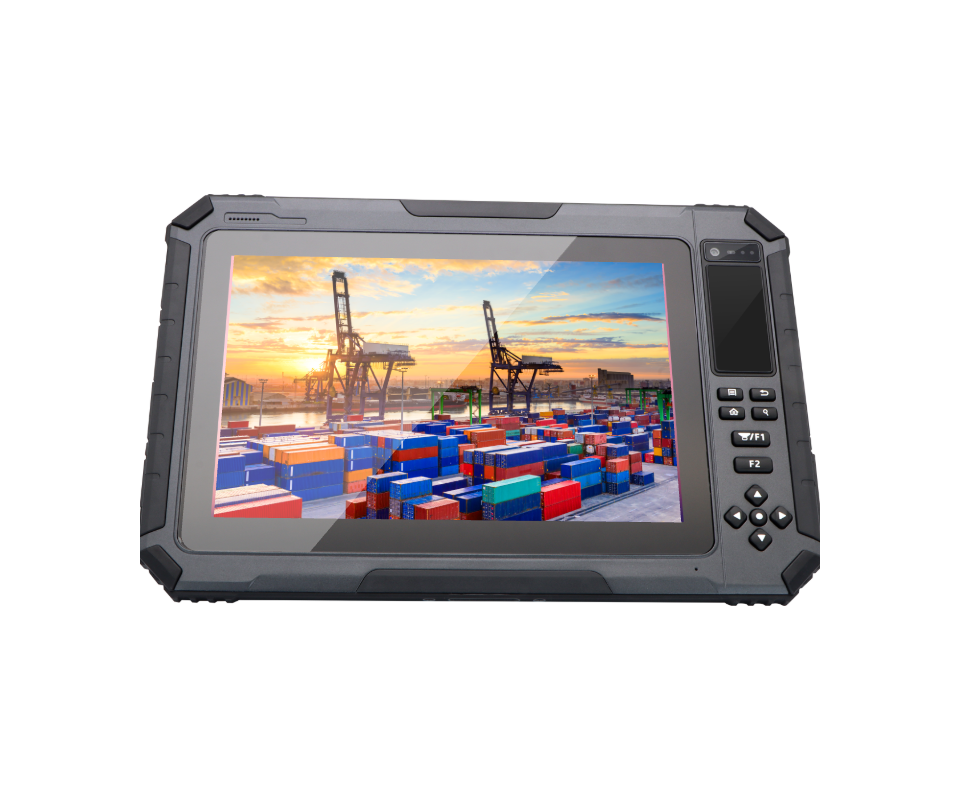

APPEARANCE
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Charging interface | Type-C & 8pin pogo pin |
| Data interface | USB Type-A(Host)*2 , Type-C*1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A- 10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 320*228*12mm (LxWxH) |
| Weight | 1360g |
| Color & Material | Gray(Titanium alloy+ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM /CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm ; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF=5000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 11/ 13 (Continuous updates) |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 21 ATEX-B QS09 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/SIM Card Ejector / Magnetic Charging Cable |
OPTIONAL MODULES
| NFC | |||
|---|---|---|---|
| NFC module | |||
|
|||
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| Data Collection | |||
| N1 | Scanning engine | E20 Barcode Module | |
|
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| The fingerprint module | |||
| Fingerprint Module | G2010 Fingerprint Module |
Grayscale 32768 | |
|
FAP10, 500 dpi, 8 bit, 256X360. | ||
| FBI MINEX III (NIST Certification) | |||
| RoHS Certification | |||
| NFC | |||
|---|---|---|---|
| NFC module | |||
|
|
|||
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| Data Collection | |||
| N1 | Scanning engine | E20 Barcode Module | |
|
|
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| The fingerprint module | |||
| Fingerprint Module | G2010 Fingerprint Module |
Grayscale 32768 | |
|
|
FAP10, 500 dpi, 8 bit, 256X360. | ||
| FBI MINEX III (NIST Certification) | |||
| RoHS Certification | |||
OEM/ODM
Product Line
Research and Design
Professional Validation
Software Customization
High-Qaulity Services
Professional Certification
Modular Customization
Product Quality Testing
Product Qualification
WORRY-FREE, Focus on quality for 14 years
HARDWARE CUSTOMIZATION
- 1 ID Custom Design
- 2 MD Custom Design
- 3 PCBA Custom Development
- 4 Module Custom Developmennt
- 5 Nameplate Logo Customization
- 6 Packaging Custom Design
SOFTWARE CUSTOMIZATION
- 1 Boot Screen Customization
- 2 System Function Hiding
- 3 Built-in Customer App
- 4 Customer App Auto-launch
- 5 Platform Software Integration
- 6 Fixed MAC Address
- 7 Download Prohibition
- 8 Intercom App
- 9 USB Disablement
- 10 System Model Customization
- 11 APP Installation and Uninstallation Control
- 12 Pre-installed APK
- 13 Physical Button Disablement
- 14 Camera Control
- 15 Provide System Signing Files
FAQ
Q: Are you the manufacturer?
A: Yes, we are the manufacturer. We have our own brand HUGEROCK. All our products have complete patents - ID/MD design, hardware and software, molds, assembly are all done by our own team.
Q: Can other GIS software using serial port data work directly on your device?
A: No, we report GPS data in native ways. The serial port is already opened at the system low level. Your GIS software needs to acquire data in this way to work directly.
Q: Does it come with GIS application software?
A: Yes we have GIS software, but it requires a fee.
Q: Can you customize and pre-install our software?
A: Yes, we can pre-install your software. Customization will depend on the requirements of your software customization.
Q: Can it do differential without internet?
A: No, it requires internet to do differential.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If needed, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm minimum order quantity.
Q: Can we get free samples?
A: Sorry, we typically do not provide free samples. If the customer confirms specifications and pricing, samples can be ordered first for testing and evaluation.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online payment, Western Union.
Q: What is your product warranty?
A: We provide 24 months warranty after shipping.
Q: Can I extend the warranty period?
A: We offer extended warranty up to 36 months maximum, with a 10% price increase for extended warranty.
Q: How long is the delivery time?
A: Production lead time is approx 3–10 days, depending on requirements. Shipping time via DHL/UPS/FedEx/TNT is approx 3–5 working days. For some remote places, shipping time may be longer.
Q: How to repair if there are device issues?
A: We will provide online technical support to troubleshoot issues. For hardware issues, we can ship parts or components for customer to install (if they have technical staff) or can also ship back to us for repair.
