G101F Dual-frequency RTK & GIS Capture Tablet. Assess G101F against accuracy targets, receiver configuration, antennas, corrections and output protocols. Distinguish GNSS, RTD and RTK configurations and validate application integration in the field.
G101F application configuration

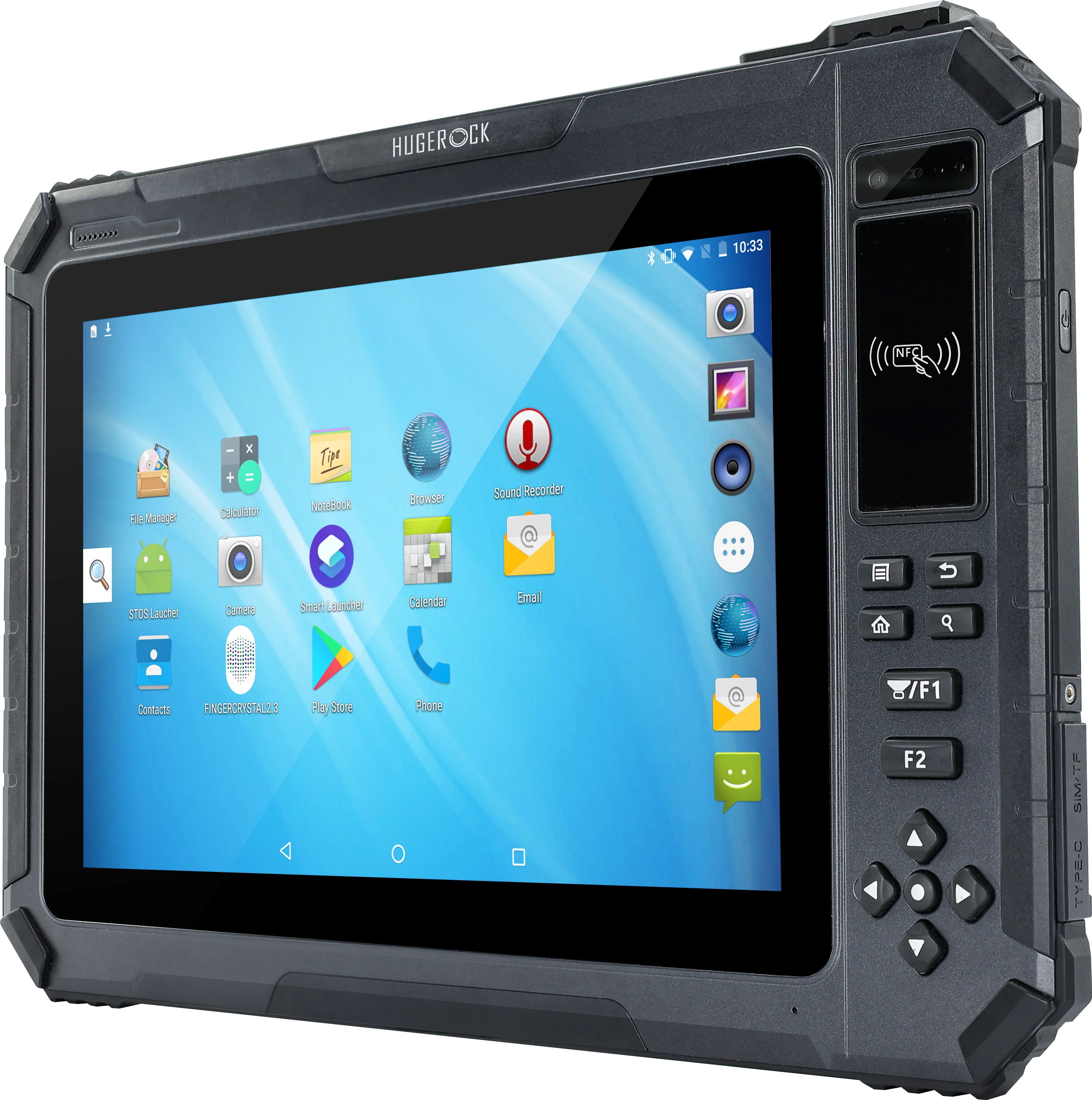

Platform structure (model-specific colours) · Three-quarter view

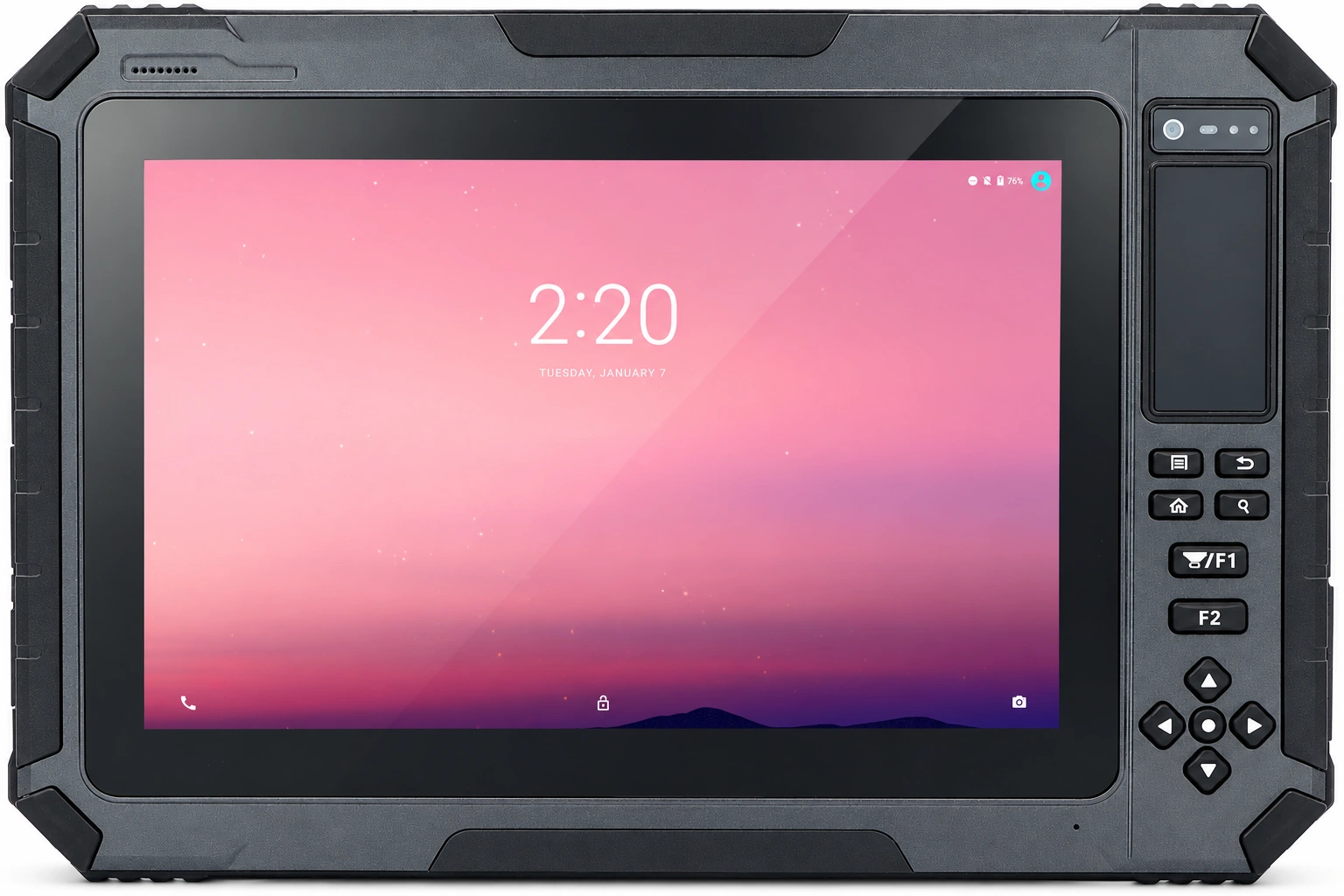

Platform structure (model-specific colours) · Front & controls

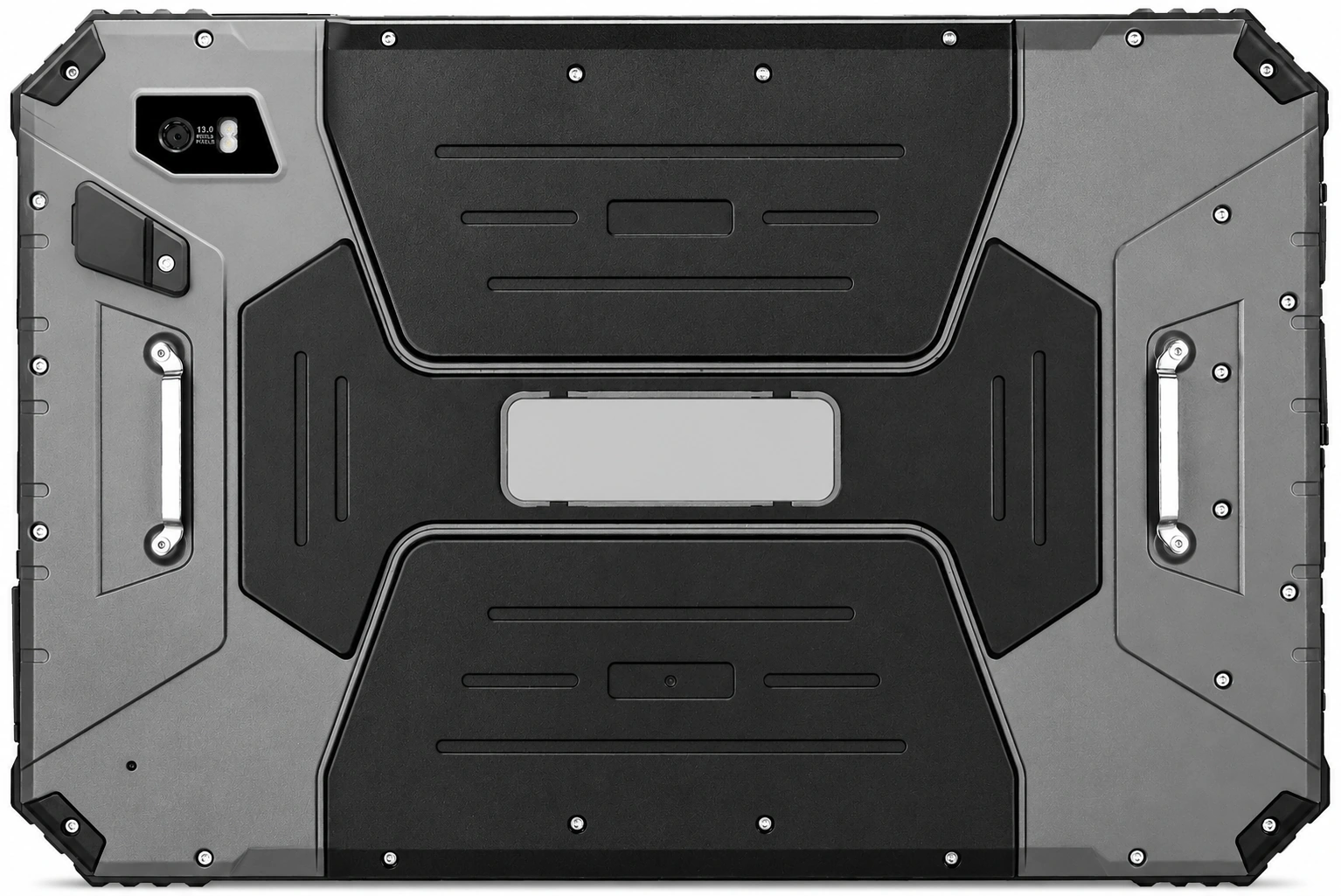

Platform structure (model-specific colours) · Rear structure & mounting

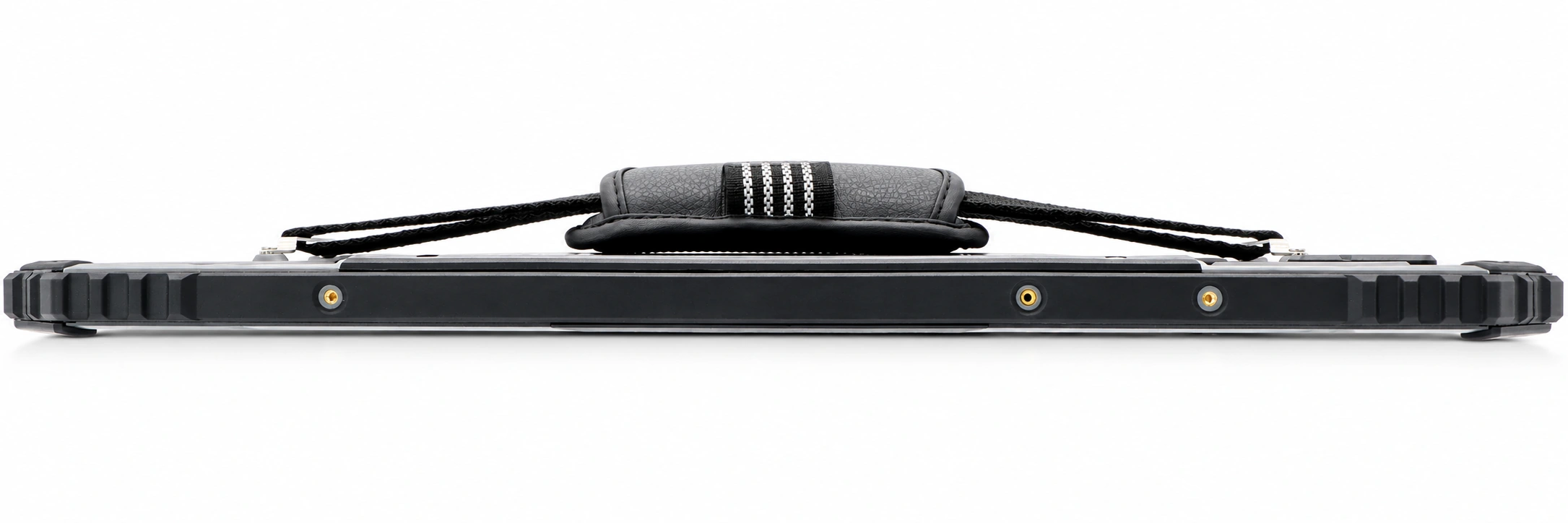

Platform structure (model-specific colours) · Top & capture interface

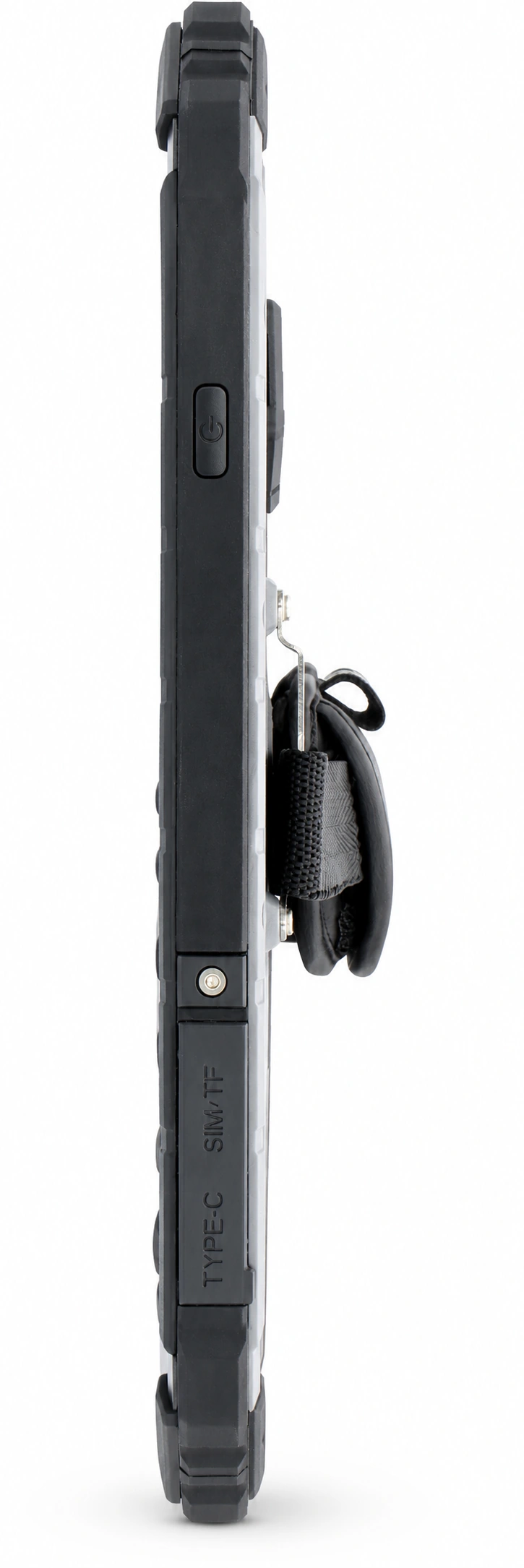

Platform structure (model-specific colours) · Side ports & covers
Product images · configuration varies by model · select an image to enlarge
Define meter-level RTD or RTK tasks, coordinates, correction services and antenna mounting. Validate receivers against actual obstructions, software interfaces and output formats.
Define meter-level RTD or RTK tasks, coordinates, correction services and antenna mounting. Validate receivers against actual obstructions, software interfaces and output formats.
Share deployment countries, business software, site conditions, modules, mounting, power and expected volume to review compatibility and sample validation.
Compare display, storage, capture and positioning requirements. Ex certification and specialist modules are specific to the branch and ordered configuration.
10.1-inch rugged terminal platformA 10.1-inch rugged platform for industry software providers, system integrators and device brands. Build field workflows around a 1000-nit display, 14600mAh battery and dual USB host interfaces, selecting identity, capture, hazardous-area or precision-positioning configurations for the application.
6GB / 64GB industrial configurationA 6GB / 64GB configuration for inspection, work orders and industry applications, with an 10.1-inch FHD 1000-nit display, 14600mAh battery and dual USB Type-A hosts. Select around application workloads and data storage.
Hazardous-area inspection & mobilityThe hazardous-area branch for oil and petrochemical inspection software providers, integrators and equipment service partners. Connect work orders through NFC, an 10.1-inch sunlight-readable interface and a 14600mAh battery, verifying site suitability against Ex marking and certification.
Fingerprint enrolment & identity verificationFor identity-management software providers, government-project integrators and service partners. Combine the G2010 FAP10 fingerprint module and NFC with enrolment, credential reading and field verification. The 10.1-inch display supports data entry, results and forms.
Barcode & NFC industrial data captureFor logistics, asset-management and manufacturing software providers and industrial IoT integrators. Link materials, equipment and work orders to business systems through the E20 1D/2D barcode module and NFC.
GNSS / RTK positioning & GIS captureFor surveying and GIS software providers, location-service integrators and inspection partners. Combine an 10-inch sunlight-readable display, professional receivers and external antennas for field geospatial capture. Select G101N, G101F or G101M for accuracy, correction sources and output protocols.

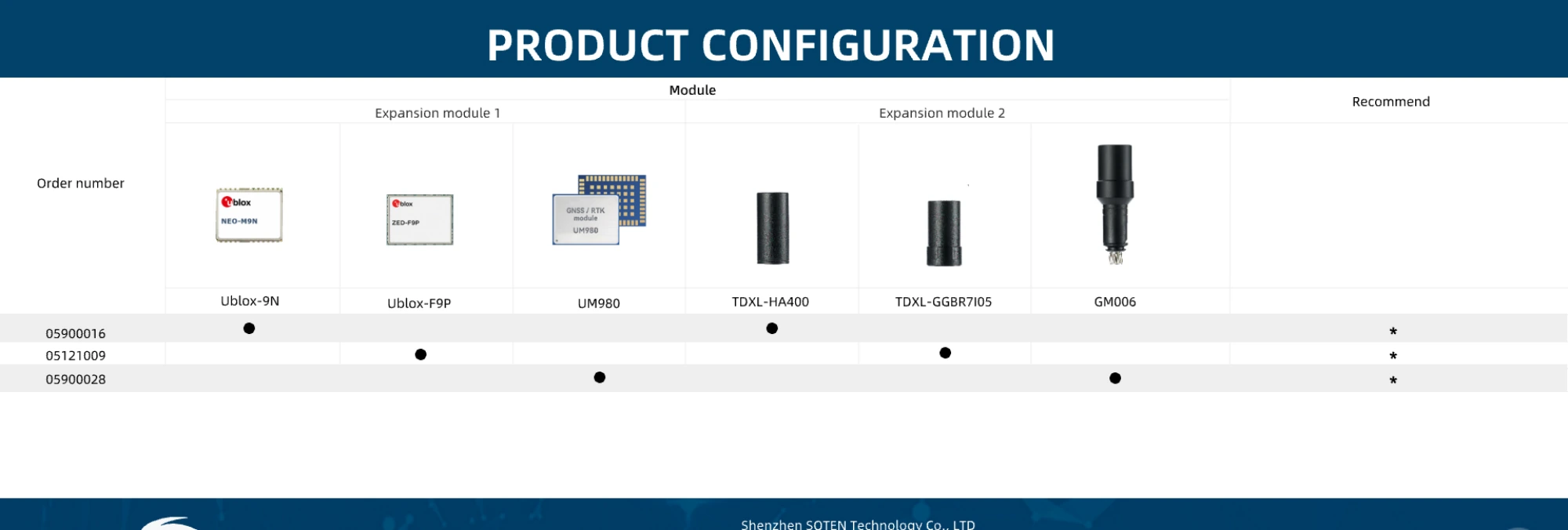

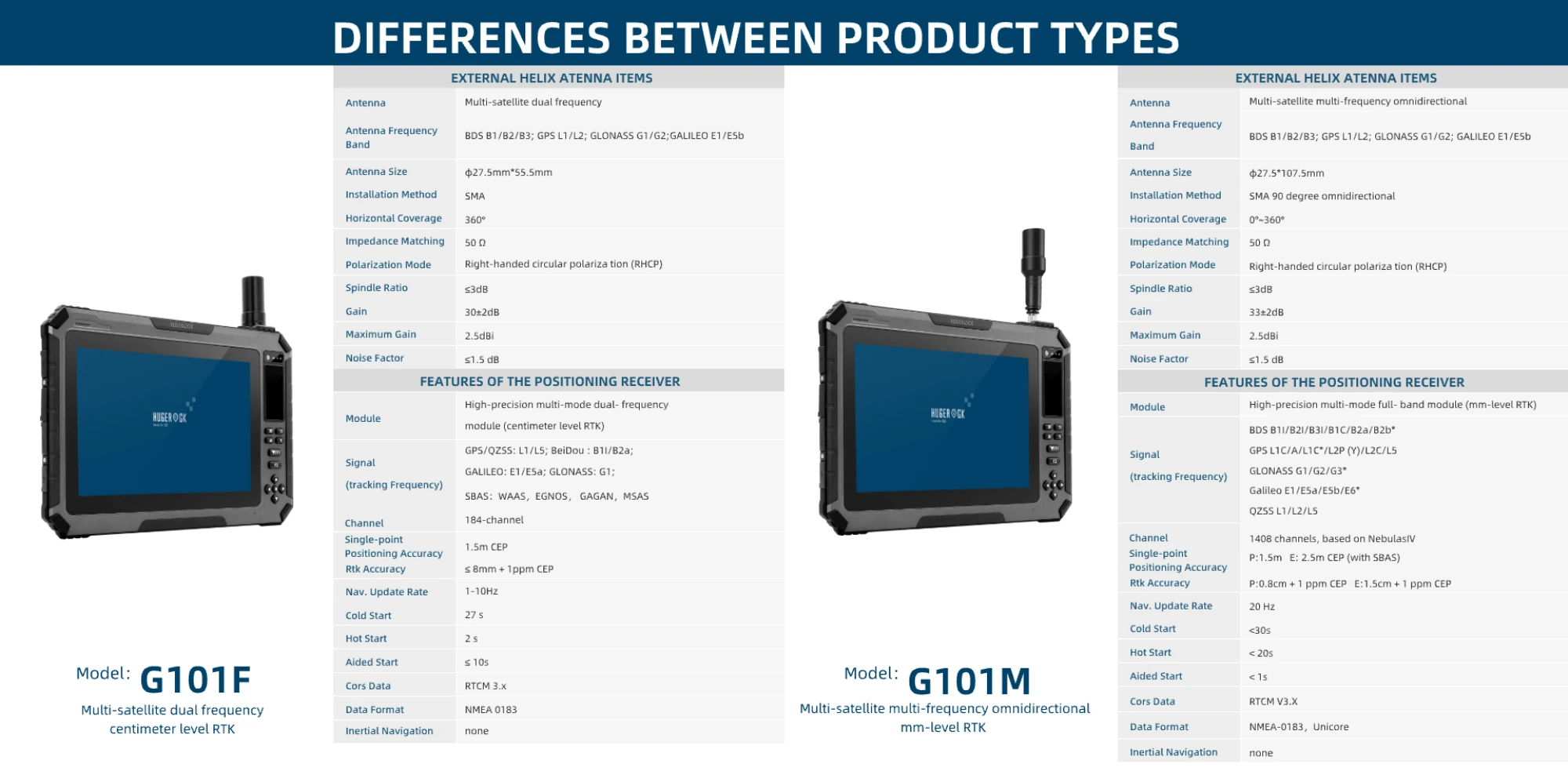

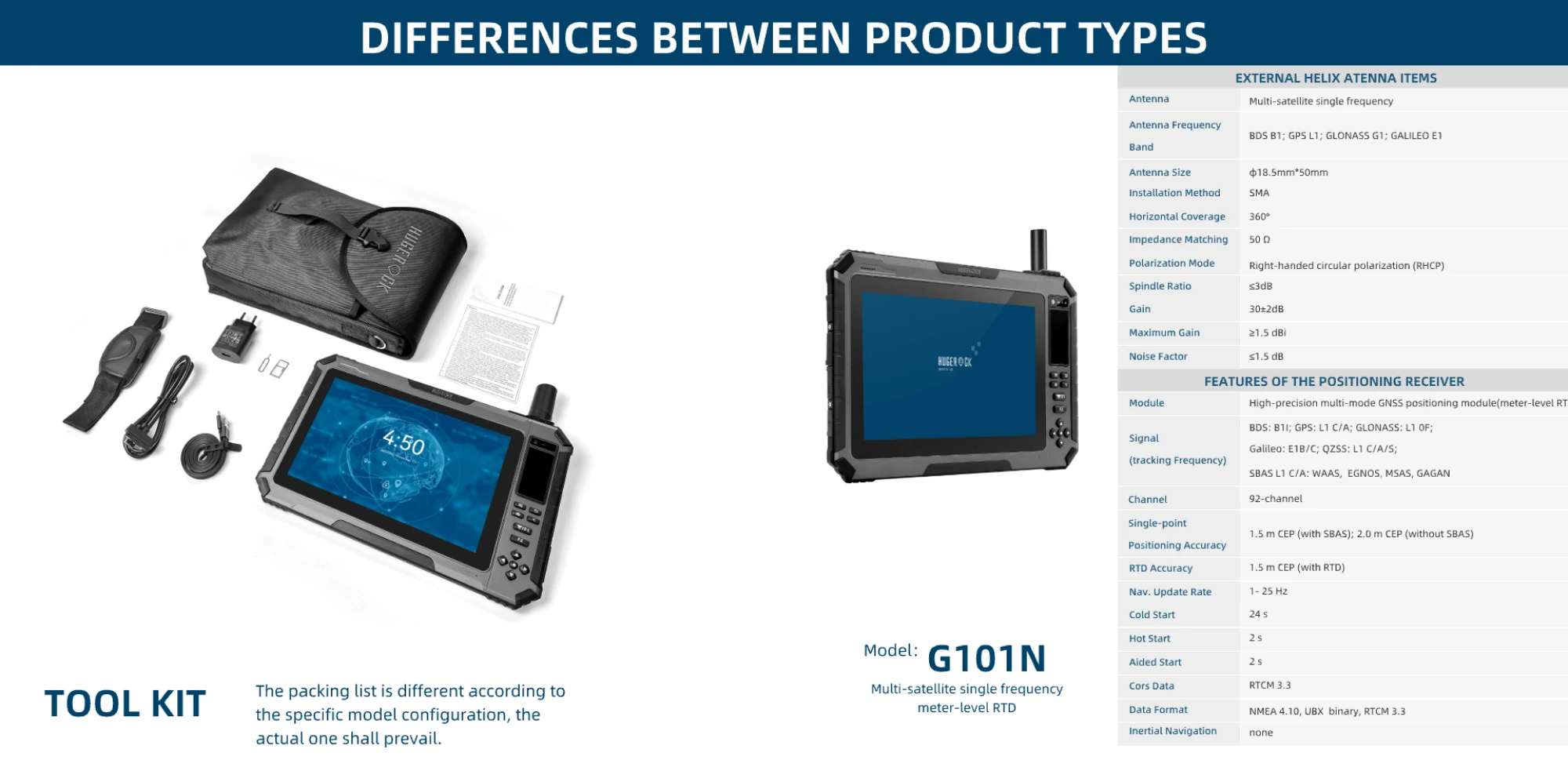

G101N offers meter-level RTD; G101F and G101M use different RTK receivers. Review the full model configuration for compatibility with existing G101L deployments.
Select the required functions and protocols, then validate reading distance, corrections, interfaces, power and software on samples.
| Receiver configuration | Multi-mode dual-frequency RTK |
|---|---|
| Channels | 184 |
| Single-point accuracy | 1.5m CEP |
| RTK accuracy | ≤8mm + 1ppm CEP |
| Update rate | 1–10Hz |
| Corrections | RTCM 3.x |
| Data format | NMEA 0183 |
| Inertial navigation | None |
| Signals & tracking frequencies | GPS / QZSS L1 / L5; BeiDou B1I / B2a; GALILEO E1 / E5a; GLONASS G1; SBAS WAAS / EGNOS / GAGAN / MSAS |
| Cold start | 27s |
| Hot start | 2s |
| Aided start | ≤10s |

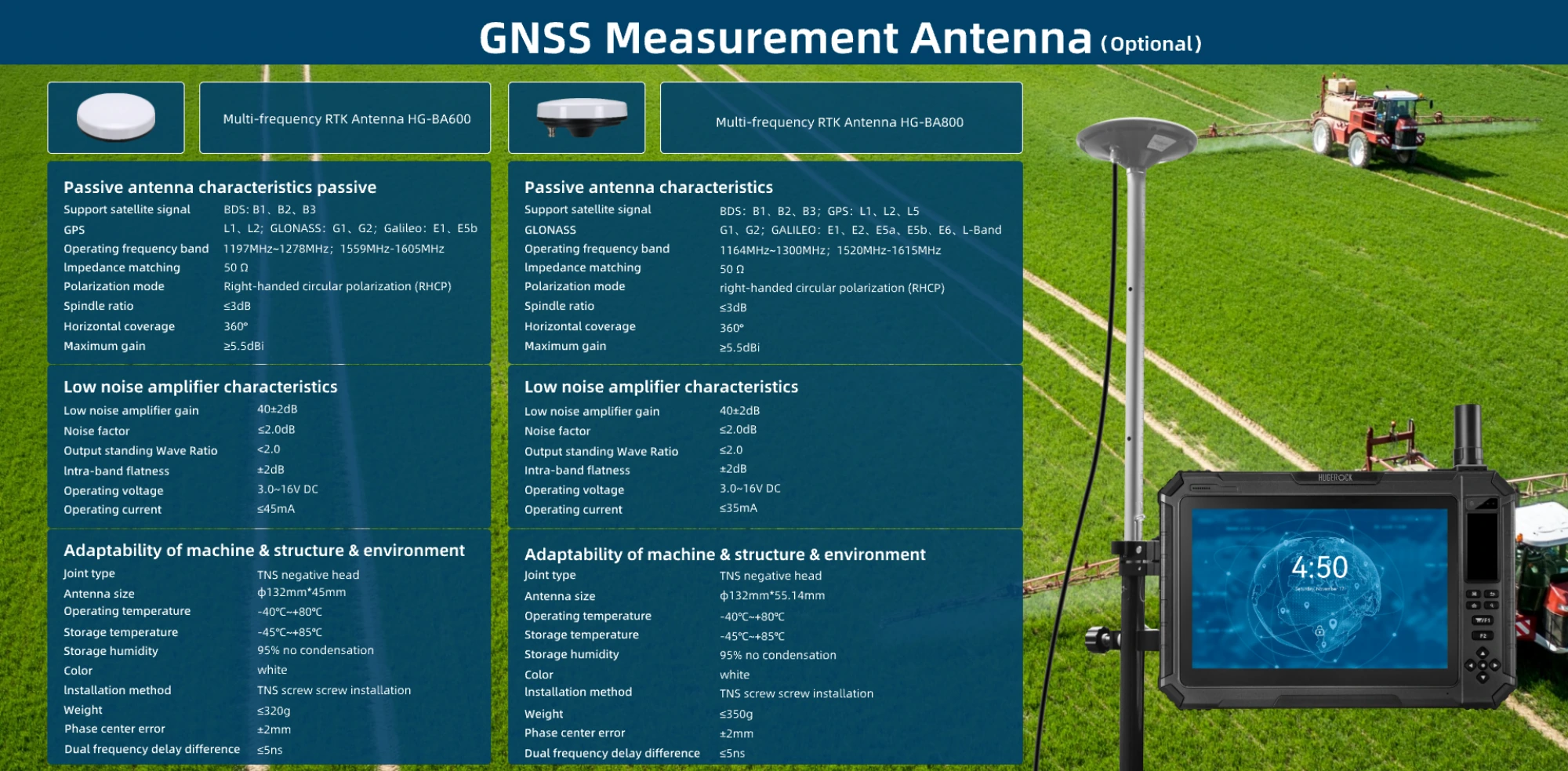

| Helix antenna bands | BDS B1/B2/B3; GPS L1/L2; GLONASS G1/G2; GALILEO E1/E5b |
| Helix antenna dimensions | Φ27.5 × 55.5mm |
| Antenna mounting | SMA |
| Antenna gain | 30±2dB |
| Antenna maximum gain | 2.5dBi |
| Antenna impedance | 50Ω |
| Antenna polarisation | Right-hand circular polarisation (RHCP) |
| Antenna axial ratio | ≤3dB |
| Antenna noise factor | ≤1.5dB |

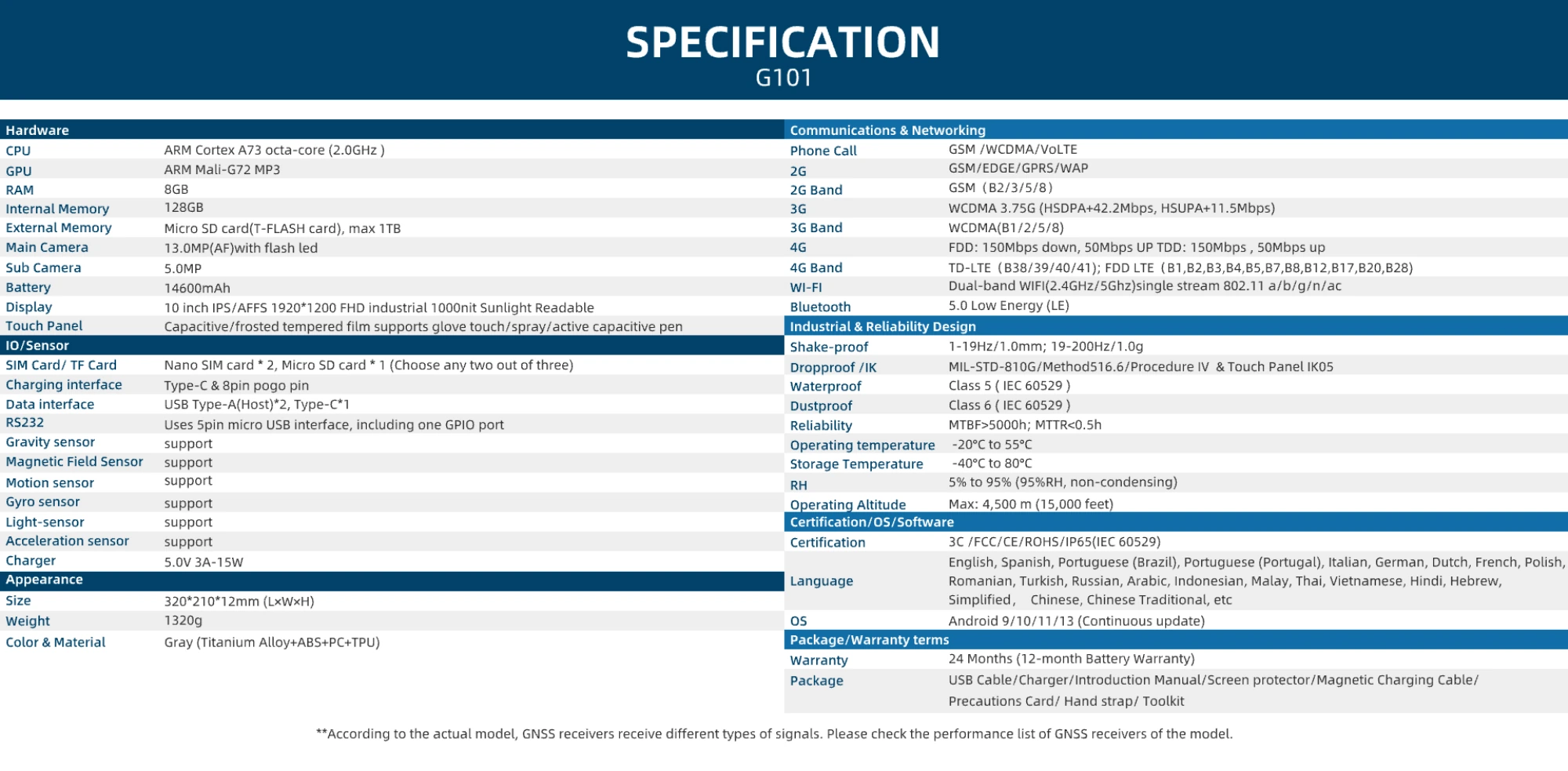

Review this branch against the selected modules, OS version and accessories.
| Processor | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| Graphics | ARM Mali-G72 MP3 |
| RAM / storage | 8GB / 128GB |
| Display | 10″ FHD / 1920×1200 / 1000 nits |
| Battery | 14600mAh |
| Rear / front cameras | 13MP AF + flash / 5MP |
| Touch | Capacitive / glove touch / spray / active capacitive pen |
| Expandable storage | microSD, up to 1TB |
| SIM card | Dual Nano SIM or Nano SIM + microSD (choose two of three) |
| Data interface | USB Type-A (Host) ×2 / Type-C ×1 |
| Charging | Type-C / 8PIN pogo pin; 5.0V 3A, 15W |
| Positioning | Review G101N / G101F / G101M receiver configurations |
| 2G bands | GSM B2/3/5/8 |
| 3G bands | WCDMA B1/2/5/8 |
| 4G bands | TD-LTE B38/39/40/41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz; 802.11a/b/g/n/ac |
| Bluetooth | 5.0 LE |
| Sensors | Gravity / magnetic field / gyroscope / rotation vector / light / acceleration |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 |
| Dimensions | 320 × 210 × 12mm |
| Weight | 1320g |
| Water / dust resistance | IP65 (IEC 60529) |
| Drop / impact | MIL-STD-810G / Method 516.6 / Procedure IV / touch panel IK05 |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Relative humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Certification | 3C / FCC / CE / ROHS / IP65 |
| Warranty | Device 24 months / battery 12 months |
| RS232 | 5PIN micro USB interface, including one GPIO port |
| Colour & materials | Grey / titanium alloy + ABS + PC + TPU |
Work with product and engineering teams to validate business software, modules and operating conditions together.
Choose the model and application to review OS, modules, accessories and delivery configuration.
Deployment countries, application, visibility, site conditions and compliance scope.
OS versions, applications, tag samples or correction services, peripheral protocols, mounting and power.
Sample results, exact device model, accessories, volume and rollout schedule.
Assess G101F against accuracy targets, receiver configuration, antennas, corrections and output protocols. Distinguish GNSS, RTD and RTK configurations and validate application integration in the field.
For: GIS software providers, surveying teams and positioning integrators
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
