For logistics, asset-management and manufacturing software providers and industrial IoT integrators. Link materials, equipment and work orders to business systems through the E20 1D/2D barcode module and NFC.
R101 application configuration
Platform structure (model-specific colours) · Three-quarter view
Platform structure (model-specific colours) · Front & controls
Platform structure (model-specific colours) · Rear structure & mounting
Platform structure (model-specific colours) · Top & capture interface
Platform structure (model-specific colours) · Side ports & covers
Product images · configuration varies by model · select an image to enlarge
Share barcode types, tag samples, reading distances and workflow timing. Review NFC protocols and data exchange, then validate capture modules with business software.
Share barcode types, tag samples, reading distances and workflow timing. Review NFC protocols and data exchange, then validate capture modules with business software.
Share deployment countries, business software, site conditions, modules, mounting, power and expected volume to review compatibility and sample validation.
Compare display, storage, capture and positioning requirements. Ex certification and specialist modules are specific to the branch and ordered configuration.
10.1-inch rugged terminal platformA 10.1-inch rugged platform for industry software providers, system integrators and device brands. Build field workflows around a 1000-nit display, 14600mAh battery and dual USB host interfaces, selecting identity, capture, hazardous-area or precision-positioning configurations for the application.
6GB / 64GB industrial configurationA 6GB / 64GB configuration for inspection, work orders and industry applications, with an 10.1-inch FHD 1000-nit display, 14600mAh battery and dual USB Type-A hosts. Select around application workloads and data storage.
Hazardous-area inspection & mobilityThe hazardous-area branch for oil and petrochemical inspection software providers, integrators and equipment service partners. Connect work orders through NFC, an 10.1-inch sunlight-readable interface and a 14600mAh battery, verifying site suitability against Ex marking and certification.
Fingerprint enrolment & identity verificationFor identity-management software providers, government-project integrators and service partners. Combine the G2010 FAP10 fingerprint module and NFC with enrolment, credential reading and field verification. The 10.1-inch display supports data entry, results and forms.
Barcode & NFC industrial data captureFor logistics, asset-management and manufacturing software providers and industrial IoT integrators. Link materials, equipment and work orders to business systems through the E20 1D/2D barcode module and NFC.
GNSS / RTK positioning & GIS captureFor surveying and GIS software providers, location-service integrators and inspection partners. Combine an 10-inch sunlight-readable display, professional receivers and external antennas for field geospatial capture. Select G101N, G101F or G101M for accuracy, correction sources and output protocols.
Select the required functions and protocols, then validate reading distance, corrections, interfaces, power and software on samples.

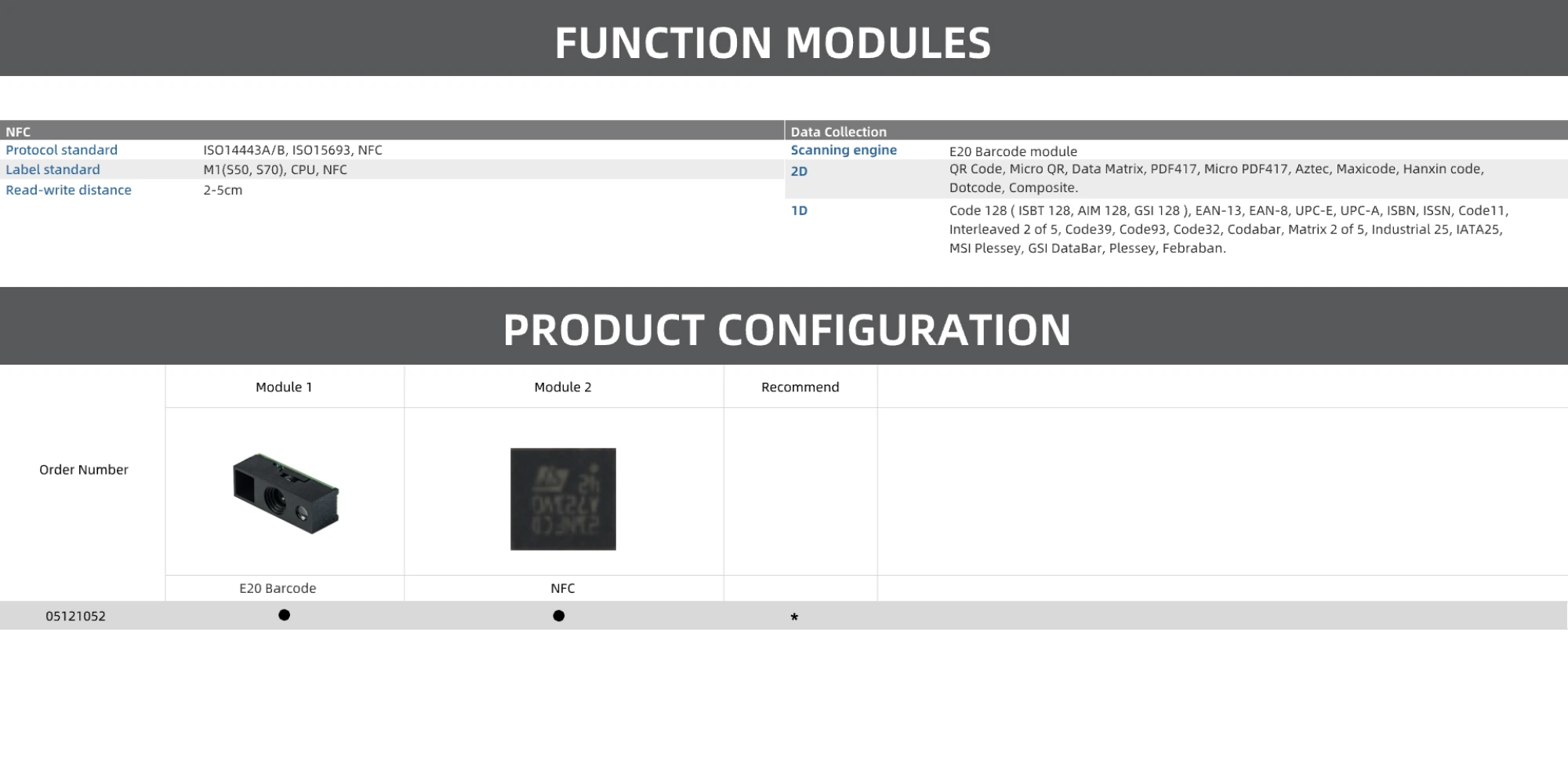

| NFC protocols | ISO14443A/B / ISO15693 / NFC |
|---|---|
| NFC tags | M1 (S50, S70) / CPU / NFC |
| NFC read/write distance | 2–5cm |
| Scan engine | E20 (1D / 2D) |
| 1D barcodes | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban |
| 2D barcodes | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite |
| Order number | 05121052 |
This configuration combines E20 1D/2D barcode scanning with NFC read/write. Share tag samples, frequencies and workflows to evaluate other capture requirements such as LF or UHF.
Review this branch against the selected modules, OS version and accessories.
| Processor | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| Graphics | ARM Mali-G72 MP3 |
| RAM / storage | 8GB / 128GB |
| Display | 10.1″ FHD / 1920×1200 / 1000 nits |
| Battery | 14600mAh |
| Rear / front cameras | 13MP AF + flash / 5MP |
| Touch | Capacitive / glove touch / spray / active capacitive pen |
| Expandable storage | microSD, up to 1TB |
| SIM card | Dual Nano SIM or Nano SIM + microSD (choose two of three) |
| Data interface | USB Type-A (Host) ×2 / Type-C ×1 |
| Charging | Type-C / 8PIN pogo pin; 5.0V 3A, 15W |
| Positioning | GPS + GLONASS + BeiDou + AGPS + SBAS (EPO 2.5m) |
| 2G bands | GSM B2/3/5/8 |
| 3G bands | WCDMA B1/2/5/8 |
| 4G bands | TD-LTE B38/39/40/41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz; 802.11a/b/g/n/ac |
| Bluetooth | 5.0 LE |
| Sensors | Gravity / magnetic field / gyroscope / rotation vector / light / acceleration |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 |
| Dimensions | 320 × 210 × 12mm |
| Weight | 1320g |
| Water / dust resistance | IP65 (IEC 60529) |
| Drop / impact | MIL-STD-810G / Method 516.6 / Procedure IV / touch panel IK05 |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Relative humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Certification | 3C / FCC / CE / ROHS / IP65 |
| Warranty | Device 24 months / battery 12 months |
| RS232 | 5PIN micro USB interface, including one GPIO port |
| Colour & materials | Grey / titanium alloy + ABS + PC + TPU |
Work with product and engineering teams to validate business software, modules and operating conditions together.
Choose the model and application to review OS, modules, accessories and delivery configuration.
Deployment countries, application, visibility, site conditions and compliance scope.
OS versions, applications, tag samples or correction services, peripheral protocols, mounting and power.
Sample results, exact device model, accessories, volume and rollout schedule.
Use the capture modules listed for R101. Prepare barcode, tag or card samples and check protocols, reading conditions, SDKs and offline synchronization against a real workflow.
For: Warehouse and asset software providers, RFID integrators and field-device buyers
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
