A 6GB / 64GB configuration for inspection, work orders and industry applications, with an 8-inch FHD 1000-nit display, 18900mAh battery and USB Type-A host. Select around application workloads and data storage.
Platform hardware · Three-quarter view
Platform hardware · Front & controls
Platform hardware · Rear structure & mounting
Platform hardware · Top & capture interface
Platform hardware · Side ports & covers
Platform hardware · Magnetic charging interface
Product images · configuration varies by model · select an image to enlarge
Review application memory, offline data, OS versions and peripherals to validate software compatibility and sample configuration.
Review application memory, offline data, OS versions and peripherals to validate software compatibility and sample configuration.
Share deployment countries, business software, site conditions, modules, mounting, power and expected volume to review compatibility and sample validation.
Compare display, storage, capture and positioning requirements. Ex certification and specialist modules are specific to the branch and ordered configuration.
8-inch rugged terminal platformAn 8-inch rugged platform for industry software providers, system integrators and device brands. Build field workflows around a 1000-nit display, 18900mAh battery and USB host interface, selecting identity, capture, hazardous-area or precision-positioning configurations for the application.
6GB / 64GB industrial configurationA 6GB / 64GB configuration for inspection, work orders and industry applications, with an 8-inch FHD 1000-nit display, 18900mAh battery and USB Type-A host. Select around application workloads and data storage.
Hazardous-area inspection & mobilityThe hazardous-area branch for oil and petrochemical inspection software providers, integrators and equipment service partners. Connect work orders through NFC, an 8-inch sunlight-readable interface and a 18900mAh battery, verifying site suitability against Ex marking and certification.
Fingerprint enrolment & identity verificationFor identity-management software providers, government-project integrators and service partners. Combine the G2010 FAP10 fingerprint module and NFC with enrolment, credential reading and field verification. The 8-inch display supports data entry, results and forms.
Barcode & NFC industrial data captureFor logistics, asset-management and manufacturing software providers and industrial IoT integrators. Link materials, equipment and work orders to business systems through the E20 1D/2D barcode module and NFC.
GNSS / RTK positioning & GIS captureFor surveying and GIS software providers, location-service integrators and inspection partners. Combine an 8-inch sunlight-readable display, professional receivers and external antennas for field geospatial capture. Select G80N, G80F or G80M for accuracy, correction sources and output protocols.
| Configuration | T80 | T80L |
|---|---|---|
| Display | 8″ / 1920×1200 / 1000 nits | 8″ / 1920×1200 / 1000 nits |
| RAM / storage | 8GB / 128GB | 6GB / 64GB |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 | Android 9 / 10 / 11 / 13 |

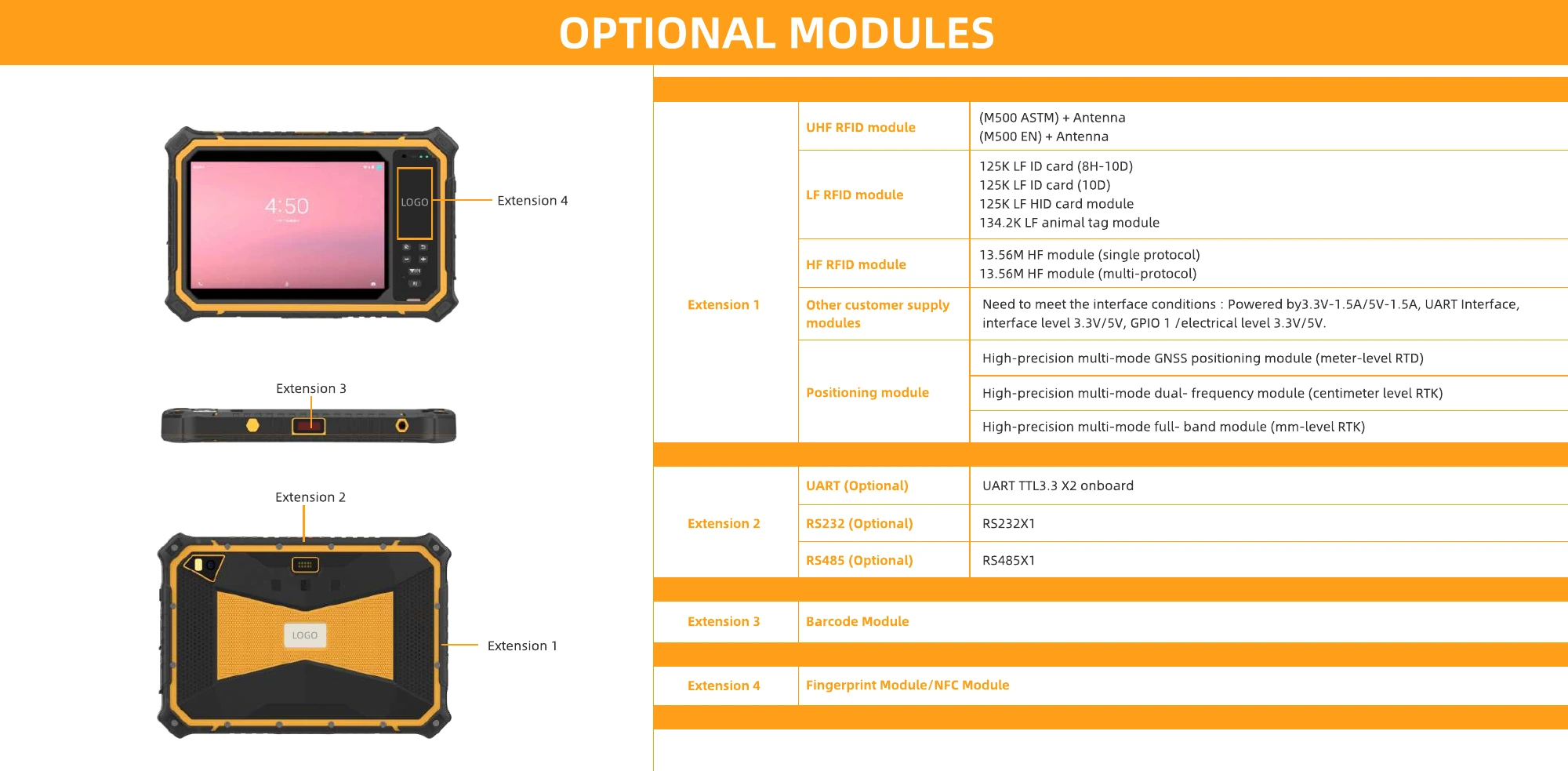

Select the required functions and protocols, then validate reading distance, corrections, interfaces, power and software on samples.

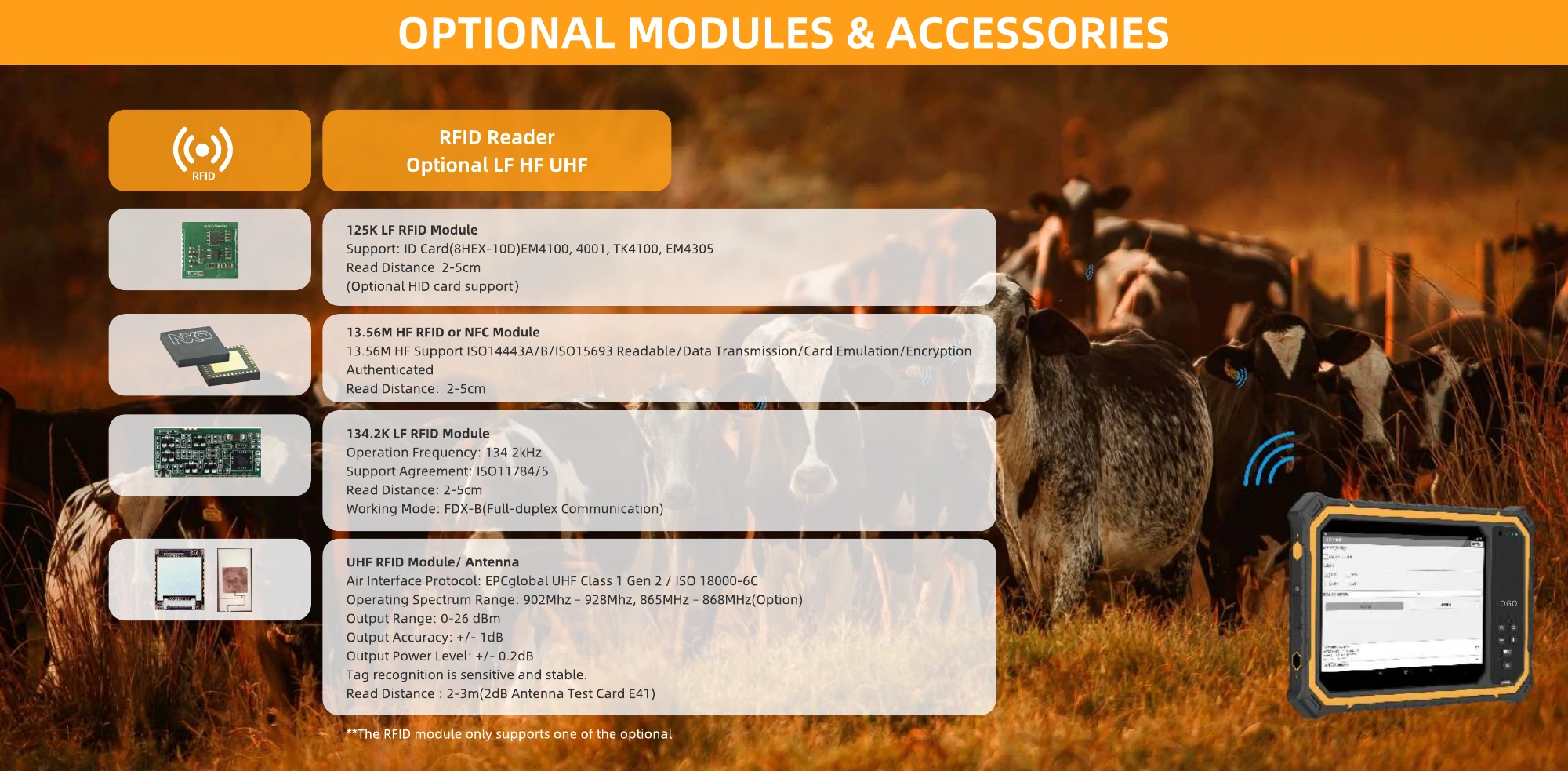

| 125kHz LF (optional) | EM4100 / 4001 / TK4100 / EM4305; 2–5cm; optional HID-card support |
|---|---|
| 134.2kHz LF (optional) | ISO11784/5 / FDX-B / 2–5cm |
| HF / NFC (optional) | 13.56MHz / ISO14443A/B / ISO15693 / 2–5cm |
| UHF protocols (optional) | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| UHF bands (optional) | 902–928MHz / 865–868MHz (option) |
| UHF output power | 0–26dBm / accuracy ±1dB / level ±0.2dB |
| UHF test reading distance | 2–3m (2dB antenna, E41 test card) |
| RFID module selection | Select one RFID module option |
| Fingerprint module (optional) | G2010 / FAP10 / 508dpi / 8bit / 256×360 / Grayscale 32768 |

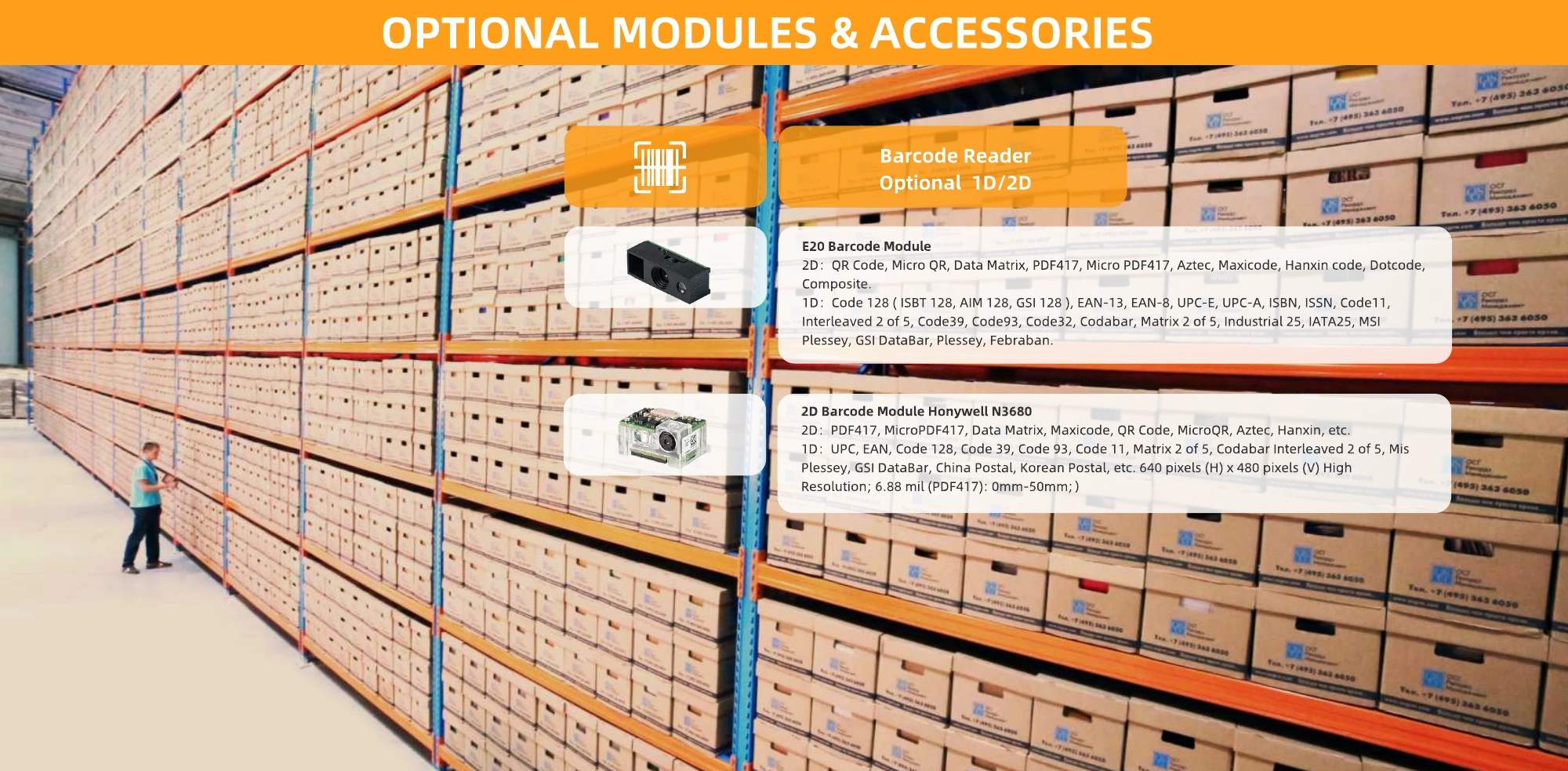

| Barcode modules (optional) | E20 / Honeywell N3680 (1D / 2D) |
| Industrial serial interfaces (optional) | UART TTL 3.3V ×2 / RS232 ×1 / RS485 ×1 |
| Module integration requirements | 3.3V–1.5A / 5V–1.5A; UART 3.3V / 5V; GPIO ×1, 3.3V / 5V |
Review this branch against the selected modules, OS version and accessories.

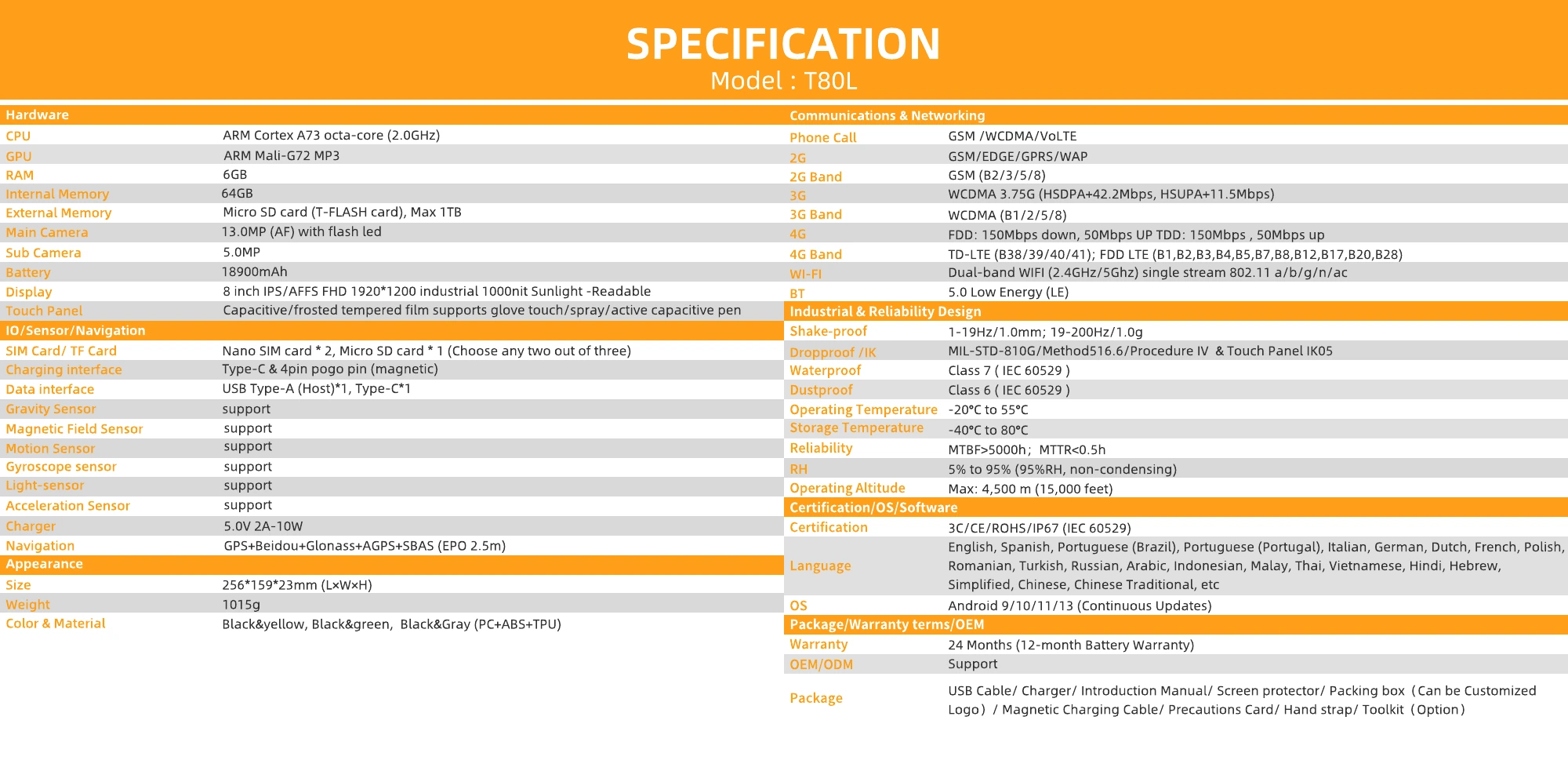

| Processor | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| Graphics | ARM Mali-G72 MP3 |
| RAM / storage | 6GB / 64GB |
| Display | 8″ FHD / 1920×1200 / 1000 nits |
| Battery | 18900mAh |
| Rear / front cameras | 13MP AF + flash / 5MP |
| Touch | Capacitive / glove touch / spray / active capacitive pen |
| Expandable storage | microSD, up to 1TB |
| SIM card | Dual Nano SIM or Nano SIM + microSD (choose two of three) |
| Data interface | USB Type-A (Host) ×1 / Type-C ×1 |
| Charging | Type-C / 4PIN magnetic; 5.0V 2A, 10W |
| Positioning | GPS + GLONASS + BeiDou + AGPS + SBAS (EPO 2.5m) |
| 2G bands | GSM B2/3/5/8 |
| 3G bands | WCDMA B1/2/5/8 |
| 4G bands | TD-LTE B38/39/40/41; FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz; 802.11a/b/g/n/ac |
| Bluetooth | 5.0 LE |
| Sensors | Gravity / magnetic field / gyroscope / rotation vector / light / acceleration |
| OS versions & compatibility | Android 9 / 10 / 11 / 13 |
| Dimensions | 256 × 159 × 23mm |
| Weight | 1015g |
| Water / dust resistance | IP67 (IEC 60529) |
| Drop / impact | MIL-STD-810G / touch panel IK05 |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Relative humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Certification | 3C / CE / ROHS / IP67 |
| Warranty | Device 24 months / battery 12 months |
Work with product and engineering teams to validate business software, modules and operating conditions together.
Choose the model and application to review OS, modules, accessories and delivery configuration.
Deployment countries, application, visibility, site conditions and compliance scope.
OS versions, applications, tag samples or correction services, peripheral protocols, mounting and power.
Sample results, exact device model, accessories, volume and rollout schedule.
Assess T80L by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
