HUGEROCK / T60 HANDHELD PLATFORM

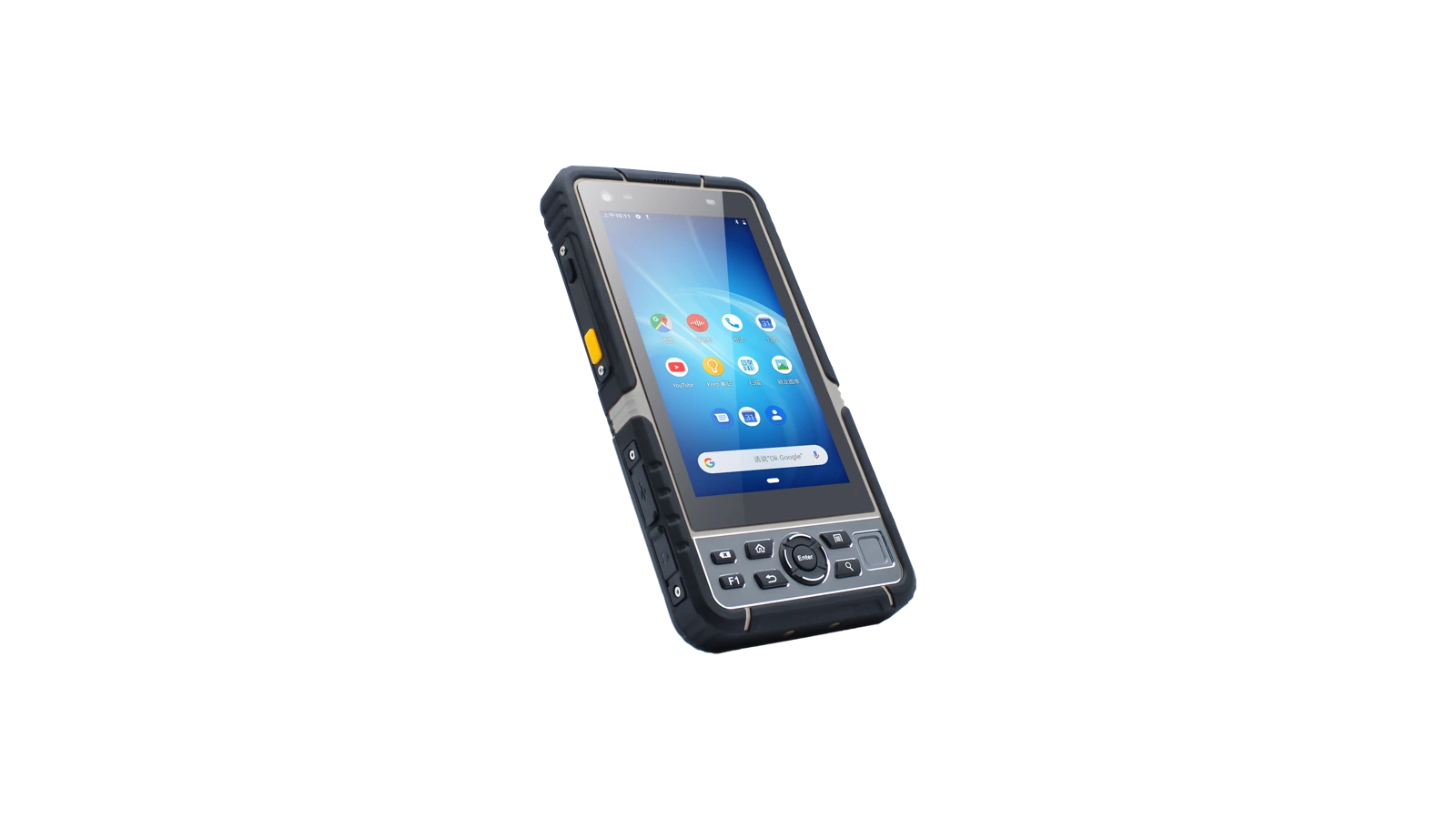

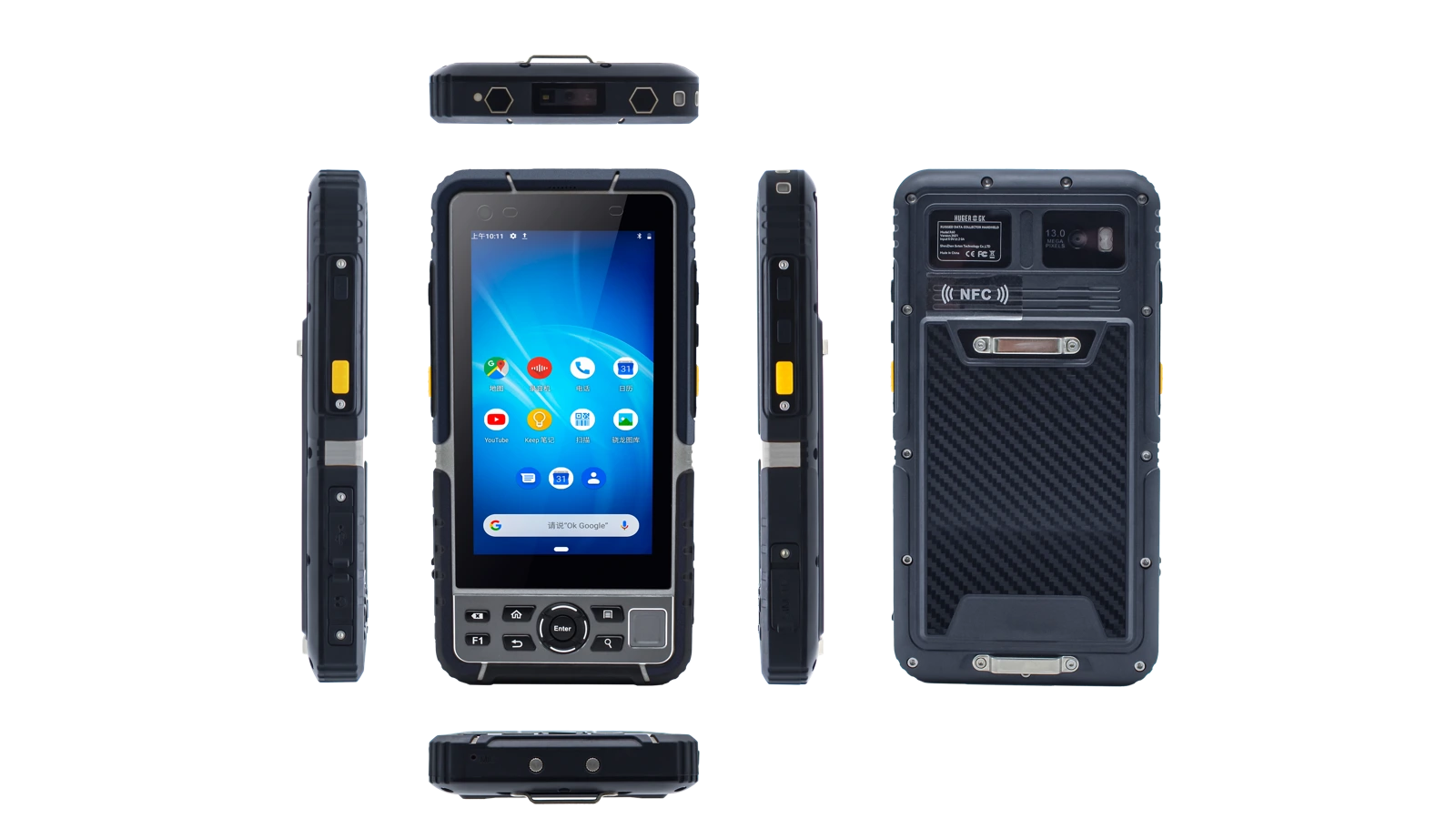

R60Barcode & NFC Data Capture Handheld
Connect E20 barcode scanning and NFC reading to mobile workflows for warehousing, material traceability and asset inspection.
5.5″ / 1080×21604G LTE9000mAh1000nitsIP678GB / 128GB
01 / APPLICATION FIT
Match the terminal to your workflow.
For WMS, MES and asset software providers and integrators: validate label formats, reading distance and data integration first.
Asset inventory & equipment inspection
NFC tag verification & records
Connect field capture to business records.
R60 combines an E20 barcode module with NFC for material, asset and tag capture. Use physical controls and the touch interface in field workflows, then validate reading and data transfer with real labels and mobile applications.
02 / ONE PLATFORM, APPLICATION CONFIGURATIONS
Choose the capture configuration for the task.
Compare modular expansion, Ex inspection, barcode and NFC, and specialist positioning configurations. Compare module, memory and OS configurations, then review the corresponding technical specification.
Modular expansion / T60L configurationT60
Rugged handheld & modular integration platform
8GB / 128GB · 4G LTEView specifications & applications ↗
NFC / ATEXT60EX
Ex inspection & NFC handheld
8GB / 128GB · 4G LTEView specifications & applications ↗
E20 barcode + NFCR60
Barcode & NFC data collection handheld
8GB / 128GB · 4G LTEView specifications & applications ↗
Meter-level RTD / dual-frequency RTK / multi-frequency RTKG60
GNSS / RTD / RTK positioning handheld
8GB / 128GB · 4G LTEView specifications & applications ↗| Selection criteria | T60 | T60EX | R60 | G60 |
|---|---|---|---|---|
| Capture & application | Modular expansion / T60L configuration | NFC / ATEX | E20 barcode + NFC | Meter-level RTD / dual-frequency RTK / multi-frequency RTK |
| RAM / storage | 8GB / 128GB | 8GB / 128GB | 8GB / 128GB | 8GB / 128GB |
| OS versions & compatibility | Android 9/10/11/13 (Continuous updates) with GMS | Android 9/10/11/13 (Continuous updates) with GMS | Android 9/10/11/13 (Continuous updates) with GMS | Android 9/10/11/13 (Continuous updates) with GMS |
| Ordering & configuration | Confirm modules & project configuration | 05121024 | 05121044 | Confirm modules & project configuration |
RFID, barcode, positioning, NFC and RS232 are optional T60 configurations; expansion positions and combinations depend on the device build. Ex capability applies only to the certified T60EX model and approved configuration.
03 / CAPTURE & INTEGRATION
Connect business data through tags and interfaces.
Review protocols, reading conditions, module combinations and software integration for barcodes, tags and peripherals.
| Protocol standard | ISO14443A/B, ISO15693, NFC |
|---|---|
| Scanning engine | E20 Barcode Module |
| Frequency | M1 (S50, S70), CPU, NFC |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. |
| Protocol standard | 2-5cm |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
The specified NFC read/write distance is 2–5cm. Results depend on tags, antenna orientation and nearby materials. Tag reading supports workflow integration; identity verification requires the appropriate credentials, software and business rules.
Validate real labels
Share barcode formats, tag protocols, material, size and target reading distance.
Integrate business applications
Confirm Android versions, application deployment, module access, offline workflows and data transfer.
Review power & accessories
Review shifts, charging, grips, straps and optional modules, then validate the complete configuration.
04 / MODEL-SPECIFIC SPECIFICATIONS
R60 technical specifications
Review hardware, software, interfaces and environmental specifications for the selected model. OS and module combinations are confirmed for the delivery configuration.
Hardware & display
| CPU | ARM Cortex A73 Octa-core(2.0GHz) |
|---|---|
| GPU | ARM Mali-G72 MP3 |
| RAM | 8GB |
| Internal Memory | 128GB |
| External Memory | Micro SD card (T-FLASH), max 2TB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 9000mAh (Replaceable battery) |
| Display | 5.5 inch IPS/AFFS 1080*2160 FHD industrial 1000 nits Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
Communications & connectivity
| Phone Call | GSM /WCDMA/VoLTE |
|---|---|
| 2G | GSM/EDGE/GPRS/WAP |
| 2G Band | GSM（B2/3/5/8） |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA(B1/2/5/8) |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps , 50Mbps up |
| 4G Band | TD-LTE（B38/39/40/41); FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI | Dual-band WIFI(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
Interfaces, sensors & positioning
| SIM Card | Nano SIM card * 2, MicroSD card * 1 (Choose any two out of three) |
|---|---|
| Headphone | 3.5mm (CTIA） |
| Charging interface | Type-C & 4pin pogo pin |
| Data interface | USB Type-C (OTG)*1 |
| Gravity Sensor | support |
| Magnetic Field Sensor | support |
| Motion Sensor | support |
| Gyroscope sensor | support |
| Light-sensor | support |
| Acceleration Sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Mechanical design
| Size | 195*98*22mm (L×W×H) |
|---|---|
| Weight | 490g |
| Color & Material | Gray (ABS+PC) + Black (TPU) |
Environment & reliability
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
|---|---|
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7(IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| Reliability | MTBF>5000h; MTTR<0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
OS & service
| OS | Android 9/10/11/13 (Continuous updates) with GMS |
|---|---|
| Warranty | 24 months (12-month battery warranty) |
05 / RESOURCES & DELIVERY
From selection to project delivery.
Download the selected model documentation, then review software, modules, tags, accessories and deployment volume with SOTEN.
PDF / R60R60 technical datasheetHardware · interfaces · capture modules · environmentV2.2 ↗OEM / ODMEngineering & project integrationSystem integration · modules · sample validationExplore engineering ↗
T60 configuration enquiry ↗T60EX configuration enquiry ↗R60 configuration enquiry ↗G60 configuration enquiry ↗
Define the workflow
Deployment regions, workflow, operating conditions and business software.
Validate modules & integration
Real labels, interface protocols, OS versions and device accessories.
Confirm build & delivery
Exact model, configuration list, volume, testing and rollout schedule.
R60 selection & system integration
Use the capture modules listed for R60. Prepare barcode, tag or card samples and check protocols, reading conditions, SDKs and offline synchronization against a real workflow.
For: Warehouse and asset software providers, RFID integrators and field-device buyers
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
