HUGEROCK / S50 HANDHELD PLATFORM
S50Industrial Handheld & Module Platform
Configure barcode, RFID, NFC or serial modules around field workflows and device integration.
4.5″ / 540×9604G LTE5000mAhIP676GB / 64GB
Industry application interface illustration

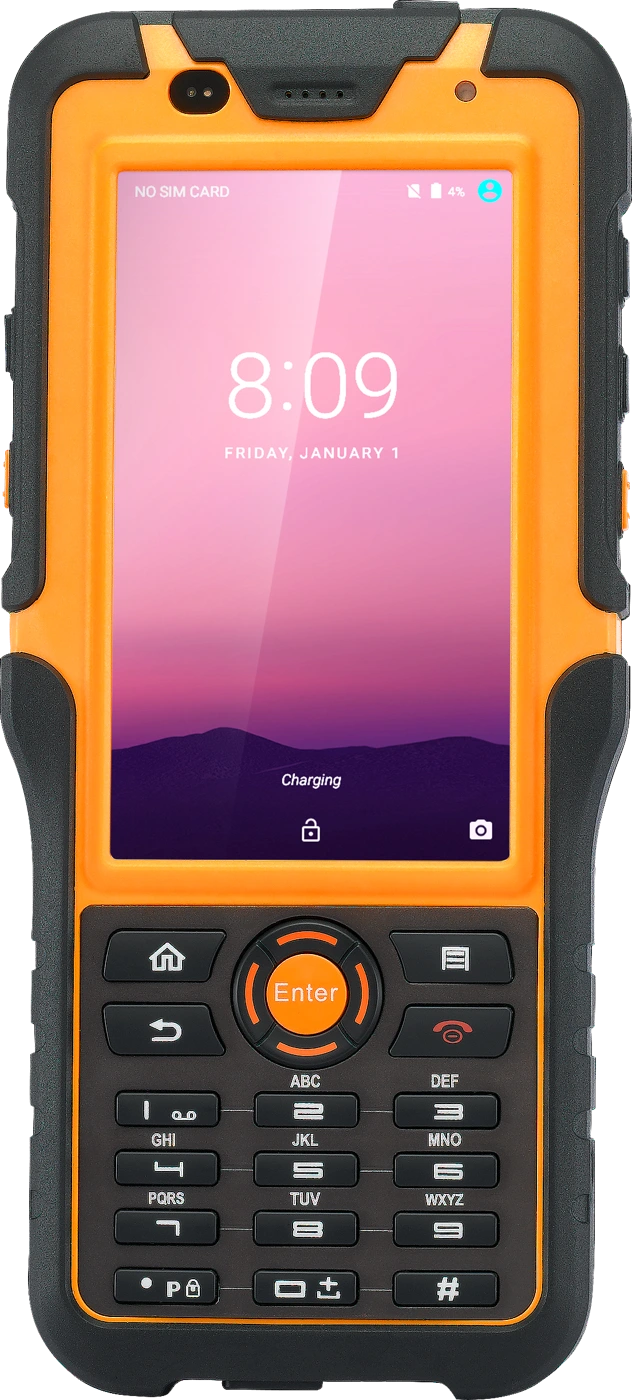

Front design

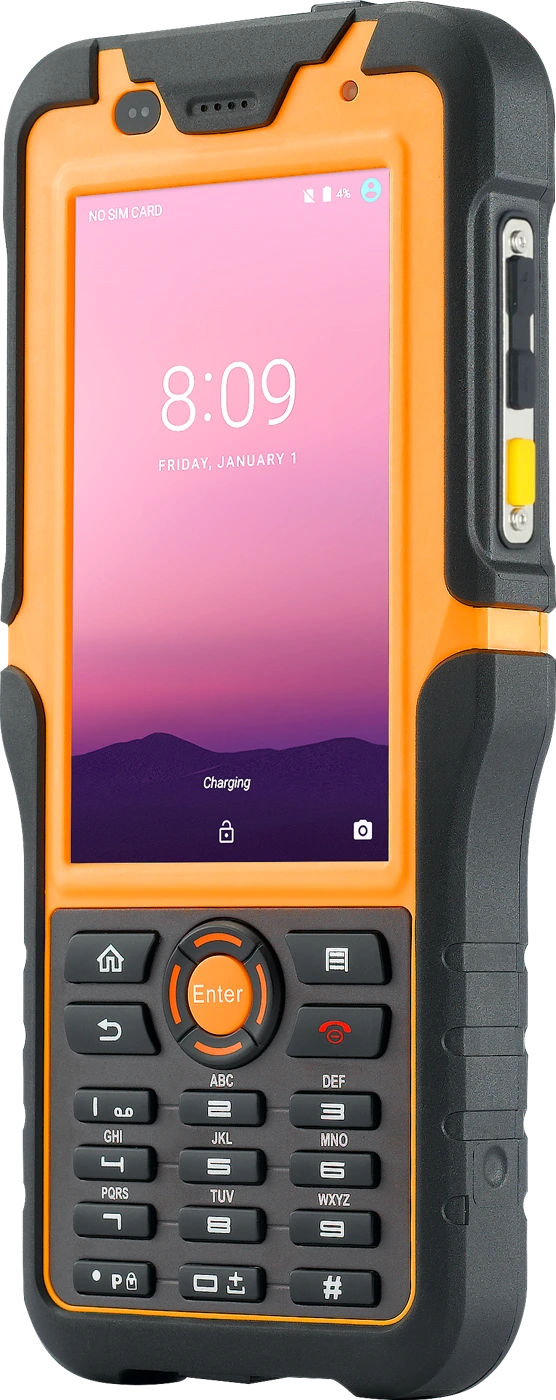

Three-quarter view

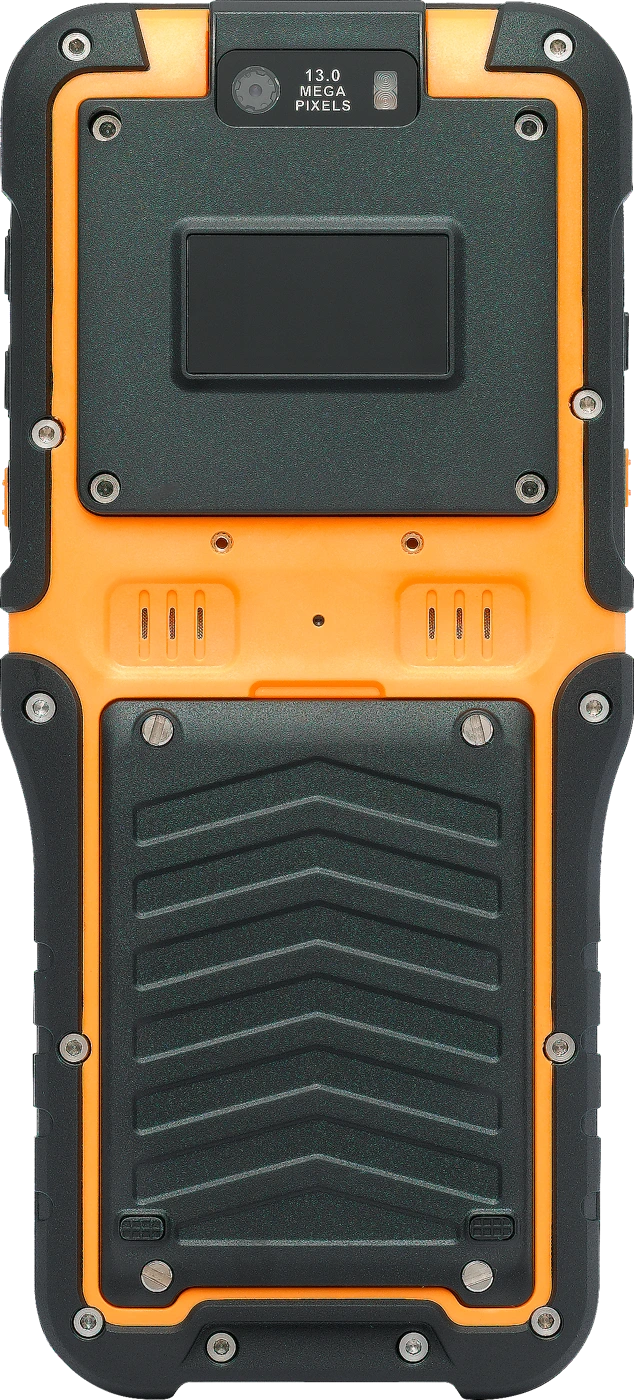

Rear design

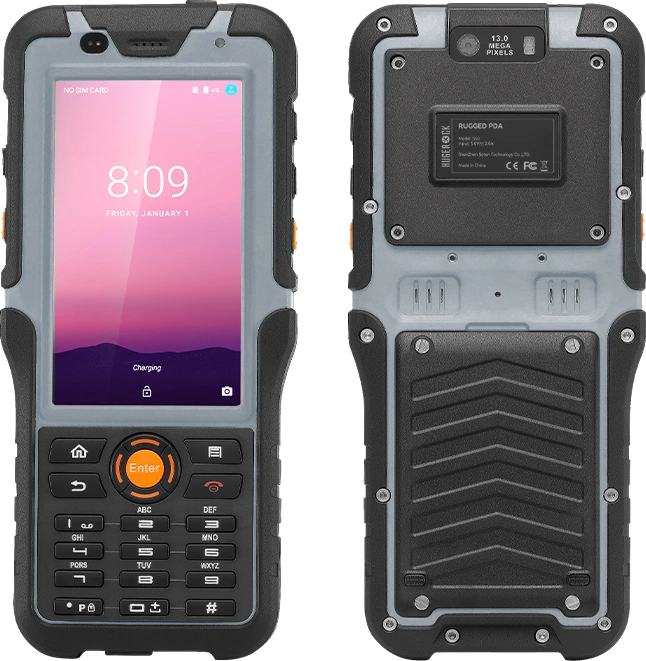

Grey platform body

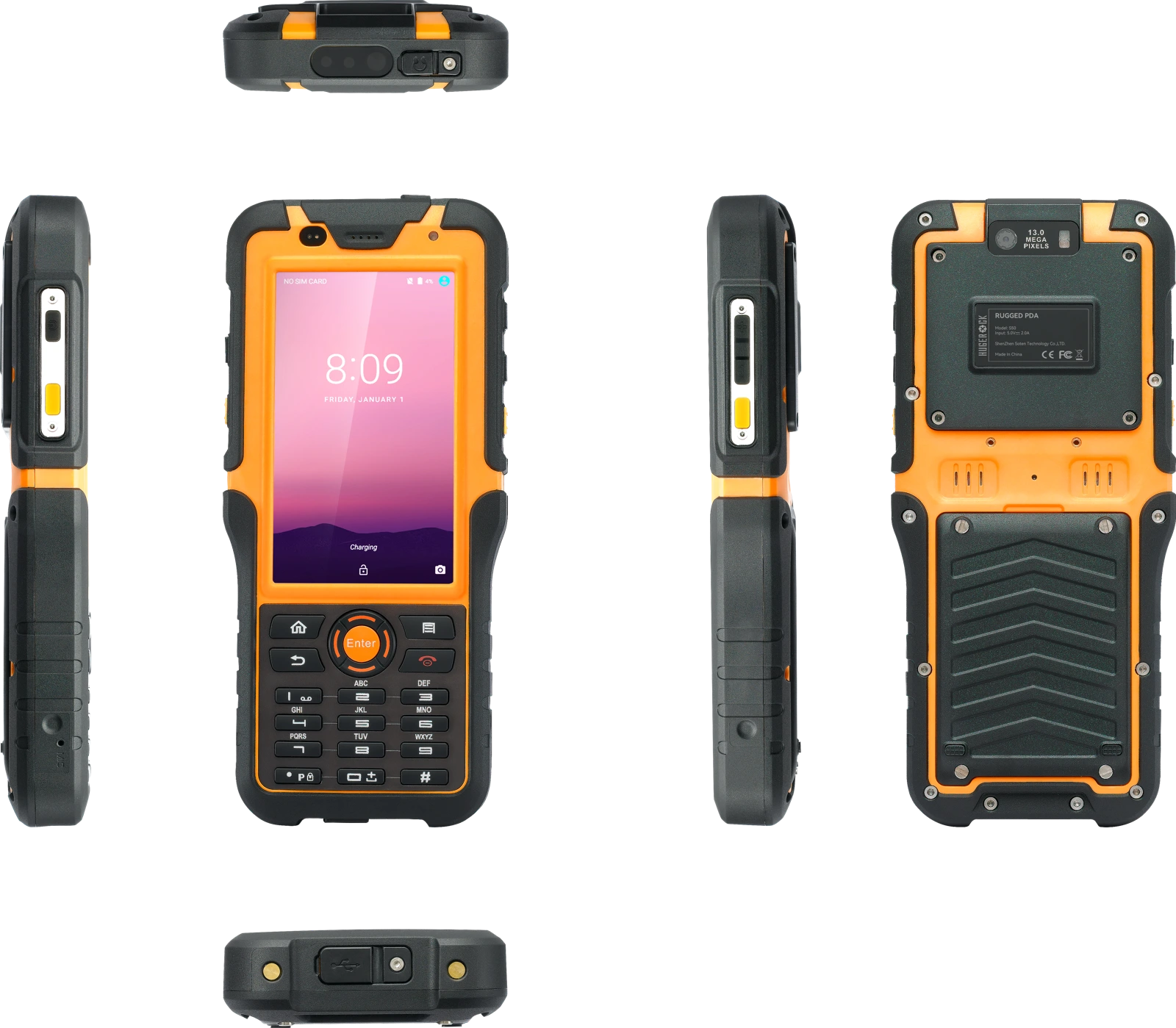

Platform multi-view design
Industry interface illustration · software and device configuration depend on the project · select an image to enlarge
01 / APPLICATION FIT
Match the terminal to your workflow.
For software partners, system integrators and device brands: select modules around tag protocols, peripheral interfaces and software deployment.
OEM / ODM device integration
RFID tags & asset capture
Define capture around the workflow.
S50 combines a physical keypad, touch display and Android application deployment for mobile operations. Evaluate expansion modules against tags, device interfaces and software requirements, then validate reading, power, drivers and data transfer on samples. Module combinations and delivery scope are configuration-specific.
02 / ONE PLATFORM, APPLICATION CONFIGURATIONS
Choose the capture configuration for the task.
Compare modular expansion, barcode and NFC, extended-range scanning and Ex inspection. Compare module, memory and OS configurations, then review the corresponding technical specification.

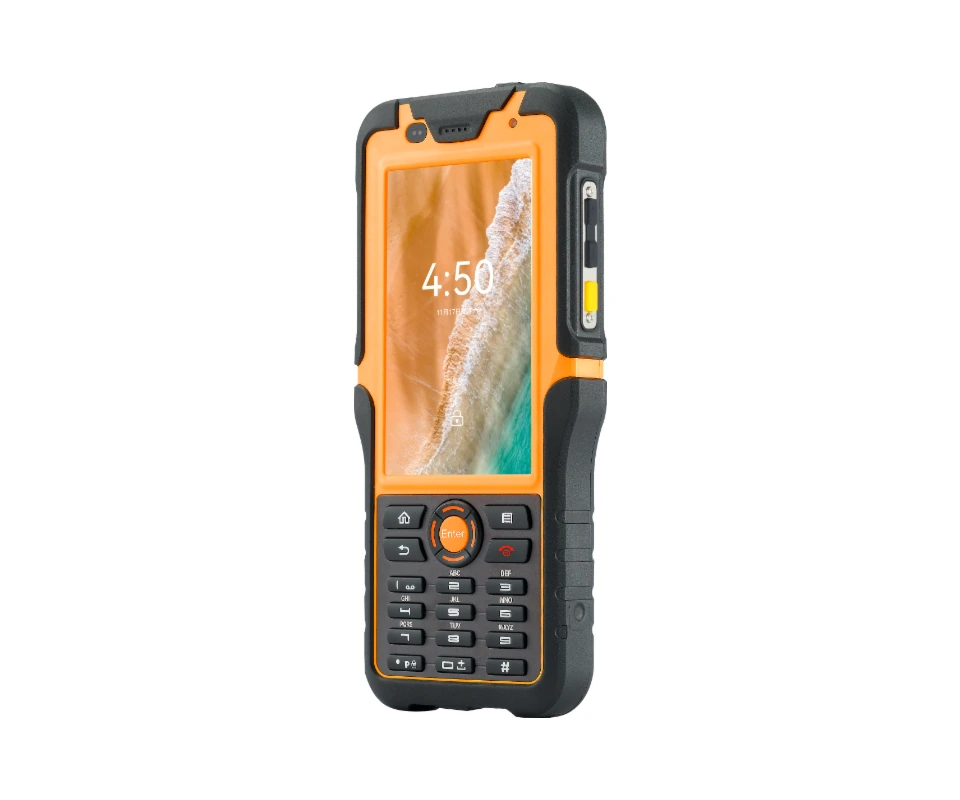

Modular expansionS50
Rugged handheld & modular integration platform
6GB / 64GB · 4G LTEView specifications & applications ↗

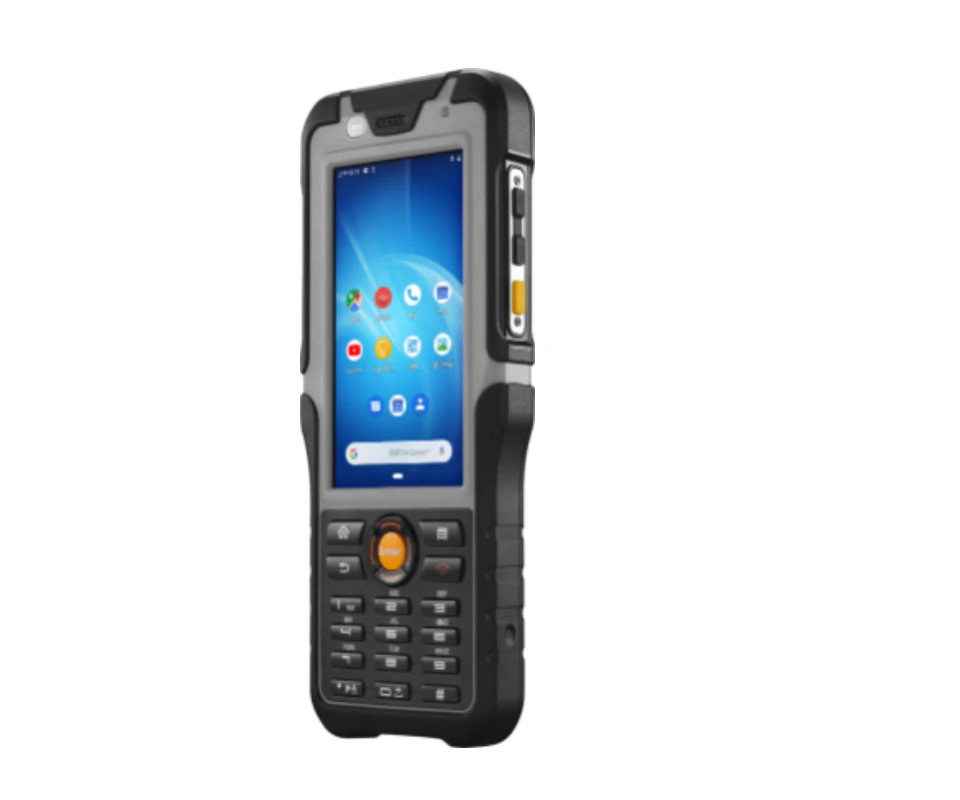

E20 barcode + NFCR50
Barcode & NFC data collection handheld
6GB / 64GB · 4G LTEView specifications & applications ↗

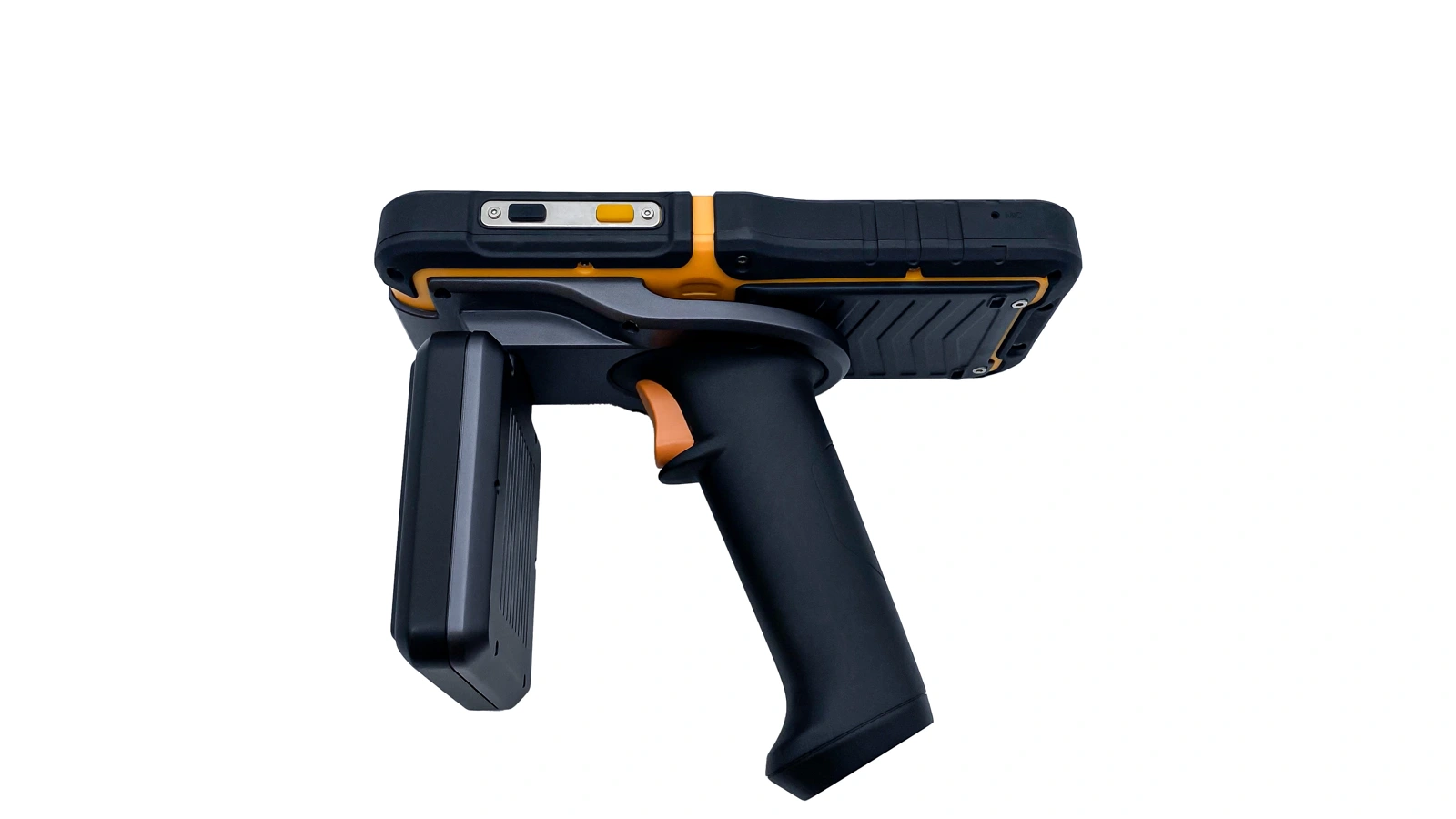

EX30 extended-range barcodeR50UB
Extended-range barcode data collection handheld
8G / 128G · 4G LTEView specifications & applications ↗

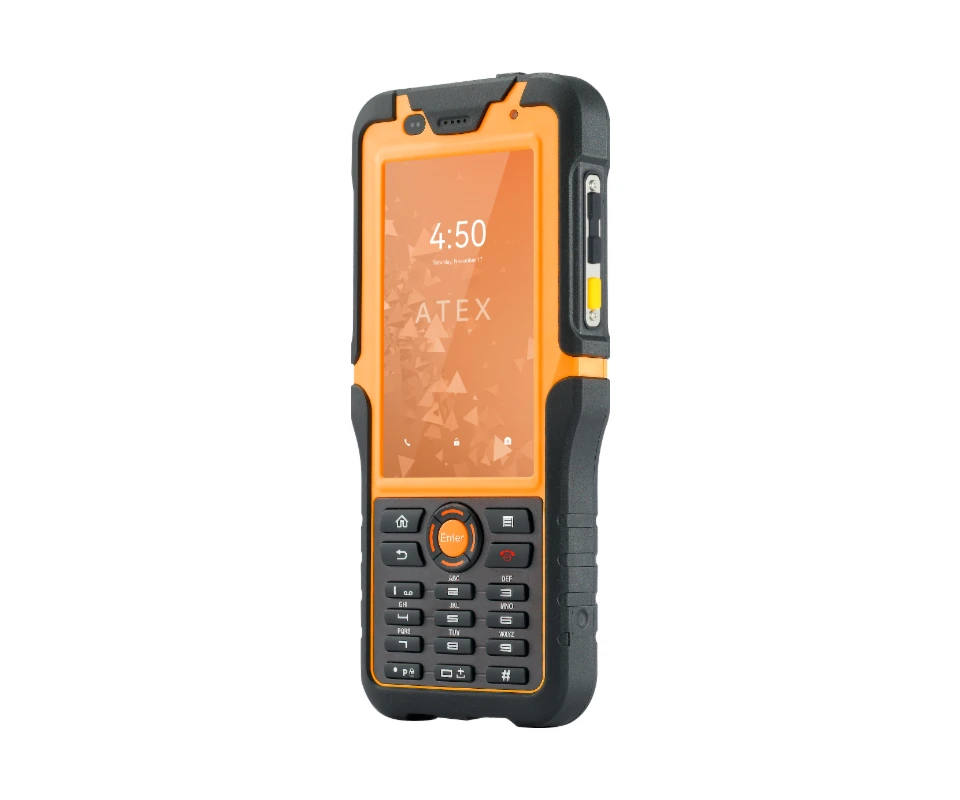

NFC / ATEXS50EX
Intrinsically safe inspection handheld
8GB / 128GB · 4G LTEView specifications & applications ↗| Selection criteria | S50 | R50 | R50UB | S50EX |
|---|---|---|---|---|
| Capture & application | Modular expansion | E20 barcode + NFC | EX30 extended-range barcode | NFC / ATEX |
| RAM / storage | 6GB / 64GB | 6GB / 64GB | 8G / 128G | 8GB / 128GB |
| OS versions & compatibility | Android 9/10/11/13 (Continuous updates) | Android 9/10/11/13 (Continuous updates) | Android 9/10/11/13 (Continuous updates) | Android 11/13 (Continuous updates) |
| Ordering & configuration | Confirm modules & project configuration | 05121041 | 05121043 | 05121021 |
RFID, barcode, NFC, RS232 and the larger battery are optional S50 configurations; combinations depend on the device build. Ex capability applies only to the certified S50EX model and approved configuration.
03 / CAPTURE & INTEGRATION
Connect business data through tags and interfaces.
Review protocols, reading conditions, module combinations and software integration for barcodes, tags and peripherals.
| UHF RFID | M500 ASTM + antenna / M500 EN + antenna |
|---|---|
| LF RFID | 125K LF ID (8H-10D / 10D), 125K LF HID, 134.2K LF animal tag module |
| HF RFID | 13.56M HF single-protocol / multi-protocol module |
| Other modules | 1D/2D barcode, RS232, NFC |
| Customer-supplied module interface | Power 3.3V-1.5A / 5V-1.5A; UART 3.3V / 5V; GPIO 1, electrical level 3.3V / 5V |
| Battery option | 10000mAh replaceable battery (optional) |
Validate real labels
Share barcode formats, tag protocols, material, size and target reading distance.
Integrate business applications
Confirm Android versions, application deployment, module access, offline workflows and data transfer.
Review power & accessories
Review shifts, charging, grips, straps and optional modules, then validate the complete configuration.
04 / MODEL-SPECIFIC SPECIFICATIONS
S50 technical specifications
Review hardware, software, interfaces and environmental specifications for the selected model. OS and module combinations are confirmed for the delivery configuration.
Hardware & display
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
|---|---|
| GPU | ARM Mali-G72 MP3 |
| RAM | 6GB |
| Internal Memory | 64GB |
| External Memory | Micro SD card ( T-FLASH card), max 1TB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | N/A |
| Battery | 5000mAh（Replaceable battery） |
| Display | 4.5 inch IPS/AFFS 540*960 QHD industrial 500nits |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
Communications & connectivity
| Phone Call | GSM /WCDMA/VoLTE |
|---|---|
| 2G | GSM/EDGE/GPRS/WAP |
| 2G Band | GSM（B2/3/5/8） |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA(B1/2/5/8) |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps , 50Mbps up |
| 4G Band | TD-LTE（B38/39/40/41); FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI | Dual-band WIFI(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| BT | 5.0 Low Energy (LE) |
Interfaces, sensors & positioning
| SIM Card | 1.8/3.3V SIM card |
|---|---|
| TF Card | Micro SD card ( T-FLASH card), max 1TB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C & 2pin pogo pin |
| Data interface | USB Type-C (OTG)*1 |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Gyroscope sensor | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Mechanical design
| Size | 200*92*27mm（L×W×H） |
|---|---|
| Weight | 420g |
| Color & Material | Black&yellow,Black&green,Black&Gray（PC+ABS+TPU） |
Environment & reliability
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
|---|---|
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>5000h；MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% (95%RH, non-condensing) |
| Operating Altitude | Max: 4,500 m（15,000 feet） |
OS & service
| OS | Android 9/10/11/13 (Continuous updates) |
|---|---|
| Warranty | 24 months (12-month battery warranty) |
05 / RESOURCES & DELIVERY
From selection to project delivery.
Download the selected model documentation, then review software, modules, tags, accessories and deployment volume with SOTEN.
PDF / S50S50 technical datasheetHardware · interfaces · capture modules · environmentV2.0 ↗OEM / ODMEngineering & project integrationSystem integration · modules · sample validationExplore engineering ↗
S50 configuration enquiry ↗R50 configuration enquiry ↗R50UB configuration enquiry ↗S50EX configuration enquiry ↗
Define the workflow
Deployment regions, workflow, operating conditions and business software.
Validate modules & integration
Real labels, interface protocols, OS versions and device accessories.
Confirm build & delivery
Exact model, configuration list, volume, testing and rollout schedule.
S50 selection & system integration
Assess S50 by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
For: Industry software providers, system integrators and device brands
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
