HUGEROCK / R30 HANDHELD PLATFORM
R30B134.2kHz Animal Tag Reader Handheld
Connect FDX-B / HDX animal-tag reading, field records and mobile data transfer.
3.1″ / 720×7206GB / 64GBAndroid 137200mAhIP65

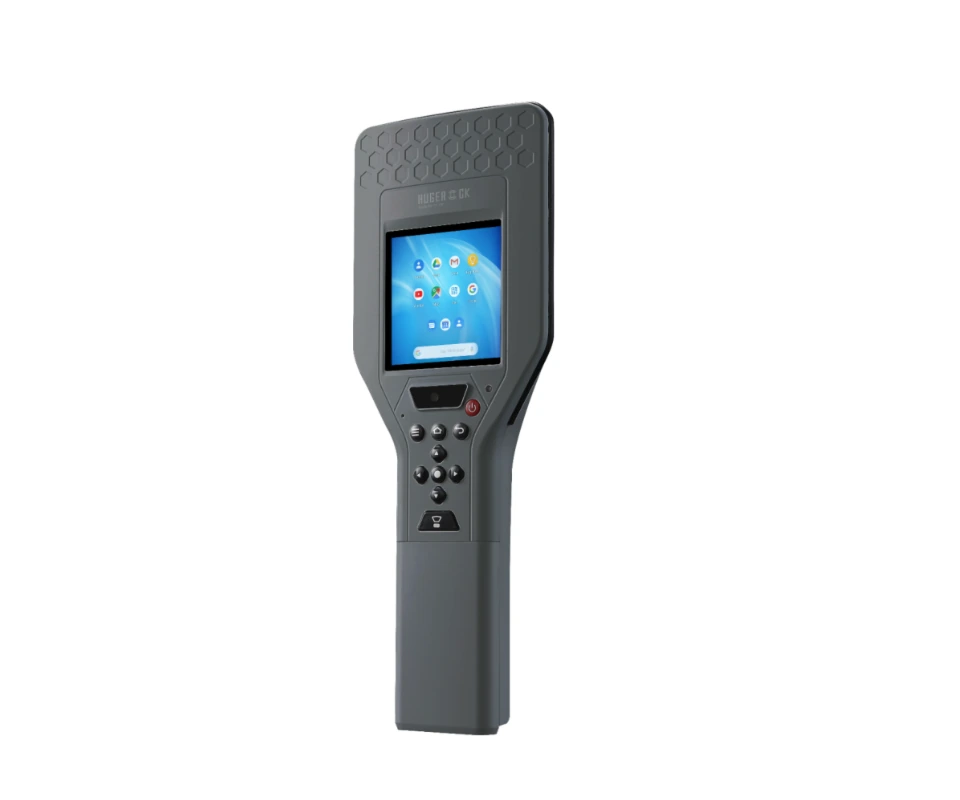

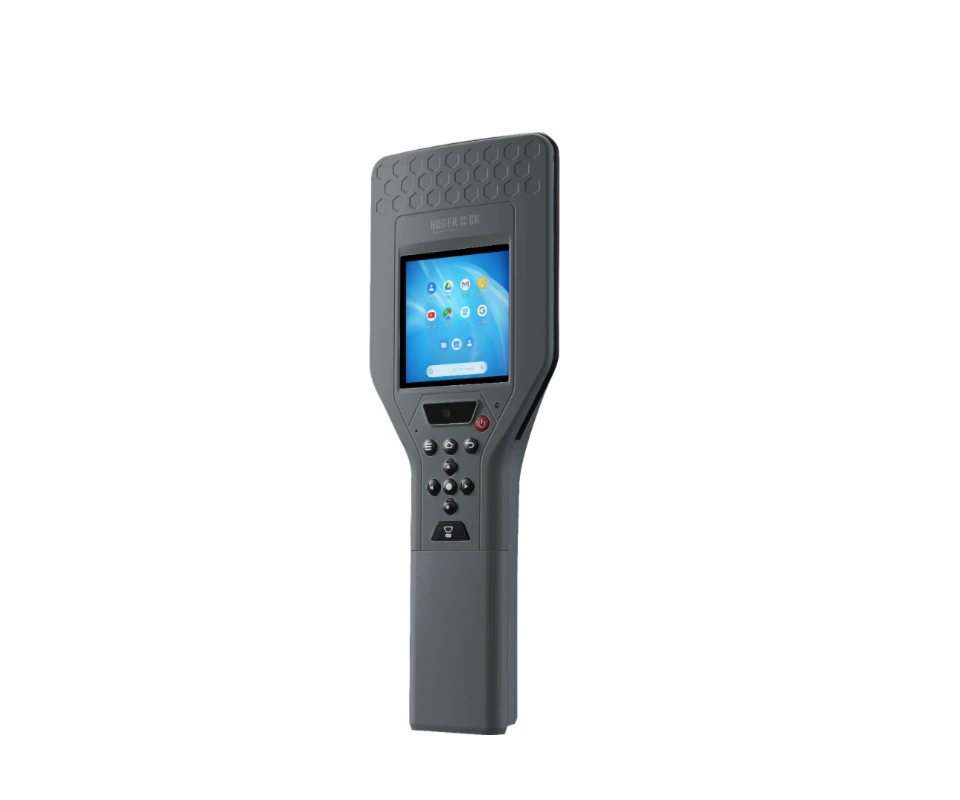

White-background product view

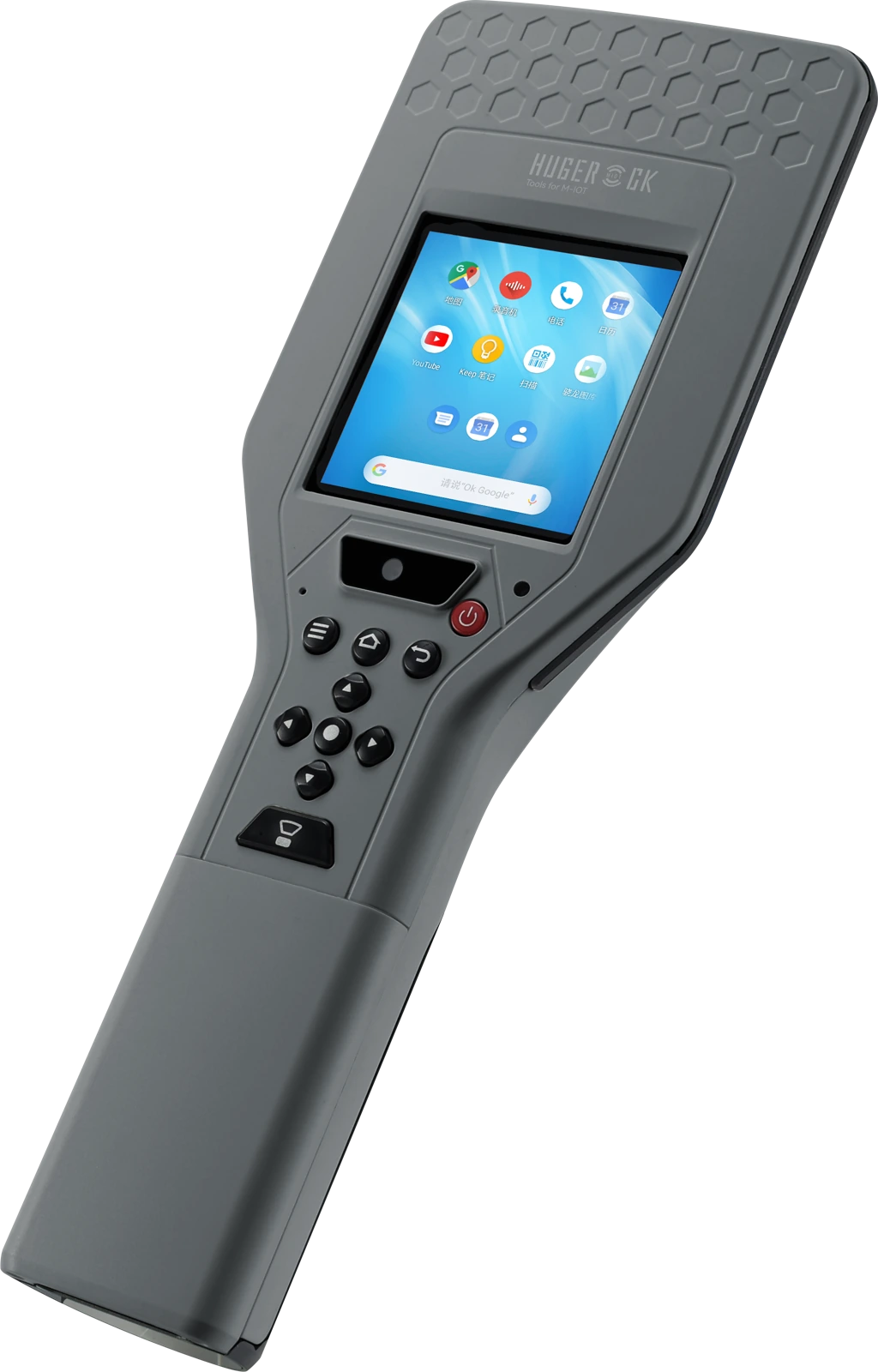

Front angled view

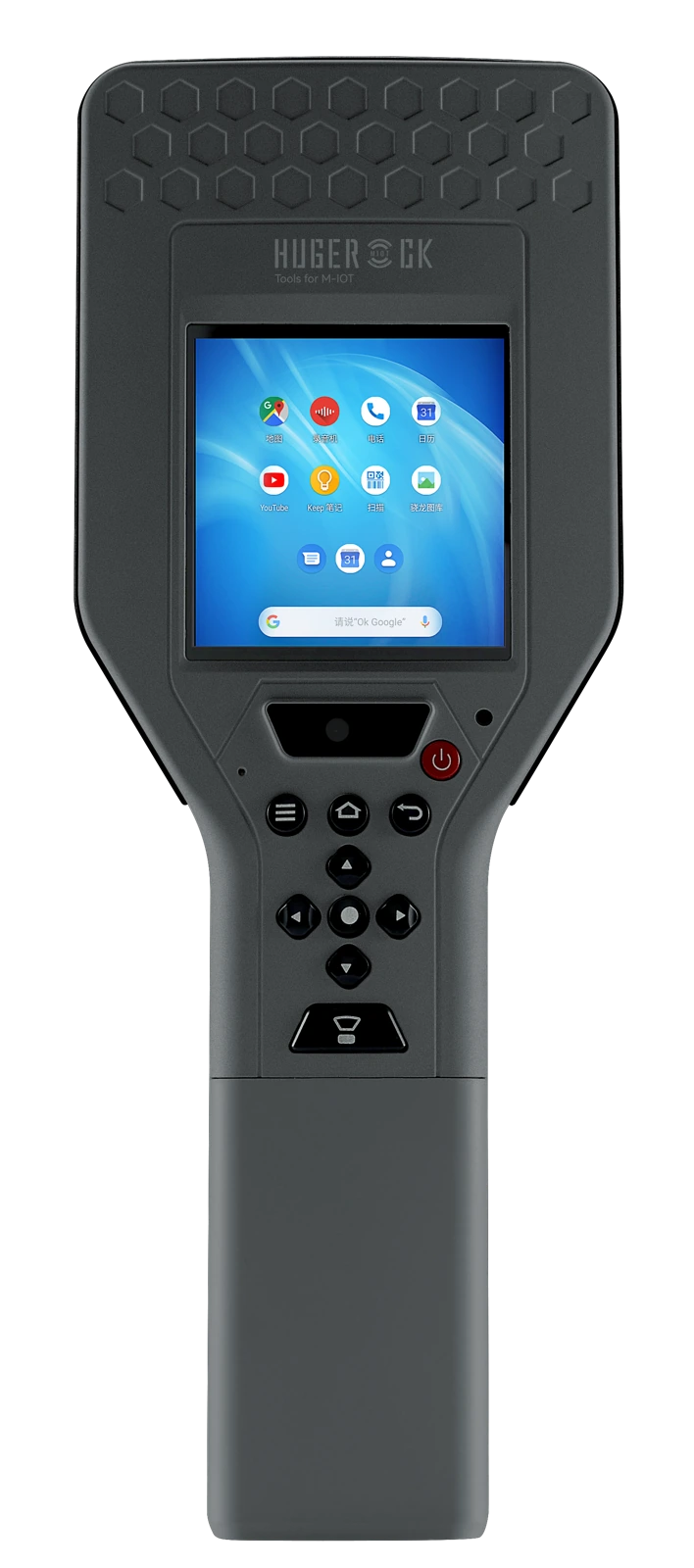

Front & physical controls
Body angled view

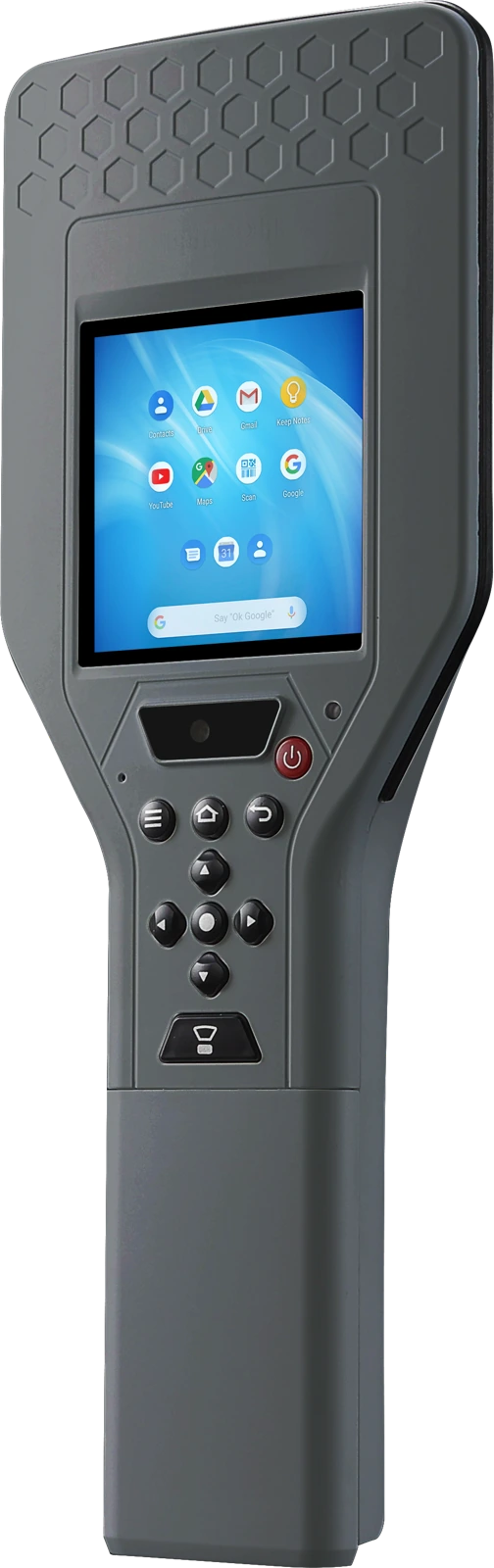

Display & keypad view

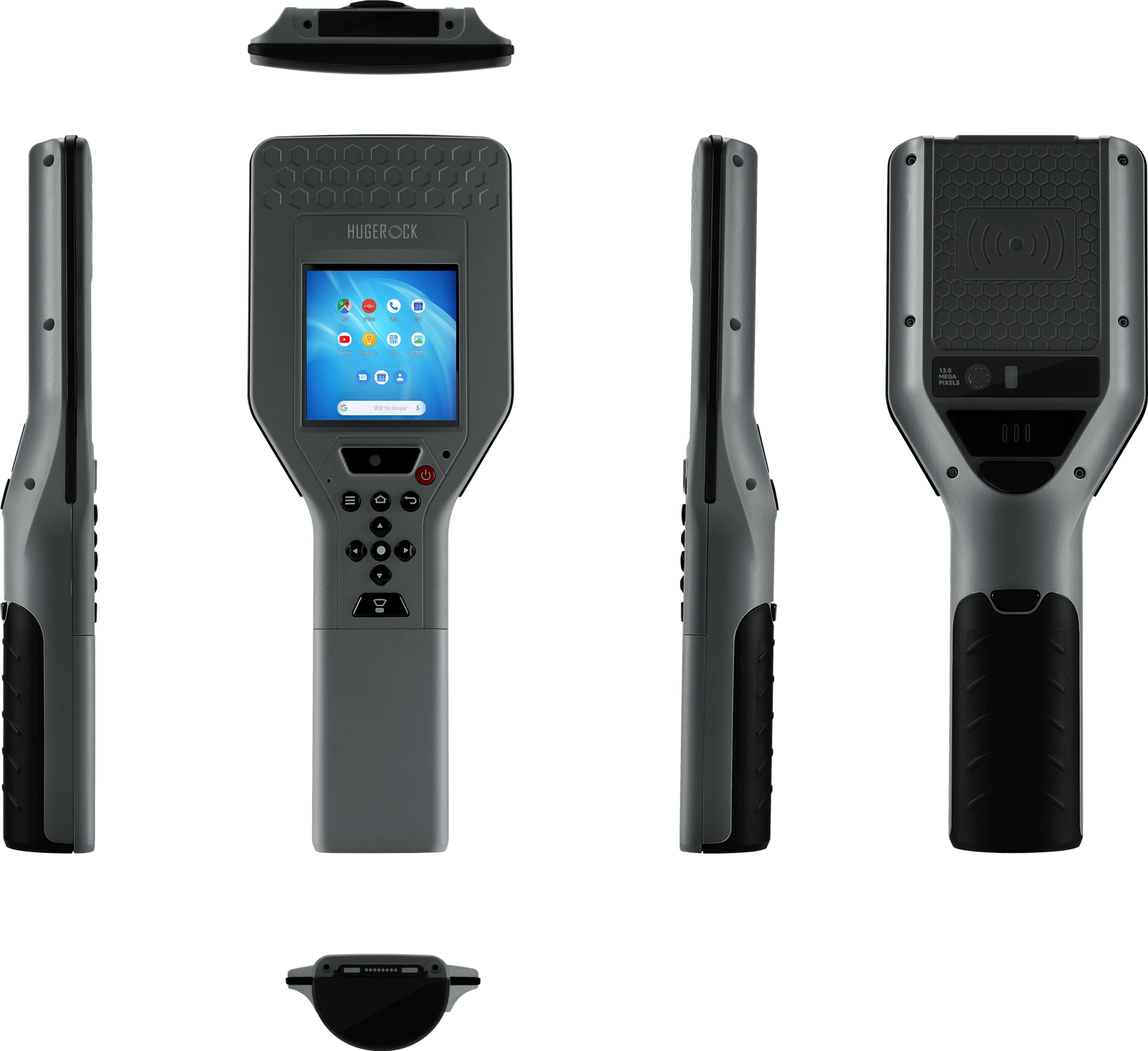

Multi-angle structure view
Product images · configuration varies by model · select an image to enlarge
01 / APPLICATION FIT
Match the terminal to your workflow.
For livestock-management providers, animal-identification partners and agricultural integrators: review tag protocols, reading distance and business-data mapping.
Animal-tag verification & traceability
Livestock software & field-data integration
Connect animal tags to individual business records.
R30B supports 134.2kHz animal tags with ISO11784/5 and FDX-B / HDX modes. Linking tag IDs to livestock, inspection or traceability records can reduce field data entry; business rules are implemented by the project software. Validate the 5–15cm range, reading position, duplicate handling and offline synchronisation with actual tags, and confirm the E20 barcode and NFC combination.
02 / ONE PLATFORM, APPLICATION CONFIGURATIONS
Choose the capture configuration for the task.
Choose R30A for UHF RFID inventory or R30B for 134.2kHz animal tags. Confirm tag technology and workflow, then compare interfaces, range and system configuration.
UHF RFID E710 / E20 barcode / NFCR30A
E710 UHF RFID inventory handheld
6GB / 64GB · 4G LTEView specifications & applications ↗134.2kHz LF / FDX-B · HDX / E20 / NFCR30B
134.2kHz animal-tag handheld
6GB / 64GB · 4G LTEView specifications & applications ↗| Selection criteria | R30A | R30B |
|---|---|---|
| Capture & application | UHF RFID E710 / E20 barcode / NFC | 134.2kHz LF / FDX-B · HDX / E20 / NFC |
| RFID protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C | ISO11784/5; FDX-B/HDX |
| RFID range & conditions | >10m (E41 tag, outdoors) | 5–15cm (animal tags) |
| RAM / storage | 6GB / 64GB | 6GB / 64GB |
| OS versions & compatibility | Android 13 (Continuous updates) | Android 13 (Continuous updates) |
| Battery & replacement | 7200mAh (Replaceable battery） | 7200mAh (Replaceable battery） |
| Body dimensions | 267*100*38mm（L×W×H） | 267*100*38mm（L×W×H） |
| Data interface | 8Pin magnetic charging with USB 2.0 | 8Pin magnetic charging with USB 2.0 |
| Weight | 488g | 468g |
| Ordering & configuration | 05121039 | 05121040 |
R30A and R30B use different RFID modules and tag technologies. Confirm barcode, NFC and RFID combinations by ordering configuration. Modules, weight and range are listed separately; validate real tags, regional bands and software.
03 / CAPTURE & INTEGRATION
Connect business data through tags and interfaces.
Review protocols, reading conditions, module combinations and software integration for barcodes, tags and peripherals.
| Protocol standard | ISO14443A/B,ISO15693，NFC |
|---|---|
| Label standard | M1(S50、S70)、CPU、NFC |
| Read-write distance | 2-5cm |
| Operation Frequency | 134.2 kHz |
| support agreement | ISO11784/5 |
| Read distance | 5-15cm |
| Working mode | FDX-B/HDX |
| Scanning engine | E20 Barcode module |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
R30A specifies over 10m with E41 tags outdoors, R30B animal-tag reading is specified at 5–15cm, and NFC at 2–5cm. Tag size, material, orientation, antennas and interference affect performance; validate using actual tags.
Validate real labels
Share barcode formats, tag protocols, material, size and target reading distance.
Integrate business applications
Confirm Android versions, application deployment, module access, offline workflows and data transfer.
Review power & accessories
Review shifts, charging, grips, straps and optional modules, then validate the complete configuration.
04 / MODEL-SPECIFIC SPECIFICATIONS
R30B technical specifications
Review hardware, software, interfaces and environmental specifications for the selected model. OS and module combinations are confirmed for the delivery configuration.
Hardware & display
| CPU | ARM A73 2.0GHz Octa-core |
|---|---|
| GPU | Arm Mali-G72 MP3 |
| RAM | 6GB |
| Internal Memory | 64GB |
| External Memory | Micro SD card (T-FLASH card), max 1TB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 7200mAh (Replaceable battery） |
| Display | 3.1inch HD display 720*720 |
| Touch Panel | Capacitive |
Communications & connectivity
| Phone Call | GSM /WCDMA/VoLTE |
|---|---|
| 2G | GSM/EDGE/GPRS/WAP |
| 2G Band | GSM（B2/3/5/8） |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA(B1/2/5/8) |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps , 50Mbps up |
| 4G Band | TD-LTE（B38/39/40/41); FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI | Dual-band WIFI(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
Interfaces, sensors & positioning
| SIM Card | Micro SIM |
|---|---|
| TF Card | Micro SD card ( T-FLASH card), max 1TB |
| Data interface | 8Pin magnetic charging with USB 2.0 |
| Gravity Sensor | support |
| Magnetic Field Sensor | support |
| Motion Sensor | support |
| Gyroscope sensor | support |
| Light-sensor | support |
| Acceleration Sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) |
Mechanical design
| Size | 267*100*38mm（L×W×H） |
|---|---|
| Weight | 468g |
| Color & Material | gray (Metal & ABS) |
Environment & reliability
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
|---|---|
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| Reliability | MTBF>5000h; MTTR<0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m（15,000 feet） |
OS & service
| Certification | 3C/FCC/CE/ROHS/IP65（IEC 60529） |
|---|---|
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc |
| OS | Android 13 (Continuous updates) |
| Warranty | 24 months |
| Package | Charger/Introduction Manual/Screen protector/Packing box/Magnetic Charging Cable/ Precautions Card |
05 / RESOURCES & DELIVERY
From selection to project delivery.
Download the selected model documentation, then review software, modules, tags, accessories and deployment volume with SOTEN.
PDF / R30BR30B technical datasheetHardware · interfaces · capture modules · environmentV1.0 ↗OEM / ODMEngineering & project integrationSystem integration · modules · sample validationExplore engineering ↗
Define the workflow
Deployment regions, workflow, operating conditions and business software.
Validate modules & integration
Real labels, interface protocols, OS versions and device accessories.
Confirm build & delivery
Exact model, configuration list, volume, testing and rollout schedule.
R30B selection & system integration
Use the capture modules listed for R30B. Prepare barcode, tag or card samples and check protocols, reading conditions, SDKs and offline synchronization against a real workflow.
