W105EXWindows Hazardous-area Project Tablet
Connect Windows industry applications and field records for oil, gas and chemical inspection projects, selecting against site requirements, certification scope and the approved build.
10.1″ / 1920×1200600nitIntel N51055000mAhIP6816GB / 128GB
Product on white

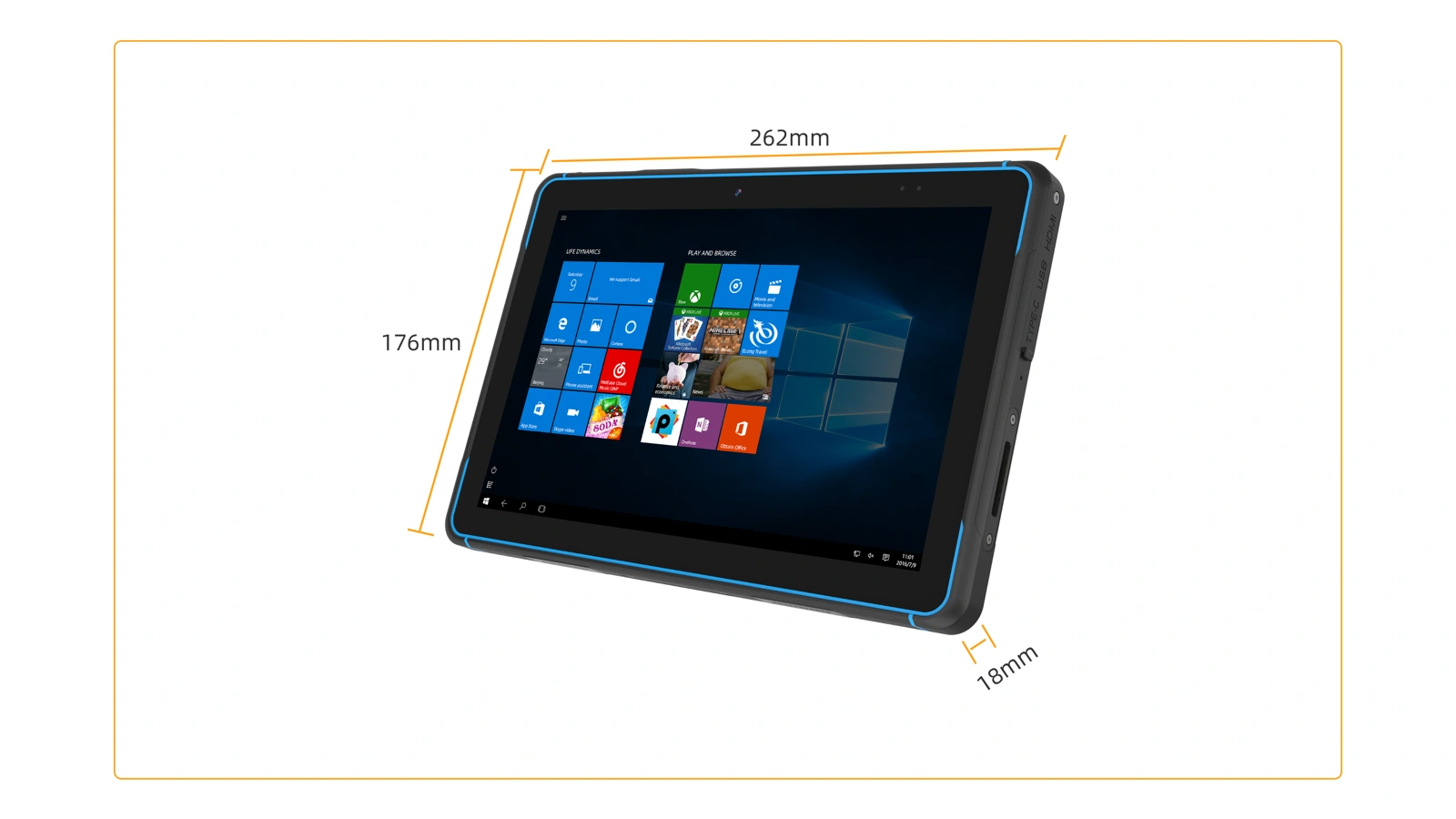

Body dimensions illustration

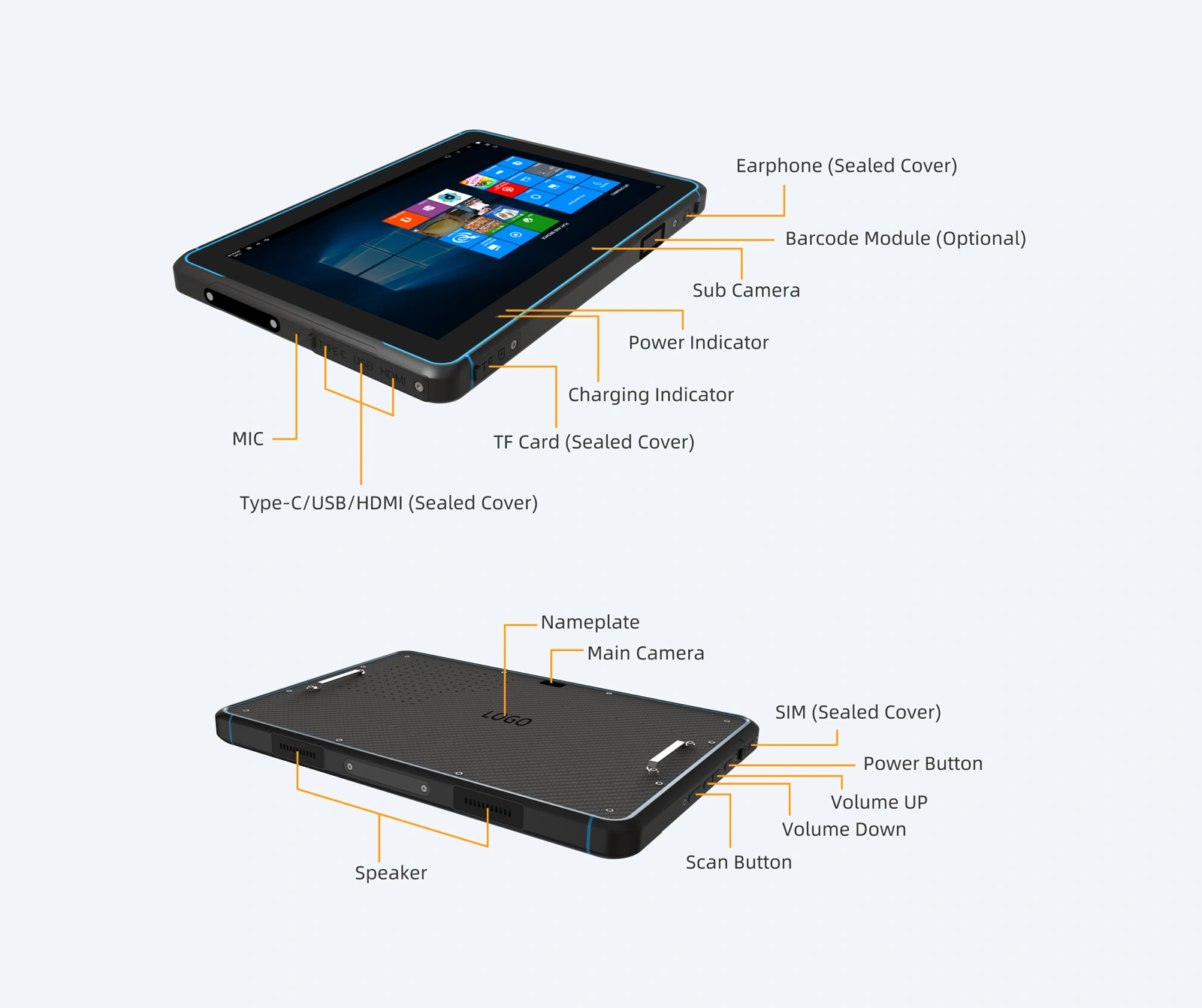

Front, interfaces & rear design

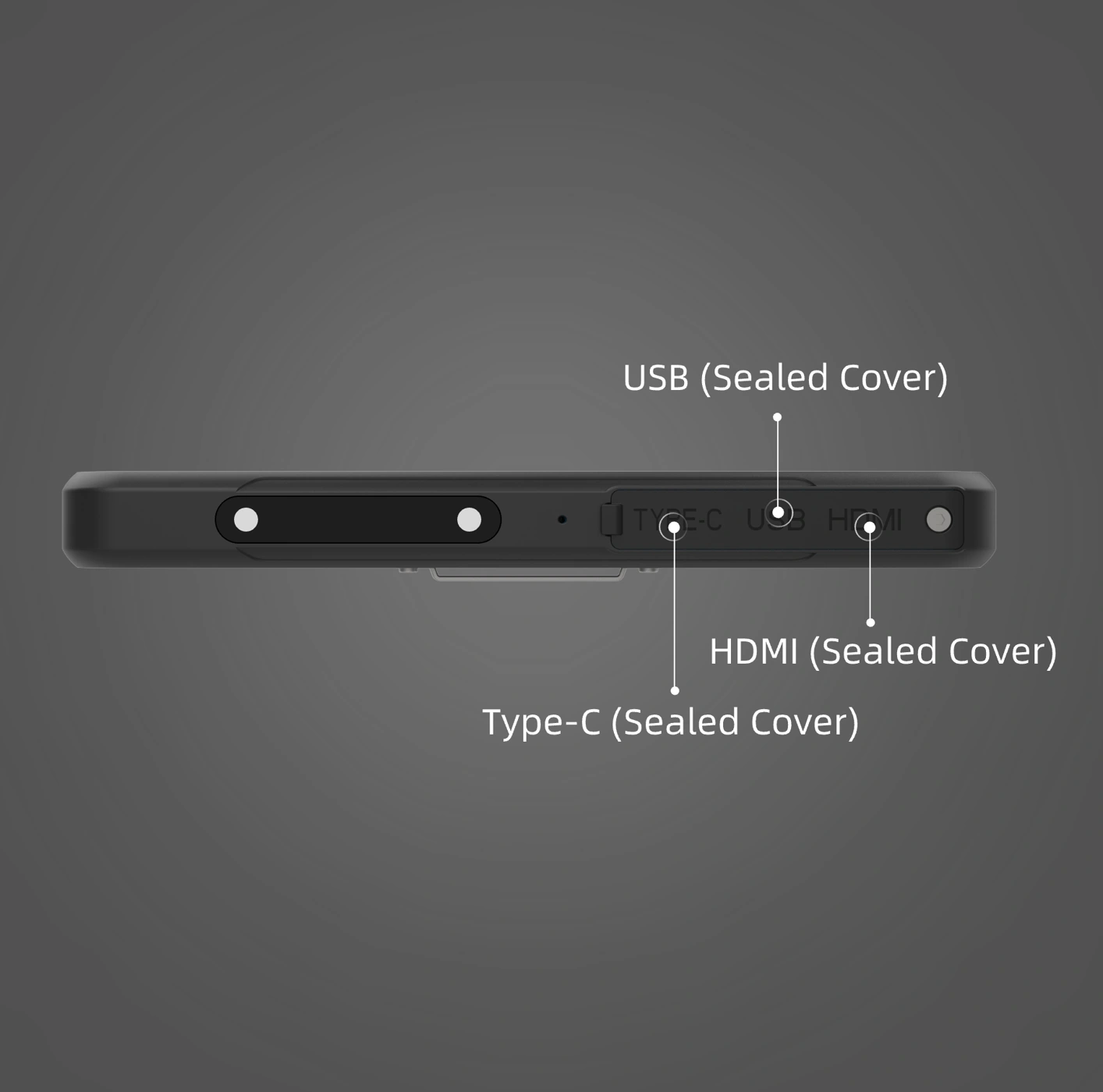

Interface area illustration
Removable battery illustration
Windows application illustration
Product images · configuration varies by model · select an image to enlarge
01 / APPLICATION FIT
Match the terminal to your workflow.
For inspection software providers, maintenance integrators and compliance leads: review area classification, gas and temperature groups, certificate model and actual device marking before selecting software and accessories.
Chemical equipment & mobile work orders
Project configuration & maintenance integration
Select Ex projects against the site, marking and delivered configuration.
W105EX provides dedicated Ex application, specification and ordering information. For hazardous areas, match the certificate-listed W105 model and II 2G Ex ib IIB T4 Gb marking to the actual device nameplate and delivery build. Review supporting documents, software, peripherals and accessories for the project. Standard W105 options do not automatically define approved Ex combinations.
02 / ONE PLATFORM, APPLICATION CONFIGURATIONS
Choose the capture configuration for the task.
Compare W105 industrial applications and W105EX Ex projects, then select around OS, memory, capture modules, site conditions and certification scope.
Windows / Ubuntu / barcode & peripheralsW105
10.1-inch Windows industrial tablet platform
16GB / 128GB · Wi-Fi 6View specifications & applications ↗Ex projects / Windows & Ubuntu ordering configurationsW105EX
Windows tablet for Ex project configurations
16GB / 128GB · Wi-Fi 6View specifications & applications ↗| Selection criteria | W105 | W105EX |
|---|---|---|
| Capture & application | Windows / Ubuntu / barcode & peripherals | Ex projects / Windows & Ubuntu ordering configurations |
| Display brightness | 600nit | 600nit |
| RAM / storage | 16GB / 128GB | 16GB / 128GB |
| OS versions & compatibility | Win 10/11 | Win 10/11 |
| Data interface | USB Type-A(Host)*1, Type-C*1, HDMI*1 | USB Type-A(Host)*1, Type-C*1, HDMI*1 |
| Expandable storage | Micro SD card (T-FLASH card), max 2TB | Micro SD card (T-FLASH card), max 2TB |
| Ordering & configuration | Select ordering configuration below | Select ordering configuration below |
W105 and W105EX use separate ordering codes. 4G, barcode and SSD are configuration options; devices, software and accessories for hazardous areas must match the approved build.
W105EX ordering configurations
| Order code | Configuration | RAM | Storage capacity | OS | Configuration entries |
|---|---|---|---|---|---|
| 05121167 | WIFI-X10 | 16GB LPDDR4 | 128GB eMMC | Win 10/11 | TPM / E20 |
| 05121168 | WIFI-X10L | 8GB LPDDR4 | 128GB eMMC | Win 10/11 | TPM |
| 05121169 | WIFI-Ubt | 16GB LPDDR4 | 128GB eMMC | Ubuntu-24.04.2-desktop | TPM / E20 |
X10 is the 16GB Windows configuration, X10L is the 8GB Windows configuration, and Ubt uses Ubuntu-24.04.2-desktop. Confirm RAM, storage, software licensing, drivers, TPM and E20 barcode against the order code.
03 / OPTIONS & PROJECT INTEGRATION
Confirm capture, connectivity and project requirements.
Review software, regional connectivity, barcode formats and interfaces before confirming devices and accessories. GNSS listed with a 4G module belongs to that optional module.
Ex certificate & actual configuration
| Certificate number | ECM 25 ATEX-B DQ41 |
|---|---|
| Certificate-listed model | W105 |
| Ex marking | II 2G Ex ib IIB T4 Gb |
| Issued | 2025-05-06 |
| Expiry stated in document | 2030-05-05 |
| Standards | EN IEC 60079-0:2018; EN 60079-11:2012 |
W105EX is the Ex application selection name; the certificate lists W105. Match the actual device marking, covered technical configuration and supporting project documents. This type certificate concerns the listed design, examination and testing; production and supply conditions require corresponding documentation. Follow approved operating conditions for charging, battery replacement, peripherals and accessories.
View original ATEX certificate ↗E20 barcode option
| Barcode module | E20 |
|---|---|
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin Code, Dotcode, Composite. |
| 1D | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
4G module (EU) option
| Communication module | LTE-FDD / LTE-TDD / WCDMA / GSM (Heilicom EC25-EUX-M2) |
|---|---|
| LTE-FDD | B1/B3/B7/B8/B28A |
| LTE-TDD | B38/B40/B41 |
| WCDMA | B1/B8 |
| GSM/EDGE | B3/B8 |
| GNSS | GPS/GLONASS/BeiDou(Compass)/Galileo/QZSS |
4G module (US) option
| Communication module | LTE-FDD / WCDMA (Heilicom EC25-AFXD-M2-H) |
|---|---|
| LTE-FDD | B2/B4/B5/B12/B13/B14/B66/B71 |
| WCDMA | B2/B4/B5 |
| GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS |
SATA SSD options
| SSD | SSD-512GB, SSD-1TB, SSD-2TB (Option) |
|---|
These options require review against order codes, drivers and the complete device build. W105EX expansions, peripherals and accessories also require certification-scope and approved-configuration checks; standard W105 options do not automatically apply to Ex delivery.
Validate software & drivers
Confirm Windows/Ubuntu versions, application deployment, software licensing and peripheral drivers.
Validate labels & networks
Share real barcodes, equipment interfaces, regional networks and data-transfer requirements.
Confirm site & delivery build
Review deployment conditions, device model, accessories, power and applicable certification documents.
04 / MODEL-SPECIFIC SPECIFICATIONS
W105EX technical specifications
Review hardware, software, interfaces and environmental specifications for the selected model. OS and module combinations depend on the delivery build. The table describes the 16GB base device; review 8GB and Ubuntu options in the ordering table.
Hardware & display
| CPU | Intel® Jasper Lake N5105 |
|---|---|
| Graphics Card | Intel HD Graphics |
| RAM | LPDDR4 16GB on Board |
| SSD interface | 1*M.2 2242 Sata |
| Internal storage | 128GB eMMC |
| Expandable Memory | Micro SD card (T-FLASH card), max 2TB |
| Main Camera | 5.0MP |
| Sub Camera | 2.0MP |
| Battery | 5000mAh removable battery |
| Display | 10.1-inch IPS FHD display 1920*1200 600 nits |
| Touch Panel | Capacitive touch screen/support active capacitive pen/support glove touch/resist water mist |
Communications & connectivity
| 4G Module | Optional |
|---|---|
| WI-FI | Dual-band WIFI (2.4GHz/5Ghz) supports WiFi 6, 802.11b/g/n/ac/ax |
| BT | 5.1 Low Energy(LE) |
Interfaces & sensors
| SIM Card/TF Card | Nano SIM card * 1, Micro SD card * 1 (Choose any one out of two) |
|---|---|
| Headphone | 3.5mm headphone jack (four-stage US standard) |
| Charging | USB Type-A(Host)*1, Type-C*1 |
| Data Interface | USB Type-A(Host)*1, Type-C*1, HDMI*1 |
| Gravity Sensor | Support |
| Charger | Input AC100~240V; Output Type-C 12V*2.5A, 30W |
Mechanical design
| Size | 262*176*18mm (L×W×H) |
|---|---|
| Weight (Including hand strap) | 920g |
| Color & Material | Black & Blue (PC+ABS+TPU) |
Environment & reliability
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
|---|---|
| Dropproof/IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 8 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% (95%RH, non-condensing) |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
OS & service
| OS | Win 10/11 |
|---|---|
| Language | English |
| Warranty | 24-month hardware warranty (12-month battery warranty) |
05 / RESOURCES & DELIVERY
From selection to project delivery.
Download the selected model documentation, then review software, modules, tags, accessories and deployment volume with SOTEN.
PDF / W105EXW105EX technical datasheetHardware · interfaces · capture modules · environmentV1.1 ↗OEM / ODMEngineering & project integrationSystem integration · modules · sample validationExplore engineering ↗
Define the workflow
Deployment regions, workflow, operating conditions and business software.
Validate modules & integration
Real labels, interface protocols, OS versions and device accessories.
Confirm build & delivery
Exact model, configuration list, volume, testing and rollout schedule.
W105EX selection & system integration
Check W105EX certificate scope, validity and approved modules/accessories against country, zone, gas/dust and temperature requirements. Then validate inspection software, interfaces, mounting and power.
For: Energy project integrators, inspection software providers and compliance buyers
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
