HUGEROCK / S101 INDUSTRIAL TABLET PLATFORM
S10110.1-inch Industrial Tablet Platform
Connect industry peripherals and mobile applications to field workflows through an FHD touch display, dual USB Host, RS232 and GPIO.
10.1″ / 1920×1200450nit4G LTE14600mAhIP656GB / 64GB
Industry application interface illustration

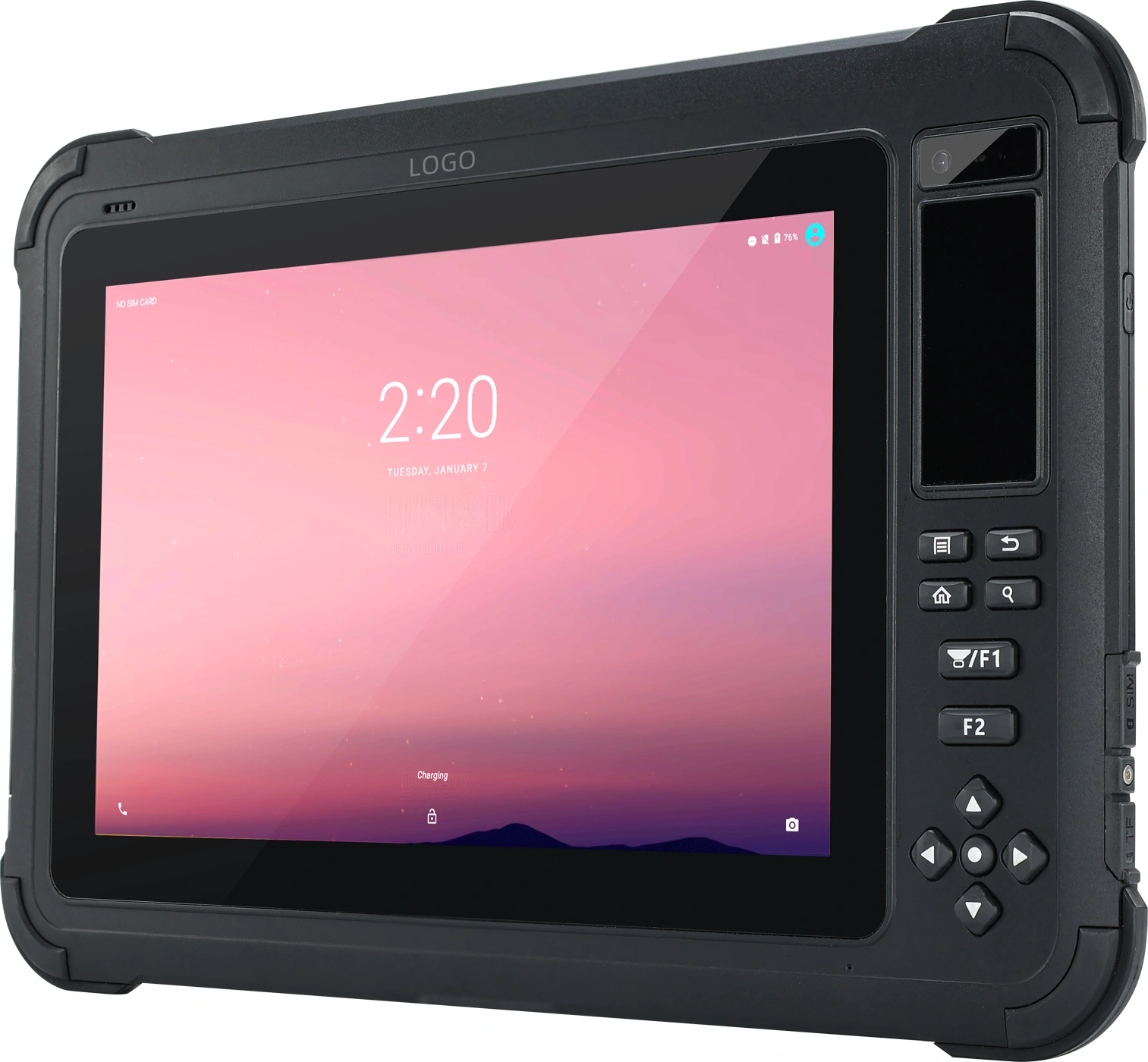

Three-quarter view

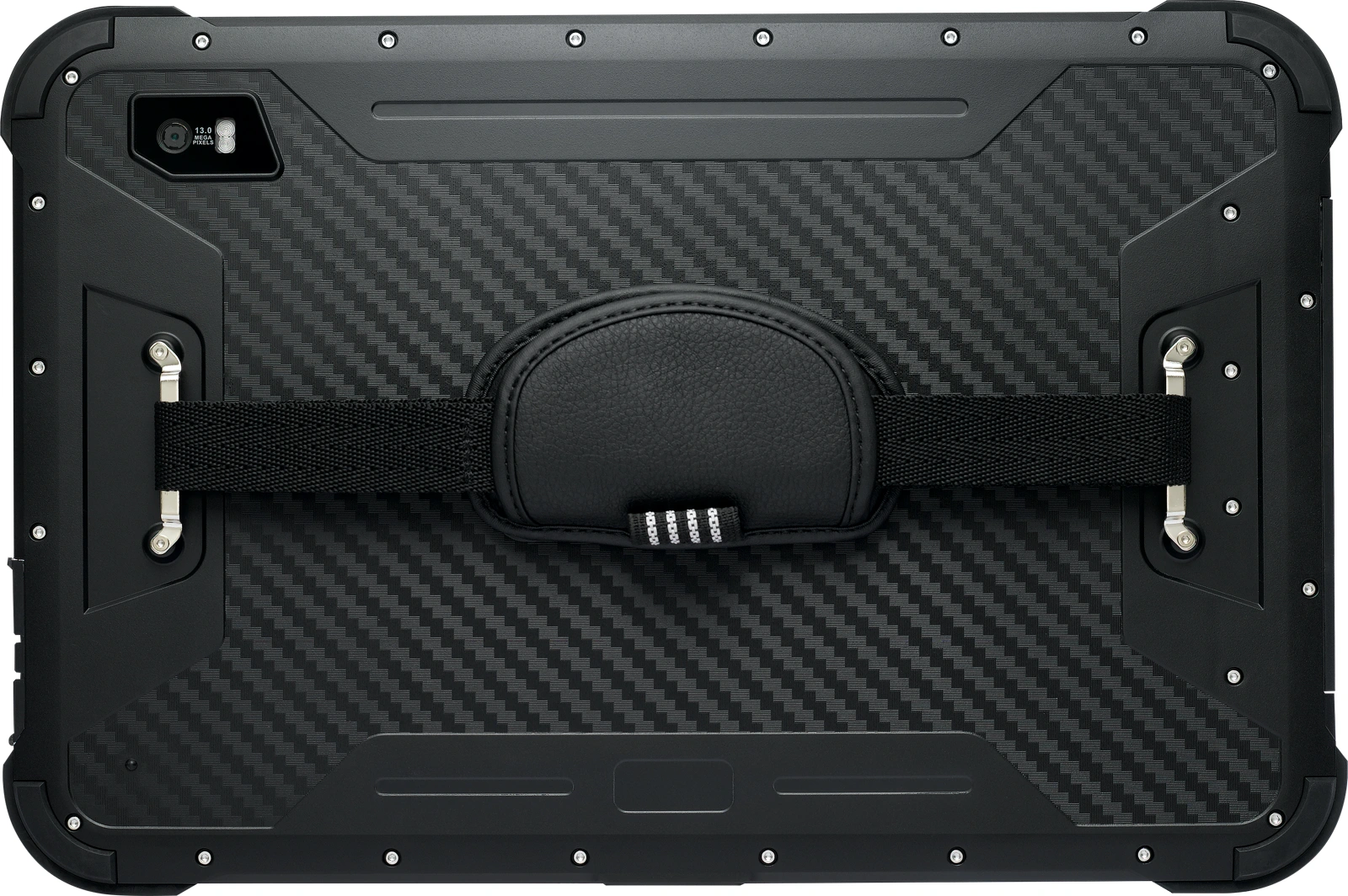

Rear & hand strap

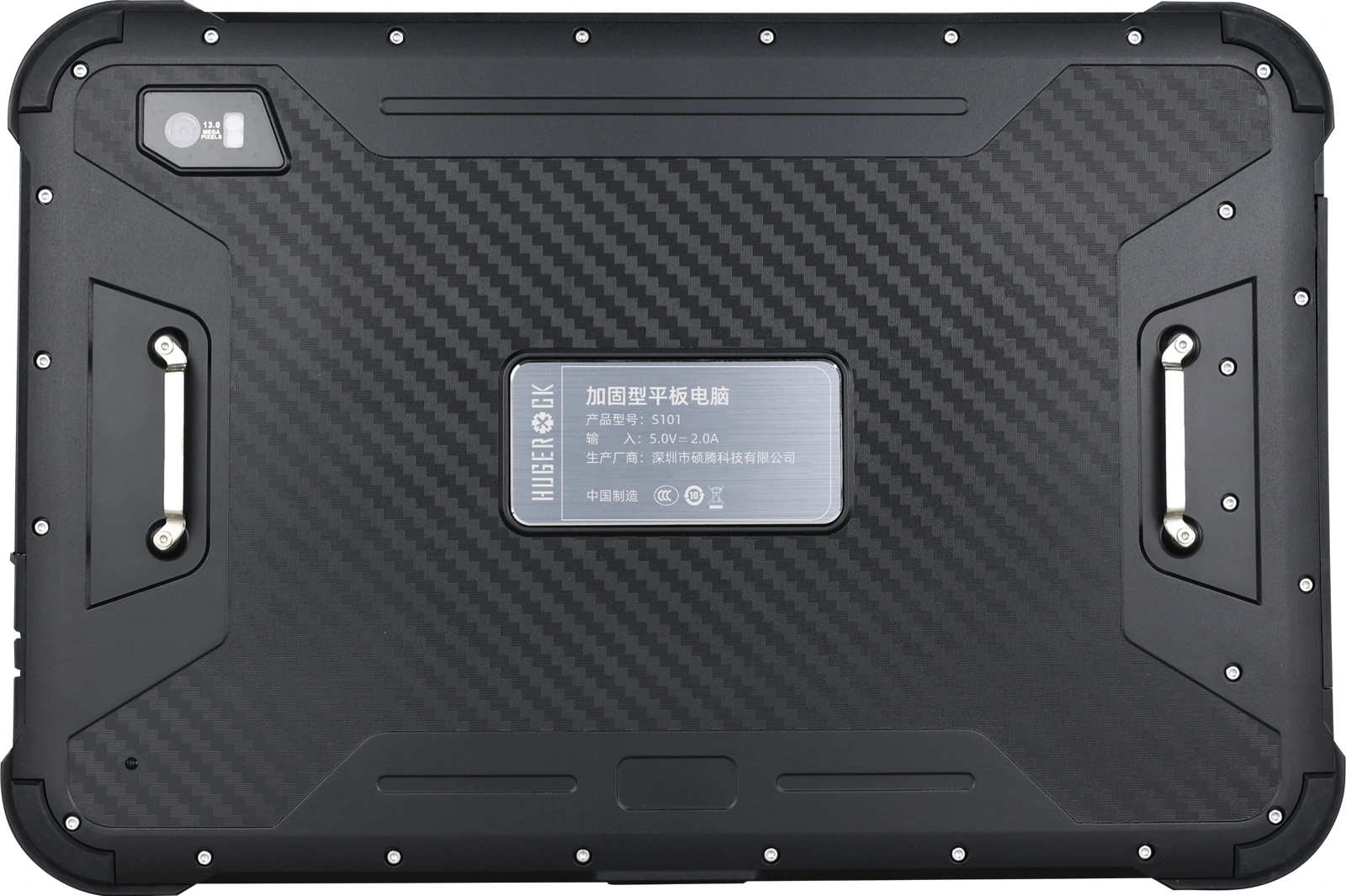

Rear design

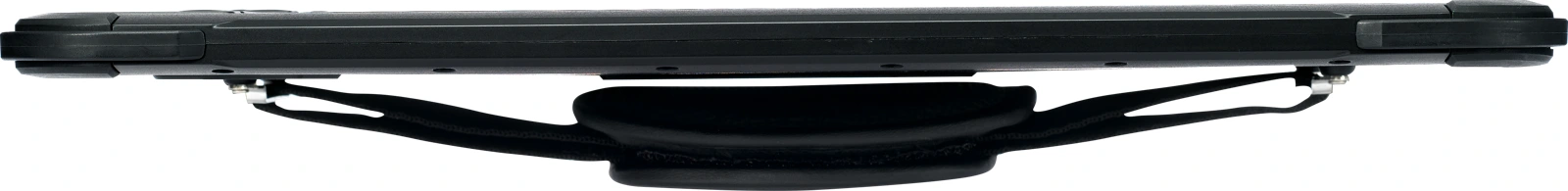

Side profile

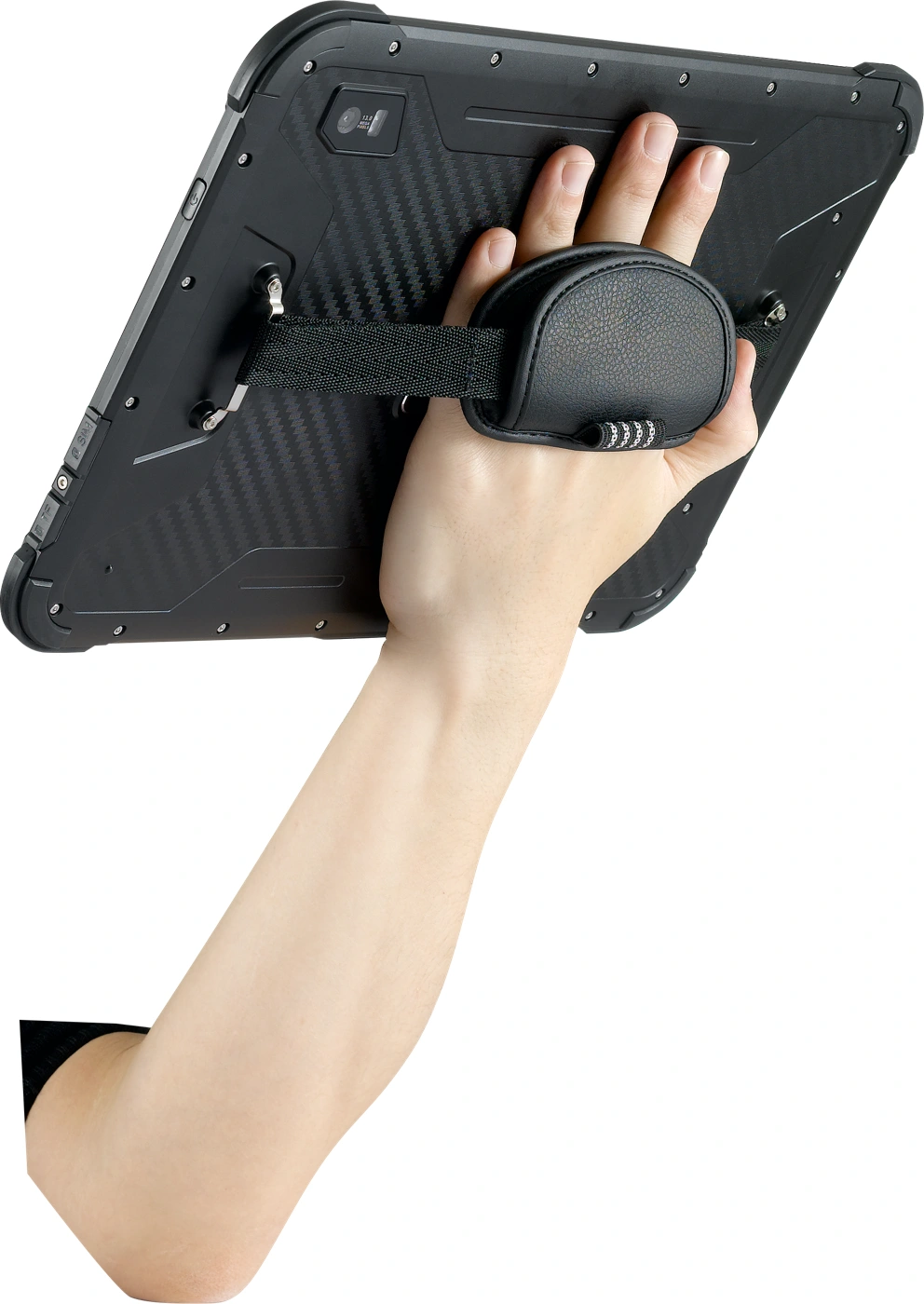

Handheld operation
Industry interface illustration · software and device configuration depend on the project · select an image to enlarge
01 / APPLICATION FIT
Match the terminal to your workflow.
For industry software providers, integrators and device brands: define the device build around peripheral protocols, power, application workloads and capture requirements.
Asset inspection & field records
Industry software & OEM / ODM integration
Configure the terminal around field interfaces and workflows.
S101 combines a 10.1-inch 1920×1200 display, a 14600mAh battery and 4G connectivity with two USB Type-A Host ports, Type-C, RS232 and one GPIO. Review system compatibility for instruments, field records and industry applications, with optional G2010 fingerprint and NFC expansion for identity capture. Validate charging stations, handling and workflows before project deployment.
02 / ONE PLATFORM, APPLICATION CONFIGURATIONS
Choose the capture configuration for the task.
Compare S101 industrial integration and B102 fingerprint identity capture. Choose around display brightness, memory, storage, interfaces and capture workflows.

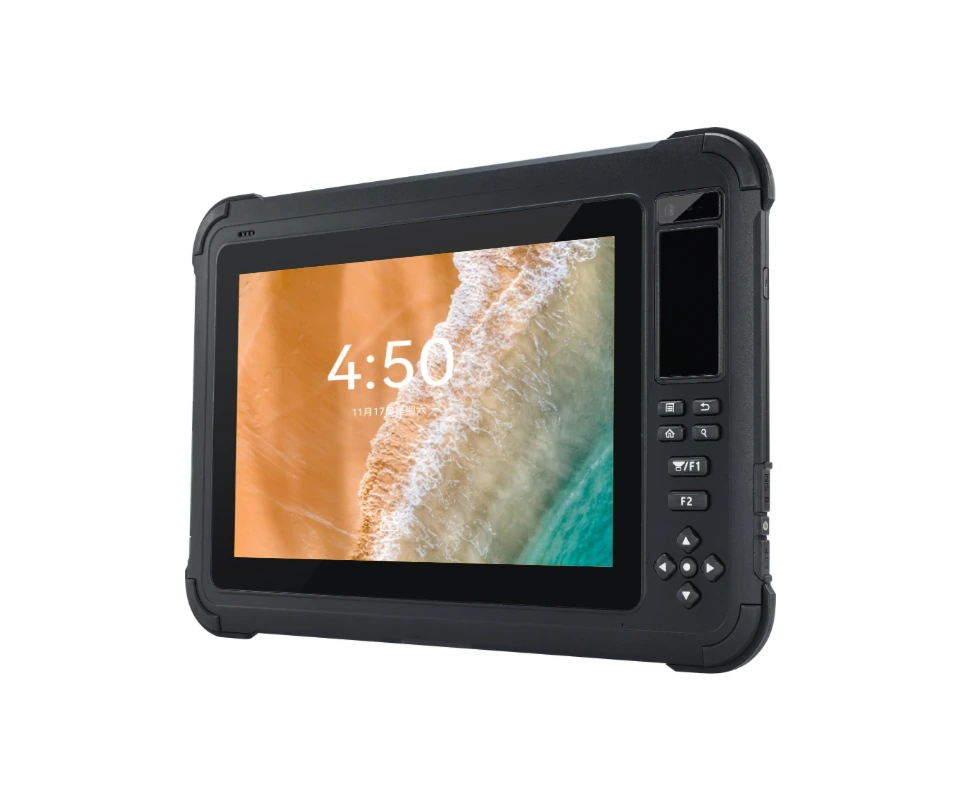

Peripheral integration / optional fingerprint & NFCS101
10.1-inch industrial tablet platform
6GB / 64GB · 4G LTEView specifications & applications ↗

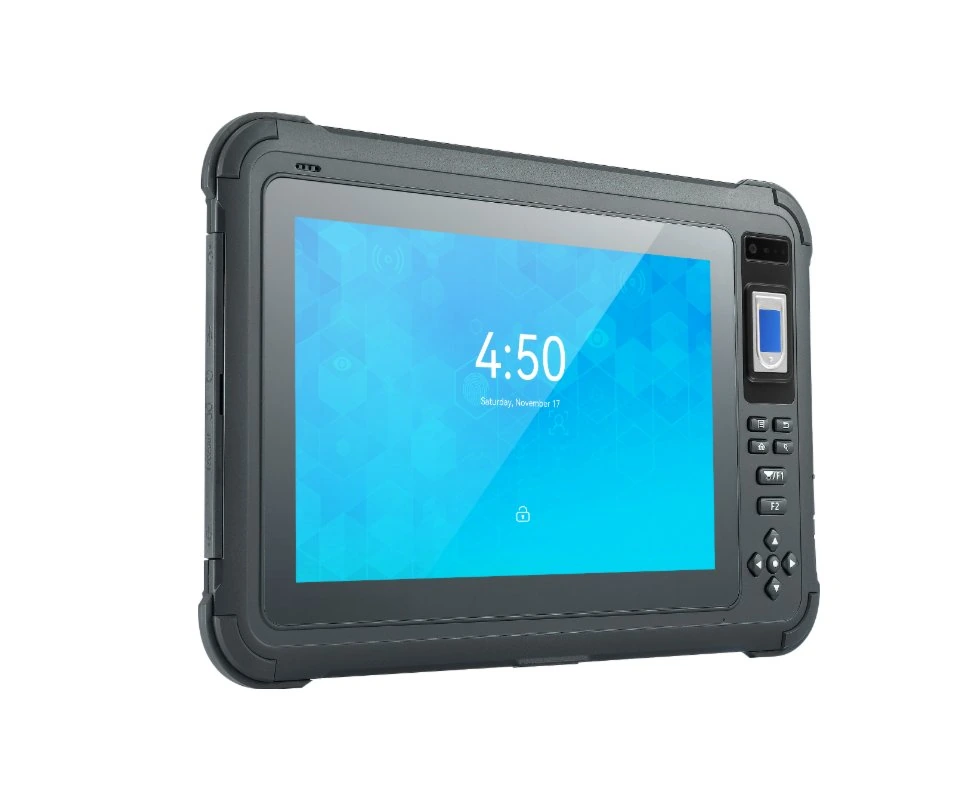

G2010 fingerprint + NFCB102
10.1-inch fingerprint & NFC identity capture tablet
8GB / 128GB · 4G LTEView specifications & applications ↗| Selection criteria | S101 | B102 |
|---|---|---|
| Capture & application | Peripheral integration / optional fingerprint & NFC | G2010 fingerprint + NFC |
| Display brightness | 450nit | 500nit |
| RAM / storage | 6GB / 64GB | 8GB / 128GB |
| OS versions & compatibility | Android 9/10/11/13 (Continuous updates) | Android 9/10/11/13 (Continuous Update) |
| Data interface | USB Type-A (Host)*2 , Type-C*1 | USB Type-A (Host)*2, Type-C*1 |
| Expandable storage | Micro SD card (T-FLASH card), Max 1TB | Micro SD card (T-FLASH card), Max 2TB |
| Ordering & configuration | Confirm modules & project configuration | 05121064 |
Fingerprint and NFC are optional expansions on S101; B102 provides the corresponding identity-capture configuration. Check display brightness, memory, expandable storage and modules for the selected model.
03 / CAPTURE & INTEGRATION
Connect business data through peripherals and capture.
Review interface protocols, capture workflows and business-system integration for RS232, USB Host, GPIO, fingerprints and NFC.
| Protocol standards | ISO14443A/B, ISO15693, NFC |
|---|---|
| Tag standards | M1(S50, S70), CPU, NFC |
| Read/write distance | 2-5cm |
| Fingerprint module | G2010 |
| Grayscale | 32768 |
| Module capture specifications | FAP10, 508 dpi, 8 bit, 256X360 |
| Module documentation entries | FBI MINEX III (NIST Certification); RoHS Certification |
G2010 capture specifications and certification entries apply to the specific module and algorithm, and do not establish equivalent certification of the tablet or enrolment system. Review component versions, image and template formats, SDK and workflows against project requirements. The specified NFC reading distance is 2–5cm; validate results using real credentials and tags.
Validate capture & interfaces
Share credential and fingerprint samples, peripheral protocols and target workflows.
Integrate business applications
Confirm Android versions, application deployment, module access, offline workflows and data transfer.
Review power & accessories
Review shifts, charging, grips, straps and optional modules, then validate the complete configuration.
04 / MODEL-SPECIFIC SPECIFICATIONS
S101 technical specifications
Review hardware, software, interfaces and environmental specifications for the selected model. OS and module combinations are confirmed for the delivery configuration.
Hardware & display
| CPU | ARM Cortex A73 octa-core (2.0GHz) |
|---|---|
| GPU | ARM Mali-G72 MP3 |
| RAM | 6GB |
| Internal Memory | 64GB |
| External Memory | Micro SD card (T-FLASH card), Max 1TB |
| Main Camera | 13.0MP (AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
Communications & connectivity
| Phone Call | GSM/WCDMA/VoLTE |
|---|---|
| 2G | GSM/EDGE/GPRS/WAP |
| 2G Band | GSM（B2/3/5/8） |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps) |
| 3G Band | WCDMA (B1/2/5/8) |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps , 50Mbps up |
| 4G Band | TD-LTE（B38/39/40/41); FDD LTE（B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B28) |
| WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| BT | 5.0 Low Energy (LE) |
Interfaces, sensors & positioning
| SIM Card | 1.8/3.3V SIM card |
|---|---|
| TF Card | Micro SD card (T-FLASH card), Max 1TB |
| Headphone | 3.5mm (CTIA） |
| Charging Interface | Type-C & 8pin pogo pin (magnetic) & DC 5V (direct battery charging) |
| Data Interface | USB Type-A (Host)*2 , Type-C*1 |
| RS232 | Uses 5pin micro USB interface, including one GPIO port |
| Gravity Sensor | support |
| Magnetic Field Sensor | support |
| Motion Sensor | support |
| Gyroscope Sensor | support |
| Light-Sensor | support |
| Acceleration Sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Mechanical design
| Size | 320*217*13mm（L×W×H） |
|---|---|
| Weight | 975g |
| Color & Material | Black (ABS+PC+TPU) |
Environment & reliability
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
|---|---|
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>5000h；MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% (95%RH, non-condensing) |
| Operating Altitude | Max: 4,500m (15,000 feet) |
OS & service
| OS | Android 9/10/11/13 (Continuous updates) |
|---|---|
| Warranty | 24 Months (12-month Battery Warranty) |
05 / RESOURCES & DELIVERY
From selection to project delivery.
Download the selected model documentation, then review software, modules, tags, accessories and deployment volume with SOTEN.
PDF / S101S101 technical datasheetHardware · interfaces · capture modules · environmentV2.0 ↗OEM / ODMEngineering & project integrationSystem integration · modules · sample validationExplore engineering ↗
Define the workflow
Deployment regions, workflow, operating conditions and business software.
Validate modules & integration
Real labels, interface protocols, OS versions and device accessories.
Confirm build & delivery
Exact model, configuration list, volume, testing and rollout schedule.
S101 selection & system integration
Assess S101 by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
For: Industry software providers, system integrators and device brands
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
