H72-5G-M60
Android 14 / 15; GMS-certified configurations
Evaluate connected dispatch, maps and industry applications with dual-frequency positioning and Wi-Fi 6.
Enquire about this platform ↗HUGEROCK / T-SMART PLATFORM
H72Rugged Tablet & Vehicle Display Platform
A 7-inch rugged terminal platform for industry software providers, system integrators and device brands. Connect mobile workflows with a 2200-nit display, 10000mAh removable battery, NFC and M8 RS232, with computing matched to connectivity, positioning and OS needs.
7″ / 2200 nits10000mAhIP68 / IK05NFC / M8 RS232
Industry application interface illustration

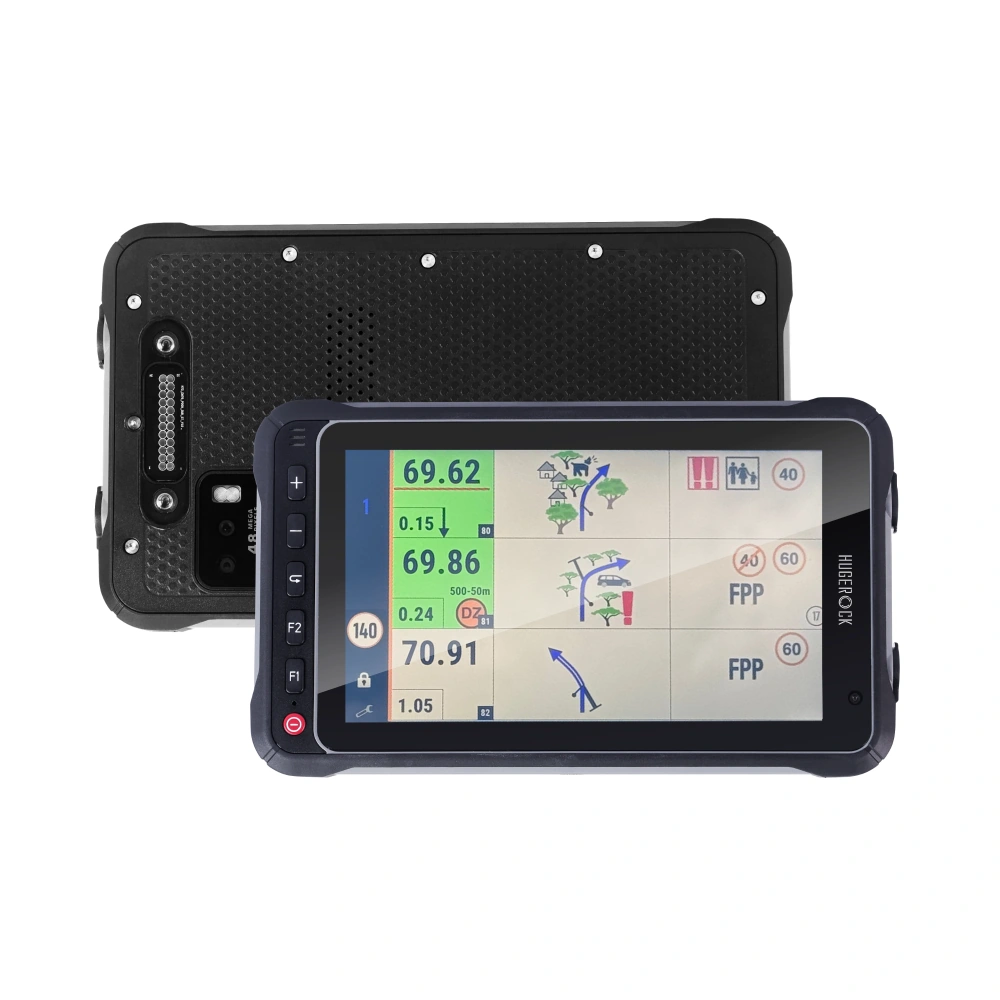

Front & rear

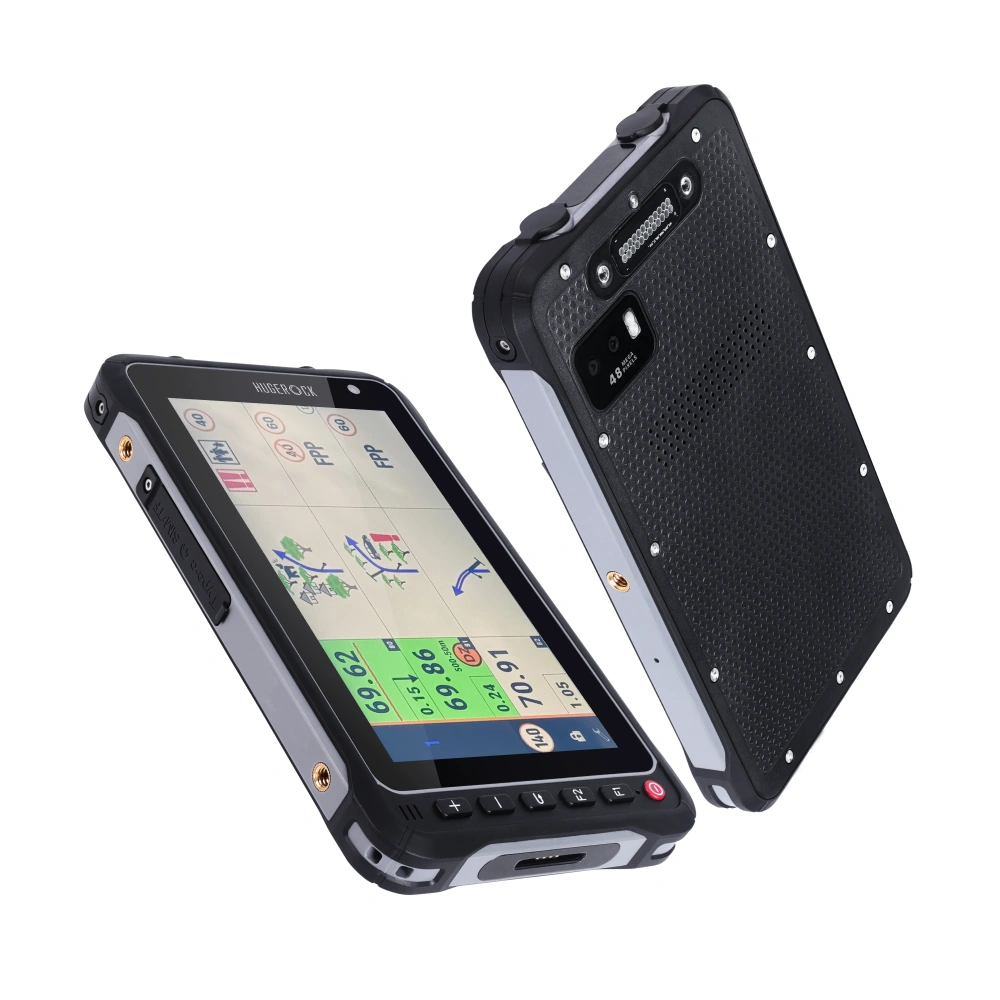

Multiple device angles

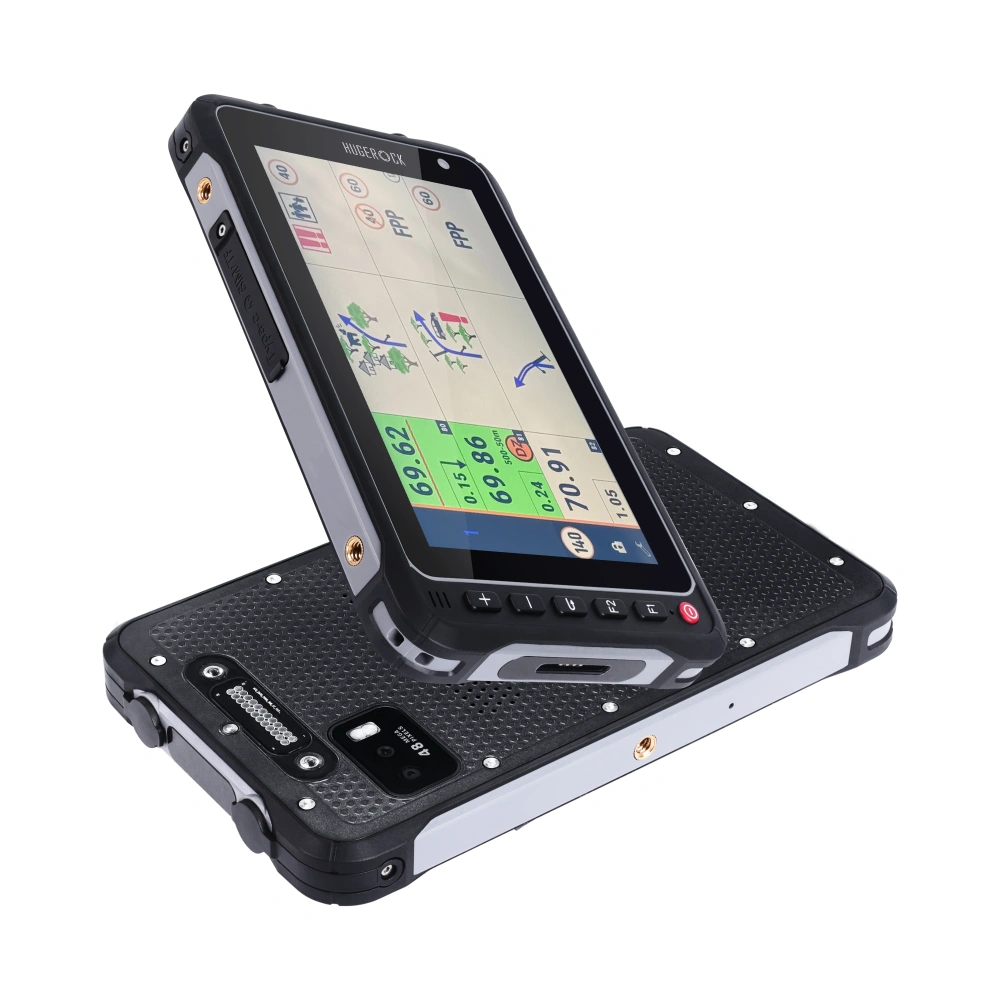

Paired device views

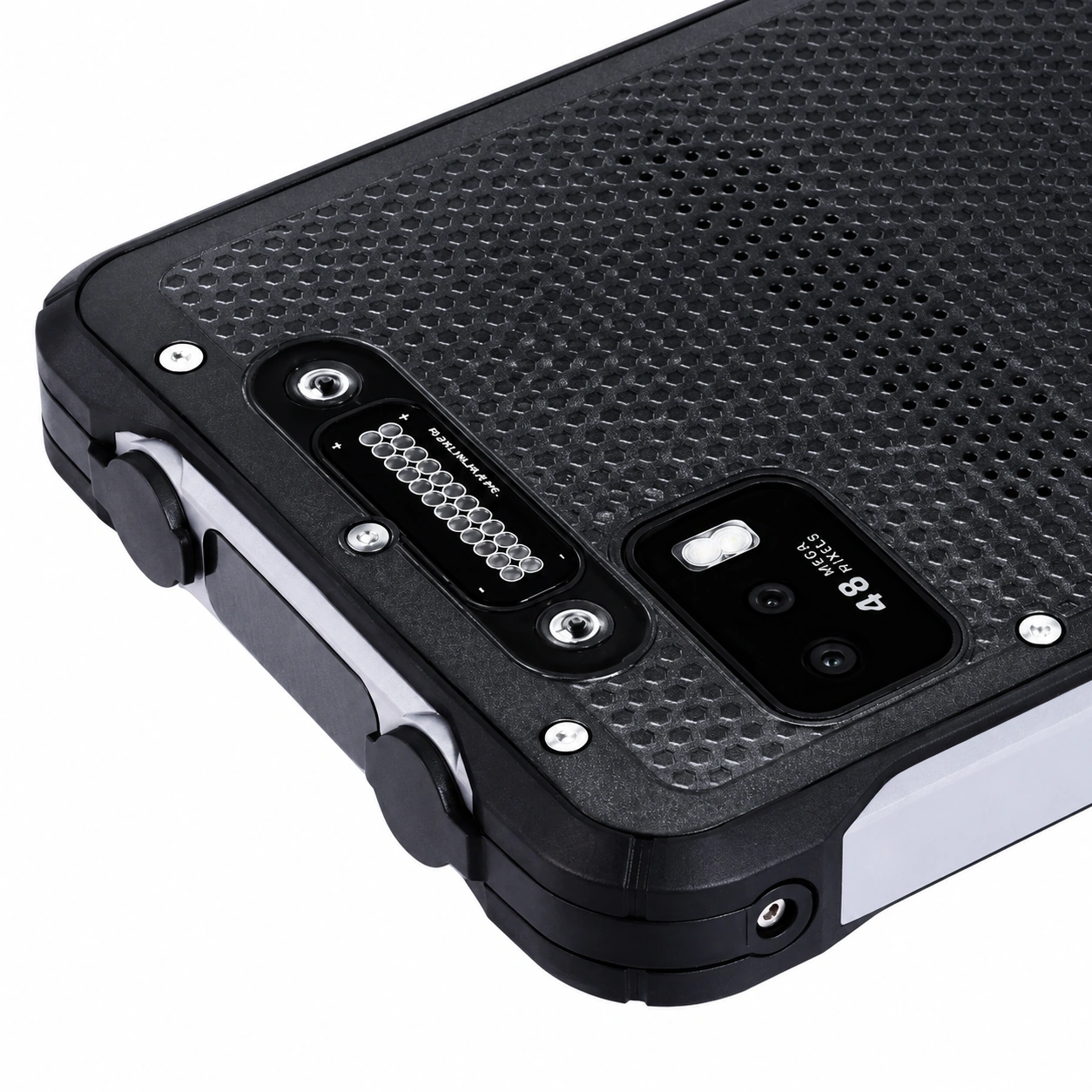

Rear expansion interface

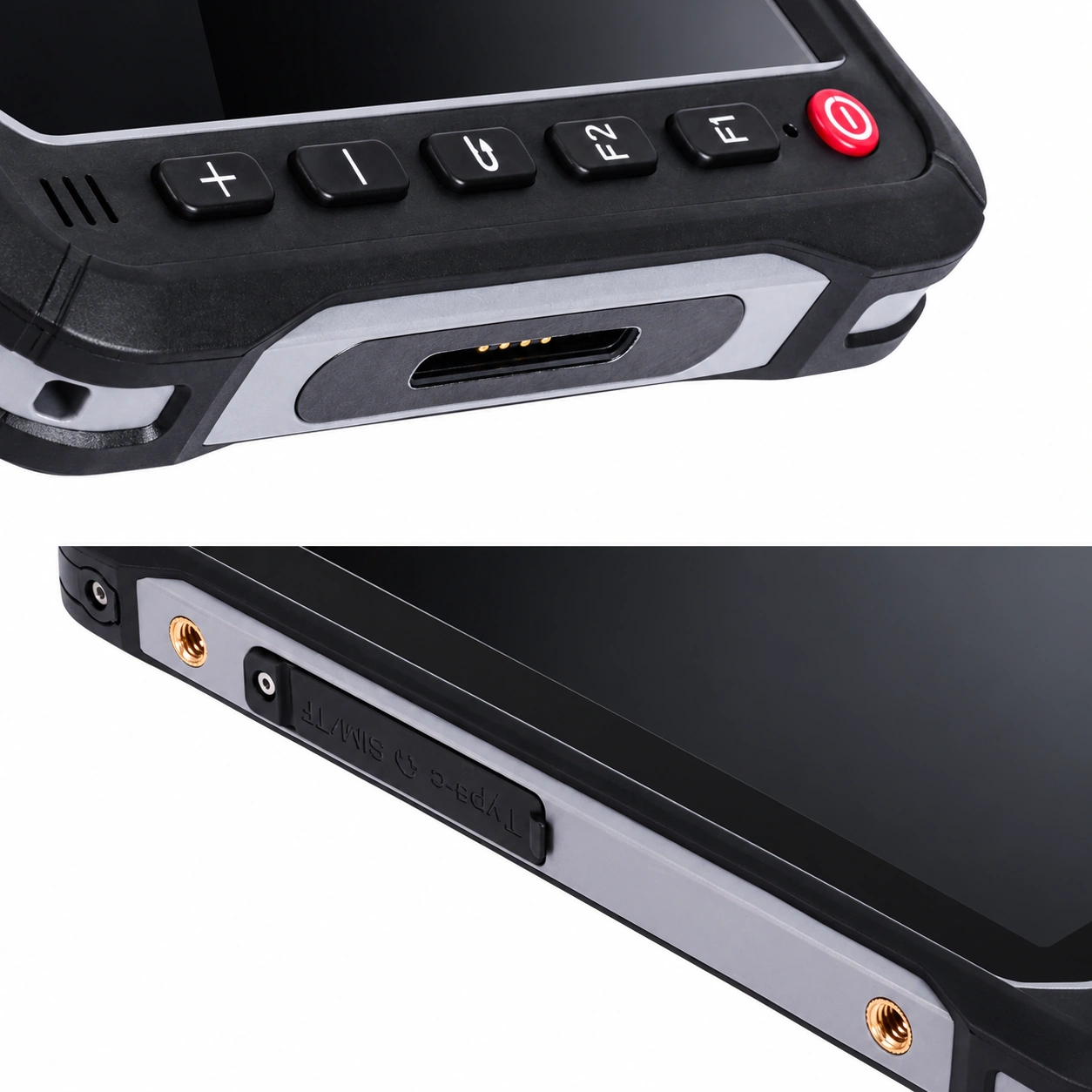

Controls & side ports
Industry interface illustration · software and device configuration depend on the project · select an image to enlarge
01 / FIELD APPLICATIONS
Clearer fieldwork. Connected business data.
Match industry software, mounting and rollout requirements around a large display, field capture and system integration.
Vehicle dispatch & mobile control
For fleet-platform providers, system integrators and equipment partners, a high-brightness display brings maps, tasks and work information to the field. Review 4G / 5G, positioning, M8 RS232, mounting and power together for business integration.
Inspection & equipment connectivity
Link equipment to work orders through NFC, then connect image records, mobile connectivity and industrial serial interfaces to existing applications. Validate tags, protocols and operating conditions with samples.
Industry products & brand customization
Define OS, peripheral protocols, mounting, branding and volume for your device project. For off-road and rally navigation, evaluate the H72-derived X72 standard product against its own specifications and accessories.
H72 PLATFORM / X72 STANDARD PRODUCT
X72 · off-road & rally navigation
A market-ready product derived from H72 for roadbooks, off-road navigation and equipment channels. Select against X72 display, OS, regional and accessory specifications.
Explore the X72 standard product ↗02 / COMPUTING & OS
Two configurations for your software ecosystem.
Compare OS versions, connectivity, processing and peripherals for existing applications or new project deployments.
H72-4G-M50
Android 15; GMS certified
Match inspection, task handling and equipment connectivity over 4G to your existing enterprise software.
Enquire about this platform ↗| Configuration | H72-5G-M60 | H72-4G-M50 |
|---|---|---|
| Processor | MediaTek Kompanio 900T (MTK8791) · Octa-core · up to 2.4GHz · 6nm | MediaTek Helio G99 (MTK8781) · Octa-core · up to 2.2GHz · 6nm |
| Graphics | ARM G68 MC4 | Arm Mali-G57 @ 850MHz |
| AI processing | APU 3.0 (2.6T) | / |
| Memory / storage | 8GB LPDDR4 / 256GB UFS | 8GB LPDDR4 / 256GB UFS |
| Display | 7-inch / 1080×1920 FHD / 2200 nits | 7-inch / 1080×1920 FHD / 2200 nits |
| Cameras | 48MP + 5MP / Front 8MP | 48MP + 5MP / Front 8MP |
| Positioning | L1+L5 GPS / BeiDou / GLONASS / Galileo / QZSS dual-frequency positioning | GPS / BeiDou / GLONASS / Galileo / QZSS single-frequency positioning |
| Wi-Fi / Bluetooth | Wi-Fi 6 2×2 / 802.11a/b/g/n/ac/ax / Bluetooth 5.2 LE | Wi-Fi 2.4/5GHz / 802.11a/b/g/n/ac / Bluetooth 5.2 LE |
| Data ports | Type-C (OTG) ×1 / M8 RS232 / 24PIN magnetic connector | Type-C (OTG) ×1 / M8 RS232 / 24PIN magnetic connector |
| Charging & power | Type-C PD 18W / 4PIN 5V 2A / 24PIN 12V 1.5A | Type-C PD 18W / 4PIN 5V 2A / 24PIN 12V 1.5A |
| OS versions & compatibility | Android 14 / 15; GMS-certified configurations | Android 15; GMS certified |
Match the OS to your application
M60 offers Android 14 / 15 configurations and M50 offers Android 15 for the GMS application ecosystem. Specify existing software dependencies, Google services and peripheral protocols for compatibility validation.
03 / CAPTURE & INTEGRATION
From equipment interfaces to field workflows.
Define how software, peripherals and the terminal work together around identification, industrial interfaces, mounting and power.
01 / NFC
13.56MHz NFC
Use read/write, card emulation and peer-to-peer modes. Review asset identification, work orders and data integration against tag protocols and 20–50mm interaction distance.
02 / M8 & DATA
M8 / RS232
Review peripheral protocols, wiring and mounting around M8 DC power and RS232, Type-C OTG and the 24PIN magnetic interface.
03 / POWER & MOUNTING
Power & mounting
Validate Type-C PD 18W, 4PIN 5V 2A and 24PIN 12V 1.5A power configurations with quarter-inch mounting points and the vehicle environment.
View NFC specifications ＋
| NFC module P/N | 01250227 |
|---|---|
| NFC frequency | 13.56MHz |
| NFC interaction distance | 20–50mm |
| NFC modes | Read/write / card emulation / peer-to-peer |
| NFC RF protocols | ISO/IEC 14443A/B / ISO/IEC 15693 / ISO/IEC 18092 / NFC Forum |
04 / TECHNICAL DOCUMENTATION
Match field requirements to the specification.
Review the device, display, battery and environmental specifications, then compare camera, connectivity, positioning and OS by computing platform.
| Display | 7-inch / 1080×1920 FHD / 2200 nits |
|---|---|
| Touch | Capacitive; glove-touch; anti-fog |
| Battery | 10000mAh removable battery |
| Rear camera | 48MP AF + 5MP / electronic flash |
| Front camera | 8MP |
| Expandable memory | microSD, up to 2TB |
| Card slots | Dual Nano SIM or Nano SIM + microSD |
| M8 interface | DC power / RS232 serial |
| Charging & power | Type-C PD 18W / 4PIN 5V 2A / 24PIN 12V 1.5A |
| Dimensions | 213 × 126 × 22mm |
| Weight | 660g |
| Water/dust resistance | IP68 (IEC 60529) |
| Drop / impact | MIL-STD-810 (1.5m) / IK05 |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Vibration | 1–19Hz: 1.0mm / 19–200Hz: 1.0g |
| MTBF / MTTR | >5000h / <0.5h |
| Humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Certification | 3C / FCC / CE / ROHS / IP68 |
| Warranty | Device: 24 months; battery: 12 months |
H72 industrial configurations and the X72 standard product have separate specification scopes. Review the exact product and configuration.
Expand full specifications & platform comparison ＋
The device specification image describes the M60 configuration. Use the platform comparison to review your selected model. Select an image to enlarge.
05 / CONFIGURATION & ORDERING
Define your configuration around the deployment.
Choose computing and application requirements, then review OS versions, interfaces, accessories and volume for configuration and ordering guidance.
Enquire about this configuration ↗
Choose computing and application options to review OS, interfaces and accessories with our engineering team.
| Computing platform | Order number |
|---|---|
| H72-5G-M60 | 05121203 |
| H72-4G-M50 | 05121204 |
These codes describe 8GB+256GB, gray/black, 1080×1920, 2200-nit NFC configurations. Confirm OS, interfaces, accessories and volume for ordering.
06 / VALIDATION & DELIVERY
Align technical, quality and procurement decisions.
Define validation and delivery requirements across software integration, operating conditions and purchasing plans.
Technical & software
Review OS, SDKs, capture protocols, network bands and application compatibility, then validate samples with business software.
Mounting & quality
Confirm installation space, power, peripherals and operating conditions, and review model-specific test and certification documentation.
Procurement & support
Confirm configuration, volume, lead time, warranty and repair scope for sample evaluation and rollout planning.
LET’S ENGINEER YOUR PROJECT
Tell us what your fieldwork needs.
Share deployment countries, business software, connectivity and GNSS needs, peripheral interfaces, mounting, power and expected volume for configuration and sample validation.
H72 selection & system integration
Assess H72 by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
For: Industry software providers, system integrators and device brands
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
