Inspection & asset management
Use NFC, barcodes and image records to identify equipment, link work orders and record findings for maintenance workflows.
HUGEROCK / H-SMART PLATFORM
H616.3-inch Rugged Data Capture Handheld
A 6.3-inch rugged handheld platform for software providers, system integrators and device brands. Connect field workflows through NFC, E20 barcode capture, mobile connectivity and positioning, with computing configurations matched to your market, OS and application.
6.3″ OLED4800mAh300gNFC / E20
Industry application interface illustration

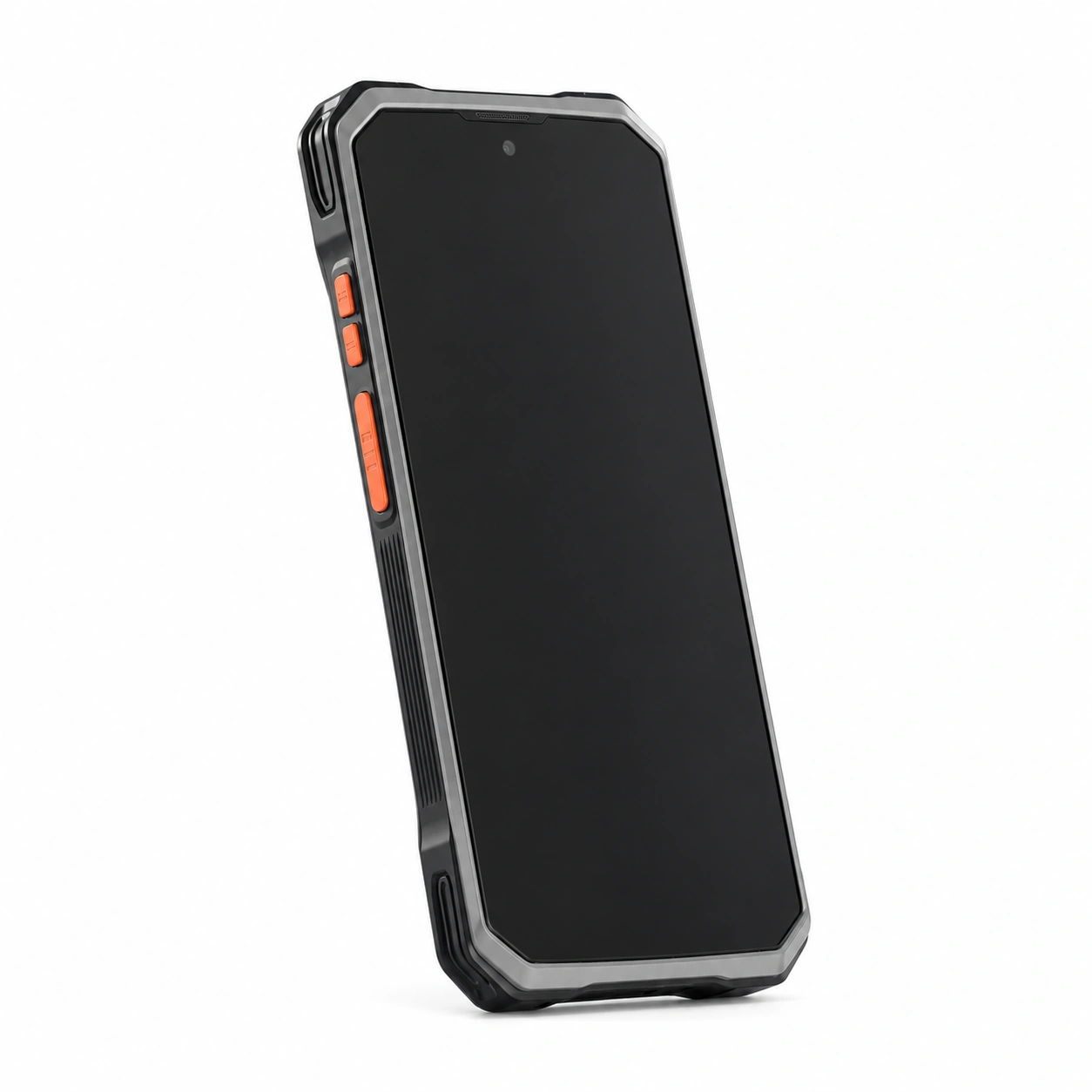

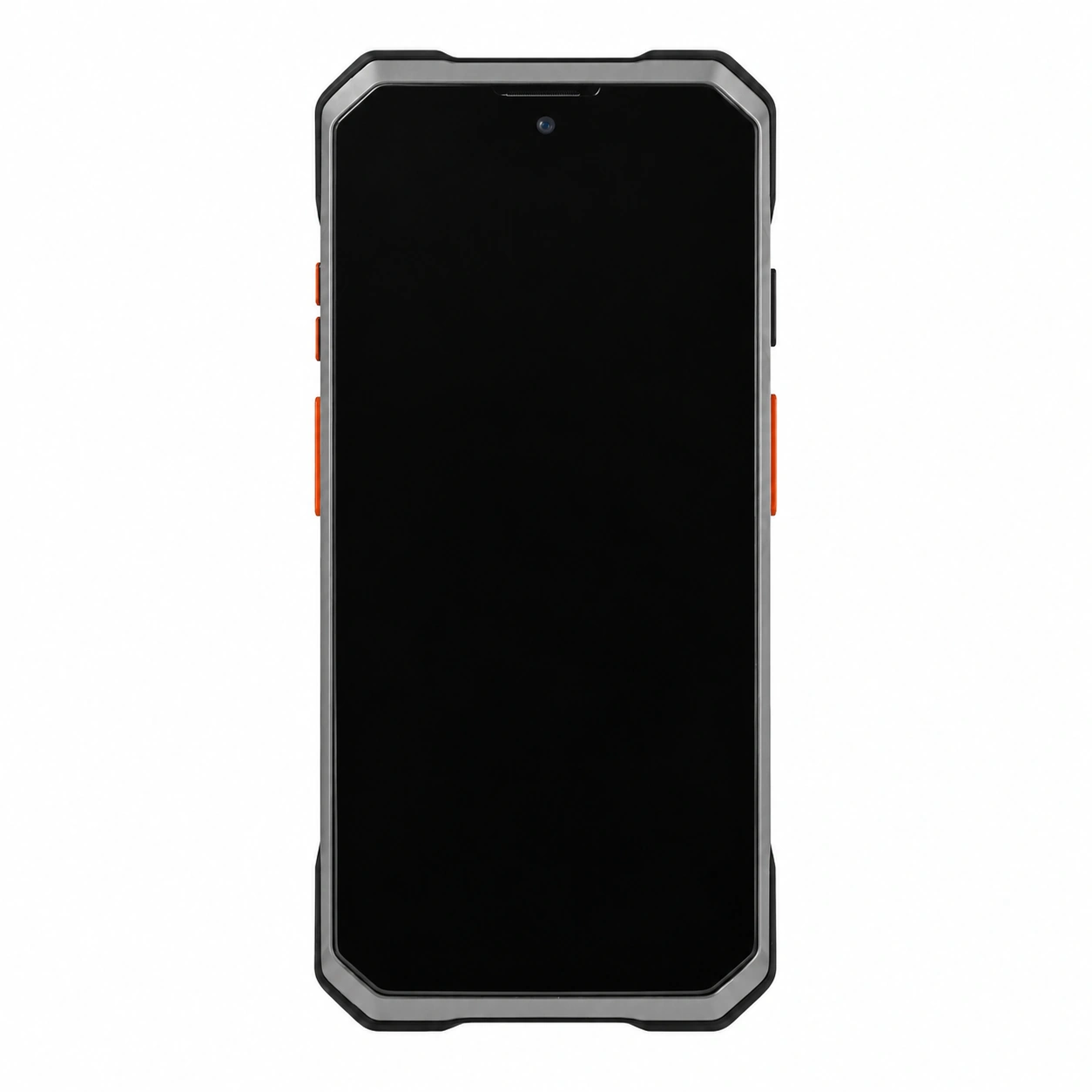

Front design

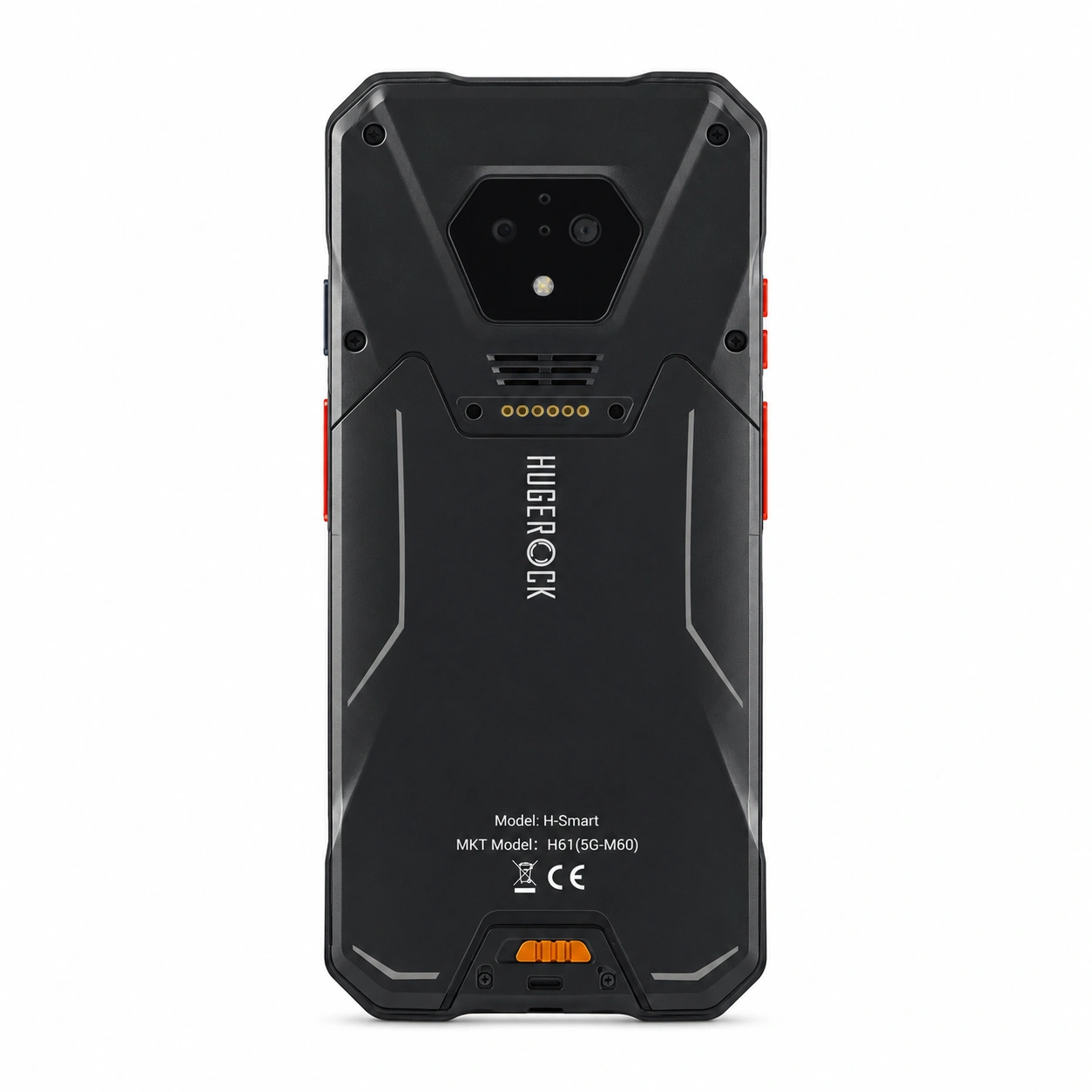

Rear design
Side controls

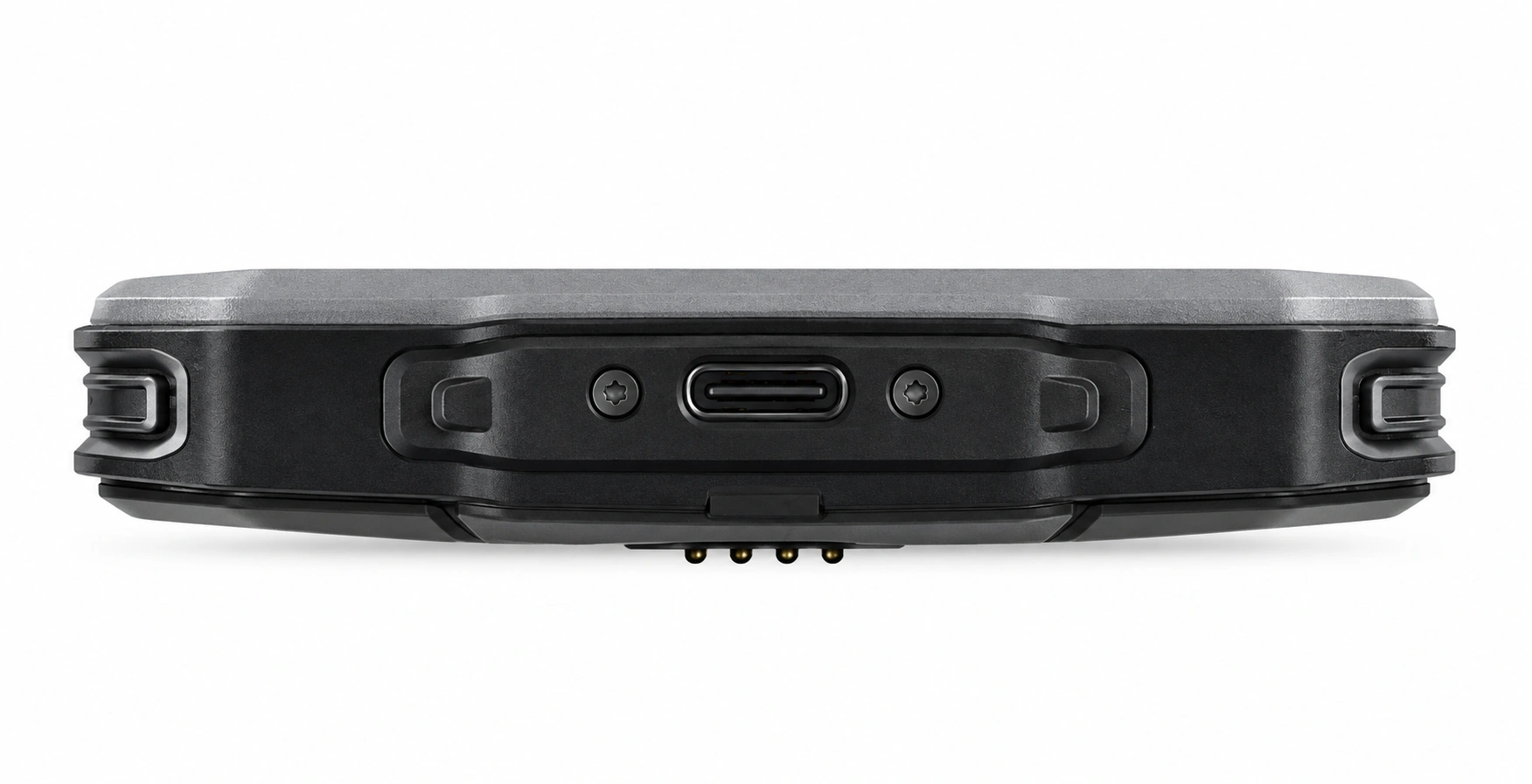

Bottom interfaces

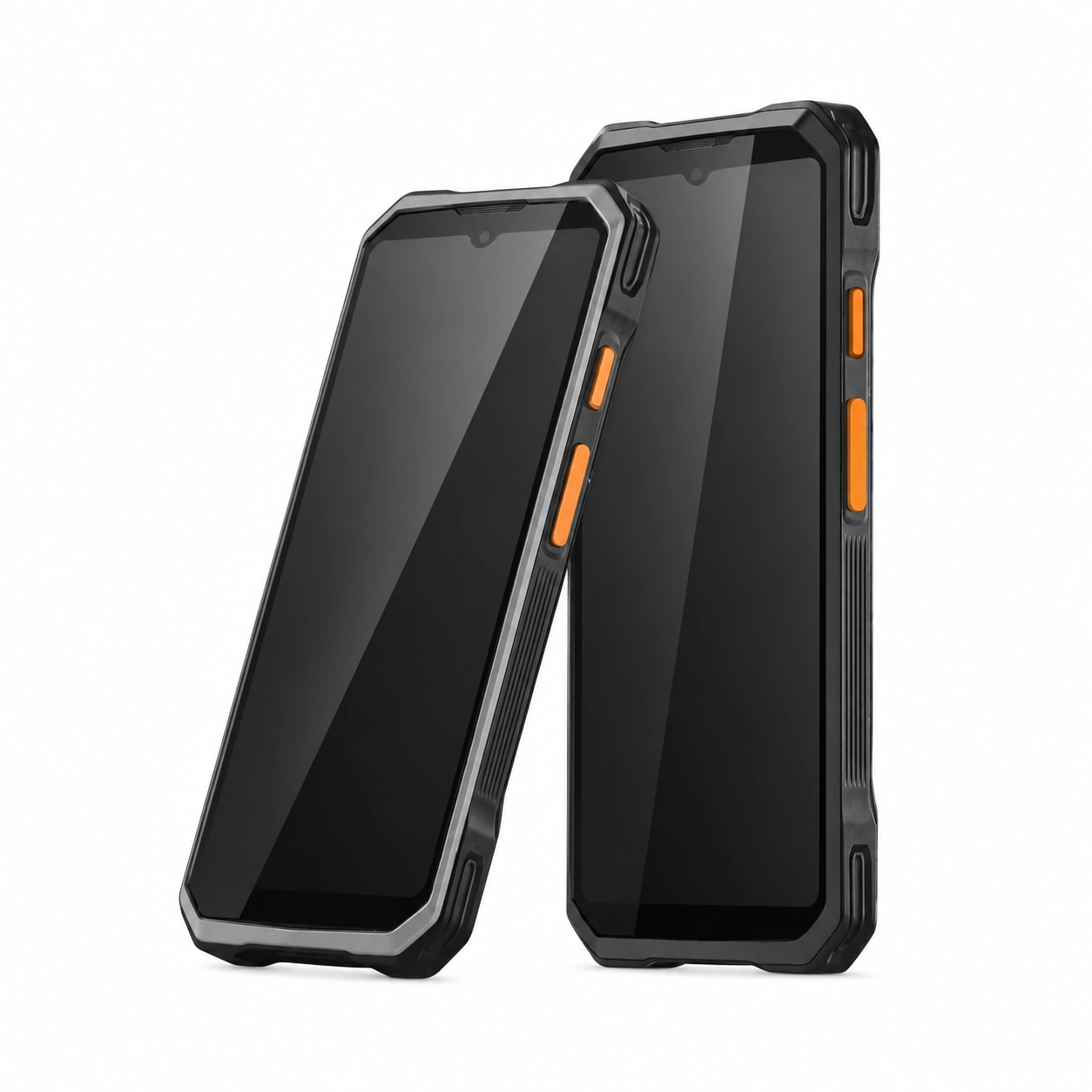

Paired front views
Industry interface illustration · software and device configuration depend on the project · select an image to enlarge
01 / FIELD APPLICATIONS
Start with the task. Find the right configuration.
Choose a handheld platform for industry software, system integration and project deployment around capture requirements, connectivity and system interfaces.
Warehouse & mobile operations
Connect receiving, picking, stocktaking and handover records to your existing business software.
Field service & industry applications
Combine mobile connectivity and positioning for site visits, task execution and service records, with computing matched to regional and software needs.
Industrial capture & mobility
Select U62, M60 or M50 computing, OS, connectivity and interfaces to fit business software and workflows.
Compare configurations ↗Explosion-proof & hazardous-area applications
Review device, module, accessory and site-entry requirements for oil, gas, petrochemical and hazardous-area inspection.
Explore H61 ATEX ↗02 / COMPUTING & OS
Choose computing that fits your application ecosystem.
Compare connectivity, processing, positioning, interfaces and OS versions for existing software deployments and new projects.
H61-5G-M60
Android 14 / 15 / 16; GMS-certified configurations
Choose the Android version required by your business software for global mobile workflows and the Google application ecosystem.
Enquire about this platform ↗H61-4G-M50
Android 15 / 16; GMS-certified configurations
Connect barcode capture, warehouse operations and field service to existing business systems over 4G.
Enquire about this platform ↗H61-5G-U62
Android 13 / Harmony 4.1 / OpenHarmony 6.0 / Starlight Kylin
Match industry software, domestic OS deployment and field data processing to your edge-computing requirements.
Enquire about this platform ↗| Configuration | H61-5G-M60 | H61-4G-M50 | H61-5G-U62 |
|---|---|---|---|
| Processor | MediaTek Kompanio 900T · Octa-core · up to 2.6GHz · 6nm | MediaTek Helio G99 · Octa-core · up to 2.2GHz · 6nm | UNISOC UIS7885 · Octa-core · 6nm · up to 2.7GHz |
| AI processing | APU 3.0 (2.6T) | / | 8 TOPS IMG AX3596, 988MHz |
| Memory / storage | 8GB LPDDR4 / 256GB UFS | 8GB LPDDR4 / 256GB UFS | 8GB LPDDR4 / 256GB UFS |
| Display | 6.3-inch OLED / 1080×2340 / 500 nits | 6.3-inch OLED / 1080×2340 / 500 nits | 6.3-inch OLED / 1080×2340 / 500 nits |
| Positioning | L1+L5 GPS / BeiDou / GLONASS / Galileo / QZSS dual-frequency positioning | GPS / BeiDou / GLONASS / Galileo / QZSS single-frequency positioning | GPS / BeiDou / GLONASS / AGPS / SBAS |
| Data ports | USB 3.0 Type-C (OTG) ×1 | Type-C (OTG) ×1 | USB 3.2 Gen 2 Type-C / USB & DP / Type-C (OTG) ×1 |
| OS versions & compatibility | Android 14 / 15 / 16; GMS-certified configurations | Android 15 / 16; GMS-certified configurations | Android 13 / Harmony 4.1 / OpenHarmony 6.0 / Starlight Kylin |
Select your OS configuration
M60 offers Android 14, 15 and 16; M50 offers Android 15 and 16. U62 supports Android 13, Harmony 4.1, OpenHarmony 6.0 and Starlight Kylin configurations. Specify your software’s OS, Google service and peripheral-interface requirements in your enquiry.
03 / CAPTURE & INTEGRATION
From physical identification to business data.
Connect equipment, materials and work items through NFC and E20 barcode capture, then integrate connectivity, positioning and development interfaces. Power-button fingerprint unlock supports everyday device access.
01 / NFC
13.56MHz NFC
Review tag protocols, 20–50mm interaction distance, read/write or card-emulation modes and data integration against your workflow.
02 / BARCODE
E20
Capture 1D and 2D barcodes, with sample testing based on symbologies, label materials, working distance and software interfaces.
03 / SDK & SYSTEM
Software & system integration
Confirm OS versions, data protocols, SDKs, network bands and accessories, then validate the delivery configuration with your business software.
View NFC & barcode module specifications ＋
| NFC module P/N | 01250227 |
|---|---|
| NFC frequency | 13.56MHz |
| NFC interaction distance | 20–50mm |
| NFC modes | Read/write / card emulation / peer-to-peer |
| NFC RF protocols | ISO/IEC 14443A/B / ISO/IEC 15693 / ISO/IEC 18092 / NFC Forum |
| Barcode module | E20 · P/N 02690141 |
| 2D barcodes | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin Code, Dotcode, Composite. |
| 1D barcodes | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
| Fingerprint unlock | Power-button fingerprint unlock, built-in motherboard; press-type recognition, pressing depth 0.1cm |
04 / TECHNICAL DOCUMENTATION
Review every detail your field deployment needs.
Review the device, display, battery and environmental specifications, then check connectivity, positioning and OS differences by computing platform.
| Display | 6.3-inch OLED / 1080×2340 FHD+ / 500 nits |
|---|---|
| Battery | 4800mAh removable battery |
| Rear camera | 48MP + 5MP |
| Front camera | 8MP |
| Expandable memory | microSD, up to 2TB |
| Dimensions | 172 × 77 × 17mm (L×W×H) |
| Weight | 300g |
| Water/dust resistance | IP68 (IEC 60529) |
| Drop / impact | MIL-STD-810H (1.8m) / IK07 |
| Operating temperature | -20°C to 55°C |
| Storage temperature | -40°C to 80°C |
| Humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | 4,500m |
| Warranty | Device: 36 months; battery: 12 months |
EN / PDF / V1.6
H61 industrial capture
2026-06-30Download English datasheet ↗EN / PDF / V1.2H61 ATEX configuration
2026-06-30Download English datasheet ↗Expand full specifications & platform comparison ＋

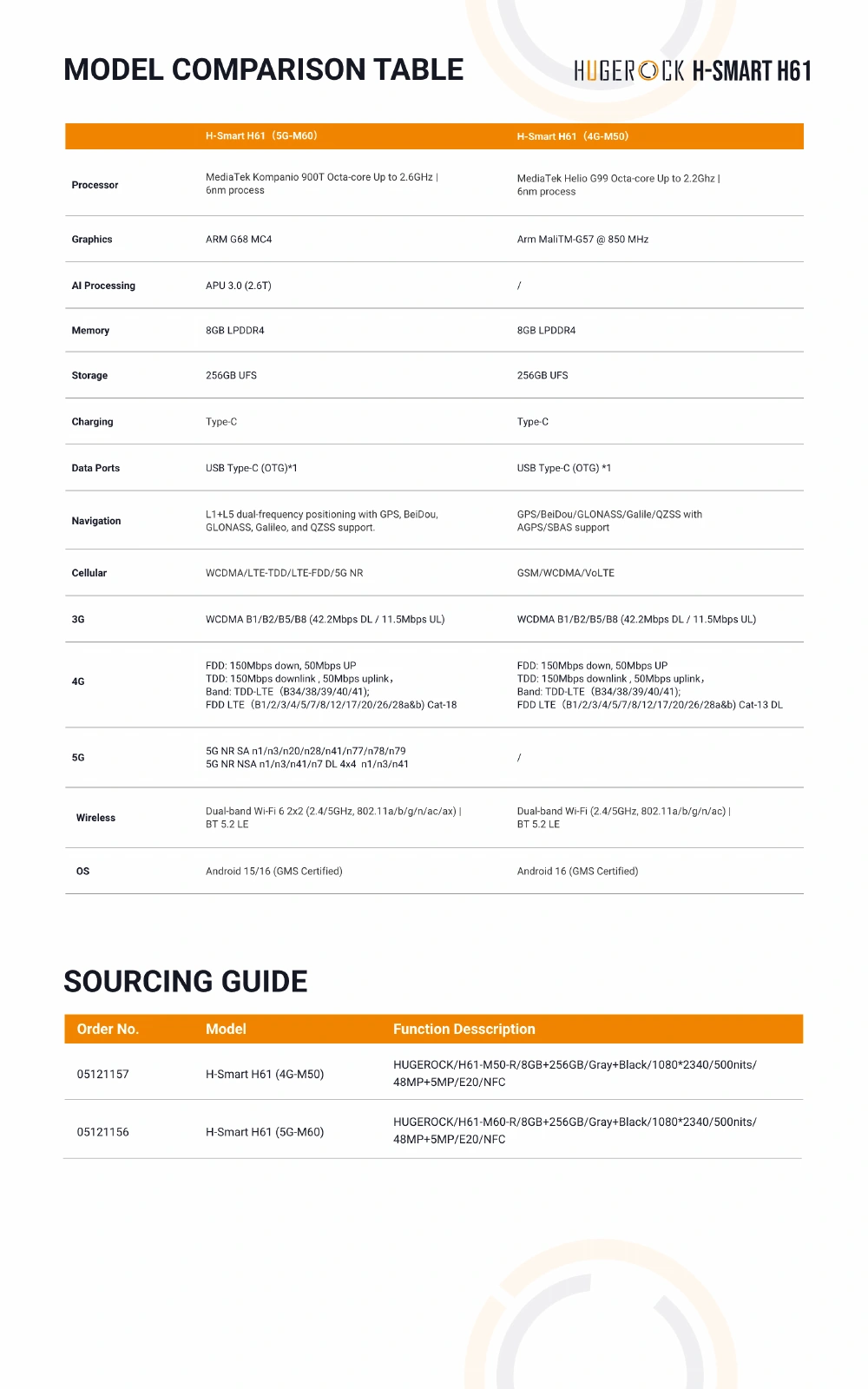

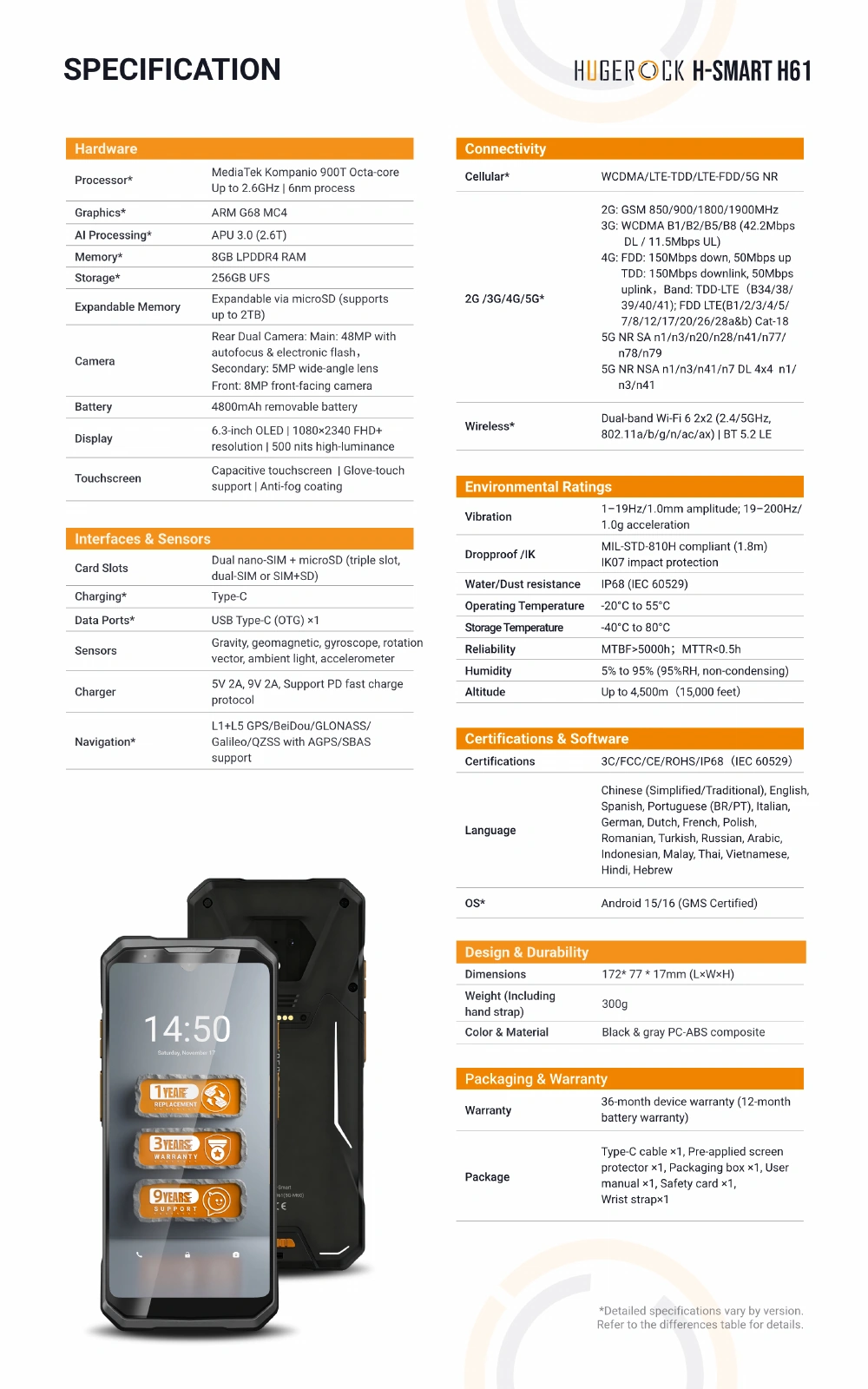

The device specification image describes the M60 configuration. Use the comparison image to review platform differences. Select an image to enlarge.
05 / CONFIGURATION & ORDERING
One platform entry. Your defined configuration.
Select computing and application configuration, then specify OS, modules and volume for configuration and ordering guidance.
Enquire about this configuration ↗
Choose computing and application options to review the configuration with our engineering team.
| Computing platform | Order number |
|---|---|
| H61-5G-U62 | 05121177 |
| H61-5G-M60 | 05121156 |
| H61-4G-M50 | 05121157 |
These codes describe industrial capture configurations with 8GB+256GB, 1080×2340, 500nits, 48+5MP, E20 and NFC. Contact SOTEN for explosion-proof versions and other accessory combinations.
06 / VALIDATION & DELIVERY
Align technical, quality and procurement decisions.
Define validation and delivery requirements across software integration, operating conditions and purchasing plans.
Technical & software
Confirm OS, SDKs, capture protocols, network bands and application compatibility, then validate samples with business software.
Quality & environment
Review model-specific environmental tests, certification and accessory scope, with separate evaluation for hazardous areas.
Procurement & support
Confirm ordering codes, configuration, volume, lead time, warranty and repair scope for rollout planning.
LET’S ENGINEER YOUR PROJECT
Tell us what your fieldwork needs.
Share your application, deployment country, OS version, capture requirements and expected volume for configuration, software integration and sample-validation guidance.
H61 selection & system integration
Assess H61 by environment, applications, capture modules and peripherals. Compare OS, display, power and interfaces using the specifications and original documentation, then agree the delivery configuration.
For: Industry software providers, system integrators and device brands
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
