RK808-inch NFC Workflow Terminal
An 8-inch bright display, 8GB RAM / 128GB storage and NFC read/write for card-based workflows in vehicles, depots and equipment stations.
8″ / 1000 nits8GB / 128GBExternal powerNFC read/write

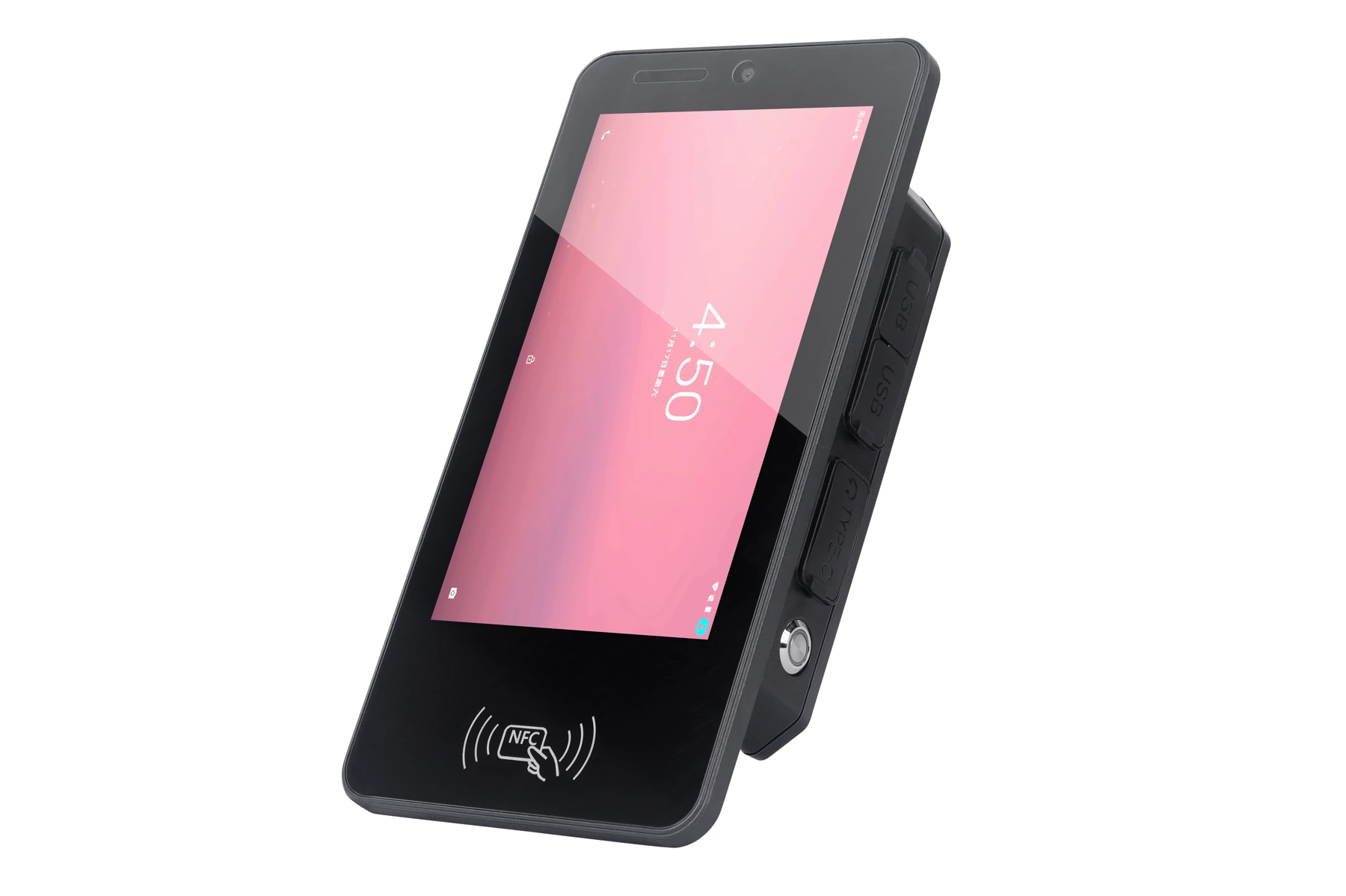

Platform structure reference · Three-quarter view

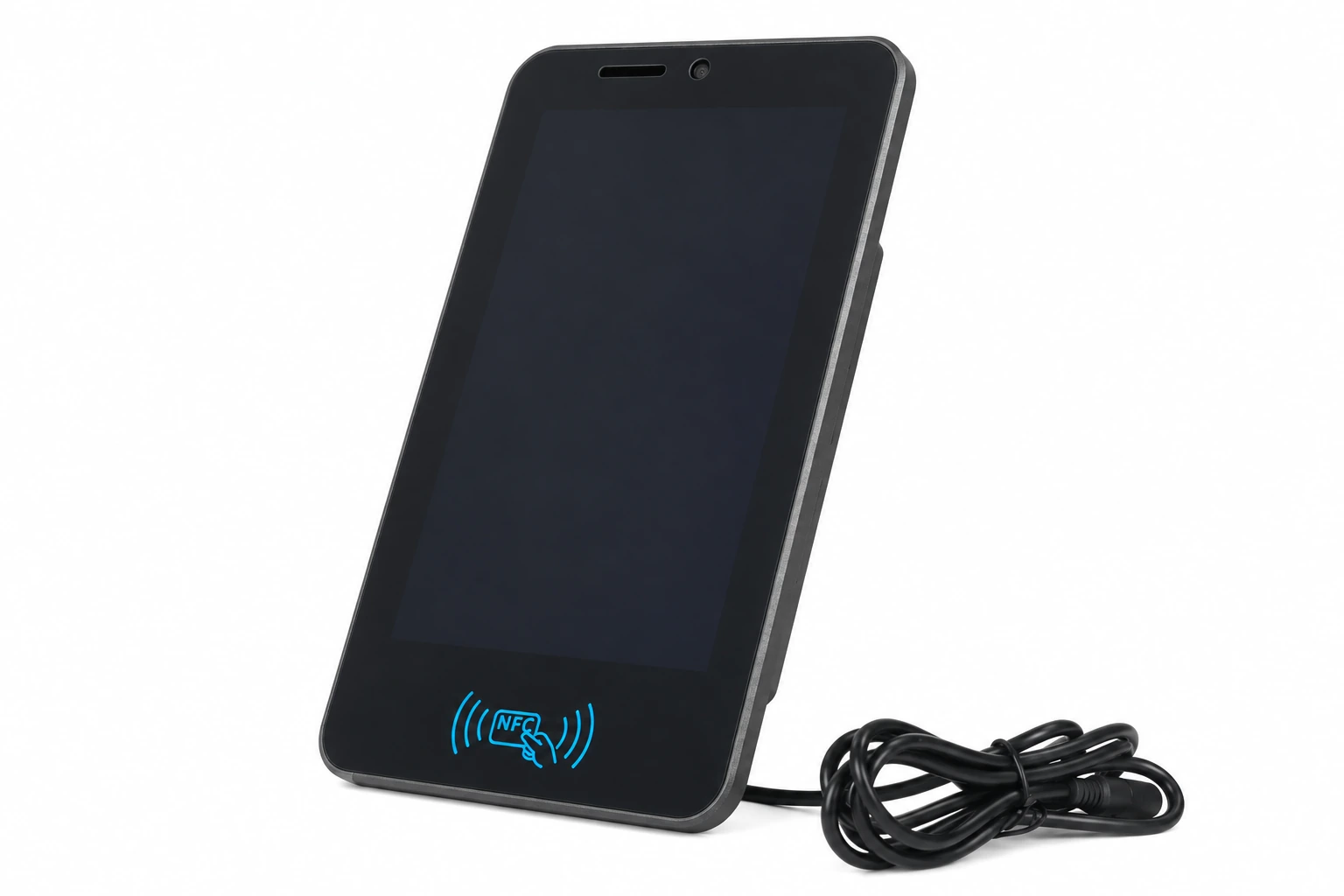

Platform structure reference · Front view

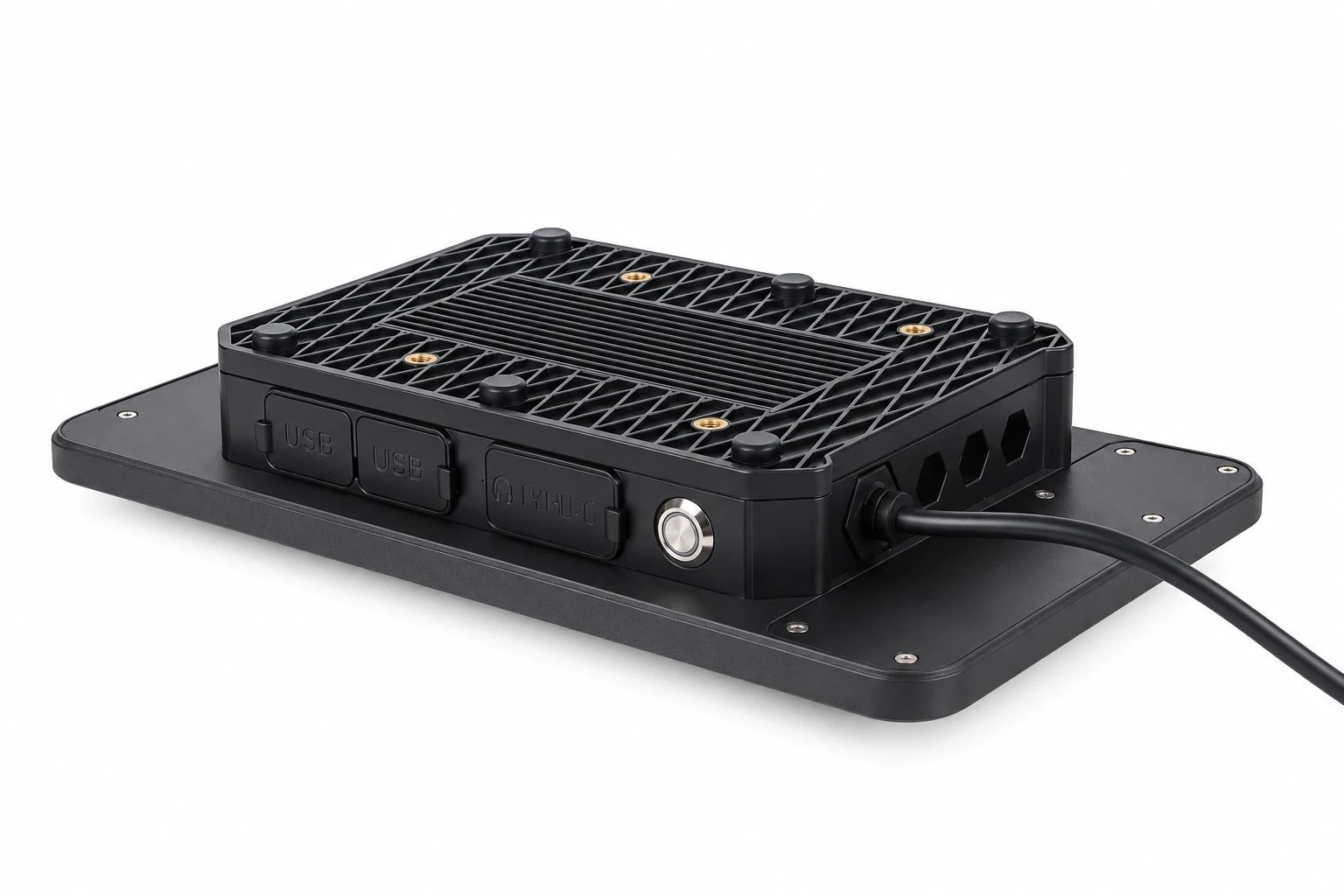

Platform structure reference · Rear & mounting points
Platform structure reference · Interface & expansion area
Platform structure reference · Controls & port covers
Platform structure reference · Rear structure & cabling
Product images · configuration varies by model · select an image to enlarge
01 / APPLICATION FIT
From installation to workflow.
Start with mounting space, power and display requirements, then review OS versions, software, peripheral protocols and modules. Optional functions depend on the delivered configuration.
01 / FIELD WORKFLOW
Personnel cards & workflow registration
02 / FIELD WORKFLOW
Vehicle authorisation & task confirmation
03 / FIELD WORKFLOW
Depot & fixed NFC reader stations
From a card tap to workflow confirmation
An 8-inch bright display, 8GB RAM / 128GB storage and NFC read/write for card-based workflows in vehicles, depots and equipment stations.
For access and attendance software providers, vehicle operators and depot integrators. Match card protocols, permission workflows and system interfaces, then validate reading distance, antenna position and connectivity on samples. Identity and permissions are managed by the connected business system.
02 / MODEL SELECTION
Three display platforms for different workflows.
Start with screen size and installation space, then compare brightness, storage, power, OS versions and workflow modules. Each model has its own configuration and environmental specifications.
7-inch industrial smart terminal8-inch vehicle & fixed-mount terminalK80
8-inch · vehicle & equipment workstations
10.1-inch industrial HMI terminalK101
10.1-inch · larger interfaces, positioning & heading
| Model | Screen / resolution | Brightness | RAM / storage | Power | OS versions | Workflow configuration |
|---|---|---|---|---|---|---|
| K70 ↗ | 7″ IPS/AFFS / 720×1280 | 1000 nits | 6GB / 64GB | DC 12V | Android 9 / 10 / 11 / 13 | Optional RFID / industrial interfaces |
| K70S ↗ | 7″ IPS/AFFS / 720×1280 | 1000 nits | 6GB / 64GB | DC 12V | Android 9 / 10 / 11 / 13 | Optional RFID / industrial interfaces |
| RK70 ↗ | 7″ IPS/AFFS / 720×1280 | 1000 nits | 6GB / 64GB | DC 12V | Android 9 / 10 / 11 / 13 | NFC read/write |
| K80 ↗ | 8″ IPS/AFFS / 1200×1920 | 1000 nits | 6GB / 64GB | DC 9–24V / 3A / 27W | Android 9 / 10 / 11 / 13 | Optional RFID / industrial interfaces |
| RK80 ↗ | 8″ IPS/AFFS / 1200×1920 | 1000 nits | 8GB / 128GB | DC 9–24V / 3A / 27W | Android 11 / 13 | NFC read/write |
| K101 ↗ | 10.1″ IPS/AFFS / 1200×1920 | 500 nits | 6GB / 64GB | DC 12V | Android 9 / 10 / 11 / 13 / GMS | Optional RFID / industrial interfaces |
| K101H ↗ | 10.1″ IPS/AFFS / 1200×1920 | 1000 nits | 6GB / 64GB | DC 12V | Android 9 / 10 / 11 / 13 / GMS | Optional RFID / industrial interfaces |
| K101S ↗ | 10.1″ IPS/AFFS / 1920×1200 | 1000 nits | 6GB / 64GB | DC 9–24V / 3A / 27W | Android 11 / 13 | Landscape / optional serial, NFC, RTK, OBD CAN |
| RK101 ↗ | 10.1″ IPS/AFFS / 1200×1920 | 1000 nits | 8GB / 128GB | DC 9–24V / 3A / 27W | Android 11 / 13 | NFC read/write |
| GK101M ↗ | 10.1″ IPS/AFFS / 1200×1920 | 1000 nits | 8GB / 128GB | DC 9–24V / 3A / 27W | Android 9 / 10 / 11 / 13 | UM982 RTK / dual-antenna heading |
Scroll horizontally for the full comparison. Select a model for independent specifications; confirm modules, cables and accessories for the project.

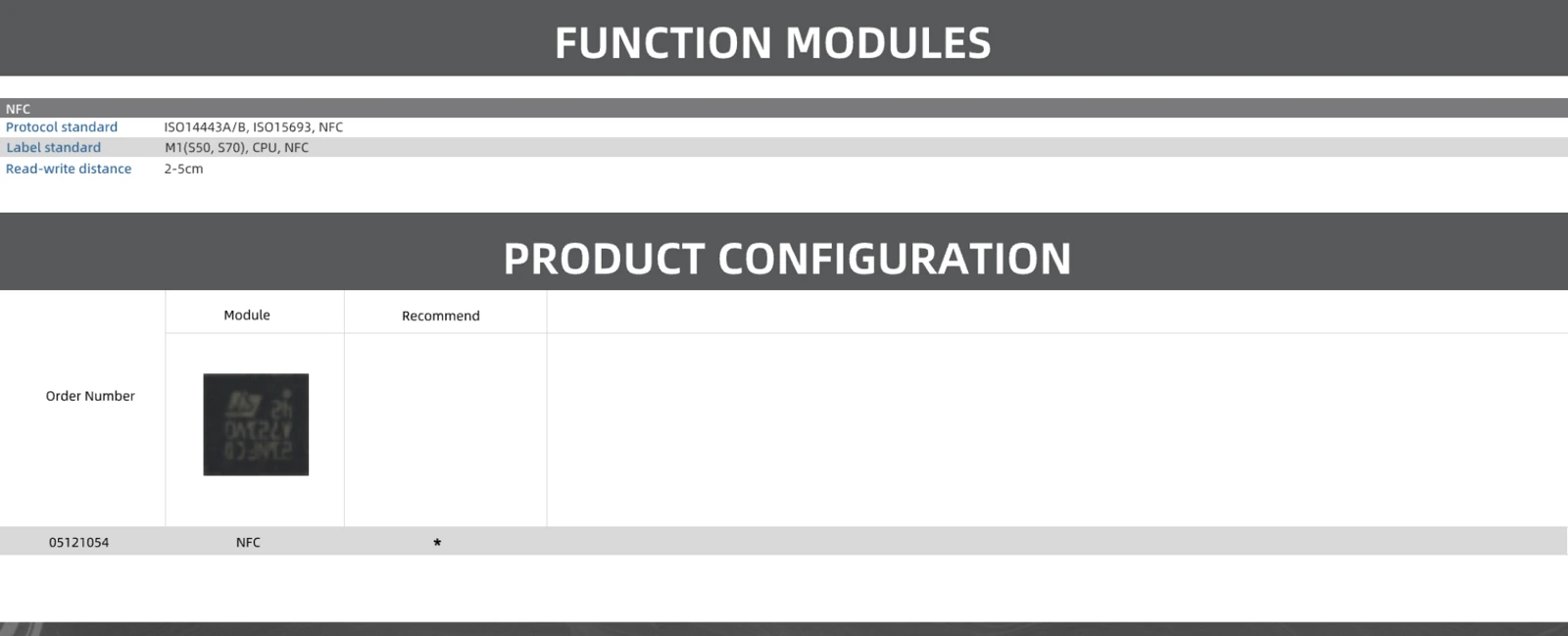

03 / MODULES & INTEGRATION
Connect the display, reading and equipment interfaces.
Review card protocols, authorisation workflows and reading position; validate reading distance and data exchange with your system
| NFC read/write | ISO 14443 A/B / ISO 15693 / NFC |
|---|---|
| Supported cards | M1 S50 / M1 S70 / CPU cards / NFC tags |
| NFC reading distance | 2–5cm |
| Order number | 05121054 |
Confirm modules, interface routing and mounting accessories with the configuration. Optional capabilities are model-specific and do not imply all modules are built in or can be installed together.
04 / TECHNICAL SPECIFICATIONS

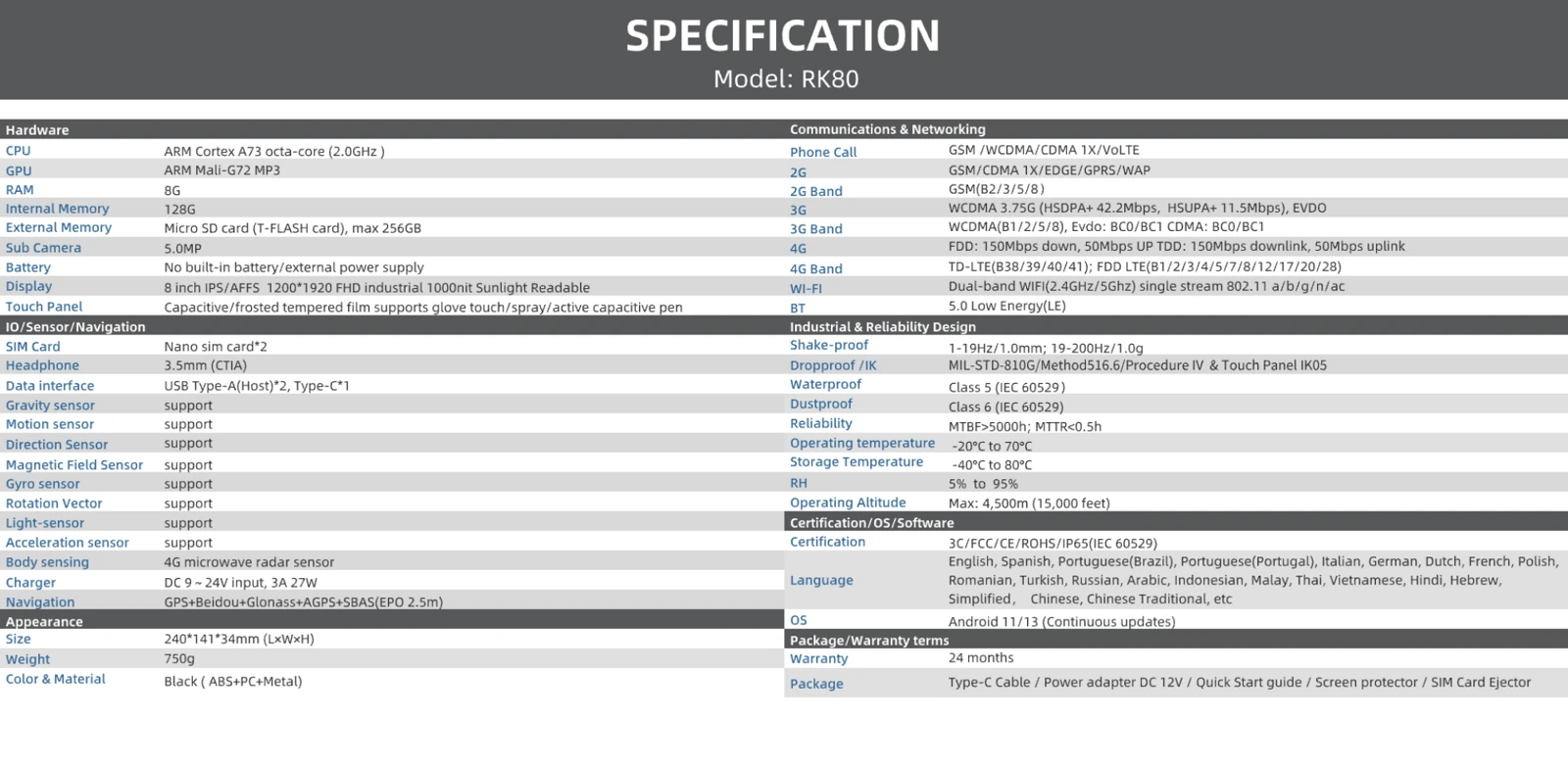

RK80 technical specifications
Review the display, power, environmental ratings and OS versions for this model against deployment conditions.
| CPU | ARM Cortex A73 / Octa-core / 2.0GHz |
|---|---|
| GPU | ARM Mali-G72 MP3 |
| RAM / storage | 8GB / 128GB |
| Expandable storage | Micro SD, max 256GB |
| Display | 8″ IPS/AFFS / 1200×1920 / 1000 nits |
| Touch panel | Capacitive / frosted tempered film / glove touch, spray, active capacitive pen |
| Front camera | 5.0MP |
| Battery & power | No built-in battery / external power supply |
| External power | DC 9–24V / 3A / 27W |
| Data interface | USB Type-A (Host) ×2 / Type-C ×1 |
| SIM / TF slots | Nano SIM ×2, dual standby |
| Headphone | 3.5mm / CTIA |
| Sensors | Gravity / motion / magnetic field / gyroscope / light / acceleration |
| Body sensing | 4G microwave radar sensor |
| Navigation | GPS + GLONASS + BeiDou + AGPS + SBAS (EPO 2.5m) |
| 2G bands | GSM B2 / B3 / B5 / B8 |
| 3G bands | WCDMA B1 / B2 / B5 / B8 |
| 3G data | WCDMA 3.75G / HSDPA+ 42.2Mbps / HSUPA+ 11.5Mbps |
| 4G bands | TD-LTE B38 / B39 / B40 / B41; FDD-LTE B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28 |
| 4G data | FDD / TDD: 150Mbps down / 50Mbps up |
| Wi-Fi | 2.4GHz / 5GHz / 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 / LE |
| Dimensions | 240 × 141 × 34mm |
| Weight | 750g |
| Colour & materials | Black / ABS + PC + metal |
| Water / dust protection | Waterproof class 5 / dustproof class 6 (IEC 60529) |
| Vibration | 1–19Hz / 1.0mm; 19–200Hz / 1.0g |
| Drop / impact | MIL-STD-810G / Method 516.6 / Procedure IV / touch panel IK05 |
| Operating temperature | -20°C to 70°C |
| Storage temperature | -40°C to 80°C |
| Reliability | MTBF >5000h / MTTR <0.5h |
| Relative humidity | 5%–95% (non-condensing) |
| Operating altitude | 4500m max |
| Certification | 3C / FCC / CE / ROHS / IP65 (IEC 60529) |
| OS versions & compatibility | Android 11 / 13 |
| Device warranty | 24 months |
| CDMA / EVDO bands | BC0 / BC1 |
View specification & module sheets ＋
05 / CONFIGURATION & DELIVERY
From configuration to deployment.
Work with product and engineering teams to validate software, modules and operating conditions together.
Enquire about this configuration ↗
Share mounting dimensions, input voltage, peripheral protocols and the software environment for configuration advice.
01 / DEFINE
Define workflow & site
Deployment countries, vehicle or equipment type, display visibility, mounting space and protection requirements.
02 / VALIDATE
Validate software & modules
OS compatibility, applications, tag samples, corrections, power and cable validation.
03 / DEPLOY
Confirm configuration & delivery
Sample results, exact model, accessories, volume and rollout plan.
RK80 selection & system integration
Select RK80 around mounting space, display, touch, software and peripherals. Check power, external interfaces and board configuration, then validate cutouts, cabling and application integration.
For: Equipment manufacturers, automation integrators and industrial software providers
Check model datasheets · Prepare SDK and application interfaces · Discuss your project configuration
